Description:

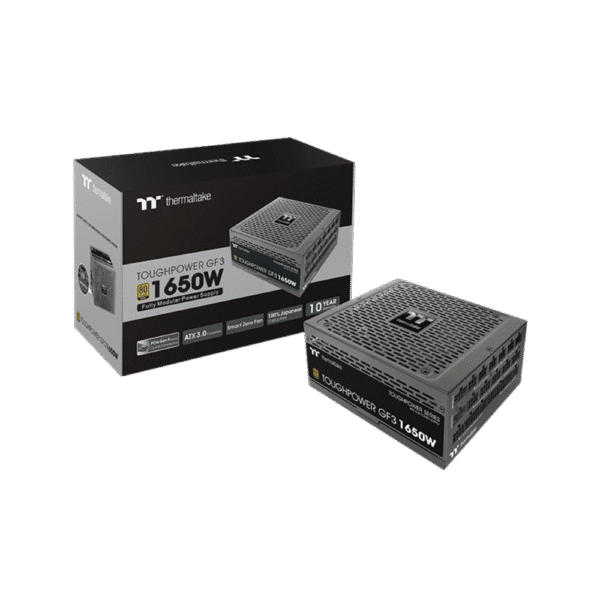

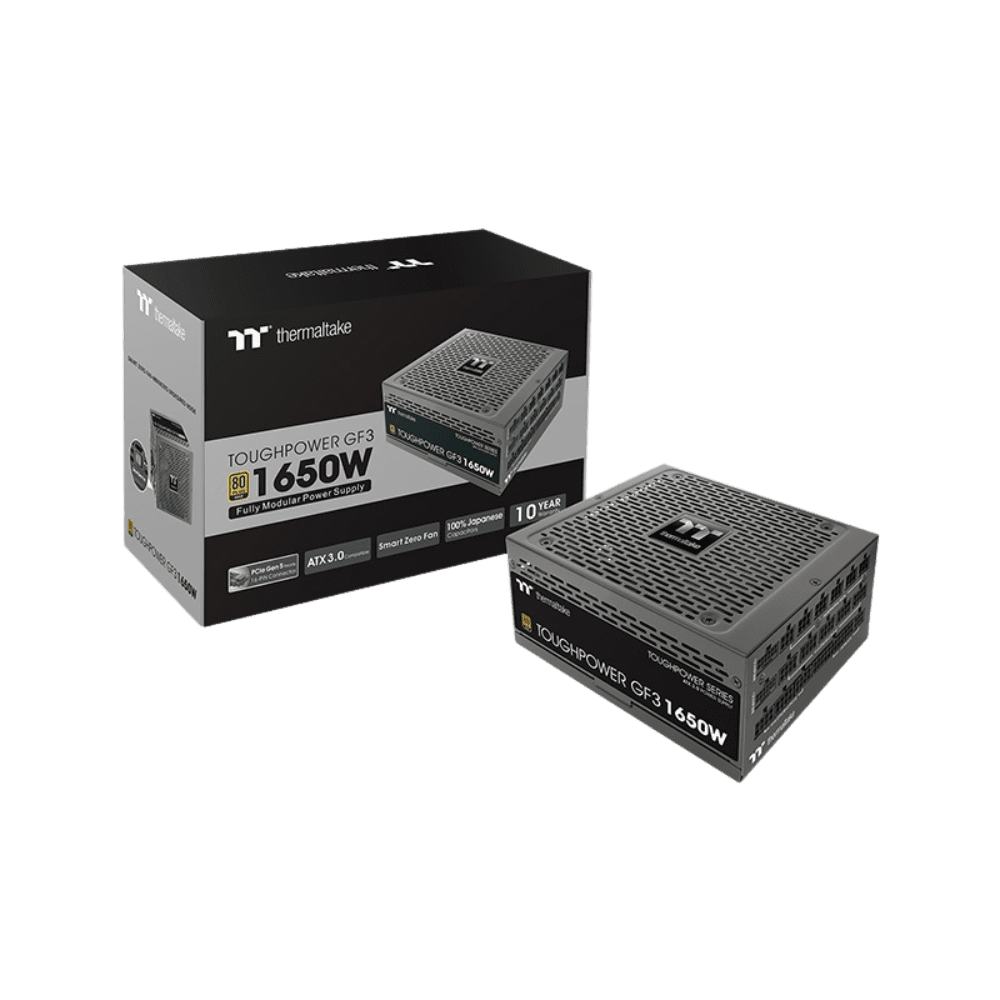

The Thermaltake Toughpower GF3 Gold 1650W TT Premium Edition is engineered to meet the demands of next-generation computing systems. Designed to comply with Intel’s ATX 3.0 specifications, it supports up to 200% power excursion and offers 70% efficiency at low loads, ensuring stable and efficient power delivery even under extreme conditions. The unit features two native PCIe Gen 5.0 12+4 pin connectors, capable of delivering up to 600W each to PCIe 5.0 graphics cards, eliminating the need for adapters. Its high-quality components, including 100% Japanese 105°C capacitors and a single +12V rail with LLC + DC-DC design, ensure stable voltage regulation and compatibility with demanding components. Safety is prioritized with built-in protections such as Over Current Protection (OCP), Over Voltage Protection (OVP), Under Voltage Protection (UVP), Over Power Protection (OPP), Over Temperature Protection (OTP), and Short Circuit Protection (SCP). With a 10-year warranty, the Toughpower GF3 Gold 1650W is a dependable choice for users seeking efficiency and longevity in their power supply unit.

Key Features:

• 80 PLUS Gold Certification: Achieves up to 90% energy efficiency at 115V input.

• ATX 3.0 Compliance: Supports up to 200% power excursion and 70% efficiency at low loads.

• Dual Native PCIe Gen 5.0 12+4 Pin Connectors: Efficiently powers PCIe 5.0 graphics cards with up to 600W each.

• Smart Zero Fan Technology: Operates silently under low loads; fan activates only when needed.

• High-Quality Components: Includes 100% Japanese 105°C capacitors and a single +12V rail with LLC + DC-DC design.

• Comprehensive Protection Mechanisms: Includes OCP, OVP, UVP, OPP, OTP, and SCP.

• 10-Year Warranty: Provides peace of mind and long-term reliability.

Key Specifications:

• Model Number: PS-TPD-1650FNFAGx-4

• Maximum Output Capacity: 1650W

• Form Factor: ATX 3.0 compliant (150mm x 86mm x 180mm)

• Weight: ~1.63–1.72 kg

• Input Voltage: 100–240V~, 50–60Hz, 13A / 6.5A

• Cooling System: 140mm hydraulic bearing fan with Smart Zero Fan technology

• Efficiency: 80 PLUS® Gold at 115V AC input

• MTBF:

  100,000 hours

• Protection Features: OCP, OVP, UVP, OPP, OTP, SCP

• Connectors:

  • 1 x Main Power (24 Pin)

  • 2 x ATX 12V (4+4 Pin)

  • 2 x PCIe (6+2 Pin)

  • 2 x PCIe (12+4 Pin)

  • 4 x SATA (5 Pin)

  • 4 x Peripheral
