Description:

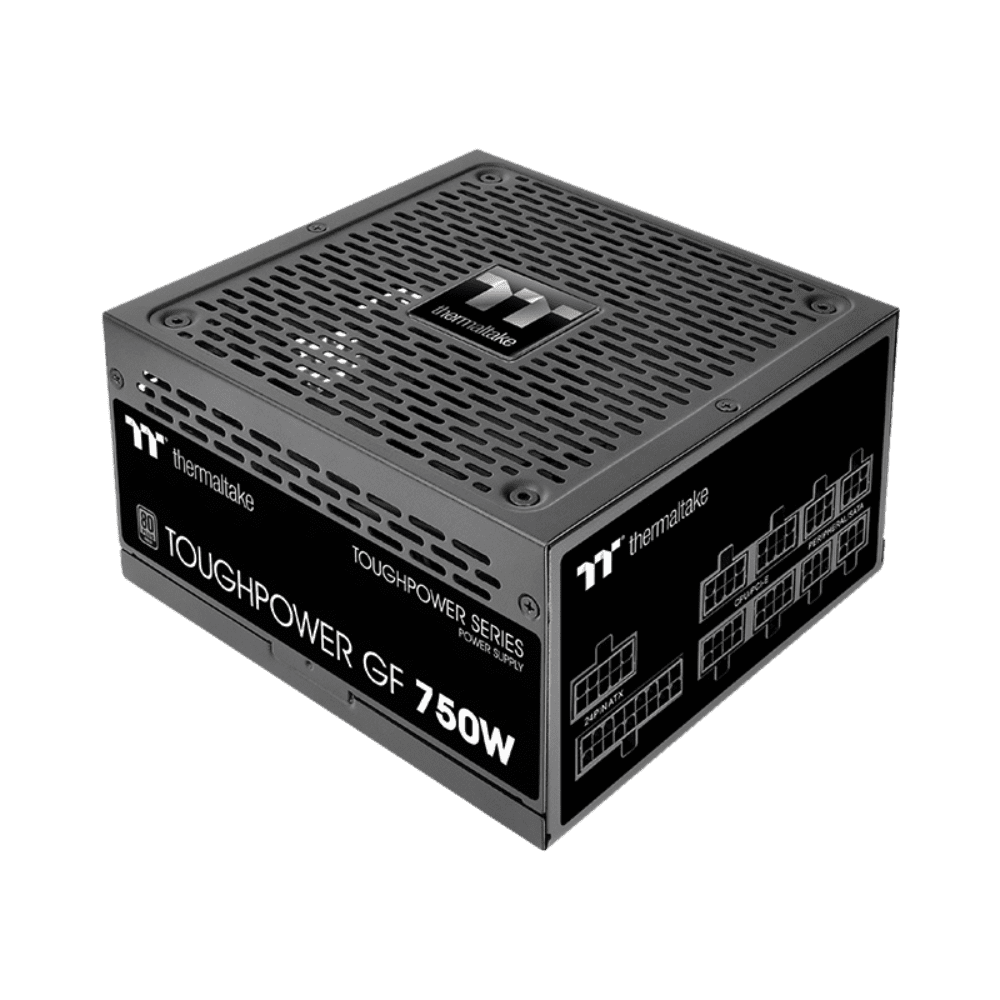

The Thermaltake Toughpower GF 750W Power Supply is engineered to meet the demands of modern computing systems. Designed to comply with the ATX 3.1 standard, it supports up to 200% power excursion and offers 60% efficiency at low loads, ensuring stable and efficient power delivery even under extreme conditions. The unit features a 140mm fluid dynamic bearing (FDB) fan, which operates silently under low loads and activates only when necessary. Its high-quality components, including a +12V rail and DC-to-DC circuit design, ensure stable voltage regulation and compatibility with demanding components. Safety is prioritized with built-in protections such as Over Current Protection (OCP), Over Voltage Protection (OVP), Under Voltage Protection (UVP), Over Power Protection (OPP), Over Temperature Protection (OTP), and Short Circuit Protection (SCP). With a 10-year warranty, the Toughpower GF 750W is a dependable choice for users seeking efficiency and longevity in their power supply unit.

Key Features:

• 80 PLUS Gold Certification: Achieves up to 90% energy efficiency at 115V input.

• ATX 3.1 Compliance: Supports up to 200% power excursion and 60% efficiency at low loads.

• Native PCIe 12V-2×6 (12+4 pin) Connector: Efficiently powers PCIe 12+4 pin graphics cards.

• 140mm Fluid Dynamic Bearing (FDB) Fan: Operates silently under low loads; fan activates only when needed.

• High-Quality Components: Ensures stable voltage regulation and compatibility with demanding components.

• Comprehensive Protection Mechanisms: Includes OCP, OVP, UVP, OPP, OTP, and SCP.

• 10-Year Warranty: Provides peace of mind and long-term reliability.

Key Specifications:

• Model Number: PS-TPD-0750FNFAGU-2

• Maximum Output Capacity: 750W

• Form Factor: ATX

• Dimensions: 150mm (W) x 86mm (H) x 140mm (D)

• Input Voltage: 100–240V~

• Input Current: 10A Max.

• Input Frequency Range: 50Hz/60Hz

• Cooling System: 140mm Fluid Dynamic Bearing (FDB) Fan

• Efficiency: 80 PLUS® Gold at 115V AC input

• MTBF:

  100,000 hours

• Protection Features: OCP, OVP, UVP, OPP, OTP, SCP

• Connectors:

  • 1 x Main Power (24 Pin)

  • 2 x ATX 12V (4+4 Pin)

  • 2 x PCIe (6+2 Pin)

  • 4 x SATA (5 Pin)

  • 4 x Peripheral
