Description:

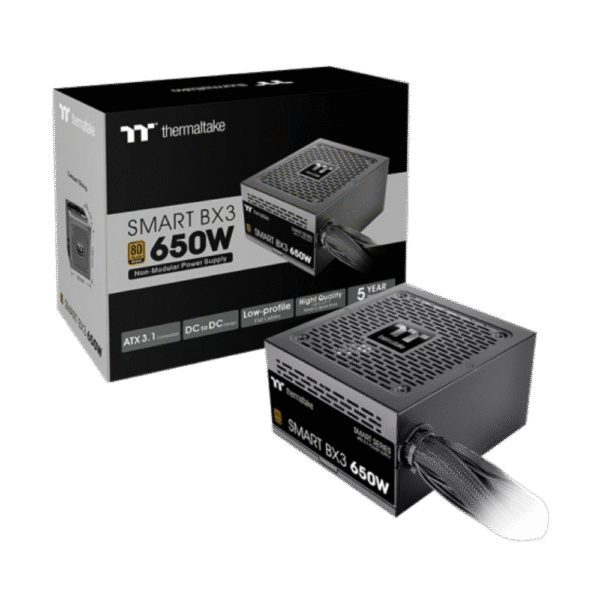

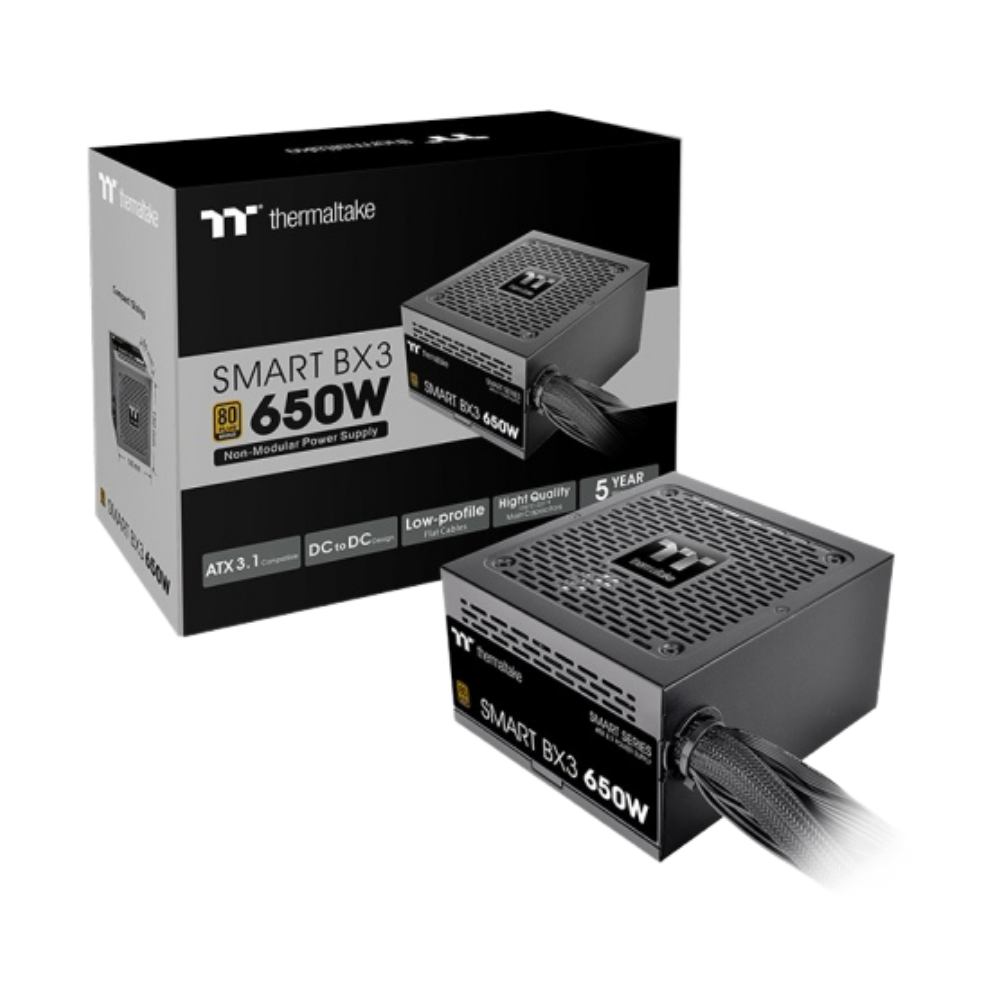

The Thermaltake Smart BX3 650W 80 PLUS Bronze ATX 3.1 Non-Modular Power Supply is designed to provide reliable and efficient power for your system. With 80 PLUS Bronze certification, it ensures energy efficiency up to 85% at 50% load, reducing electricity consumption and operational costs. The 120mm fluid dynamic bearing fan offers superior airflow while maintaining quiet operation, thanks to the Smart Zero Fan mode that activates the fan only when the load reaches a certain percentage. The power supply features a high-quality 105°C main capacitor, a powerful single +12V rail, and a DC to DC circuit design for stable and efficient power delivery. Built-in industrial-grade protections, including OCP, OVP, UVP, OPP, OTP, and SCP, safeguard your components against potential damage.

Key Features:

• 80 PLUS Bronze Certification: Achieves up to 85% energy efficiency at 50% load.

• ATX 3.1 Compliance: Supports up to 200% power excursion and 60% low load efficiency.

• 120mm Fluid Dynamic Bearing Fan: Provides superior airflow and quiet operation.

• Smart Zero Fan Mode: Fan operates only under higher loads to minimize noise.

• High-Quality 105°C Main Capacitor: Enhances durability and reliability.

• Single +12V Rail & DC to DC Design: Delivers stable and efficient power.

• Comprehensive Protection: Includes OCP, OVP, UVP, OPP, OTP, and SCP.

Key Specifications:

• Model: SPD-0650AH2NLB-3

• Max Output Capacity: 650W

• Input Voltage: 100–240V~

• Input Current: 15A–6A

• Input Frequency Range: 50Hz/60Hz

• Operating Temperature: 5°C to +45°C

• Cooling System: 120mm Fluid Dynamic Bearing Fan

• Form Factor: ATX 3.1

• Modular: Non-Modular

• Protection: OCP, OVP, UVP, OPP, OTP, SCP

• Warranty: 5 Years
