Description

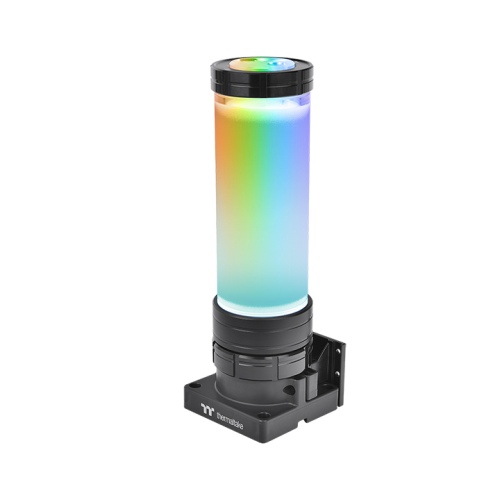

The Pacific PR32-D5 Plus combines a robust D5 pump with a large 400ml reservoir, making it one of Thermaltake’s most substantial offerings in their cooling lineup. The 360° rotary cap allows for easy adjustment of G1/4 thread ports even after installation, providing flexibility in tubing routing. The integrated 12 addressable RGB LEDs offer 16.8 million color combinations, controllable via Thermaltake’s TT RGB Plus software, Razer Chroma, and Amazon Alexa. The unit can withstand up to 50 PSI pressure and supports mounting on a standard stand or directly onto a fan using the included bracket.

Key Features

• 360° Rotary Cap: Adjust G1/4 thread ports after installation for flexible tubing routing.

• 12 Addressable RGB LEDs: 16.8 million color combinations with TT RGB Plus software support.

• High-Performance D5 Pump: Flow rate of 1,135 L/h and 15ft (4.5m) maximum head.

• Large 400ml Reservoir: Maximum pressure tolerance of 50 PSI.

• Multiple Installation Options: Mount on a stand or directly onto a fan using the included bracket.

Key Specifications

• Dimensions: 74.8mm (L) x 74.8mm (W) x 267mm (H)

• Reservoir Capacity: 400ml

• Pump Speed Levels: 5 levels (1,800–4,800 RPM)

• Flow Rate: 1,135 L/h

• Maximum Head: 15ft (4.5m)

• Maximum Pressure: 50 PSI

• Thread Ports: G1/4

• Material: Aluminum (body), PMMA (reservoir), POM (top cap)

• Compatibility: Intel LGA 2066/2011/115x, AMD AM4/FM2/FM1/AM3+/AM3/AM2+/AM2

• Software Compatibility: TT RGB Plus 2.0, Razer Chroma, Amazon Alexa
