Description

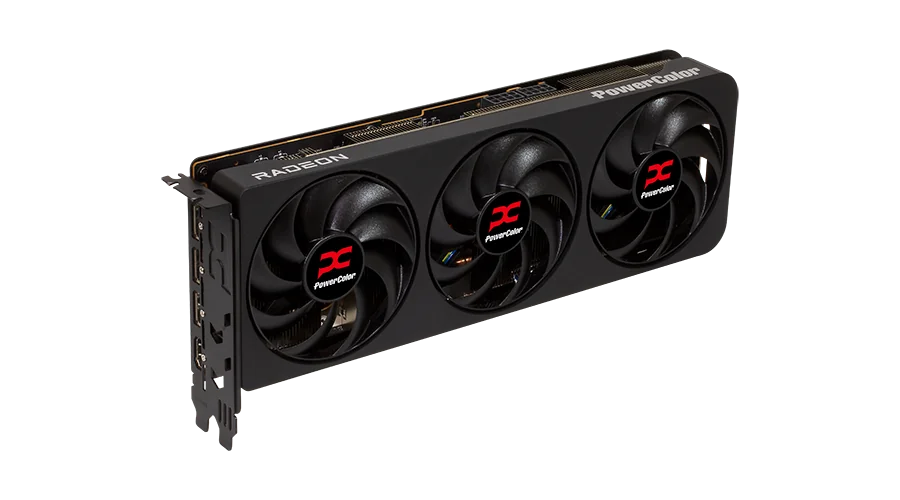

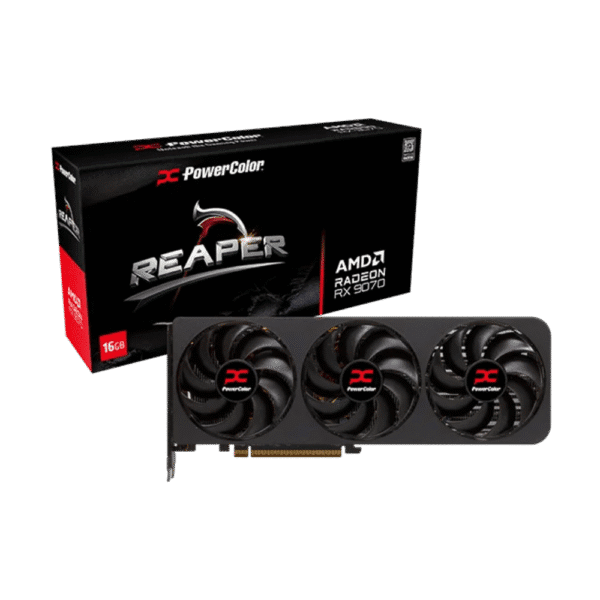

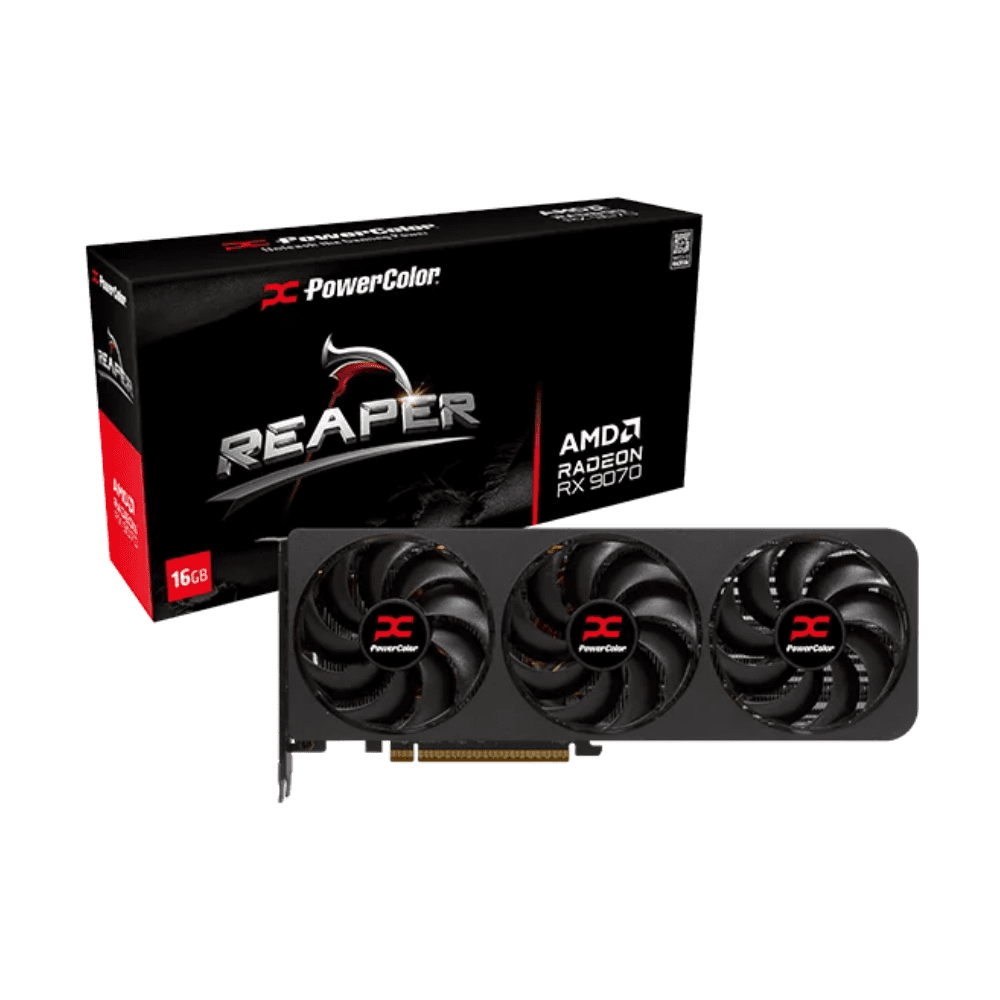

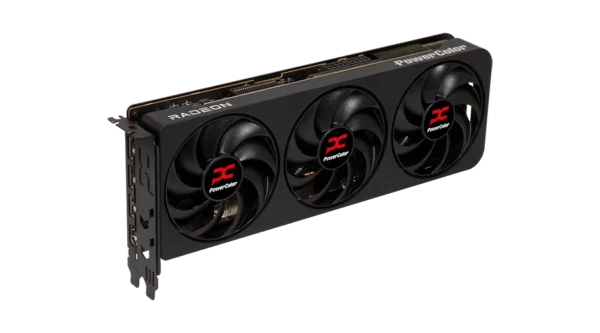

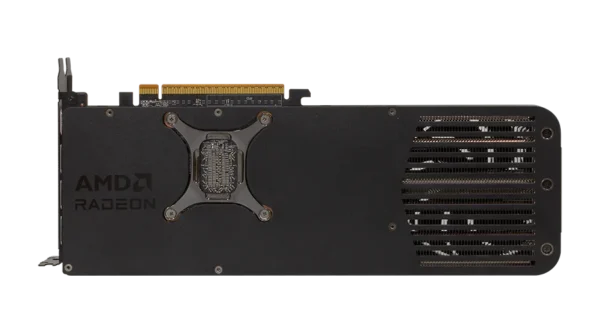

Designed for gamers seeking high performance without breaking the bank, the PowerColor Reaper RX 9070 combines AMD’s RDNA 4 architecture with a robust triple-fan cooler in a dual-slot design. Built around the Radeon RX 9070 GPU, it includes 3,584 stream processors, a game clock up to 2,070 MHz, and a boost clock up to 2,520 MHz. Core memory features 16 GB of GDDR6 memory on a 256‑bit bus, clocked at 20.0 Gbps, delivering around 644 GB/s of bandwidth. Connectivity includes one HDMI 2.1b port and three DisplayPort 2.1a ports, supporting up to four displays at 8K resolution. The card requires dual 8‑pin power connectors, with a recommended system power of 650 W. Compatible with AMD features like Smart Access Memory, Eyefinity, FreeSync, and FSR 4, this card offers excellent value for high‑resolution gaming or multitasking workloads.

Key Features

• GPU Architecture: AMD Radeon RX 9070 (RDNA 4)

• Stream Processors: 3,584 units (56 Compute Units)

• Clock Speeds:

  • Game Clock up to 2,070 MHz

  • Boost Clock up to 2,520 MHz

• Memory: 16 GB GDDR6 at 20.0 Gbps, 256‑bit interface (~644 GB/s)

• Interface: PCIe 5.0 x16

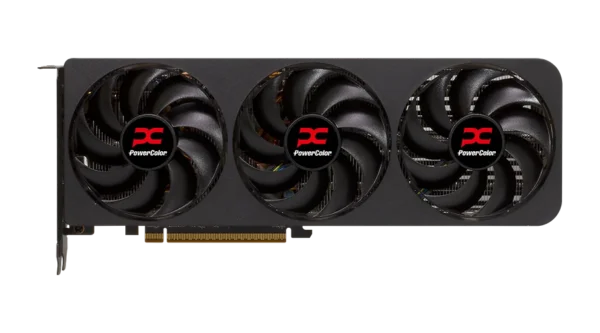

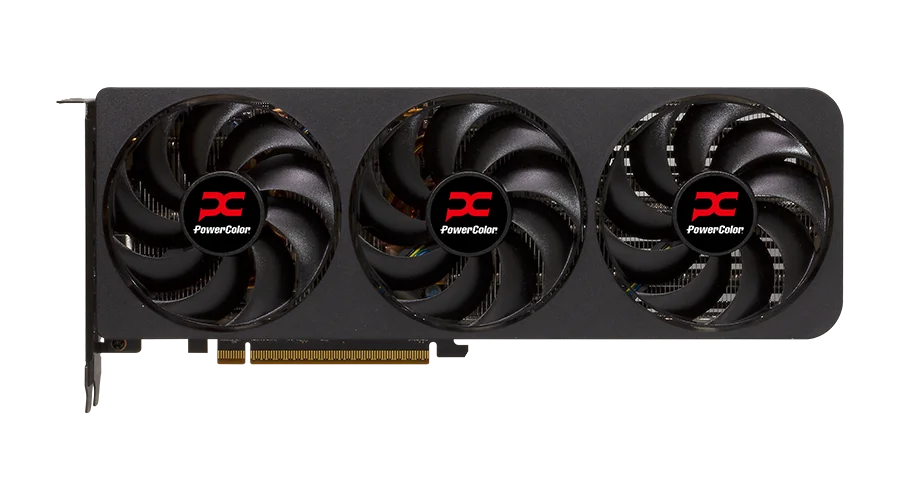

• Cooling & Design: Triple-fan cooling, dual-slot form factor, silent idle mode support

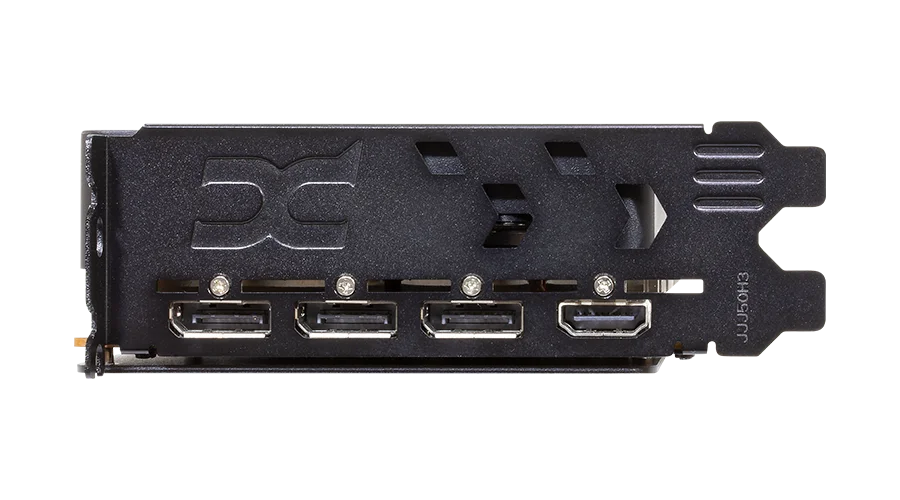

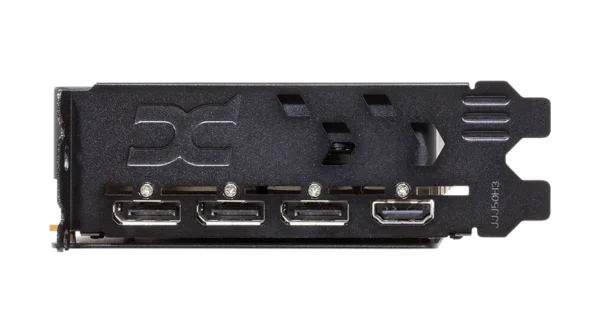

• Display Outputs: 1× HDMI 2.1b, 3× DisplayPort 2.1a

• Power Requirements: Dual 8‑pin PCIe connectors; 650 W PSU minimum

• Features: DirectX 12, OpenGL 4.6, AMD Stream and Eyefinity support, Smart Access Memory, FSR 4 compatible

Key Specifications

• GPU Model: Radeon RX 9070 (Navi 48)

• Compute Units / Stream Processors: 56 CUs / 3,584 SPs

• Game Clock: Up to 2,070 MHz

• Boost Clock: Up to 2,520 MHz

• Memory Type & Size: 16 GB GDDR6, 20 Gbps, 256‑bit

• Memory Bandwidth: ~644 GB/s

• Power Plugs: 2× 8-pin PCIe

• Total Board Power (TDP): ~220 W; recommended PSU 650 W

• Dimensions: ~289 × 111 × 41 mm (without bracket); ~304 × 127 × 42 mm with bracket

• Slot Width: 2-slot design

• Supported APIs & Features: DirectX 12, OpenGL 4.6, FreeSync, FSR 4, Smart Access Memory, Eyefinity support
