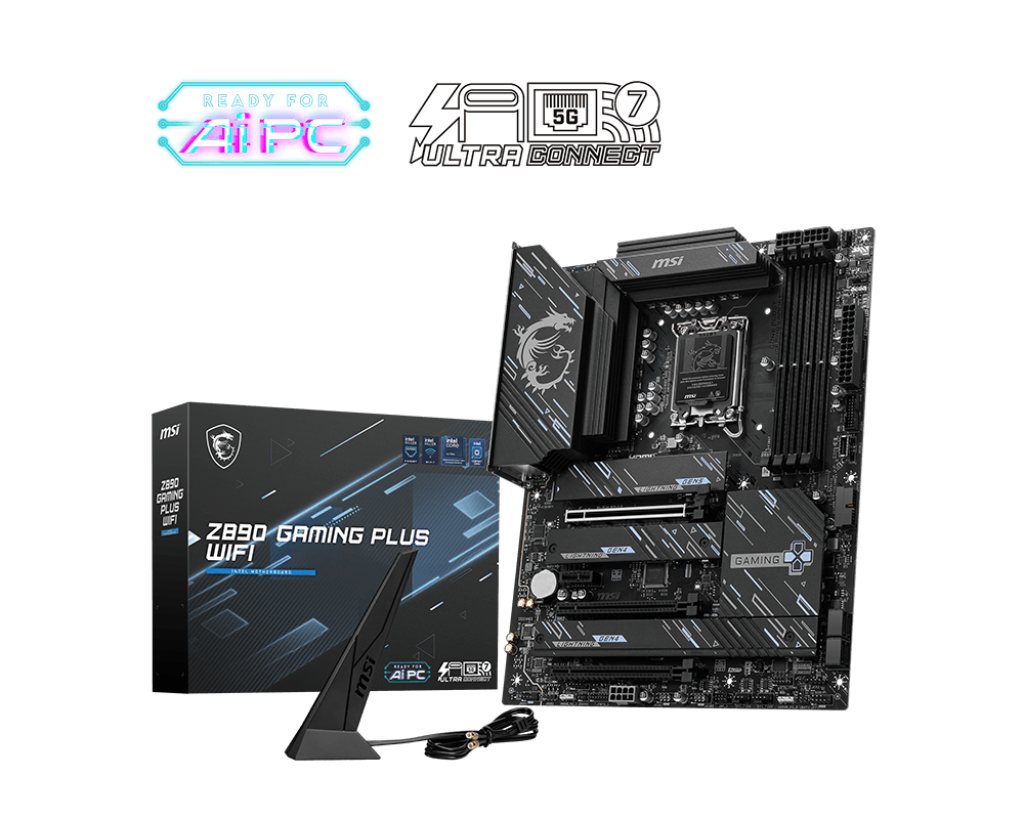

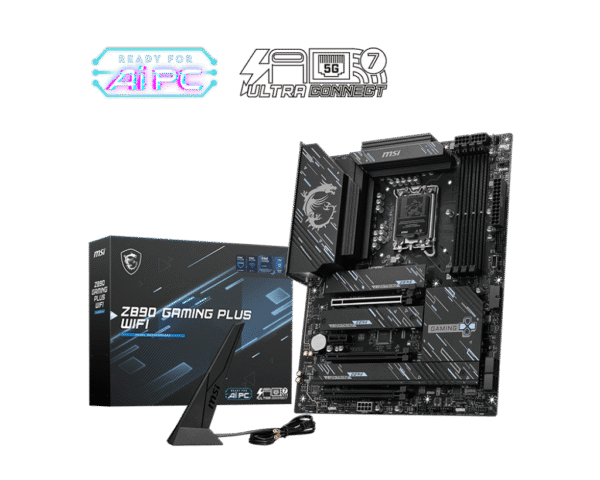

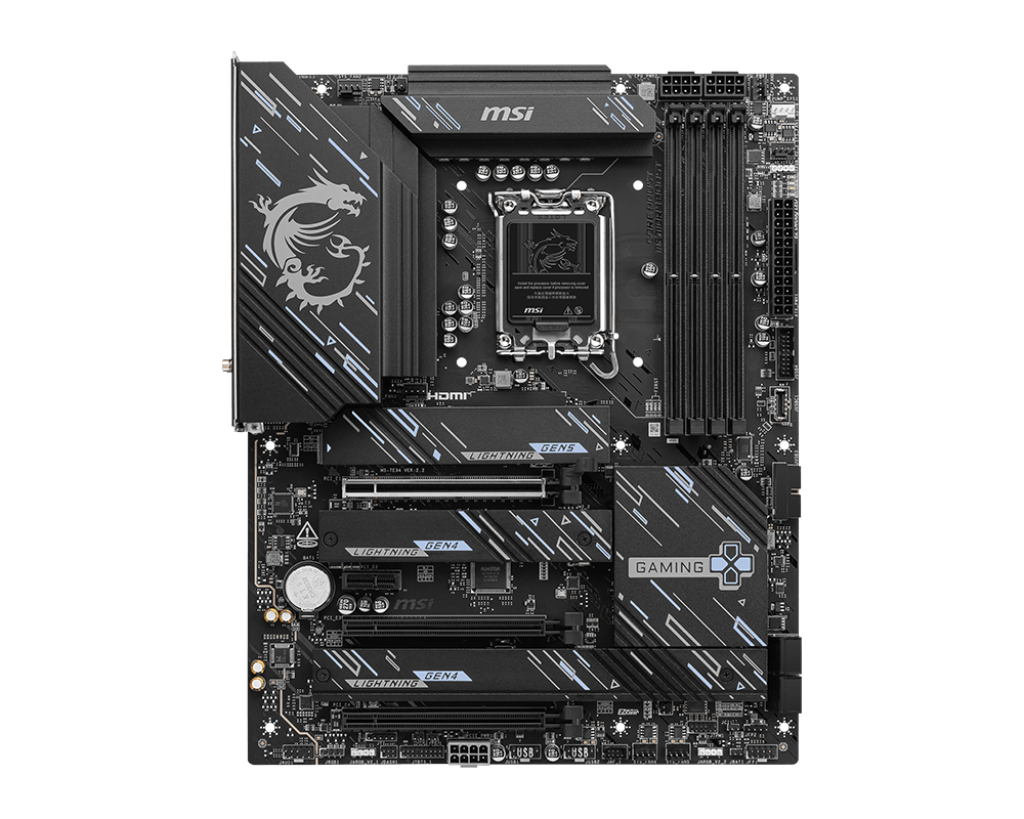

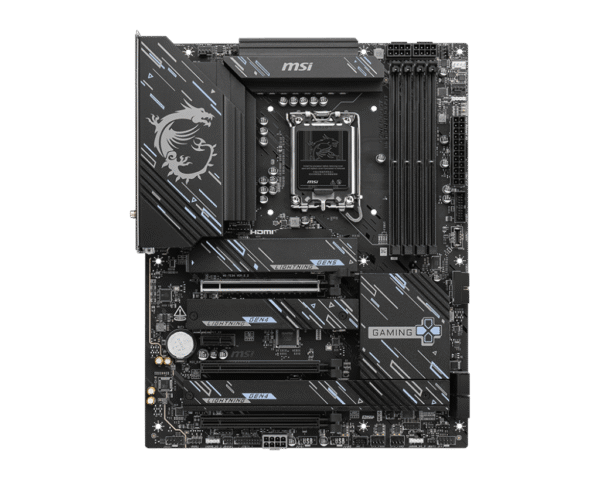

Product Description – MSI Z890 GAMING PLUS WIFI Motherboard

The MSI Z890 GAMING PLUS WIFI motherboard is engineered to power the next generation of gaming and high-performance computing. Built around the robust Intel Z890 chipset and supporting Intel’s LGA 1851 socket, it’s ready for 14th and 13th Gen Intel Core processors, delivering cutting-edge performance, extreme overclocking support, and the latest in connectivity.

Designed for gamers, creators, and enthusiasts alike, this motherboard features DDR5 memory support with overclocking capability beyond 7800MHz, ensuring ultra-fast responsiveness and bandwidth for multitasking and heavy workloads. With four M.2 Gen4 slots and six SATA ports, it offers versatile storage expansion, while PCIe 5.0 support enables next-gen GPU compatibility and lightning-fast data transfer rates.

The MSI Z890 GAMING PLUS WIFI doesn’t just perform — it also looks the part, featuring MSI’s signature Mystic Light RGB lighting, customizable through software to sync with other compatible components. The enhanced thermal design includes extended heatsinks and M.2 Shield Frozr to keep your system cool even under intense loads.

Connectivity is modern and fast, including 2.5G LAN, Wi-Fi 7, and Bluetooth 5.4, ensuring stable online gaming, fast downloads, and seamless wireless device integration. With a pre-installed I/O shield, reinforced PCIe Steel Armor, and user-friendly BIOS features like Flash BIOS Button, this motherboard is designed to make building and upgrading easier than ever.

Whether you’re building a gaming powerhouse or a workstation beast, the MSI Z890 GAMING PLUS WIFI provides the performance, stability, and features required to push your setup to the limit.

Key Features – MSI Z890 GAMING PLUS WIFI

• Next-Gen Performance: Supports Intel 14th and 13th Gen CPUs on LGA 1851 with power delivery tuned for extreme performance and gaming.

• DDR5 Ready: High-speed memory support with up to 192GB DDR5 RAM and overclocking capabilities beyond 7800 MHz.

• PCIe 5.0 & Gen4 M.2: Lightning-fast GPU and NVMe SSD performance with reinforced slots and multiple M.2 Shield Frozr cooling.

• Wi-Fi 7 & 2.5G LAN: Advanced networking for ultra-low latency gaming and stable online experience.

• Gaming-Grade Audio: Enhanced onboard audio powered by Realtek ALC897 for immersive sound with studio-level clarity.

• Mystic Light RGB: Full RGB lighting control with synced effects across all compatible MSI components.

• Premium Build Quality: Robust PCB, heatsinks, and reinforced PCIe slots for durability and long-lasting performance.

• User-Friendly BIOS & Features: Easy BIOS flashback, debug LEDs, and intuitive MSI Click BIOS 5 for effortless setup and tuning.

• Future-Proof Connectivity: Loaded with USB 3.2 Gen2x2 Type-C, HDMI 2.1, DisplayPort 1.4, and more.

Key Specifications – MSI Z890 GAMING PLUS WIFI

• Chipset: Intel Z890

• CPU Socket: LGA 1851

• Supported CPUs: Intel 14th / 13th Gen Core, Pentium Gold, and Celeron processors

• Form Factor: ATX

• Memory Support:

  • DDR5 memory support (dual channel)

  • Up to 192GB total capacity

  • Supports DDR5 speeds up to 7800+ MHz (OC)

• Expansion Slots:

  • 1 x PCIe 5.0 x16 (with Steel Armor)

  • 1 x PCIe 4.0 x16

  • 2 x PCIe 3.0 x1

• Storage Options:

  • 4 x M.2 Gen4 x4 slots (with M.2 Shield Frozr)

  • 6 x SATA 6Gb/s ports

• Graphics Output:

  • 1 x HDMI 2.1

  • 1 x DisplayPort 1.4

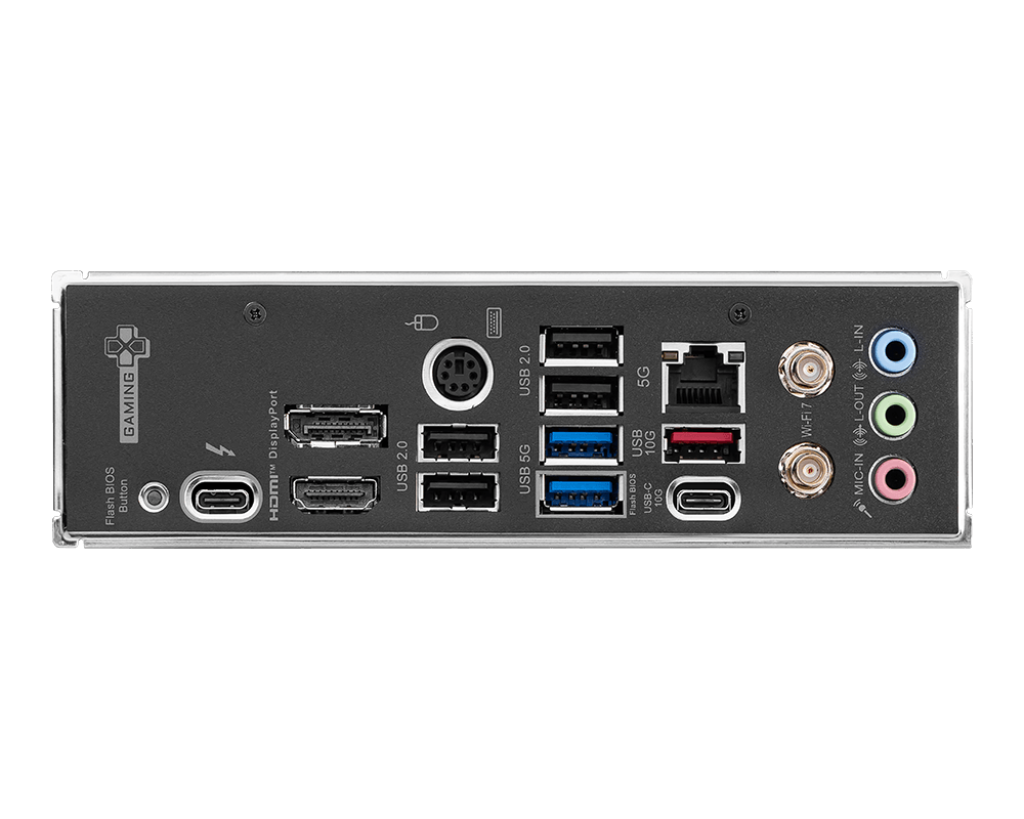

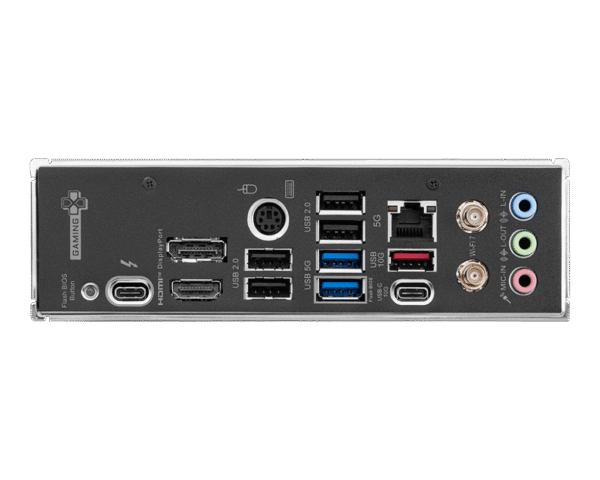

• USB Ports:

  • Rear I/O:

    • 1 x USB 3.2 Gen 2×2 Type-C

    • 3 x USB 3.2 Gen 2 Type-A

    • 4 x USB 2.0

  • Internal Headers:

    • 1 x USB 3.2 Gen 1 header (supports 2 ports)

    • 1 x USB 2.0 header (supports 2 ports)

• Networking:

  • Intel 2.5G LAN

  • Wi-Fi 7 (802.11be)

  • Bluetooth 5.4

• Audio:

  • Realtek ALC897 7.1-Channel High Definition Audio

• Other Features:

  • Mystic Light RGB + RGB/ARGB headers

  • Pre-installed I/O shield

  • Flash BIOS Button + Clear CMOS

  • EZ Debug LED

  • Reinforced PCIe slots
