Description

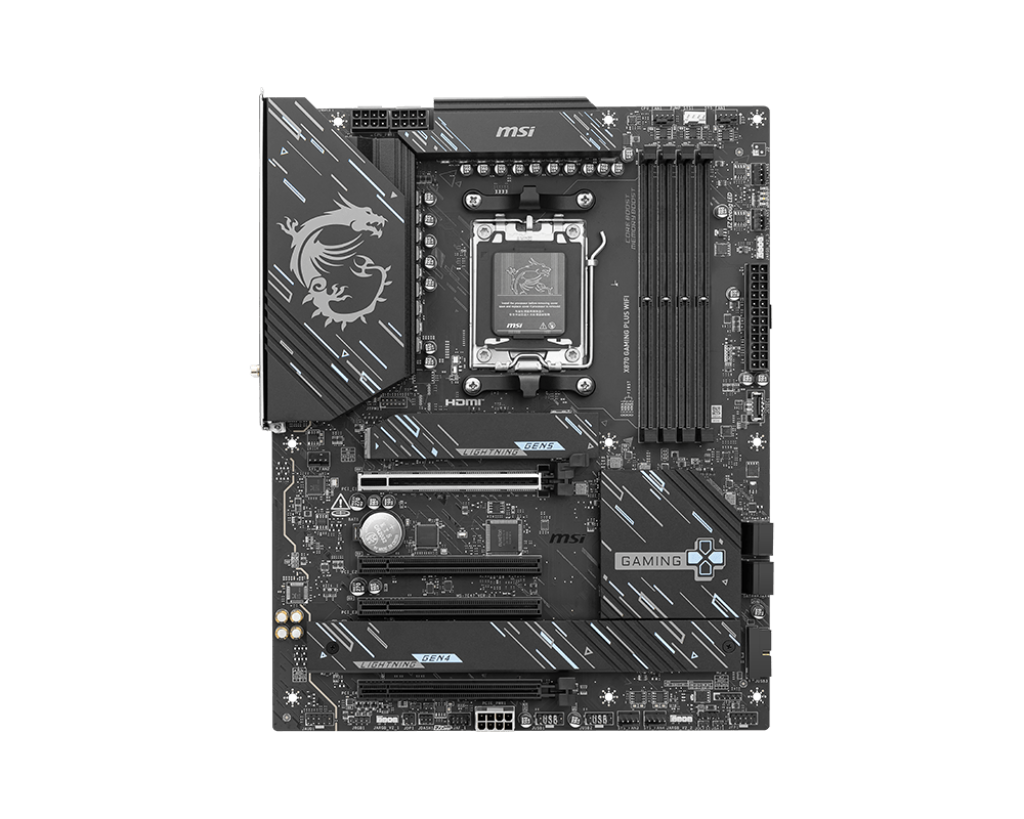

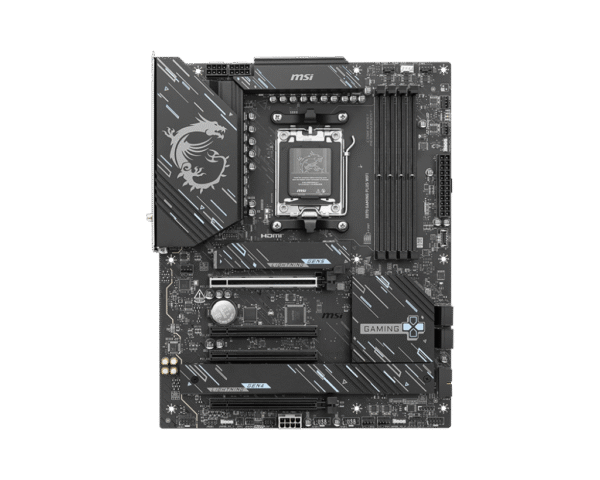

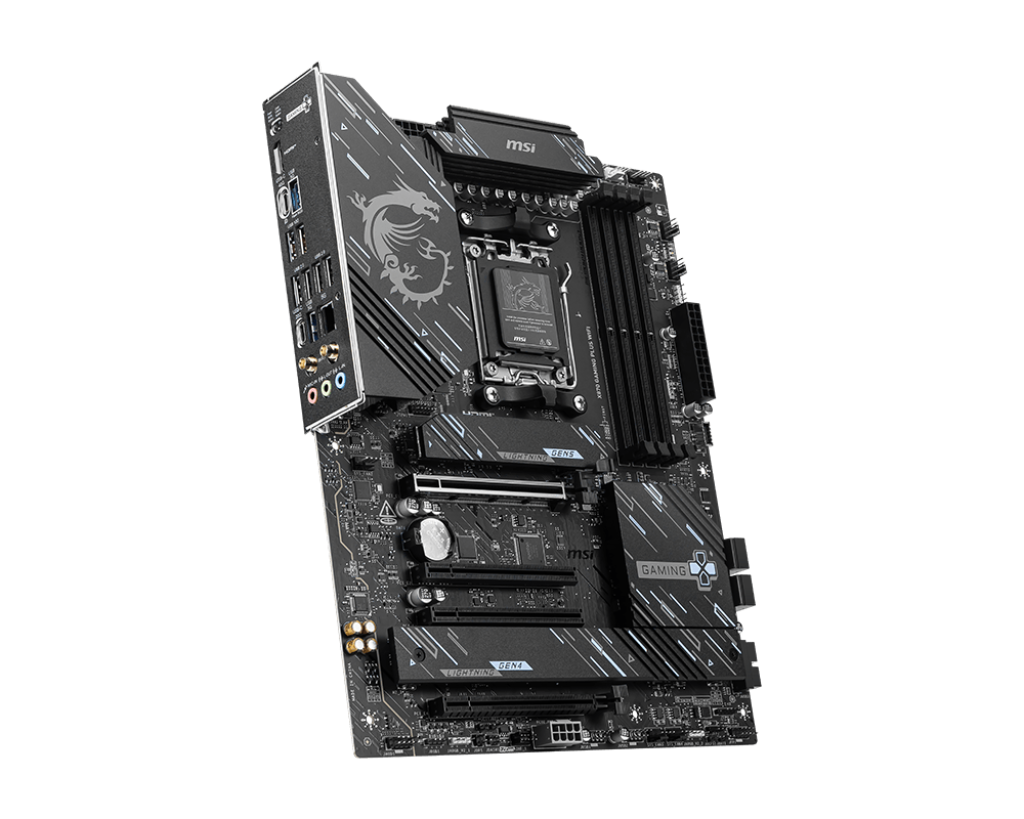

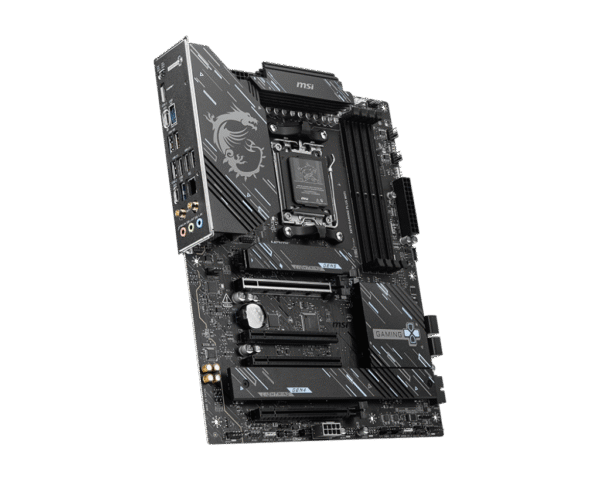

The MSI X870 GAMING PLUS WIFI DDR5 Motherboard is engineered for enthusiasts seeking top-tier performance and connectivity. Built on the AMD X870 chipset and supporting the latest AMD Ryzen™ 7000, 8000, and 9000 series processors via the AM5 socket, it offers advanced features including DDR5 memory support up to 256GB, PCIe 5.0 for next-gen GPUs and storage, and comprehensive networking options with Wi-Fi 7 and 5G LAN.

Designed with a 14+2+1 Duet Rail Power System and enhanced cooling solutions like the FROZR system and extended heatsinks, it ensures stable power delivery and thermal efficiency. The motherboard also incorporates MSI’s EZ DIY features, such as tool-less M.2 installation and EZ PCIe Release, facilitating a user-friendly building experience.

Key Features

• CPU Support: AMD Ryzen™ 7000, 8000, and 9000 Series Desktop Processors (Socket AM5)

• Chipset: AMD X870

• Memory: 4x DDR5 DIMM slots, up to 256GB, speeds up to 8200+ MT/s (OC)

• Expansion Slots:

  • 1x PCIe 5.0 x16

  • 1x PCIe 4.0 x16 (x4 mode)

  • 2x PCIe 3.0 x16 (x1 mode)

• Storage Options:

  • 3x M.2 slots (1x PCIe 5.0 x4, 2x PCIe 4.0 x4)

  • 4x SATA 6Gb/s ports

• Networking:

  • Realtek 5Gbps LAN

  • Wi-Fi 7 (802.11be)

  • Bluetooth 5.4

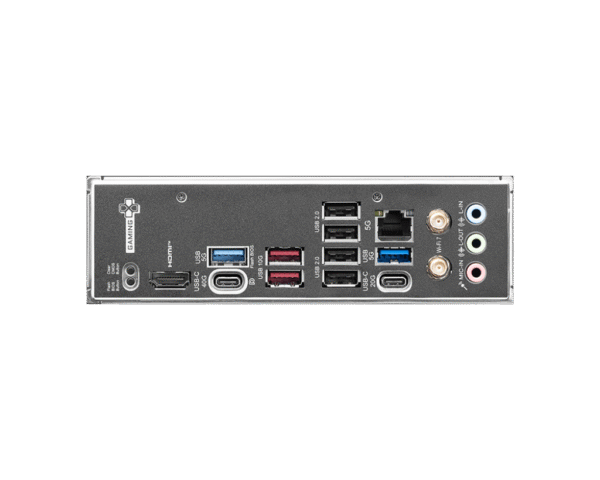

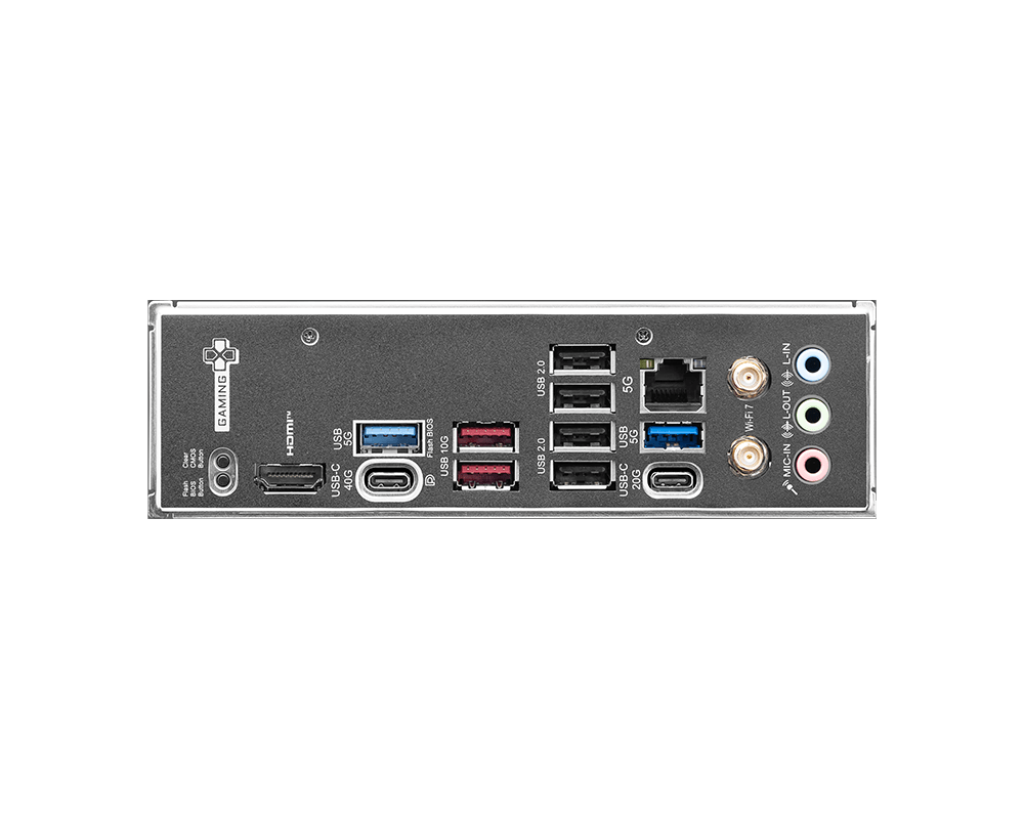

• Rear I/O Ports:

  • 1x USB4 Type-C (40Gbps)

  • 1x USB 3.2 Gen 2×2 Type-C (20Gbps)

  • 2x USB 3.2 Gen 2 Type-A (10Gbps)

  • 2x USB 3.2 Gen 1 Type-A (5Gbps)

  • 4x USB 2.0 Type-A

  • 1x HDMI 2.1

  • 1x 5Gbps LAN port

  • 2x Wi-Fi antenna connectors

  • Audio jacks and Optical S/PDIF Out

• Audio: Realtek ALC4080 Codec, 7.1-channel HD Audio

• Form Factor: ATX (30.5 cm x 24.4 cm)

• Special Features:

  • EZ M.2 Clip II and Shield FROZR II

  • EZ PCIe Release

  • Pre-installed I/O shield

  • MSI Center and Game Boost support

Key Specifications

• CPU Socket: AM5

• Chipset: AMD X870

• Memory Support: DDR5 4800–8200+ MT/s (OC), up to 256GB

• Expansion Slots:

  • 1x PCIe 5.0 x16

  • 1x PCIe 4.0 x16 (x4 mode)

  • 2x PCIe 3.0 x16 (x1 mode)

• Storage Interfaces:

  • 3x M.2 slots (1x PCIe 5.0 x4, 2x PCIe 4.0 x4)

  • 4x SATA 6Gb/s ports

• LAN: Realtek 5Gbps Ethernet

• Wireless: Wi-Fi 7, Bluetooth 5.4

• USB Ports:

  • Rear: 1x USB4 Type-C (40Gbps), 1x USB 3.2 Gen 2×2 Type-C (20Gbps), 2x USB 3.2 Gen 2 Type-A (10Gbps), 2x USB 3.2 Gen 1 Type-A (5Gbps), 4x USB 2. …

  • Internal Headers: USB 3.2 Gen 2×2 Type-C, USB 3.2 Gen 1, USB 2.0

• Audio: Realtek ALC4080 Codec, 7.1-channel HD Audio

• Form Factor: ATX (30.5 cm x 24.4 cm)

• Power Connectors: 24-pin ATX main, 2x 8-pin ATX12V

• Special Features:

  • EZ M.2 Clip II and Shield FROZR II

  • EZ PCIe Release

  • Pre-installed I/O shield

  • MSI Center and Game Boost support
