Description

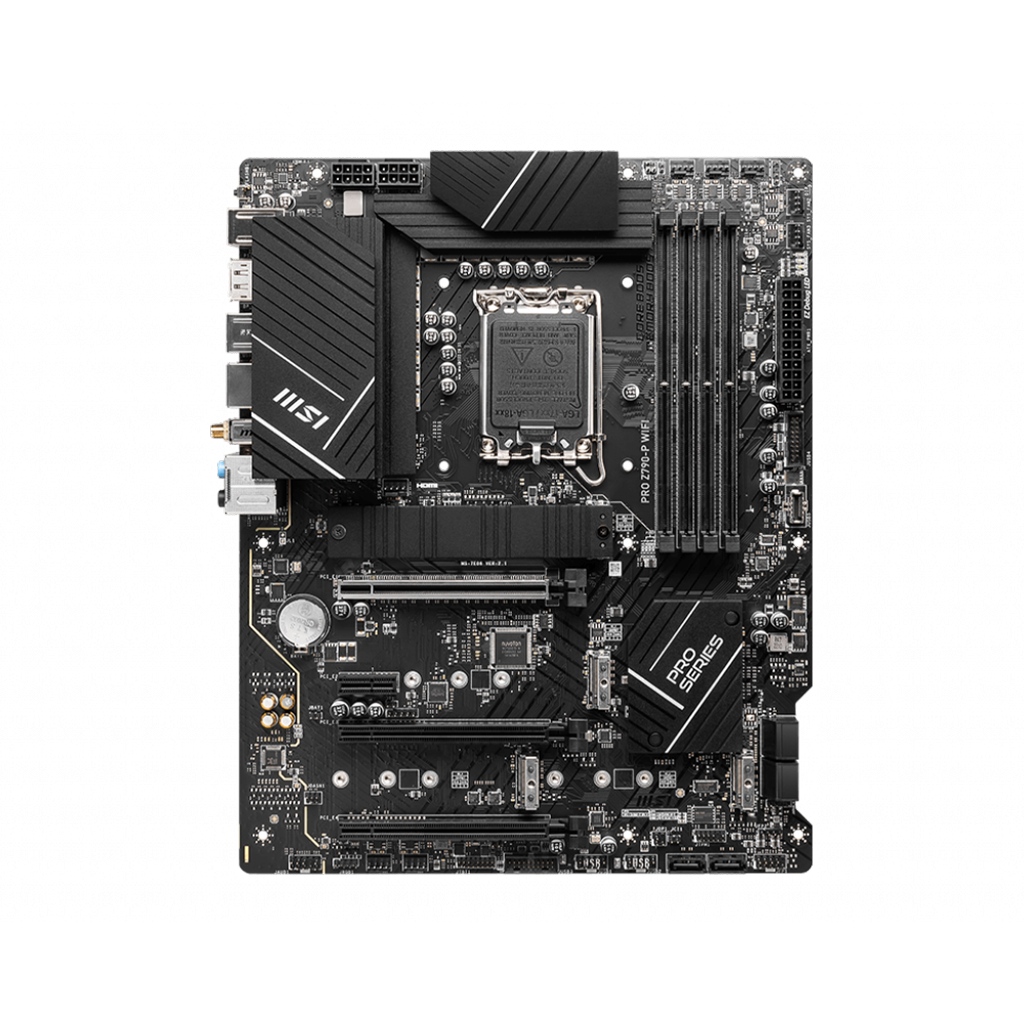

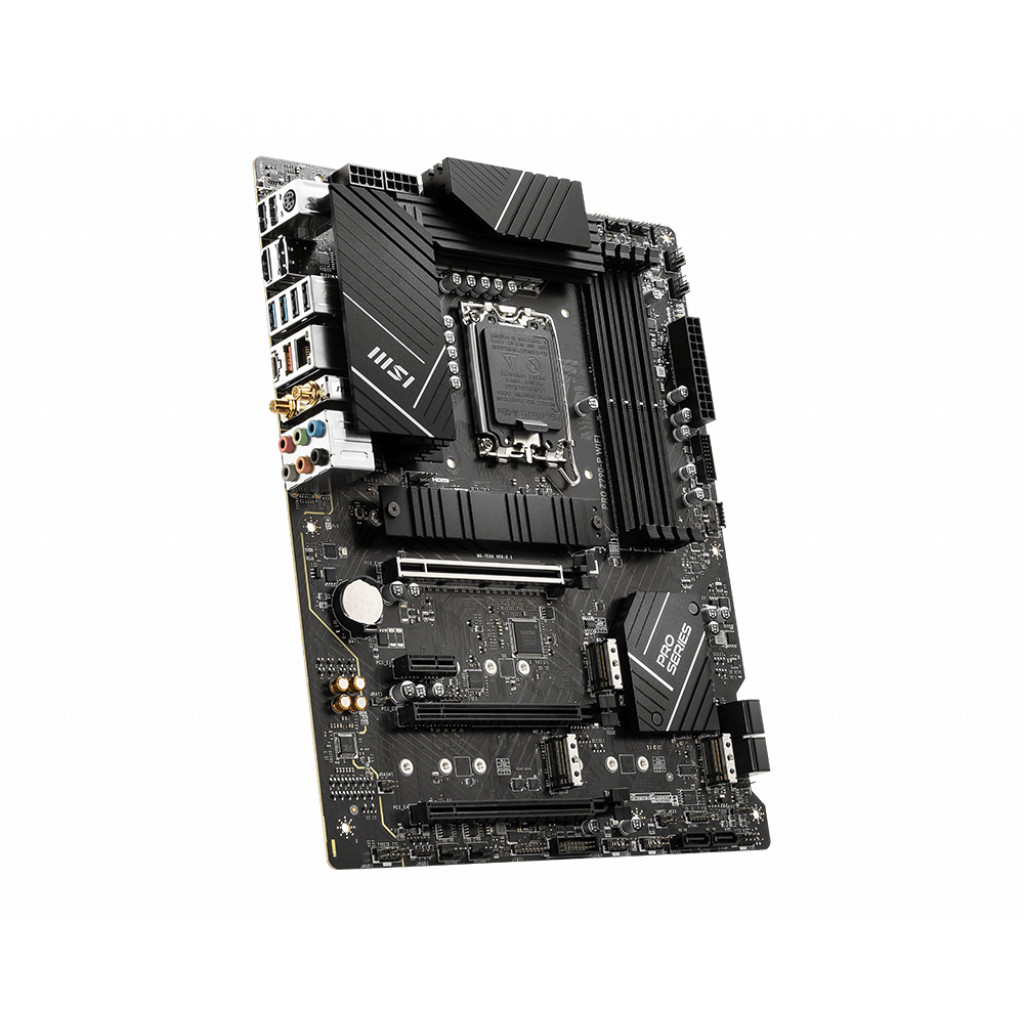

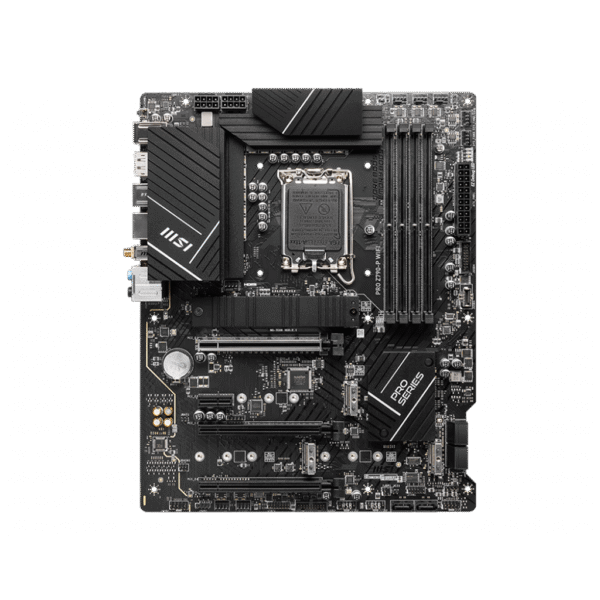

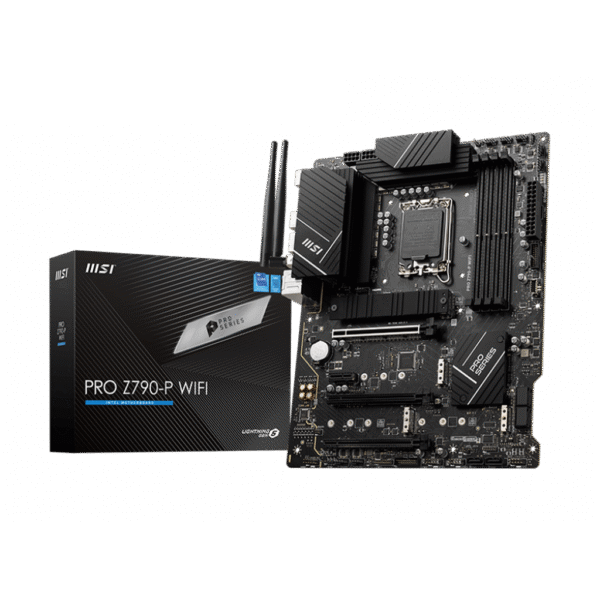

The MSI PRO Z790-P WIFI DDR5 Motherboard combines efficiency, stability, and connectivity in one solid platform. Built on the Intel Z790 chipset and supporting Intel 12th, 13th, and 14th Gen processors via the LGA 1700 socket, it’s ideal for professionals, builders, and power users seeking top-tier performance without unnecessary frills.

With support for DDR5 memory up to 7200+ MHz (OC), PCIe 5.0 x16, and fast storage through 4x M.2 slots, this board is future-ready. Onboard Wi-Fi 6E and 2.5G LAN ensure ultra-fast networking. With features like core boost, extended heatsinks, and EZ M.2 Clip, it strikes a balance between function and user-friendliness.

Key Features

• Supports Intel 12th / 13th / 14th Gen CPUs (LGA 1700 socket)

• Intel Z790 chipset

• DDR5 support up to 7200+ MHz (OC)

• 1x PCIe 5.0 x16 slot, 1x PCIe 4.0 x16, and 1x PCIe 3.0 x1

• 4x M.2 slots (PCIe 4.0 x4), 4x SATA 6Gb/s ports

• Intel Wi-Fi 6E and 2.5G LAN

• USB 3.2 Gen 2×2 Type-C, HDMI, DisplayPort

• 7.1 HD Audio with Realtek ALC897

• Pre-installed I/O shield

• ATX form factor

 Key Specifications

• CPU Socket: LGA 1700

• Chipset: Intel Z790

• Form Factor: ATX (30.5 x 24.4 cm)

• Memory:

  • 4x DDR5 DIMM slots

  • Up to 192GB total

  • Up to 7200+ MHz (OC)

• Expansion Slots:

  • 1x PCIe 5.0 x16

  • 1x PCIe 4.0 x16 (x4 mode)

  • 1x PCIe 3.0 x1

• Storage:

  • 4x M.2 Gen4 x4 slots

  • 4x SATA 6Gb/s ports

• Networking:

  • Intel 2.5G LAN

  • Intel Wi-Fi 6E

  • Bluetooth 5.3

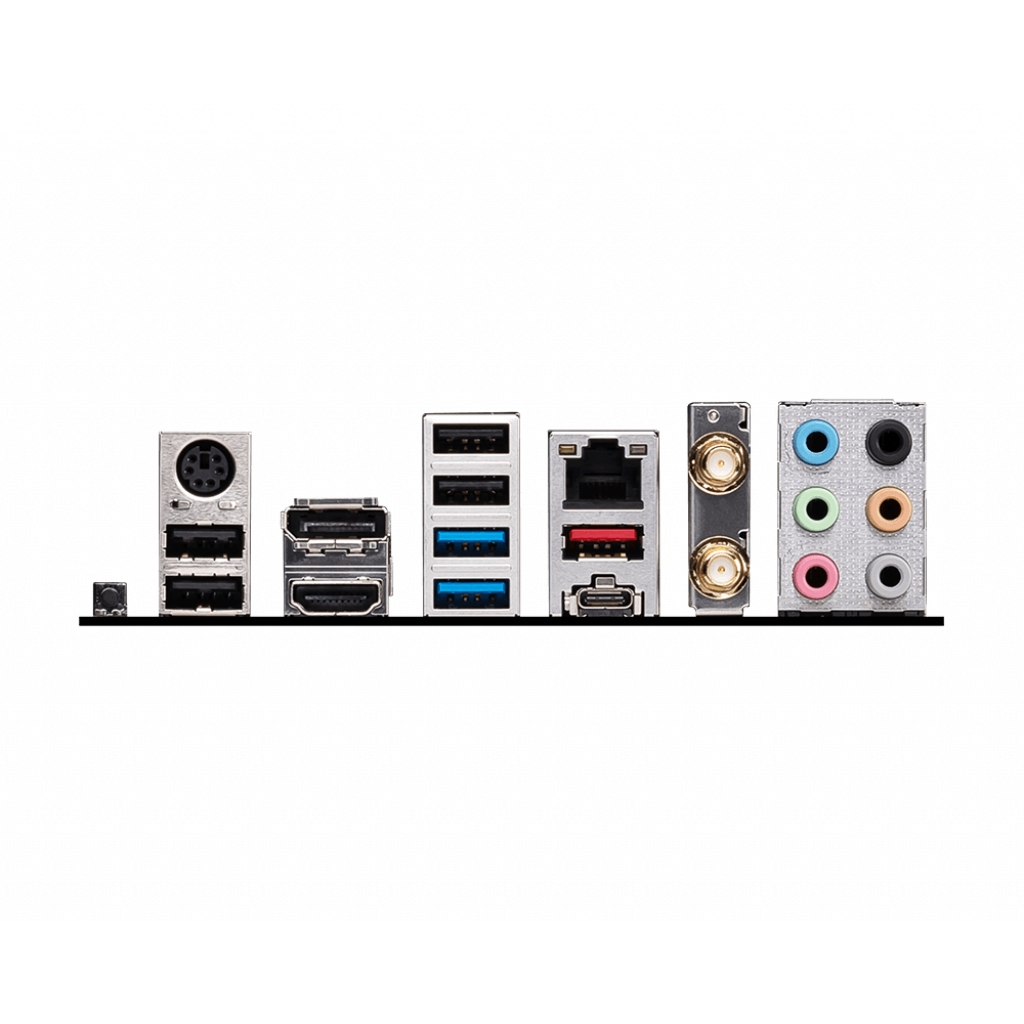

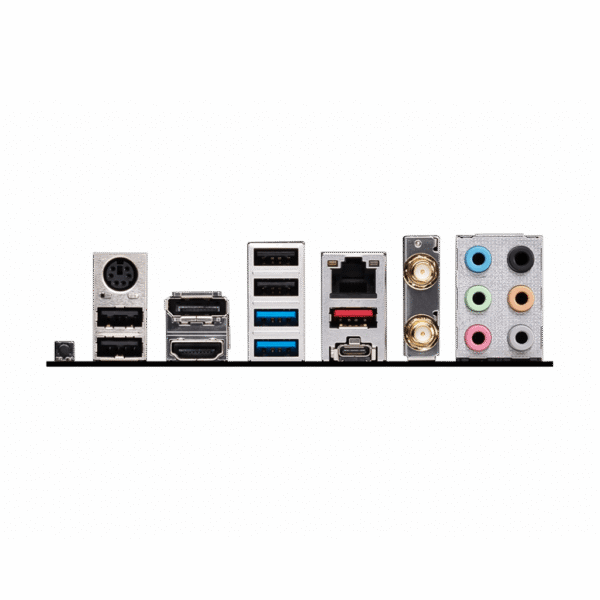

• Rear I/O Ports:

  • 1x USB 3.2 Gen 2×2 Type-C

  • 2x USB 3.2 Gen 2 Type-A

  • 4x USB 3.2 Gen 1 Type-A

  • 2x USB 2.0

  • 1x HDMI

  • 1x DisplayPort

  • 1x RJ-45 LAN

  • Audio jacks

• Audio: Realtek ALC897 Codec

• Internal Headers: USB 3.2 Gen 1, USB 2.0, RGB, etc.

• Power Connectors: 1x 24-pin ATX, 1x 8-pin + 1x 4-pin EPS

• Cooling Features: Extended heatsinks, M.2 Shield, Pump Fan Support
