Description

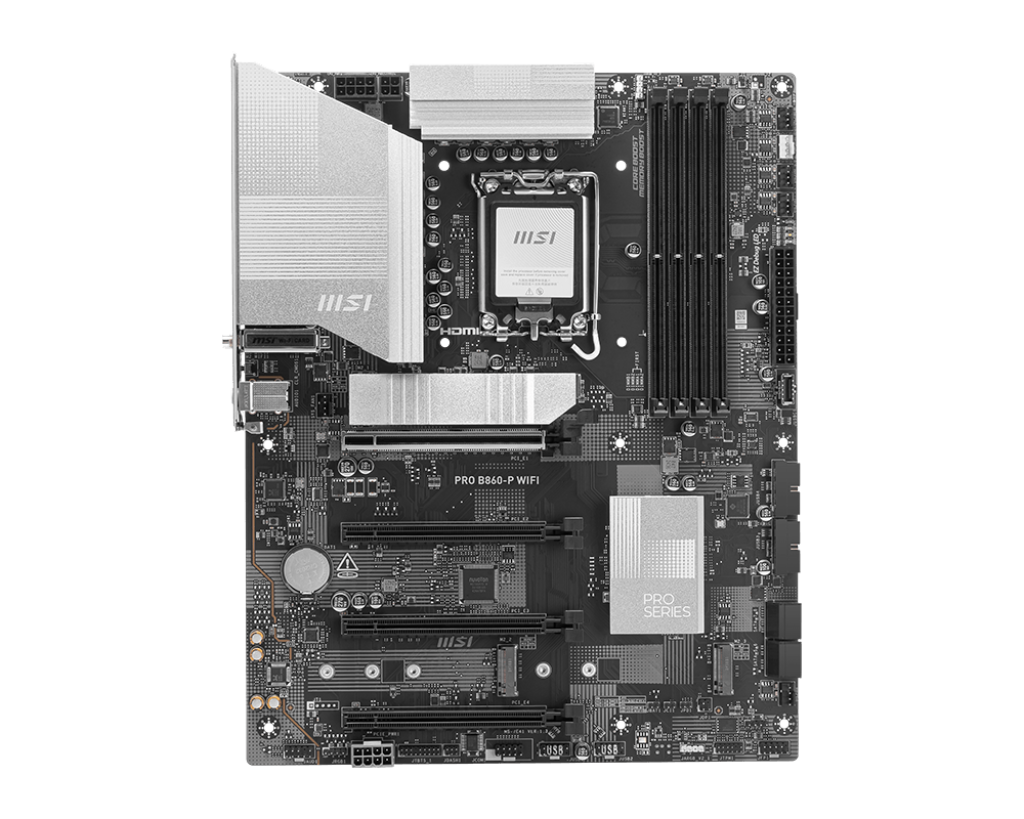

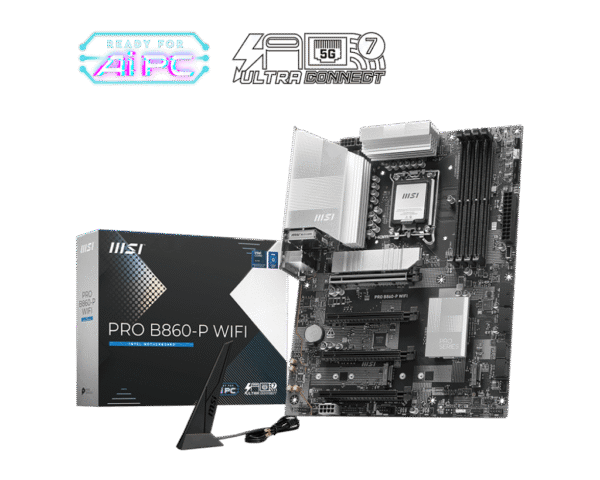

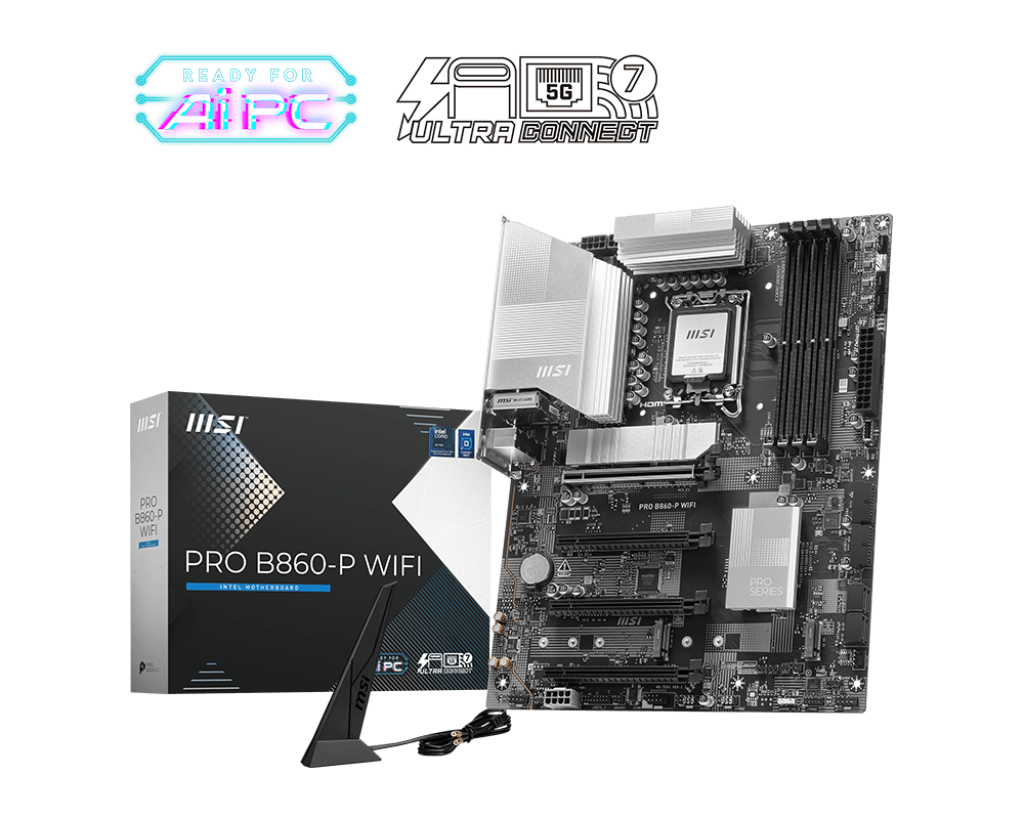

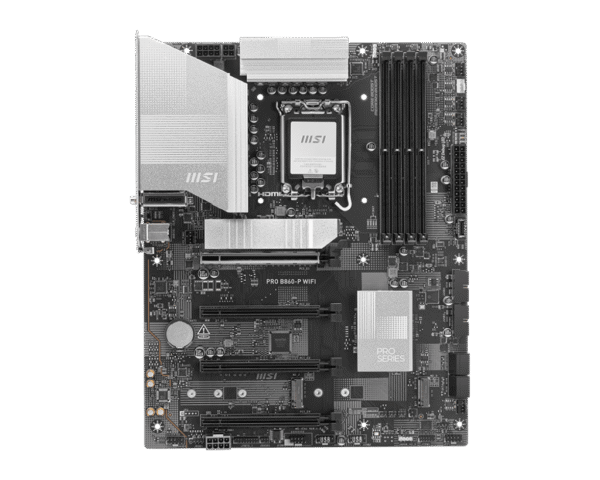

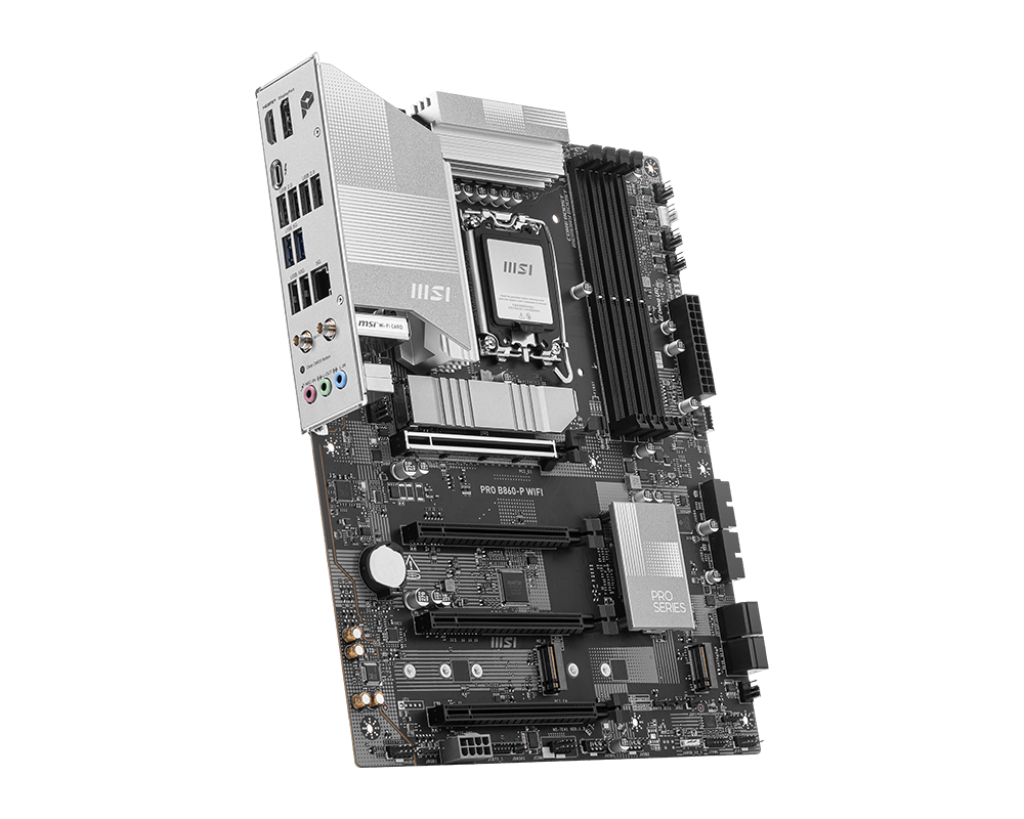

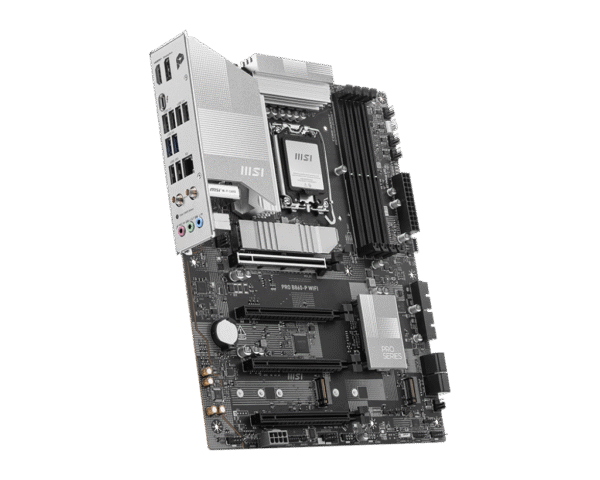

The MSI PRO B860-P WIFI DDR5 motherboard is built around Intel’s B860 chipset and supports the LGA 1851 socket, ready for Intel Core Ultra Series 2 processors. It’s engineered for users who need next-gen connectivity, solid reliability, and fast data handling.

It features four DDR5 DIMM slots supporting up to 256GB of RAM, with speeds reaching up to 8800+ MT/s when overclocked. Storage is handled via one PCIe Gen5 x4 M.2 slot and two Gen4 M.2 slots, as well as four SATA 6Gb/s ports for traditional drives.

Expansion is robust with one PCIe 5.0 x16 slot for modern GPUs, a PCIe 4.0 x4, and two PCIe 4.0 x1 slots. For connectivity, the board includes 5G LAN, Wi-Fi 7, and Bluetooth support, along with a Thunderbolt 4 port capable of 40Gbps data and video output.

The rear I/O includes USB 3.2 Gen 2 and Gen 1, USB 2.0, HDMI 2.1, DisplayPort 1.4, and 7.1-channel audio powered by the Realtek ALC897 codec. A 12+1+1+1 Duet Rail Power System with 75A DrMOS ensures stable operation for demanding workloads.

Key Features

• Supports Intel Core Ultra Series 2 processors (LGA 1851)

• DDR5 memory up to 256GB, 8800+ MT/s (OC)

• PCIe 5.0 x16 graphics slot

• 1× M.2 Gen5 x4 + 2× M.2 Gen4

• 5G LAN and Wi-Fi 7

• Thunderbolt 4 port with 40Gbps and DisplayPort output

• 12+1+1+1 power phase design with 75A DrMOS

• HDMI 2.1 and DisplayPort 1.4 outputs

• Realtek ALC897 for 7.1-channel HD audio

• ATX form factor

Key Specifications

• CPU Socket: LGA 1851

• Chipset: Intel B860

• Memory: 4× DDR5 DIMM, up to 256GB, 8800+ MT/s (OC)

• Expansion Slots:

  • 1× PCIe 5.0 x16

  • 1× PCIe 4.0 x4

  • 2× PCIe 4.0 x1

• Storage:

  • 1× M.2 Gen5 x4

  • 2× M.2 Gen4 x4

  • 4× SATA 6Gb/s

• Networking:

  • 5G LAN

  • Wi-Fi 7

  • Bluetooth (version depends on module)

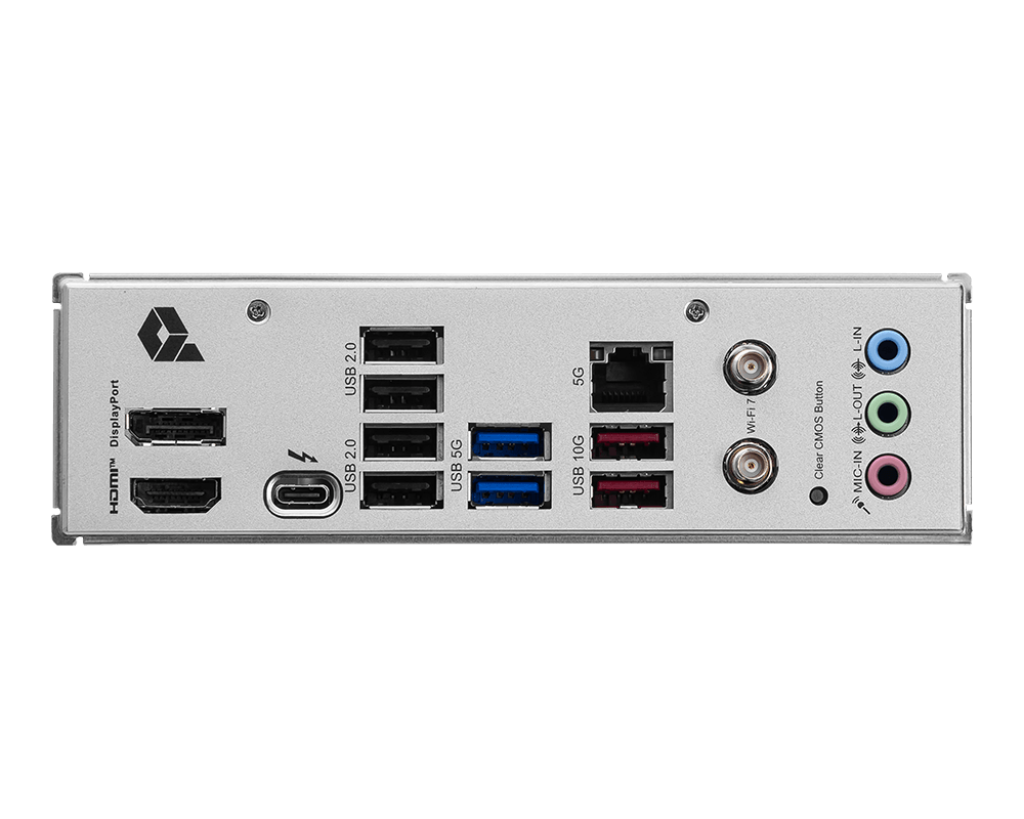

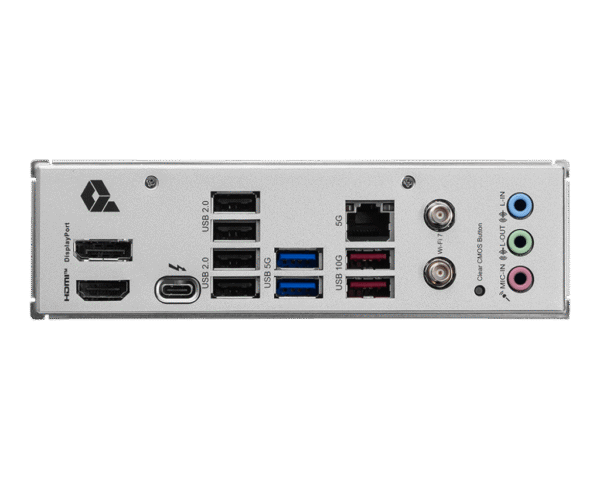

• Rear I/O Ports:

  • 1× Thunderbolt 4 (USB-C)

  • 2× USB 3.2 Gen 2 Type-A

  • 2× USB 3.2 Gen 1 Type-A

  • 4× USB 2.0

  • 1× HDMI 2.1

  • 1× DisplayPort 1.4

  • Audio jacks (Realtek ALC897)

• Form Factor: ATX

• OS Support: Windows 11 64-bit
