Description

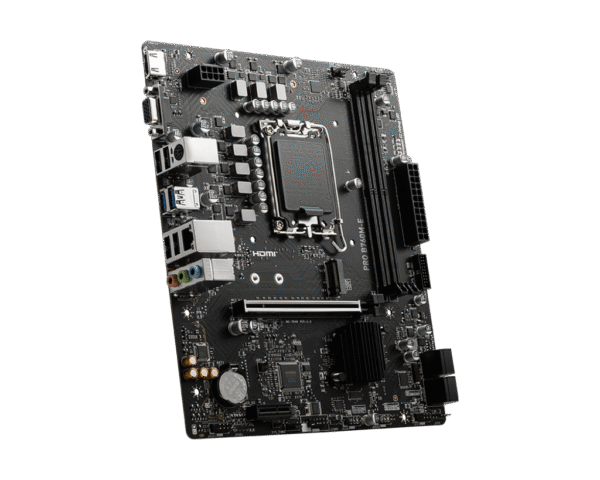

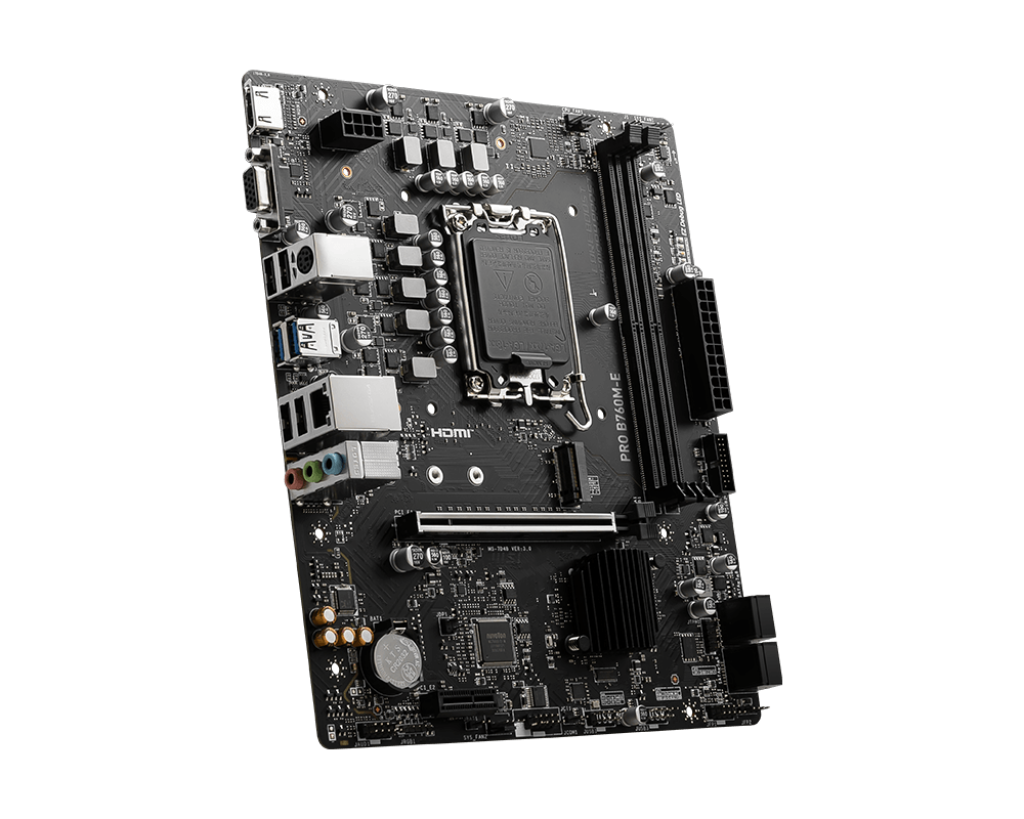

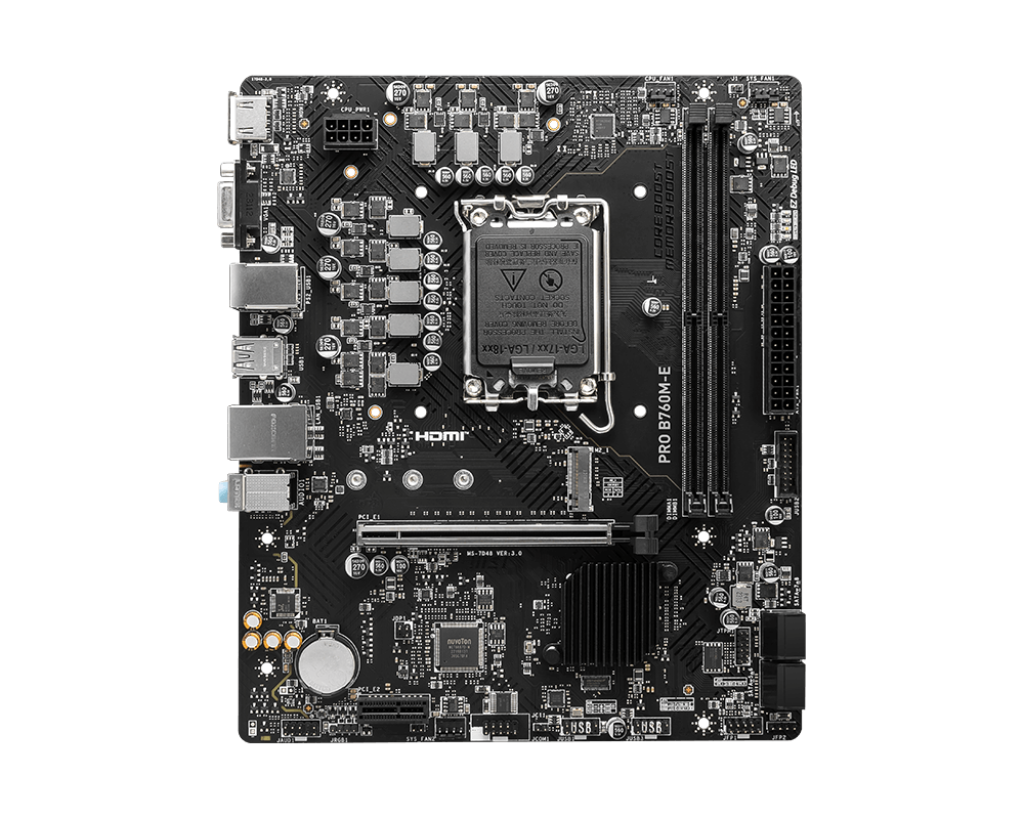

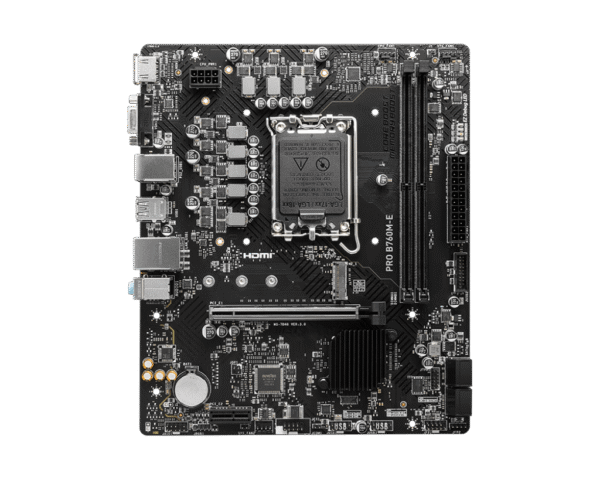

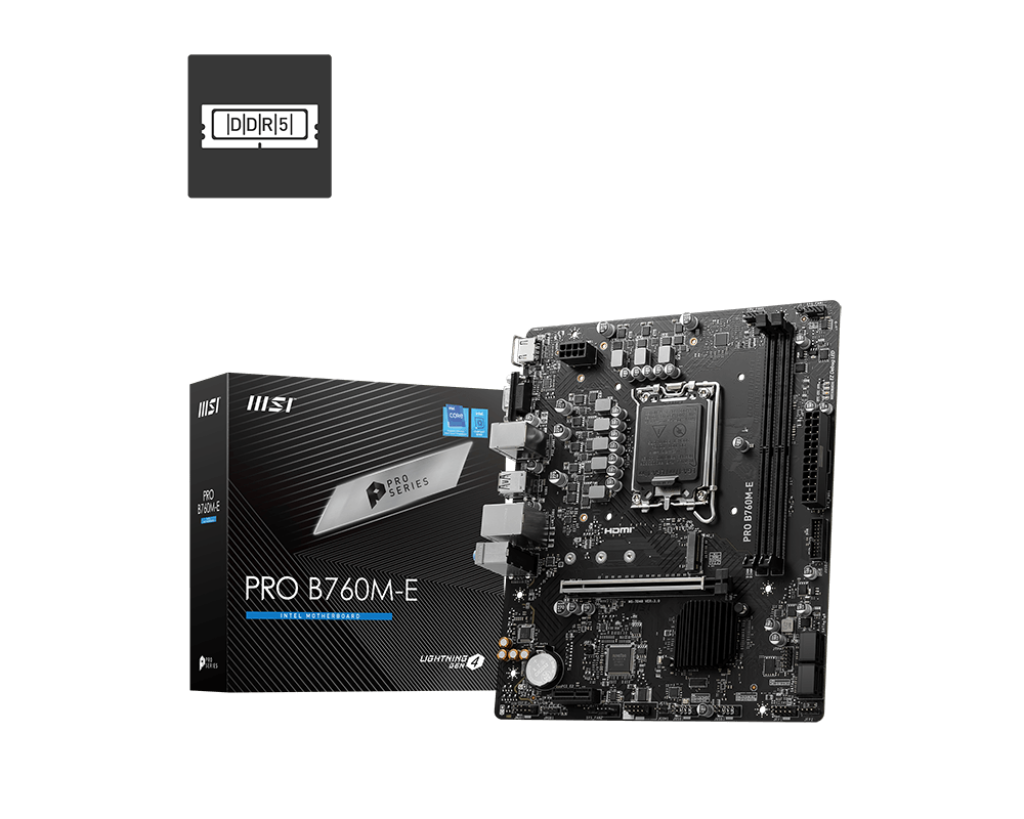

The MSI PRO B760M-E DDR4 motherboard is built on the Intel B760 chipset and supports Intel 12th, 13th, and 14th Gen Core processors with the LGA 1700 socket. It features two DDR5 DIMM slots supporting up to 128GB of memory with overclocked speeds up to 6400+ MHz in a 1DPC 1R configuration and up to 5600+ MHz in a 1DPC 2R configuration. This board supports Intel® XMP 3.0 profiles for easy overclocking and uses dual-controller dual-channel memory architecture. It is compatible with non-ECC, un-buffered DDR5 memory. For expansion, it offers one PCIe 4.0 x16 slot for graphics cards and one PCIe 3.0 x1 slot for peripherals. Storage options include one M.2 Gen4 x4 slot and four SATA 6Gb/s ports. Networking includes integrated 1Gbps LAN. The rear I/O panel has USB 3.2 Gen 1 Type-A and USB 2.0 ports, HDMI 1.4 and VGA outputs, and audio jacks powered by the Realtek ALC897 codec. The motherboard incorporates PCIe Steel Armor for slot durability, Frozr AI Cooling for fan control based on system temperatures, and a chipset heatsink for passive cooling.

Key Features

• Supports Intel 12th, 13th, and 14th Gen Core processors (LGA 1700)

• 2× DDR5 DIMM slots, up to 128GB memory capacity

• Memory speeds supported:

  • Up to 6400+ MHz (1DPC 1R)

  • Up to 5600+ MHz (1DPC 2R)

  • JEDEC standard speeds: 4800 to 5600 MHz

• Supports Intel® XMP 3.0 for easy overclocking

• Dual-Controller Dual-Channel memory architecture

• PCIe 4.0 x16 and PCIe 3.0 x1 expansion slots

• 1× M.2 Gen4 x4 slot and 4× SATA 6Gb/s ports

• 1Gbps LAN networking

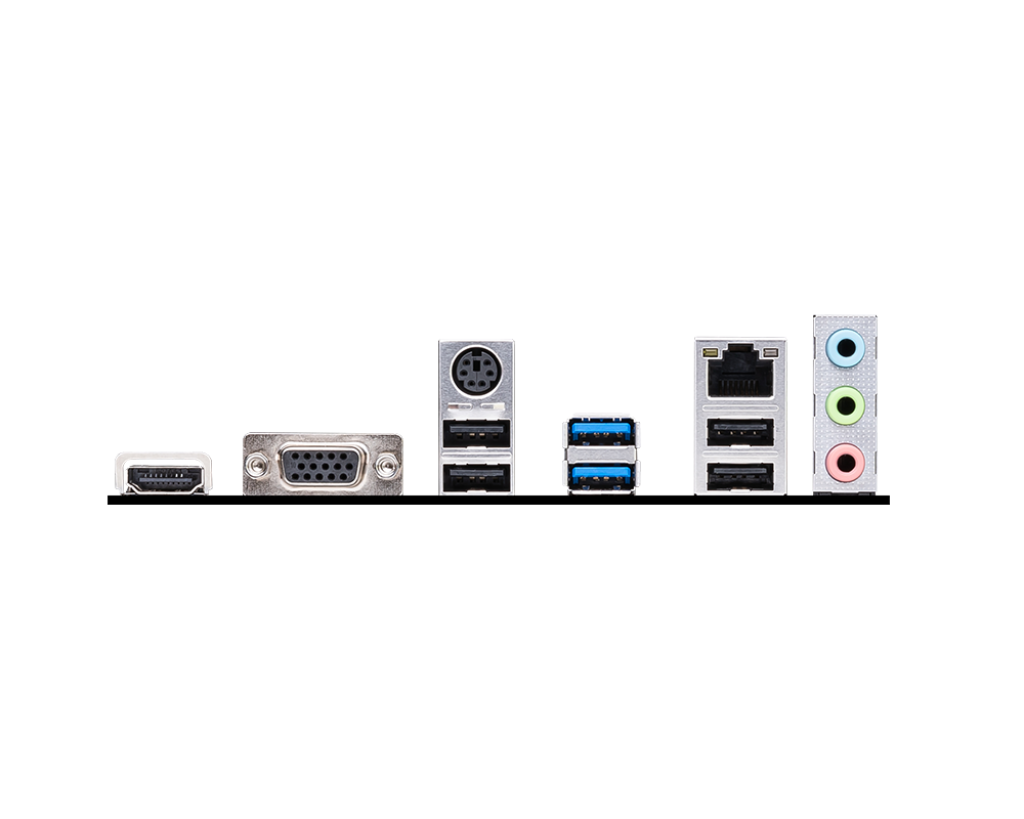

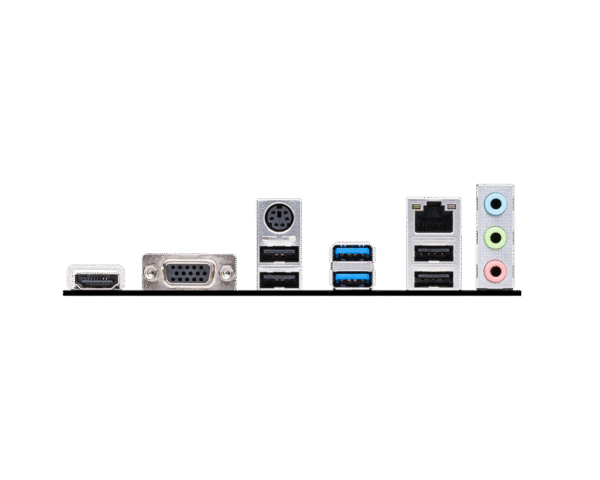

• Rear I/O includes USB 3.2 Gen 1 Type-A, USB 2.0, HDMI 1.4, VGA, and audio jacks

• Micro-ATX form factor

Key Specifications

• CPU Socket: LGA 1700

• Chipset: Intel B760

• Memory: DDR5, up to 128GB, 6400+ MHz (OC) max

• Expansion Slots:

  • 1× PCIe 4.0 x16

  • 1× PCIe 3.0 x1

• Storage:

  • 1× M.2 Gen4 x4

  • 4× SATA 6Gb/s

• Networking: 1Gbps LAN

• Audio: Realtek ALC897 codec

• USB Ports:

  • 2× USB 3.2 Gen 1 Type-A

  • 4× USB 2.0

• Video Outputs:

  • 1× HDMI 1.4

  • 1× VGA

• Form Factor: Micro-ATX

• Operating System Support: Windows 10 & 11 64-bit
