Description

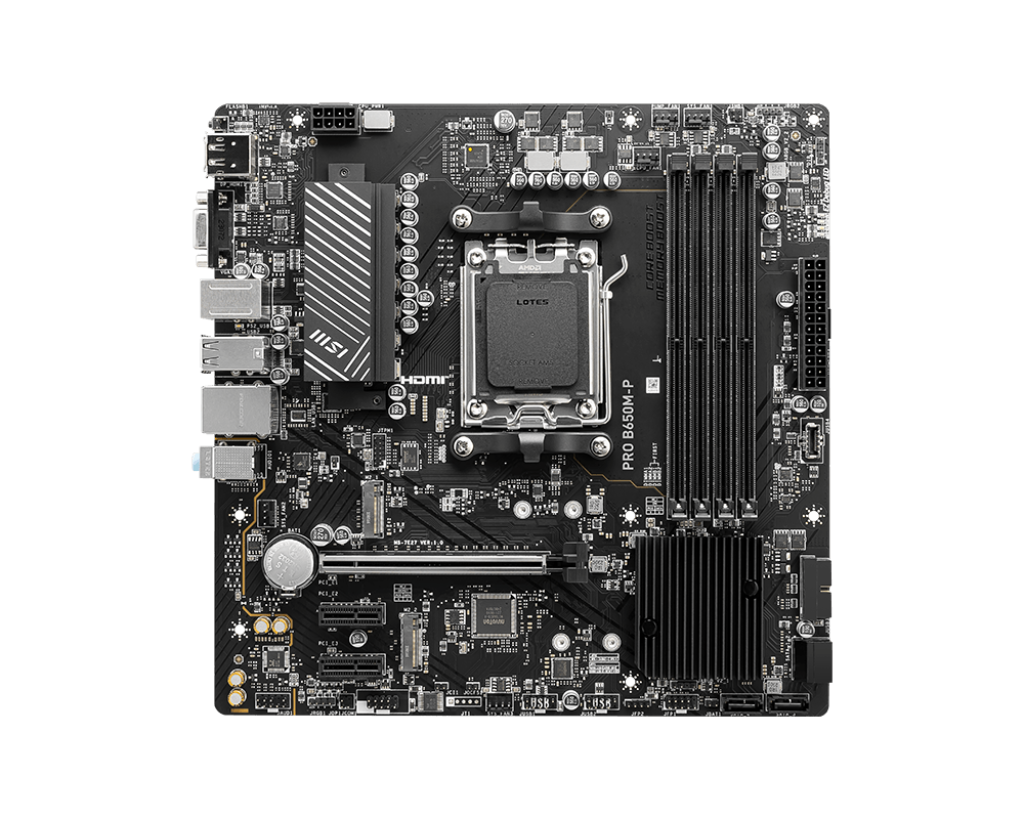

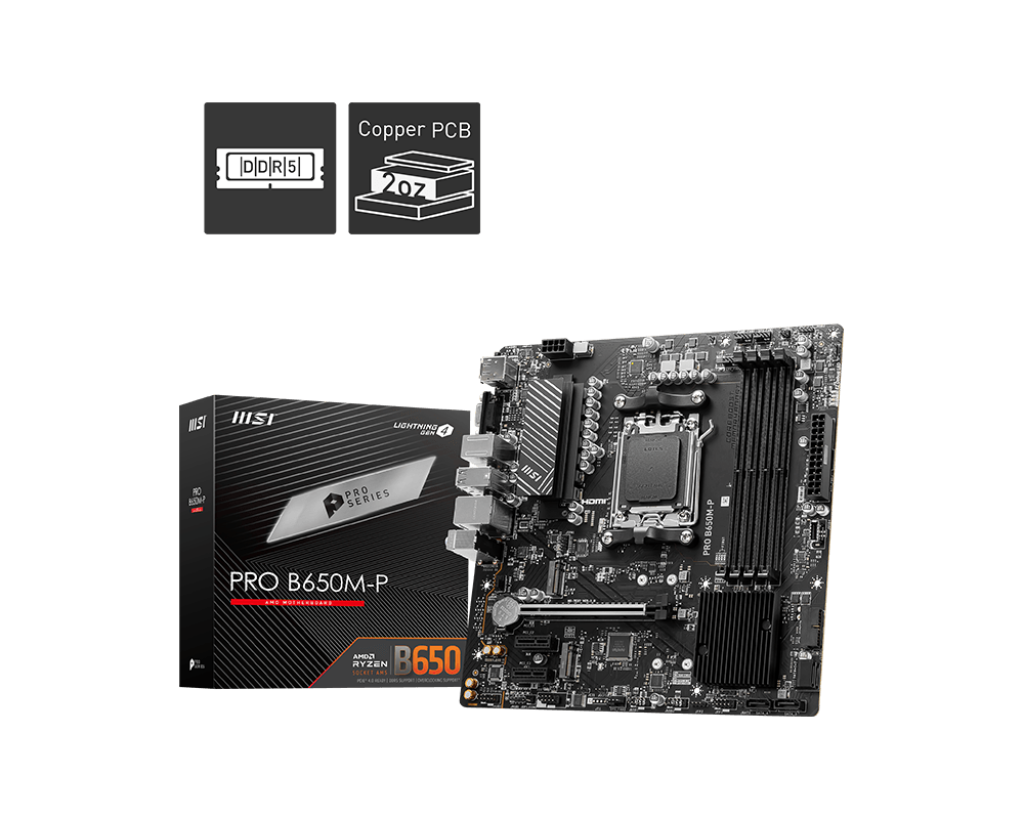

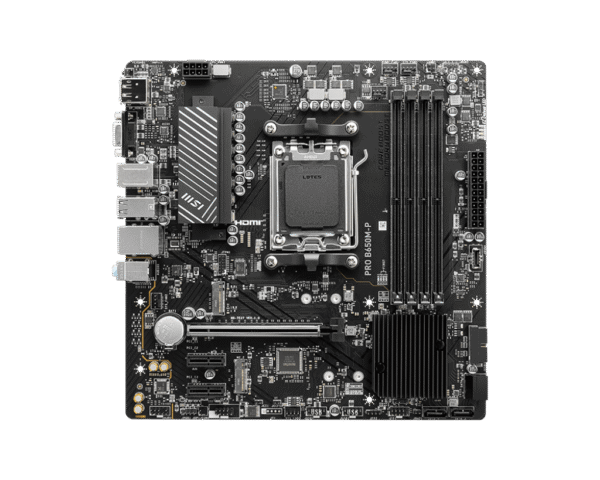

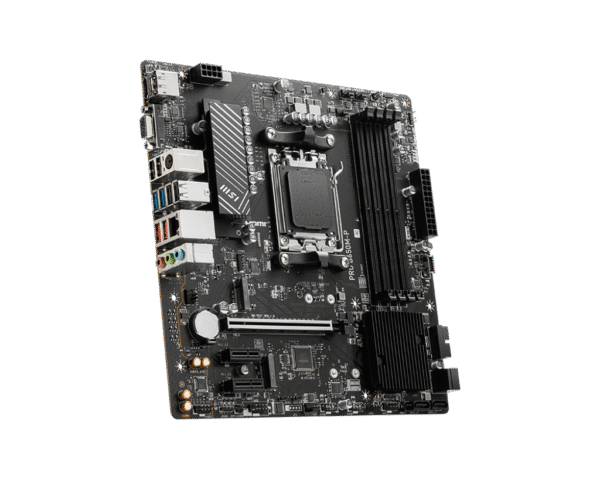

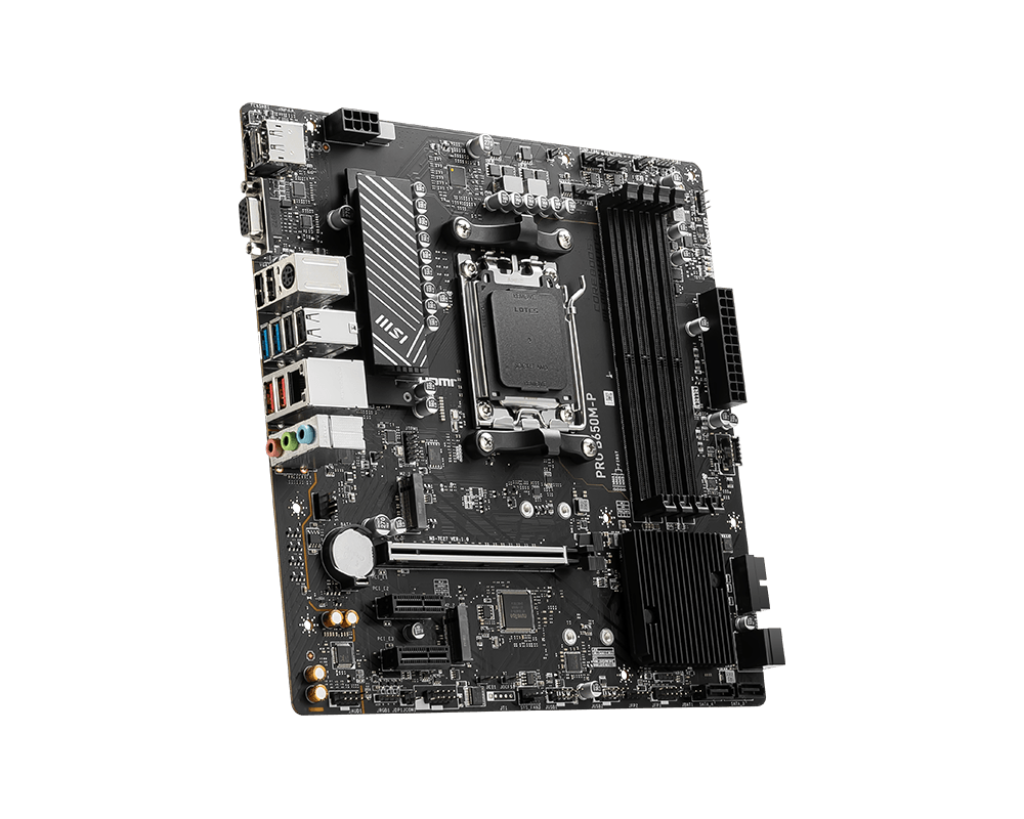

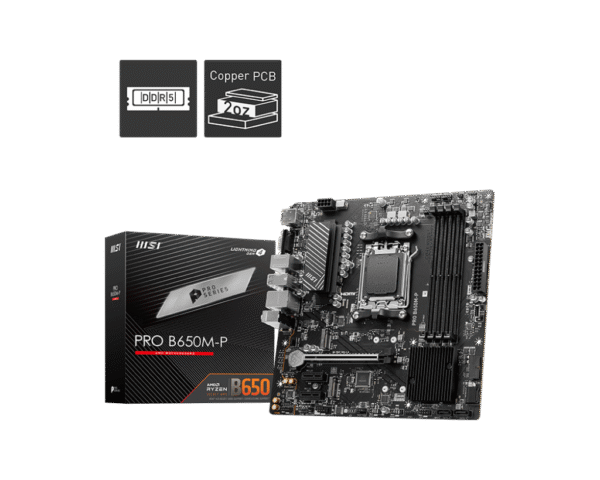

The MSI PRO B650M-P motherboard is built on the AMD B650 chipset and supports AMD Ryzen 7000, 8000, and 9000 series processors using the AM5 socket. It accommodates up to 256GB of DDR5 memory across four DIMM slots, with overclocking capabilities reaching up to 7200 MHz.

For expansion, the motherboard includes a PCIe 5.0 x16 slot for graphics cards and additional PCIe 3.0 x1 slots for other peripherals. Storage options are versatile, featuring two M.2 PCIe 4.0 x4 slots and four SATA 6Gb/s ports for traditional drives.

Connectivity is enhanced with integrated 2.5G LAN support. The rear I/O panel offers USB 3.2 Gen 2 Type-A and Type-C ports, USB 3.2 Gen 1 and USB 2.0 ports, HDMI 2.1, DisplayPort 1.2, VGA output, and audio jacks powered by the Realtek ALC897 codec.

The motherboard’s power delivery system features an 8-phase design, with six phases dedicated to Vcore, ensuring stable performance under load. Advanced cooling solutions, including extended heatsinks and M.2 Shield Frozr, maintain optimal temperatures during intensive tasks.

Key Features

• Processor Support: AMD Ryzen 7000, 8000, and 9000 series processors (AM5 socket)

• Memory: 4× DDR5 DIMM slots, up to 256GB, 7200+ MHz (OC)

• Power Delivery: 8-phase design with six phases dedicated to Vcore

• Expansion Slots:

  • 1× PCIe 5.0 x16

  • 2× PCIe 3.0 x1

• Storage:

  • 2× M.2 PCIe 4.0 x4 slots

  • 4× SATA 6Gb/s ports

• Networking:

  • 2.5G LAN

• Rear I/O Ports:

  • 1× USB 3.2 Gen 2 Type-C

  • 2× USB 3.2 Gen 2 Type-A

  • 2× USB 3.2 Gen 1 Type-A

  • 4× USB 2.0

  • 1× HDMI 2.1

  • 1× DisplayPort 1.2

  • 1× VGA

  • Audio jacks (Realtek ALC897)

• Form Factor: Micro-ATX

• Operating System Support: Windows 11 64-bit

Key Specifications

• CPU Socket: AM5

• Chipset: AMD B650

• Memory Support: DDR5, up to 256GB, 7200+ MHz (OC)

• Expansion Slots:

  • 1× PCIe 5.0 x16

  • 2× PCIe 3.0 x1

• Storage Interfaces:

  • 2× M.2 PCIe 4.0 x4

  • 4× SATA 6Gb/s

• Networking:

  • 2.5G LAN

• Audio: Realtek ALC897 codec, 7.1-channel HD audio

• USB Ports:

  • 1× USB 3.2 Gen 2 Type-C

  • 2× USB 3.2 Gen 2 Type-A

  • 2× USB 3.2 Gen 1 Type-A

  • 4× USB 2.0

• Video Outputs:

  • 1× HDMI 2.1

  • 1× DisplayPort 1.2

  • 1× VGA

• Form Factor: Micro-ATX

• Operating System Support: Windows 11 64-bit
