Description

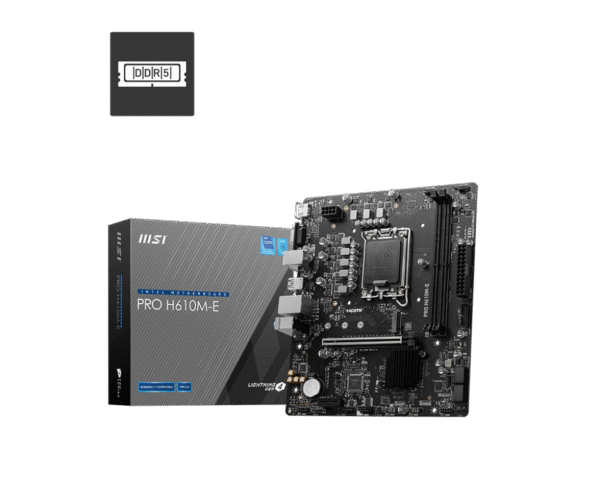

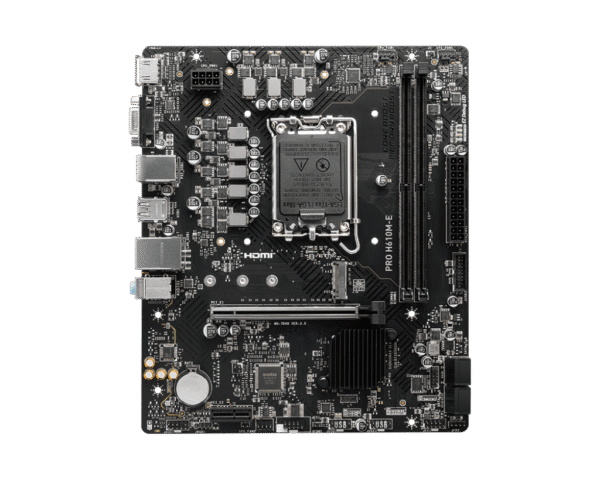

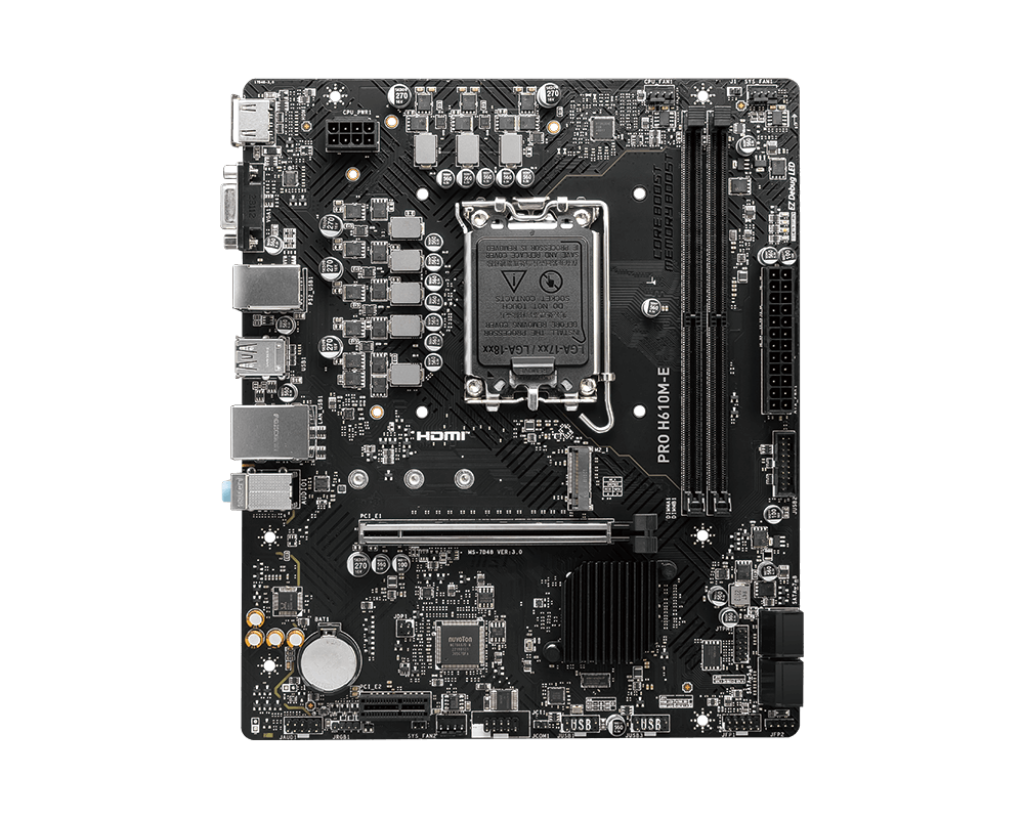

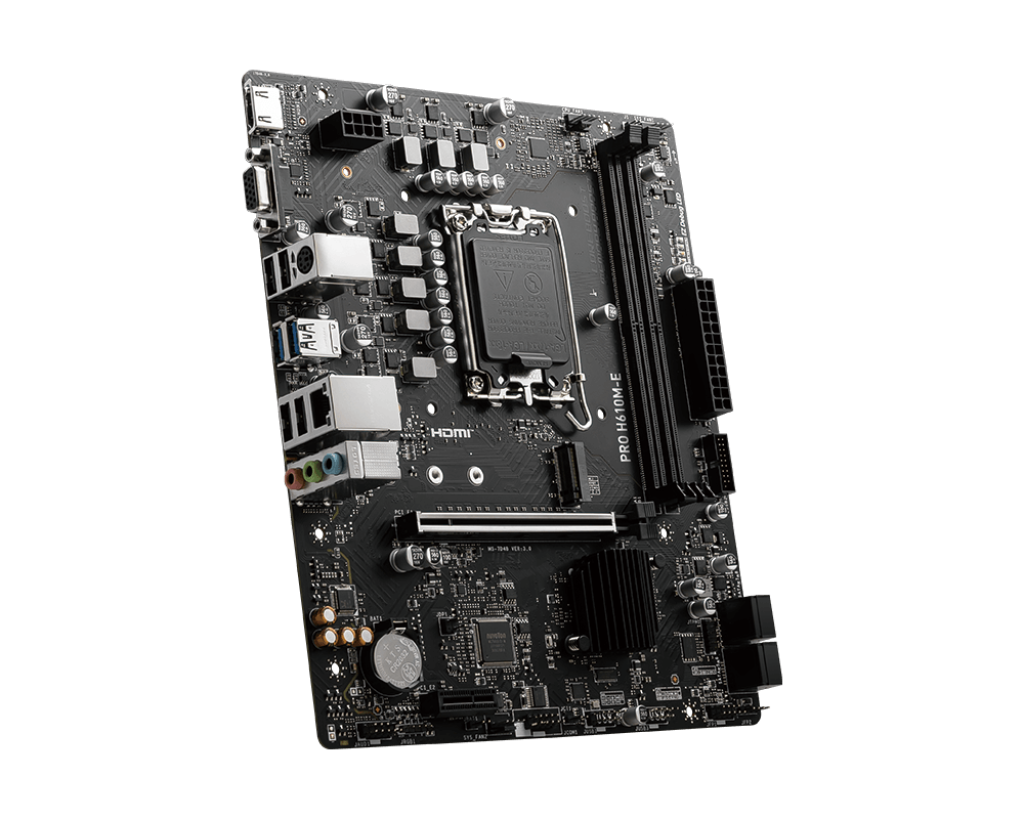

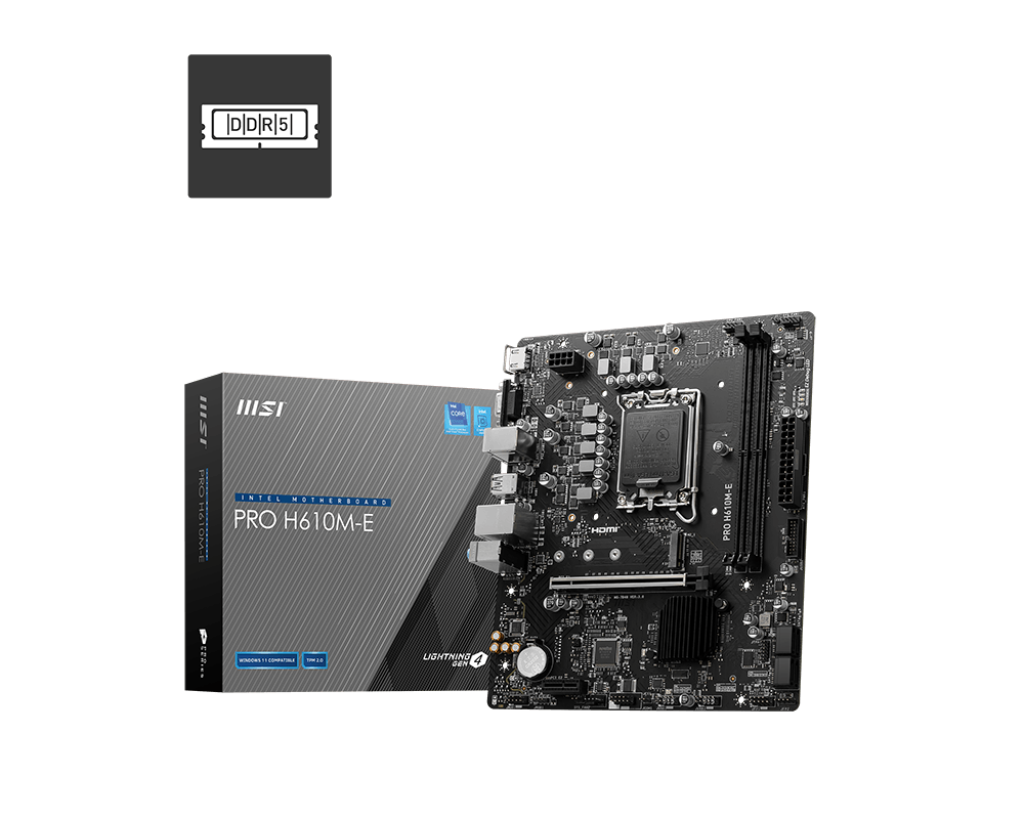

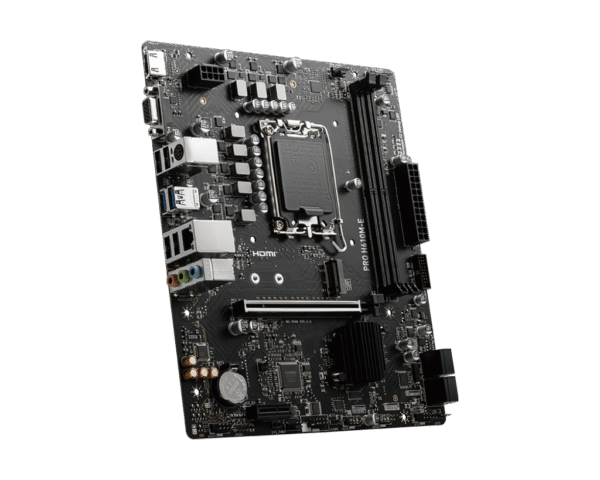

The MSI PRO H610M-E DDR5 motherboard is engineered to provide a stable and efficient platform for Intel’s latest processors. With support for DDR5 memory up to 96GB and speeds up to 5600 MHz, it ensures smooth multitasking and responsive computing. The board features a PCIe 4.0 x16 slot for graphics cards, a PCIe 3.0 x1 slot for expansion, and storage options including one M.2 slot (PCIe 3.0 x4/SATA) and four SATA III ports. Display outputs include HDMI 1.4 and VGA, catering to various monitor setups. Integrated Realtek ALC897 7.1-Channel High Definition Audio and Realtek RTL8111H Gigabit LAN provide quality audio and network connectivity. Additional features like EZ Debug LED and RGB LED connector enhance user experience, making it a solid choice for budget-conscious builders.

Key Features

• CPU Support: Intel 12th, 13th, and 14th Gen processors (Socket LGA 1700)

• Memory: 2x DDR5 DIMM slots, up to 96GB, 5600 MHz (OC)

• Expansion Slots: 1x PCIe 4.0 x16, 1x PCIe 3.0 x1

• Storage Options: 1x M.2 (PCIe 3.0 x4/SATA), 4x SATA III ports

• Display Outputs: 1x HDMI 1.4, 1x VGA

• Audio: Realtek ALC897 7.1-Channel High Definition Audio

• Networking: Realtek RTL8111H Gigabit LAN

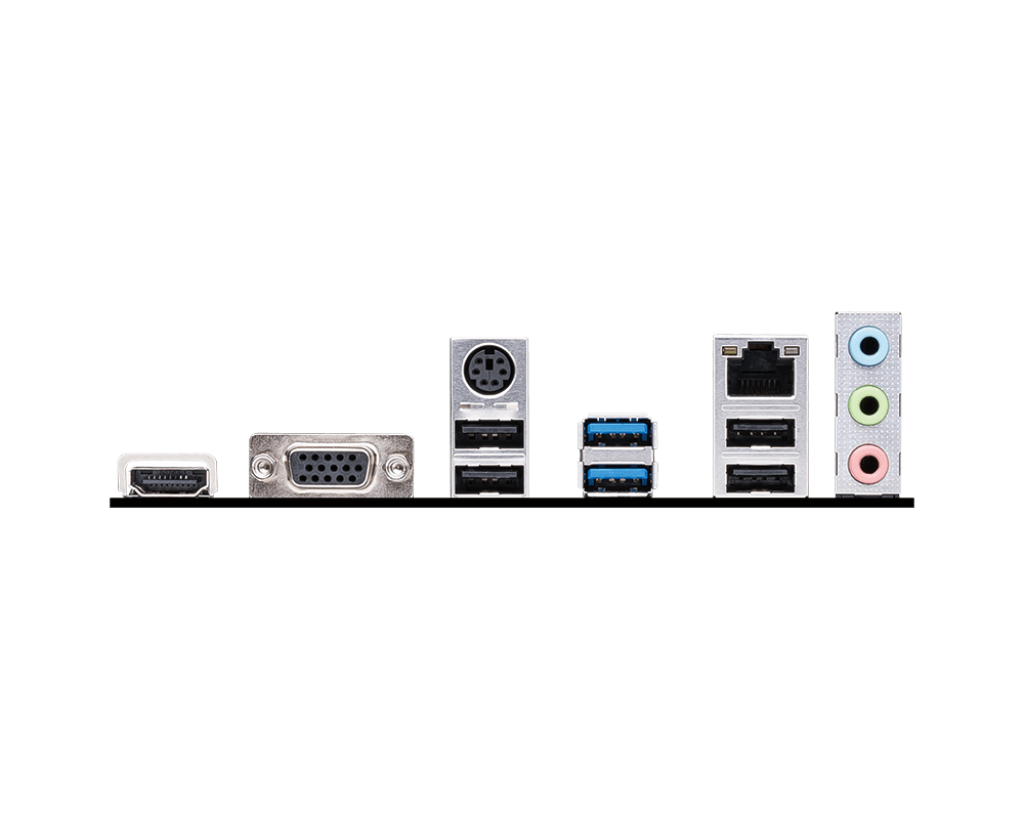

• USB Ports: Rear: 2x USB 3.2 Gen 1, 4x USB 2.0; Front: 2x USB 3.2 Gen 1, 4x USB 2.0 (via headers)

• Form Factor: Micro-ATX (200mm x 236.16mm)

• Additional Features: EZ Debug LED, RGB LED connector, TPM 2.0 header

Key Specifications

• Chipset: Intel H610

• CPU Socket: LGA 1700

• Memory Support: DDR5 5600 MHz (OC), Dual Channel, Non-ECC, Unbuffered

• Max Memory: 96GB

• Expansion Slots: 1x PCIe 4.0 x16, 1x PCIe 3.0 x1

• Storage: 1x M.2 (PCIe 3.0 x4/SATA), 4x SATA III (6Gb/s)

• RAID Support: RAID 0, 1, 5, 10 (SATA)

• USB Ports: Rear: 2x USB 3.2 Gen 1, 4x USB 2.0; Front: 2x USB 3.2 Gen 1, 4x USB 2.0 (via headers)

• Display Outputs: 1x HDMI 1.4, 1x VGA

• Audio Codec: Realtek ALC897 7.1-Channel High Definition Audio

• LAN: Realtek RTL8111H Gigabit LAN

• Form Factor: Micro-ATX (200mm x 236.16mm)
