Description :

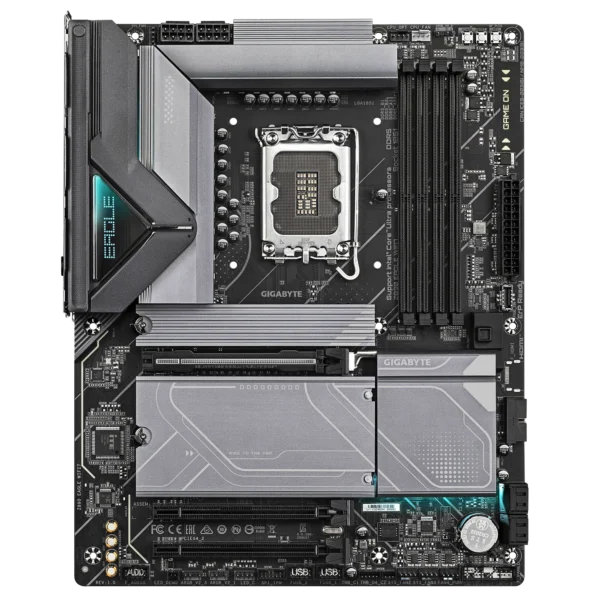

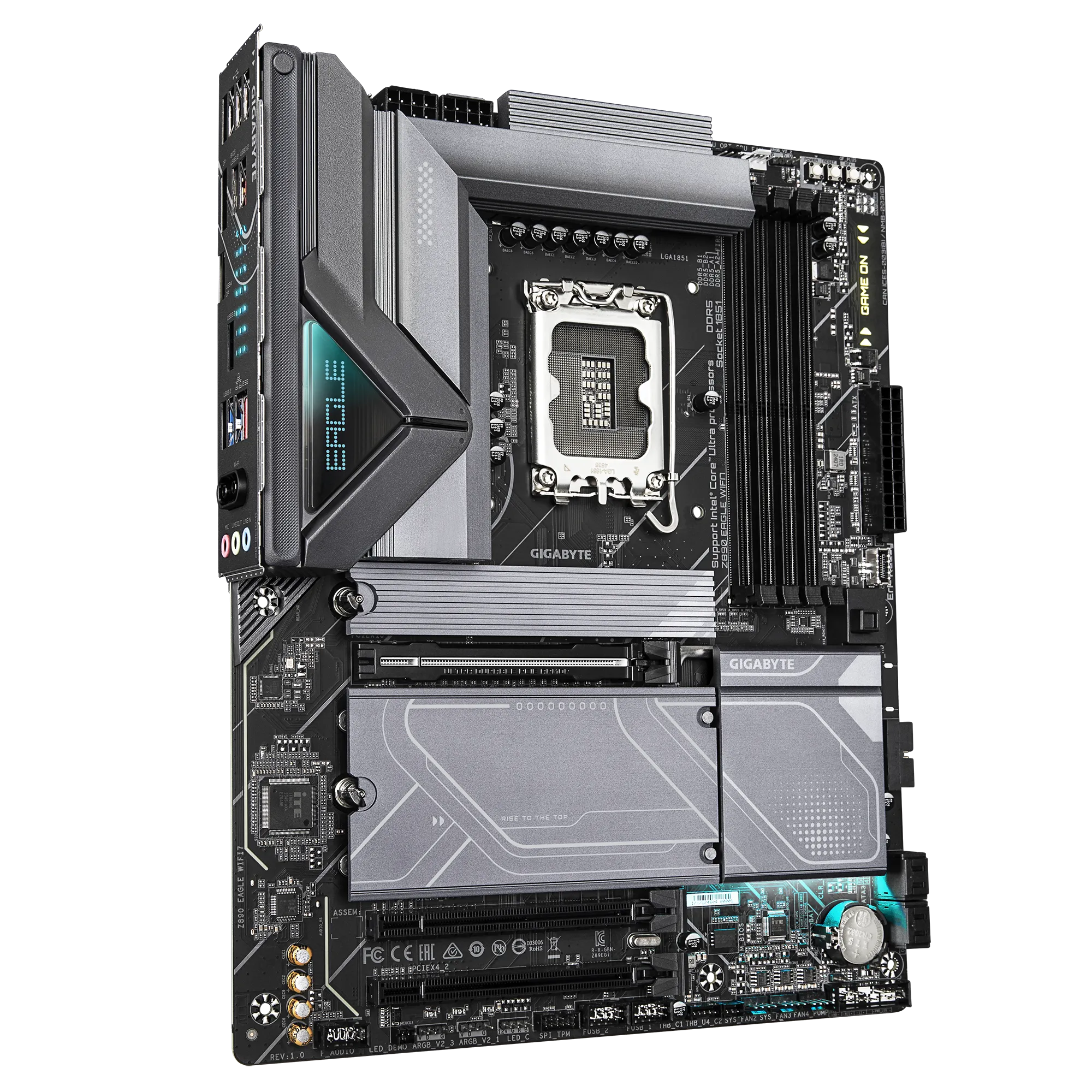

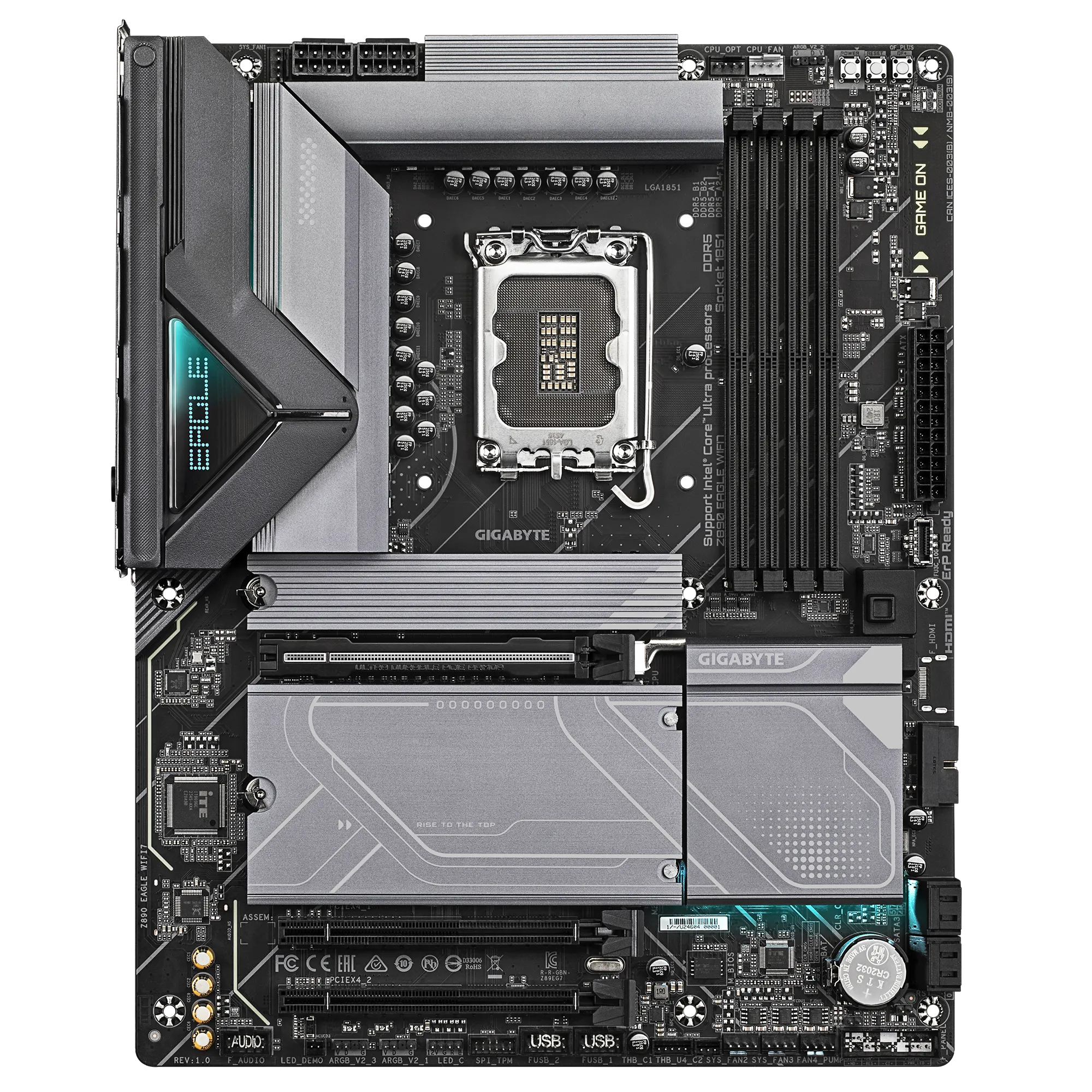

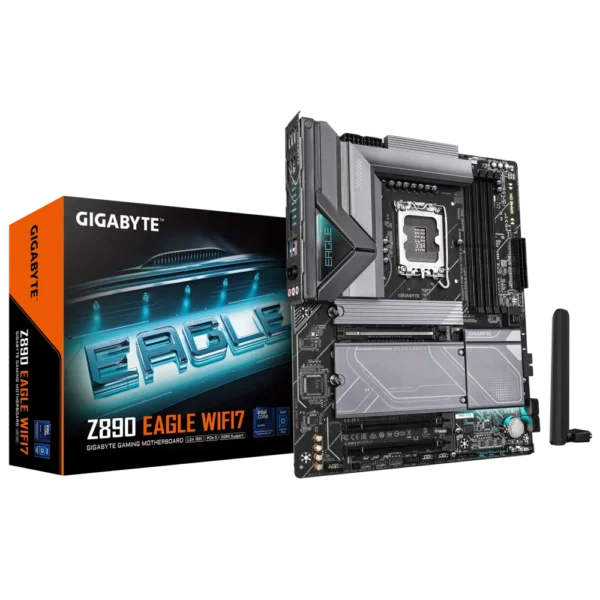

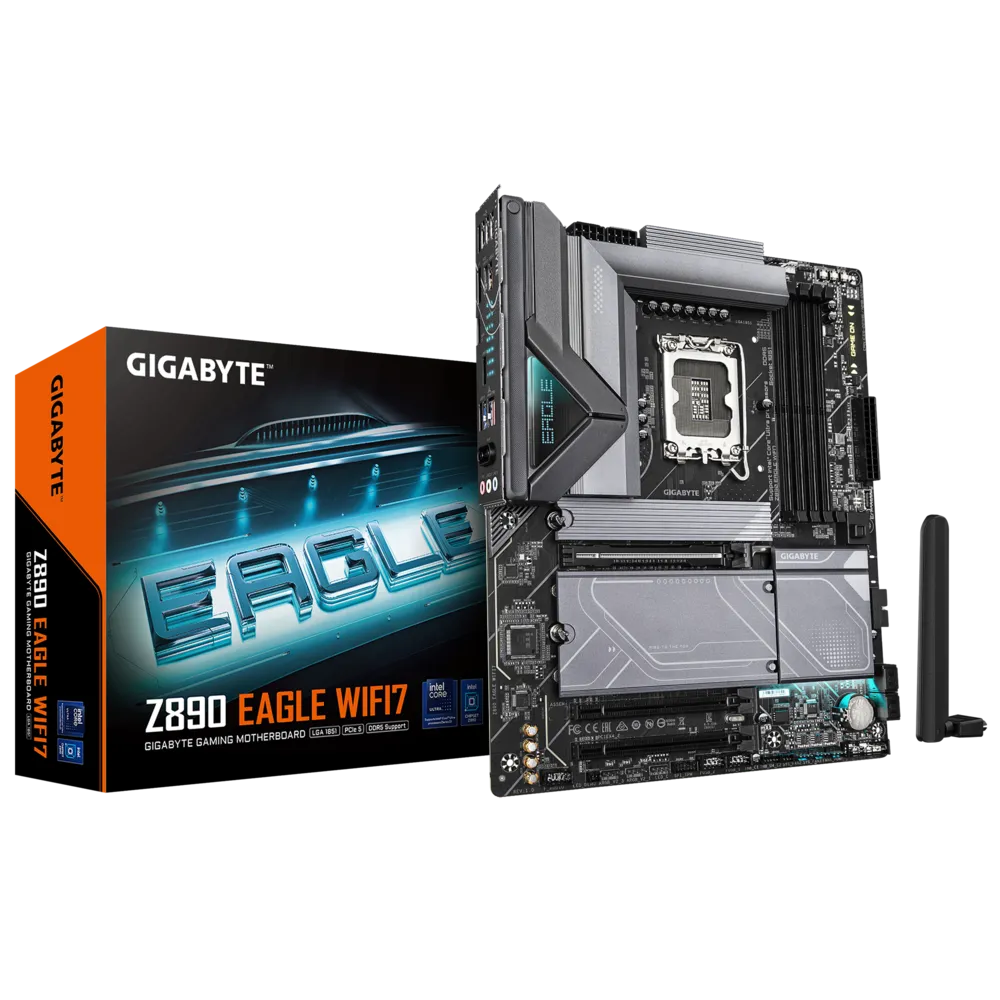

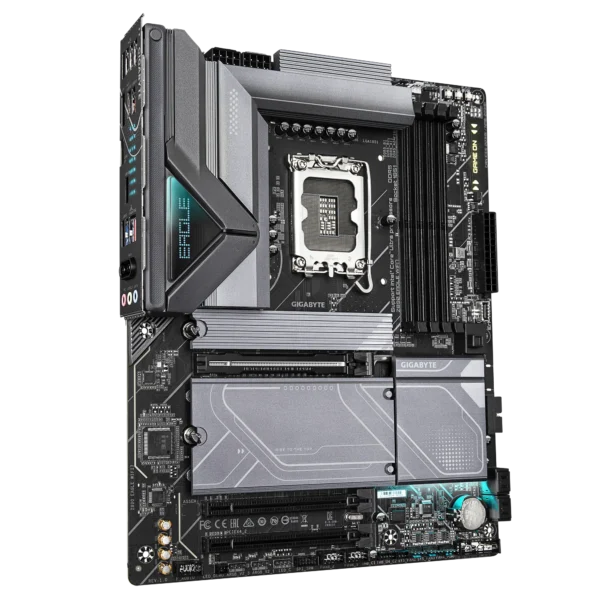

The GIGABYTE Z890 EAGLE WIFI7 motherboard is engineered to support Intel Core Ultra Series 2 processors on the LGA 1851 socket, delivering exceptional performance for gaming and professional applications. With a 14+1+2 phase digital VRM design utilizing 60A DrMOS, it ensures stable and efficient power delivery.

This motherboard supports up to 256GB of DDR5 memory with speeds up to 8800 MHz (OC), providing ample bandwidth for demanding tasks. It features four M.2 slots, including one PCIe 5.0 x4 and three PCIe 4.0 x4 slots, offering versatile and high-speed storage options. The inclusion of Wi-Fi 7 and 2.5GbE LAN ensures fast and reliable networking capabilities.

Designed with user convenience in mind, the Z890 EAGLE WIFI7 includes EZ-Latch Plus for tool-free installation of M.2 drives and graphics cards, as well as a Q-Flash Plus button for easy BIOS updates. Its advanced thermal design, featuring VRM Thermal Armor and M.2 Thermal Guards, maintains optimal temperatures under heavy workloads.

Key Features:

• Supports Intel Core Ultra Series 2 processors (LGA 1851 socket)

• 14+1+2 phase digital VRM design with 60A DrMOS

• Dual channel DDR5 memory support, up to 256GB, 8800 MHz (OC)

• Four M.2 slots (1 x PCIe 5.0 x4, 3 x PCIe 4.0 x4) with Thermal Guards

• Realtek 2.5GbE LAN and Wi-Fi 7 for high-speed networking

• USB4 Type-C port with DisplayPort Alternate Mode

• EZ-Latch Plus for tool-free M.2 and PCIe installation

• Advanced thermal design with VRM Thermal Armor and M.2 Thermal Guards

• Realtek ALC897 audio codec with high-definition audio support

• RGB Fusion 2.0 with multiple RGB headers for customization

Key Specifications:

• Form Factor: ATX

• Chipset: Intel Z890

• CPU Socket: LGA 1851

• Memory: 4 x DDR5 DIMM slots, up to 256GB, 8800 MHz (OC)

• Storage Interface: 4 x M.2 slots (1 x PCIe 5.0 x4, 3 x PCIe 4.0 x4), 4 x SATA 6Gb/s

• Graphics Output: 1 x DisplayPort 2.1, 1 x USB4 Type-C with DP-Alt Mode

• Expansion Slots: 1 x PCIe 5.0 x16, 2 x PCIe 4.0 x16 (x4 mode)

• Audio: Realtek ALC897 codec, 7.1-channel HD audio

• LAN: Realtek 2.5GbE LAN

• Wireless: Wi-Fi 7 (802.11be), Bluetooth 5.4

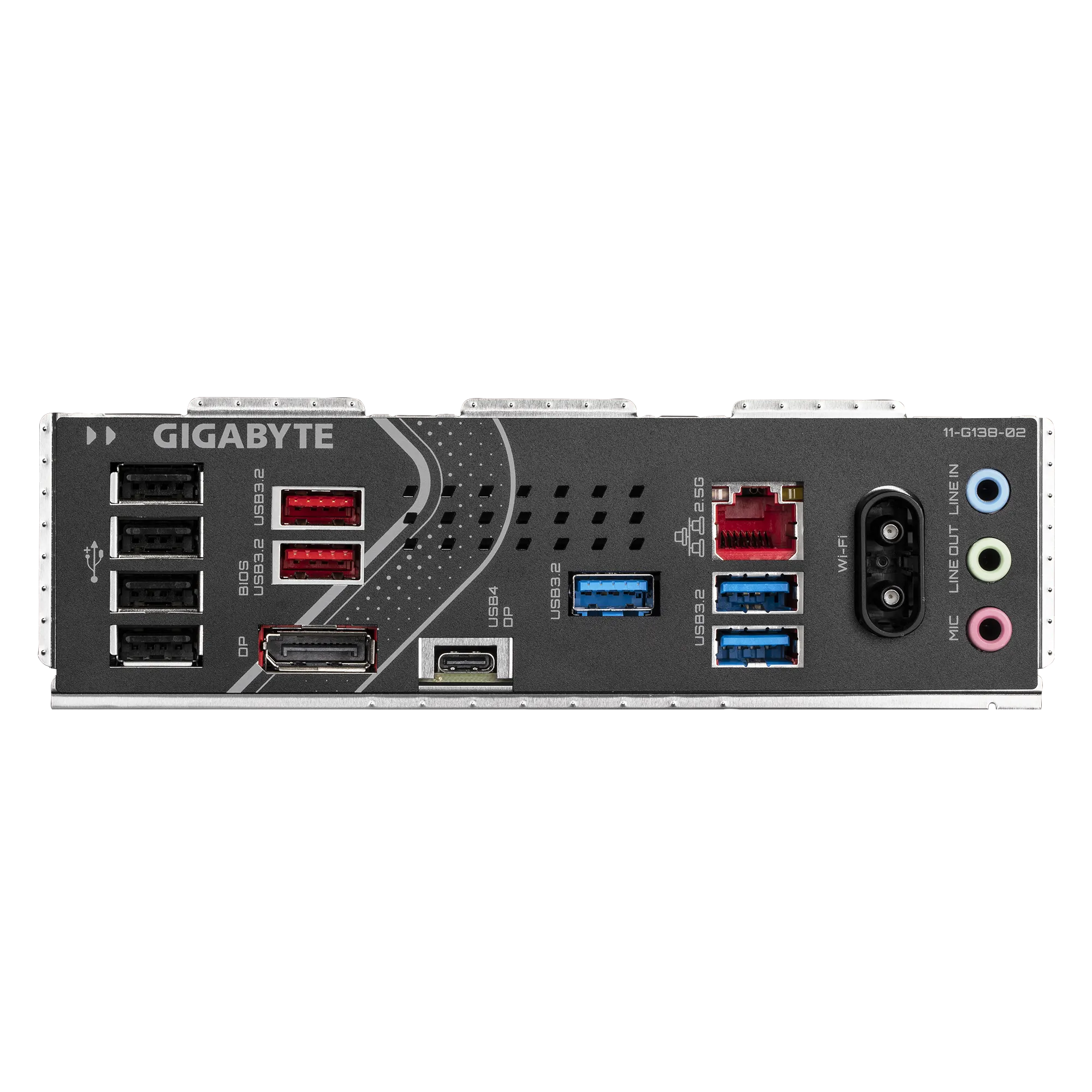

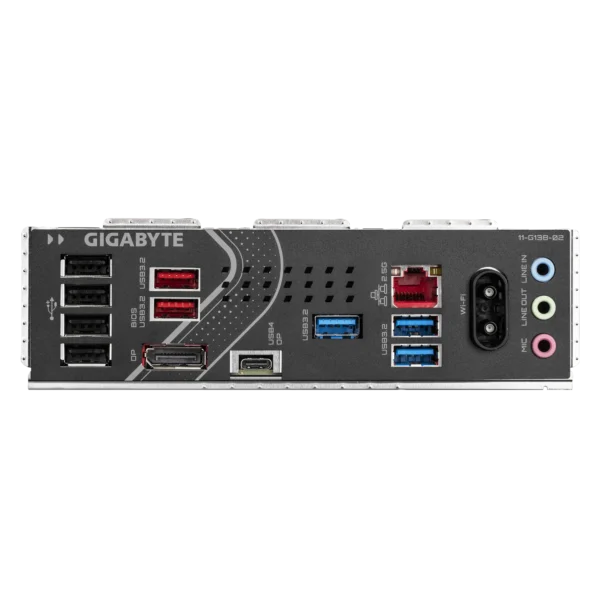

• USB Ports: 1 x USB4 Type-C, multiple USB 3.2 Gen2 and Gen1 Type-A ports, 4 x USB 2.0

• BIOS: 256 Mbit UEFI AMI BIOS
