Description :

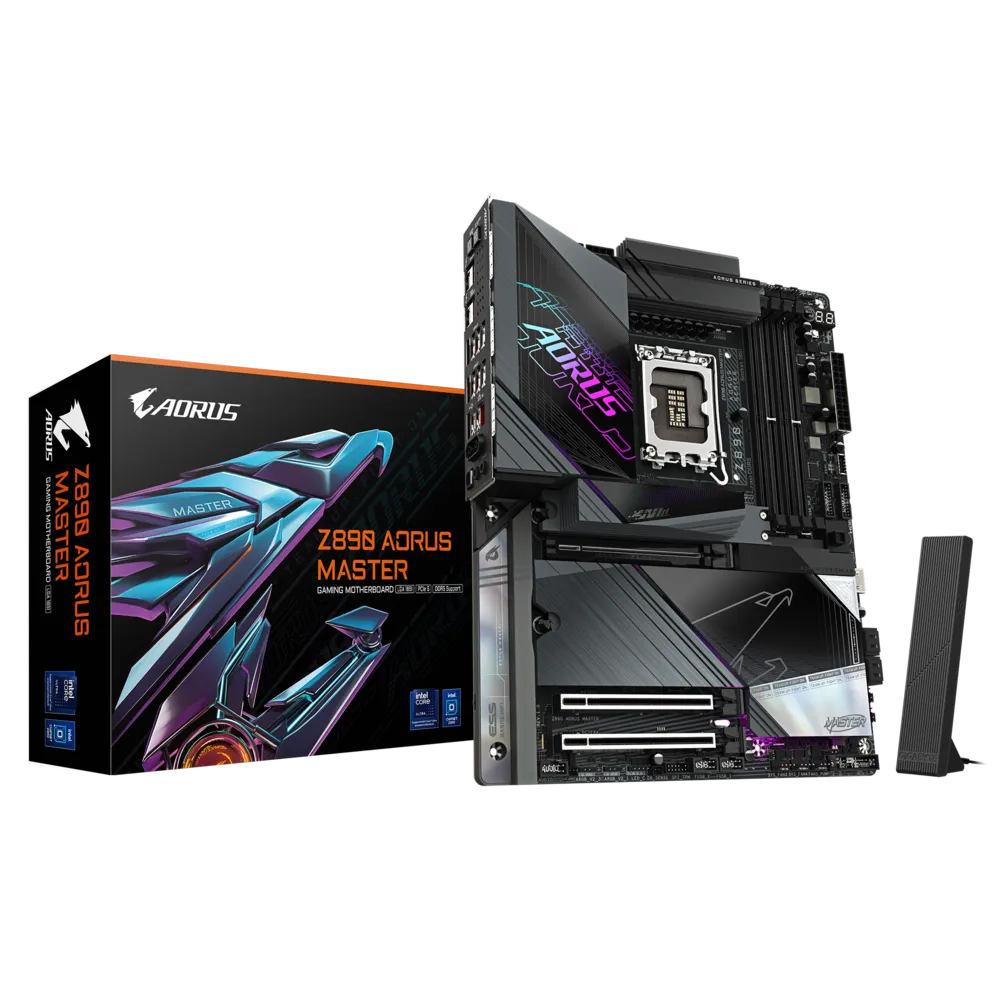

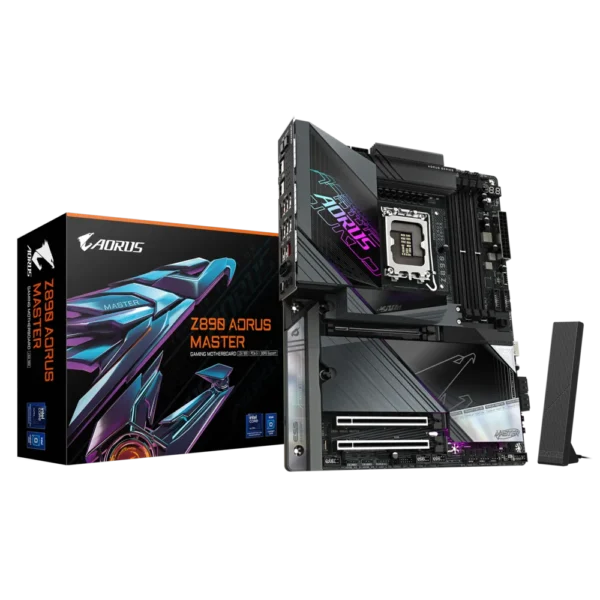

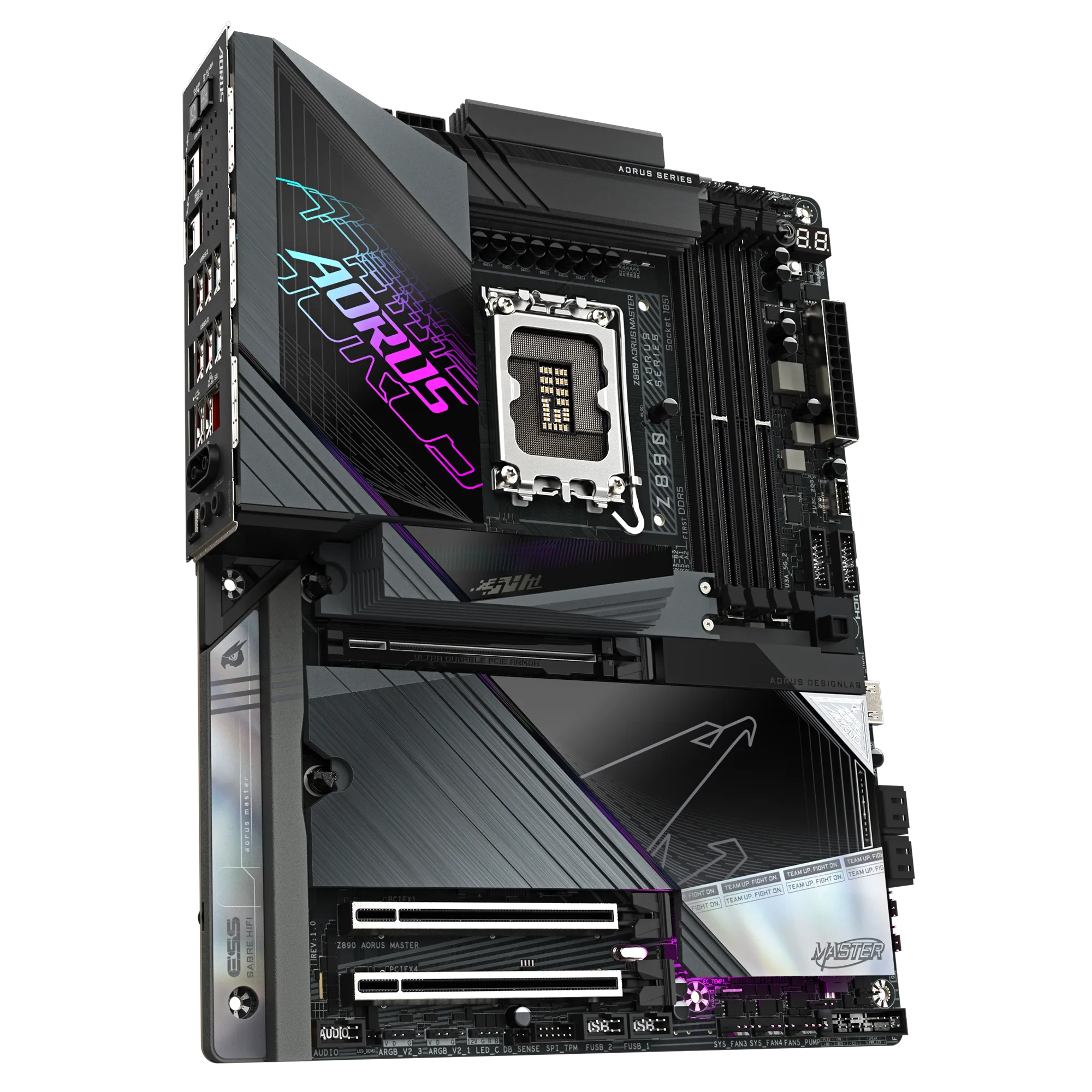

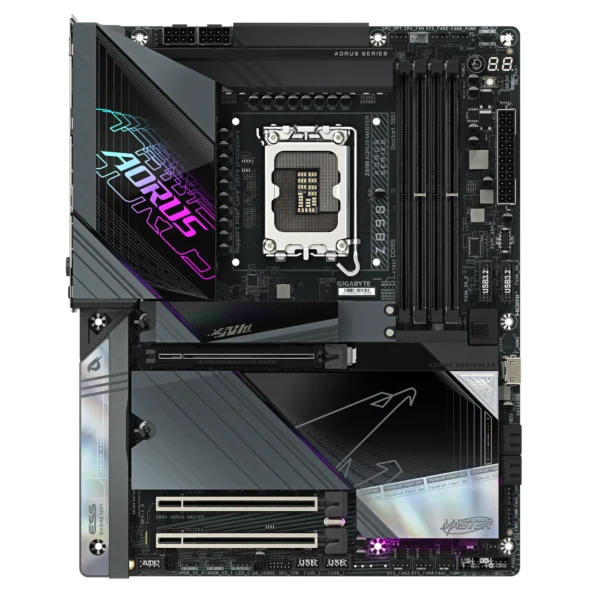

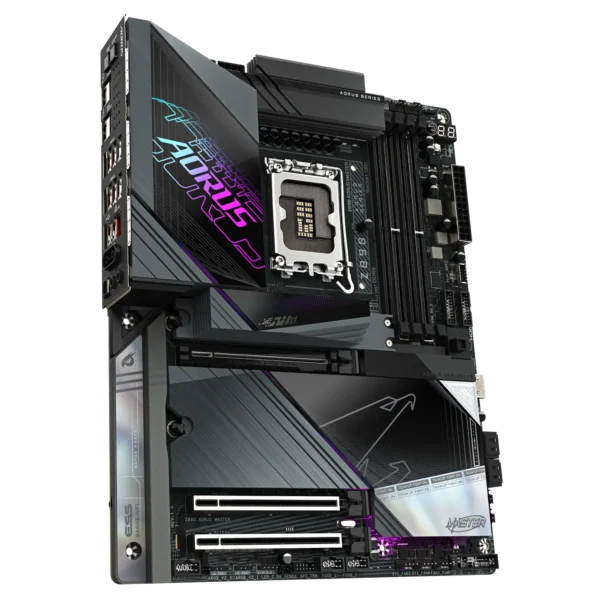

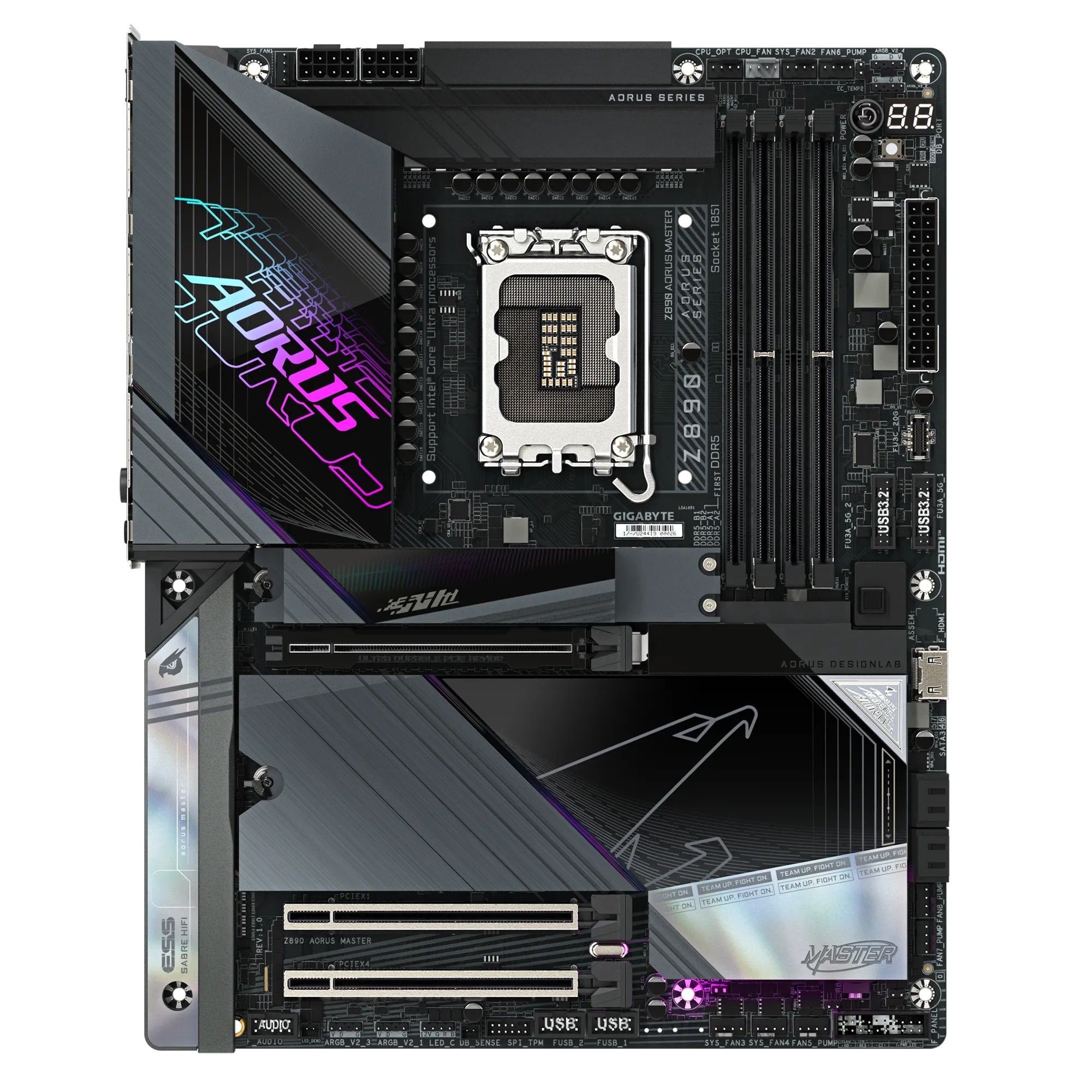

The Gigabyte Z890 AORUS MASTER motherboard is engineered to deliver top-tier performance for enthusiasts and professionals alike. Supporting Intel Core Ultra Series 2 processors on the LGA 1851 socket, it features a robust 18+1+2 phase digital VRM solution with 110A Smart Power Stages, ensuring stable power delivery even under heavy loads.

With support for DDR5 memory up to 9500 MT/s (OC) and five M.2 slots (two PCIe 5.0 x4 and three PCIe 4.0 x4), this motherboard offers exceptional speed and storage capabilities. The inclusion of Wi-Fi 7 and 10GbE LAN provides ultra-fast networking options, while dual Thunderbolt 4 Type-C ports with DisplayPort Alternate Mode offer versatile connectivity.

Designed with DIY enthusiasts in mind, the Z890 AORUS MASTER includes user-friendly features like EZ-Latch Plus for tool-free installation of M.2 drives and graphics cards, Wi-Fi EZ-Plug for simplified antenna setup, and a Sensor Panel Link for easy integration of in-chassis displays. Its advanced thermal design, including VRM Thermal Armor Advanced and M.2 Thermal Guard XL, ensures efficient heat dissipation for optimal performance.

Key Features:

• Supports Intel Core Ultra Series 2 processors (LGA 1851 socket)

• 18+1+2 phase digital VRM design with 110A Smart Power Stages

• Dual channel DDR5 memory support, up to 256GB, 9500 MT/s (OC)

• Five M.2 slots (2 x PCIe 5.0 x4, 3 x PCIe 4.0 x4) with Thermal Guard XL

• Marvell 10GbE LAN and Wi-Fi 7 for high-speed networking

• Dual Thunderbolt 4 Type-C ports with DisplayPort Alternate Mode

• EZ-Latch Plus for tool-free M.2 and PCIe installation

• Advanced thermal design with VRM Thermal Armor Advanced and M.2 Thermal Guard XL

• Realtek ALC1220-VB audio codec with ESS SABRE Hi-Fi 9118 DAC

• RGB Fusion 2.0 with multiple RGB headers for customization

Key Specifications:

• Form Factor: ATX

• Chipset: Intel Z890

• CPU Socket: LGA 1851

• Memory: 4 x DDR5 DIMM slots, up to 256GB, 9500 MT/s (OC)

• Storage Interface: 5 x M.2 slots (2 x PCIe 5.0 x4, 3 x PCIe 4.0 x4), 4 x SATA 6Gb/s

• Graphics Output: 1 x HDMI 2.1, 2 x DisplayPort via USB-C

• Expansion Slots: 1 x PCIe 5.0 x16, 1 x PCIe 4.0 x4, 1 x PCIe 3.0 x1

• Audio: Realtek ALC1220-VB codec, ESS SABRE Hi-Fi 9118 DAC, 7.1-channel HD audio

• LAN: Marvell 10GbE LAN

• Wireless: Wi-Fi 7 (802.11be), Bluetooth 5.3

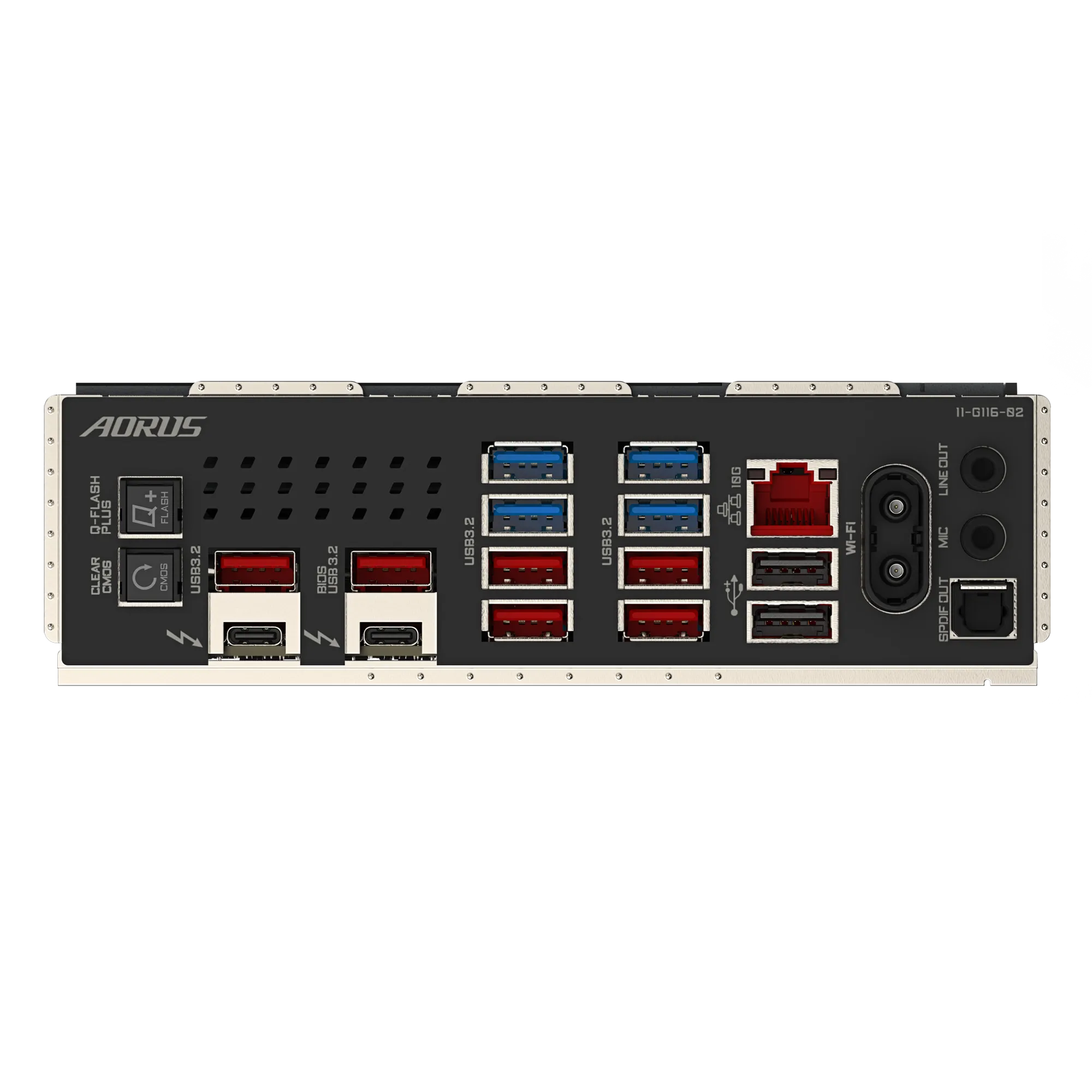

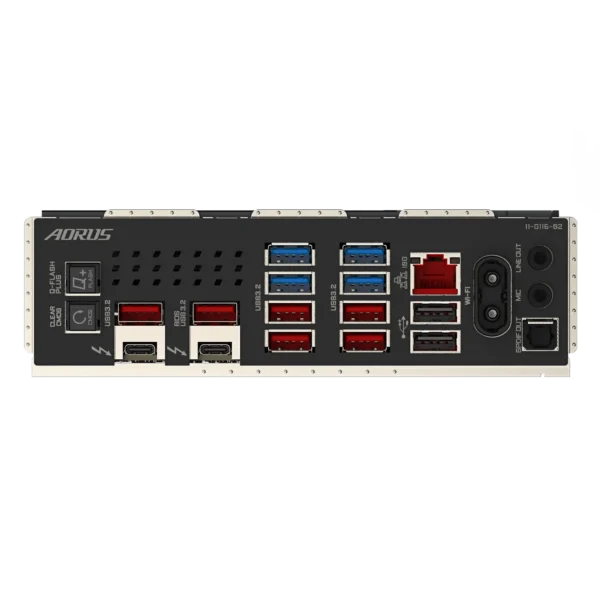

• USB Ports: 2 x Thunderbolt 4 Type-C, multiple USB 3.2 Gen2 and Gen1 ports

• BIOS: 256 Mbit UEFI AMI BIOS
