Description :

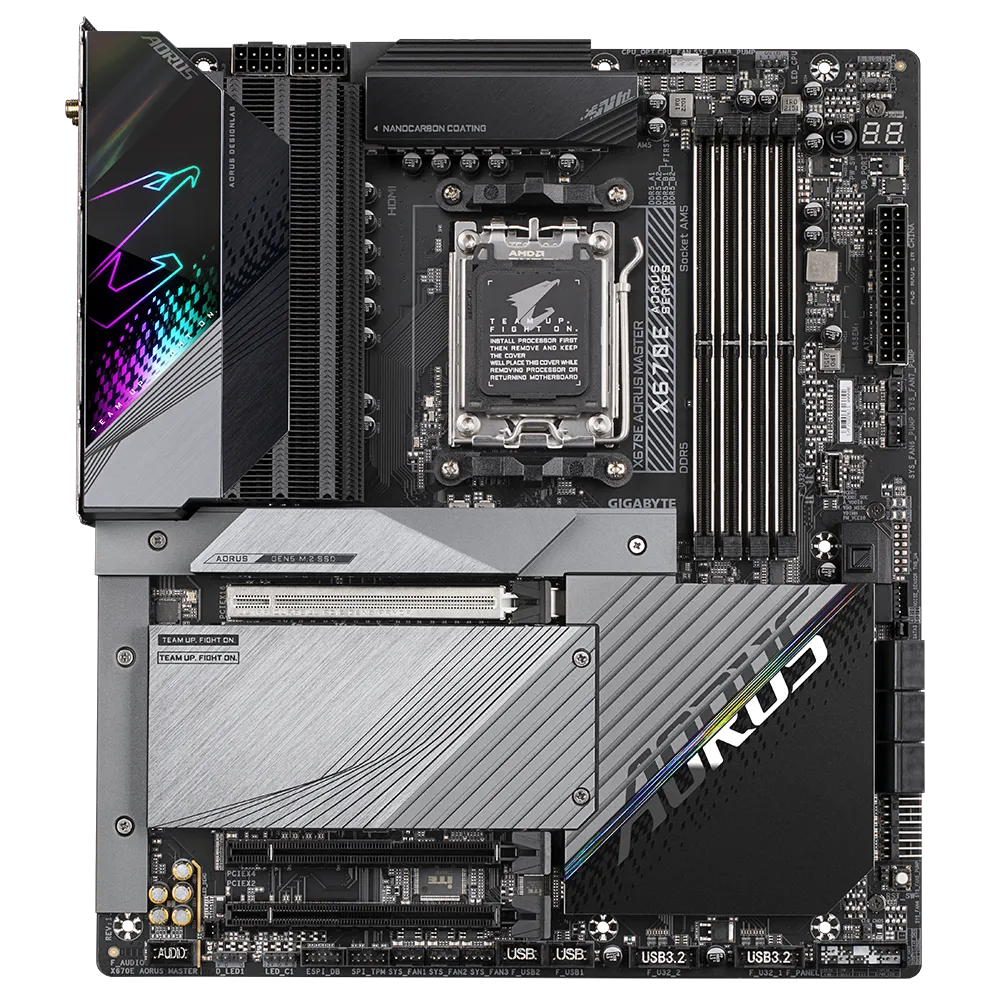

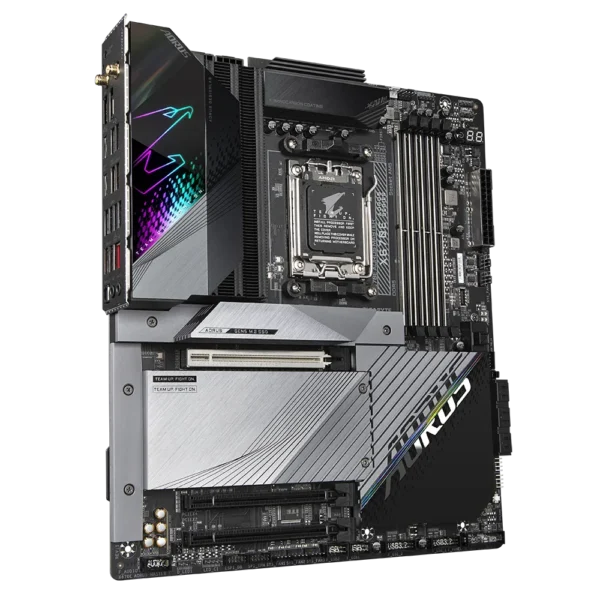

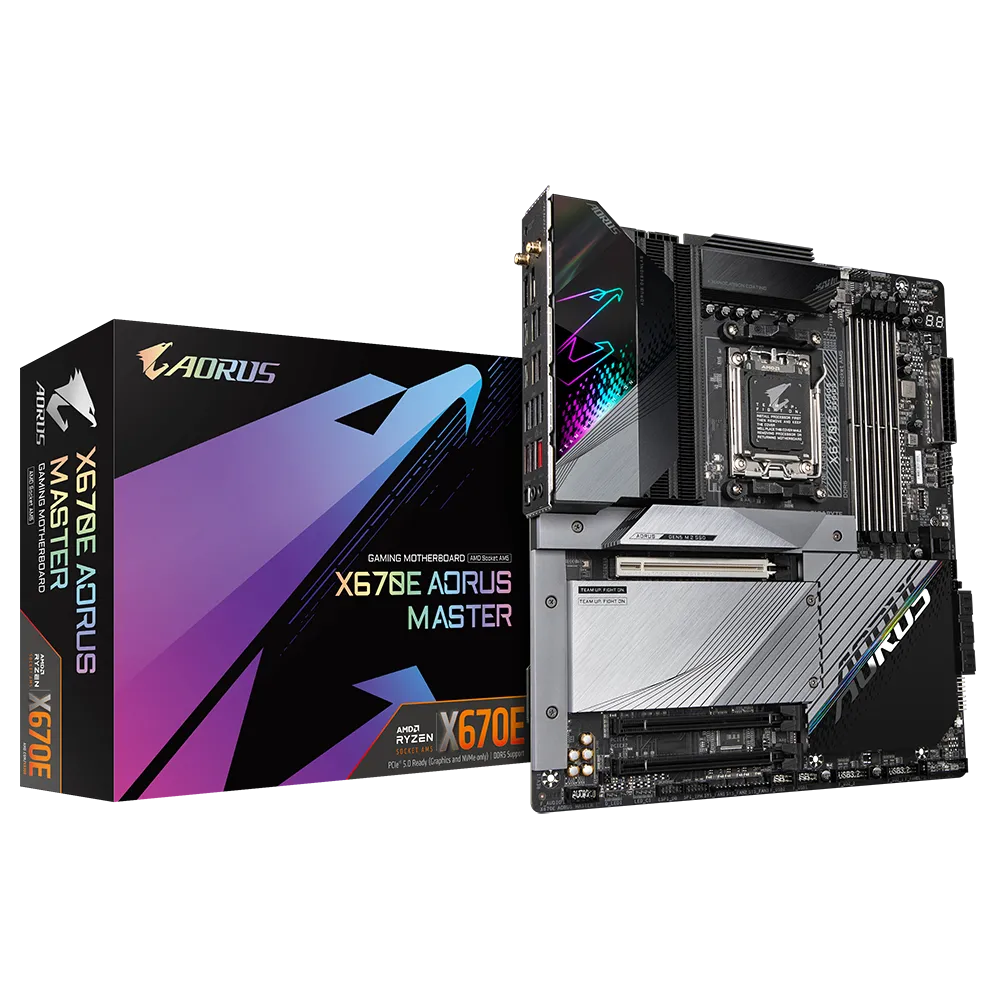

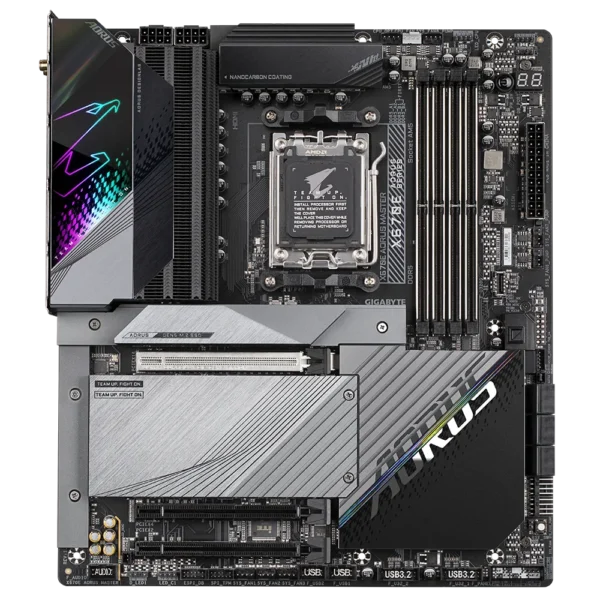

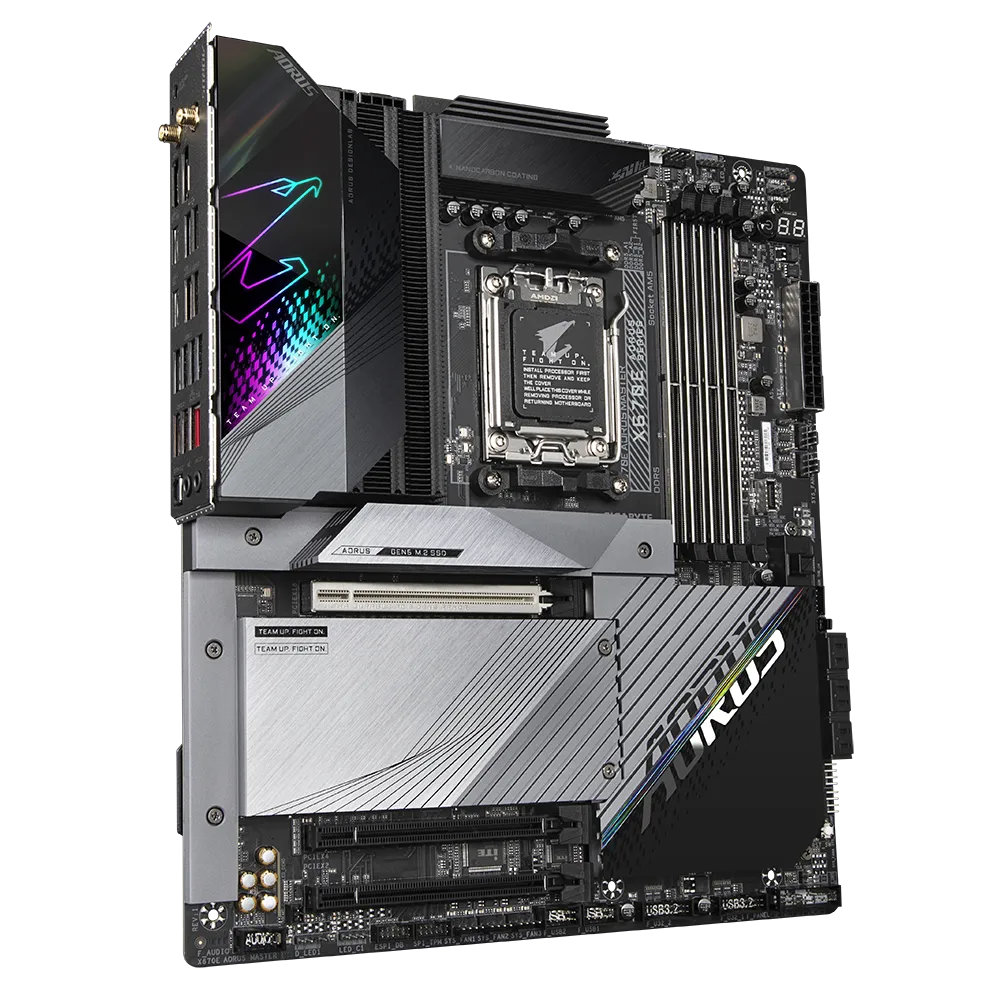

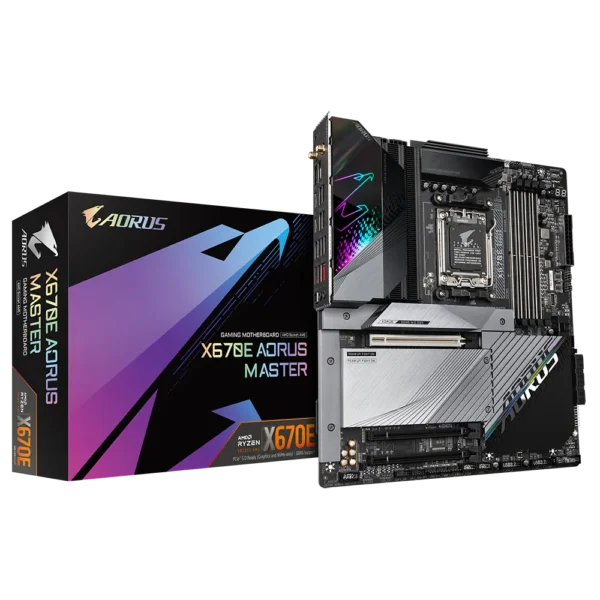

The Gigabyte X670E AORUS MASTER motherboard is engineered to deliver top-tier performance for enthusiasts and professionals alike. Supporting AMD Ryzen 7000, 8000, and 9000 series processors on the AM5 socket, it features a robust 16+2+2 phase digital VRM solution with 105A Smart Power Stages, ensuring stable power delivery even under heavy loads.

With support for DDR5 memory up to 6666 MHz (OC) and four M.2 slots (two PCIe 5.0 x4 and two PCIe 4.0 x4), this motherboard offers exceptional speed and storage capabilities. The inclusion of Wi-Fi 6E and 2.5GbE LAN provides ultra-fast networking options, while dual USB-C ports with DisplayPort Alternate Mode offer versatile connectivity.

Designed with DIY enthusiasts in mind, the X670E AORUS MASTER includes user-friendly features like EZ-Latch Plus for tool-free installation of M.2 drives and graphics cards, and a Multi-Key function for easy BIOS access and system management. Its advanced thermal design, including Fins-Array III and M.2 Thermal Guard III, ensures efficient heat dissipation for optimal performance.

Key Features:

• Supports AMD Ryzen 7000/8000/9000 series processors (AM5 socket)

• Twin 16+2+2 digital VRM design with 105A Smart Power Stages

• Dual channel DDR5 memory support, up to 128GB, 6666 MHz (OC)

• Four M.2 slots (2 x PCIe 5.0 x4, 2 x PCIe 4.0 x4) with Thermal Guard III

• Intel 2.5GbE LAN and Wi-Fi 6E for high-speed networking

• Dual USB-C ports with DisplayPort Alternate Mode

• EZ-Latch Plus for tool-free M.2 and PCIe installation

• Advanced thermal design with Fins-Array III and NanoCarbon baseplate

• Realtek ALC1220-VB audio codec with DTS:X Ultra support

• RGB Fusion 2.0 with multiple RGB headers for customization

Key Specifications:

• Form Factor: E-ATX

• Chipset: AMD X670E

• CPU Socket: AM5

• Memory: 4 x DDR5 DIMM slots, up to 128GB, 6666 MHz (OC)

• Storage Interface: 4 x M.2 slots (2 x PCIe 5.0 x4, 2 x PCIe 4.0 x4), 6 x SATA 6Gb/s

• Graphics Output: 1 x HDMI, 1 x DisplayPort via USB-C

• Expansion Slots: 1 x PCIe 5.0 x16, 1 x PCIe 4.0 x4, 1 x PCIe 3.0 x2

• Audio: Realtek ALC1220-VB codec, 7.1-channel HD audio

• LAN: Intel 2.5GbE LAN

• Wireless: Intel Wi-Fi 6E (802.11ax), Bluetooth 5.3

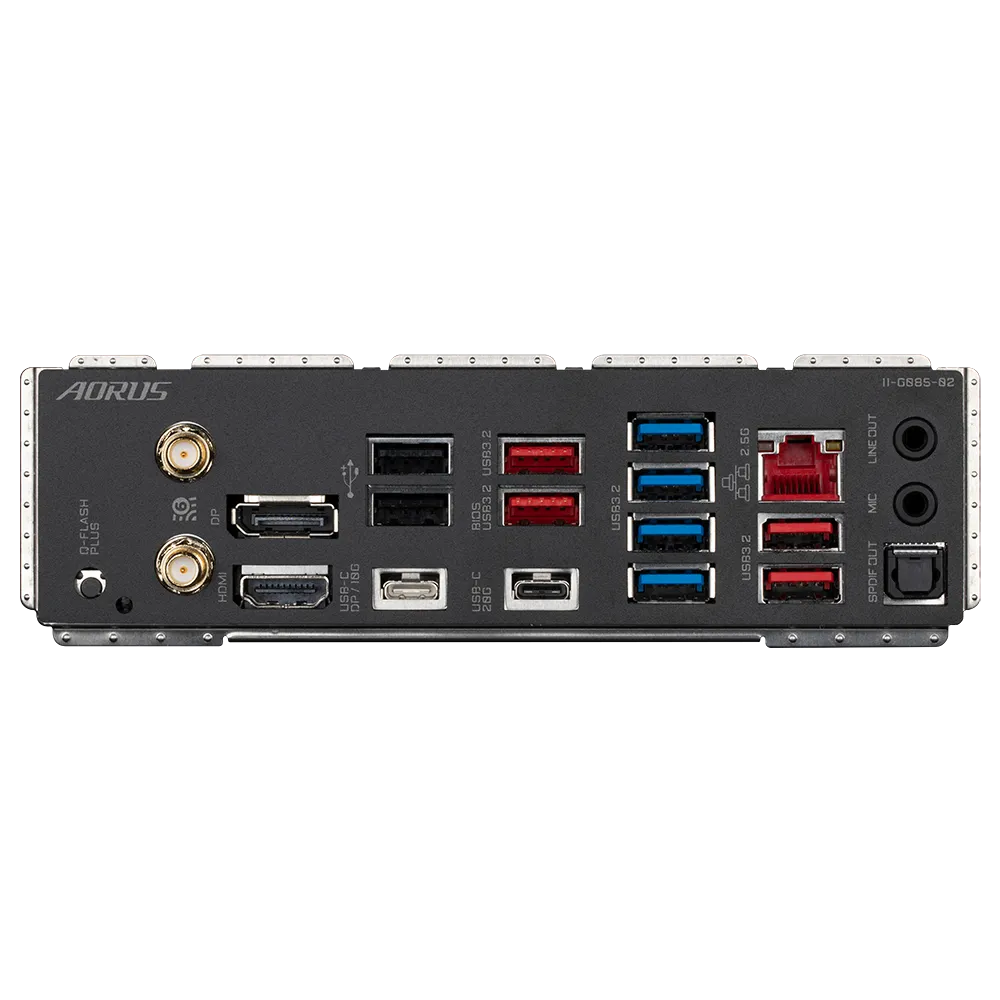

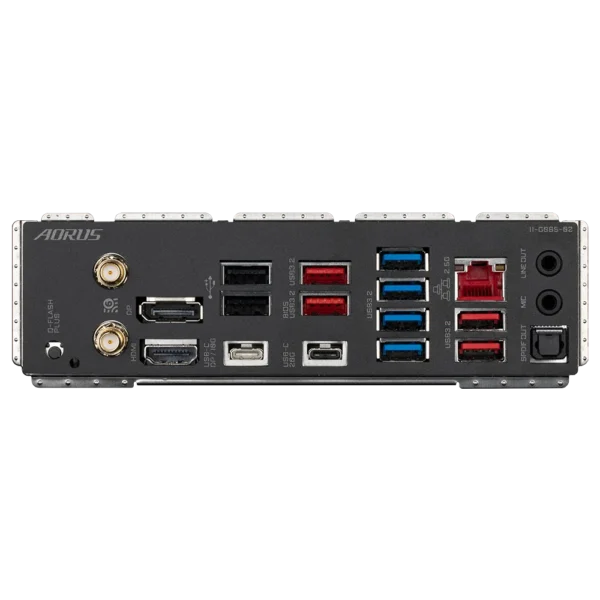

• USB Ports: 1 x USB 3.2 Gen 2×2 Type-C, 1 x USB 3.2 Gen 2 Type-C, 4 x USB 3.2 Gen 2 Type-A, 4 x USB 3.2 Gen 1 Type-A, 2 x USB 2.0

• BIOS: 256 Mbit UEFI AMI BIOS
