Description

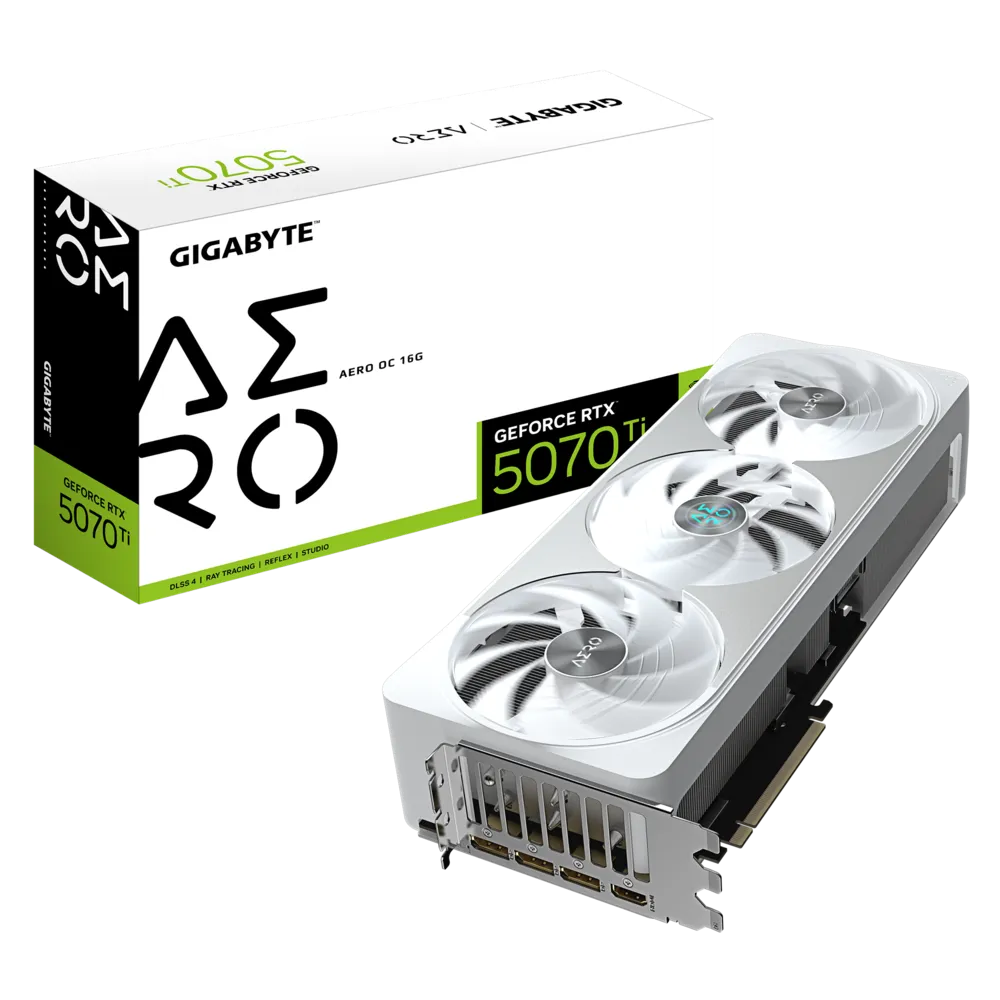

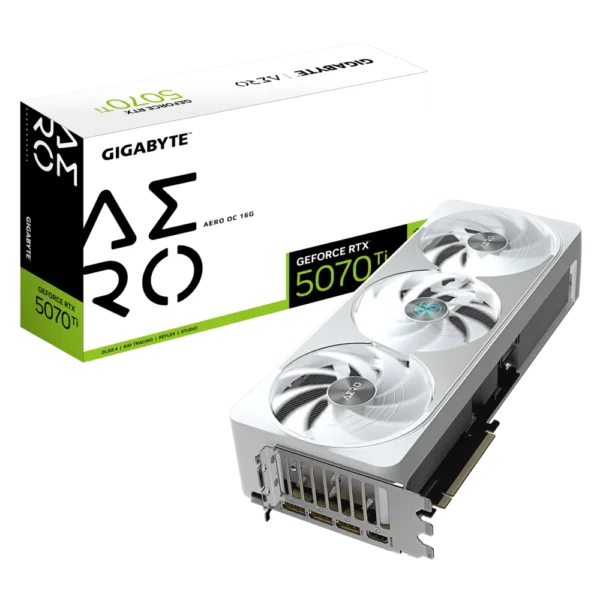

Engineered for enthusiasts, the GIGABYTE GeForce RTX™ 5070 Ti AERO OC 16G combines NVIDIA’s Blackwell architecture with 16GB of GDDR7 memory on a 256-bit interface, providing a memory bandwidth of 896 GB/s. With 8,960 CUDA cores and a boost clock of up to 2,588 MHz, it ensures smooth 4K gaming and efficient content creation. The WINDFORCE cooling system features triple Hawk fans, a large vapor chamber, and composite copper heat pipes, maintaining optimal temperatures under load. Dual BIOS functionality allows users to switch between Performance and Silent modes. Additional features include RGB lighting, a reinforced structure with a versatile VGA holder, and a 4-year warranty upon registration.

Key Features

• NVIDIA Blackwell Architecture: Enhanced ray tracing and AI capabilities.

• 16GB GDDR7 Memory: High bandwidth for demanding applications.

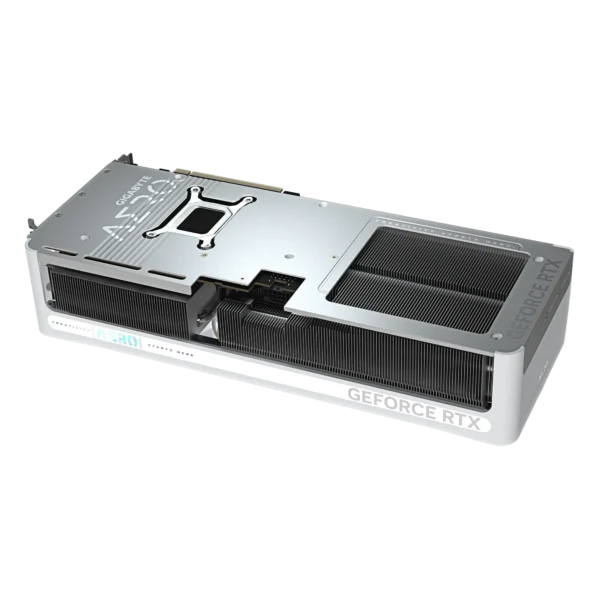

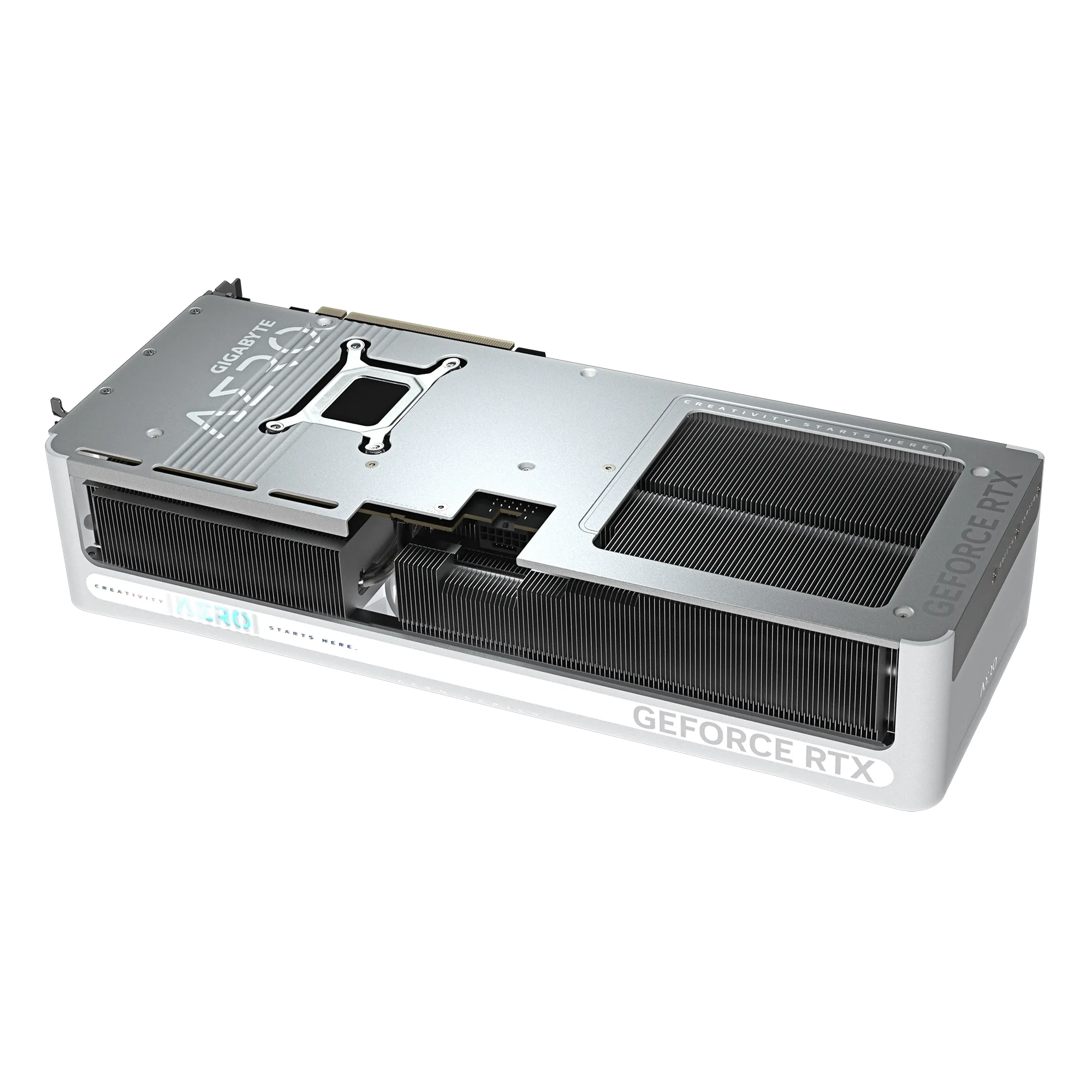

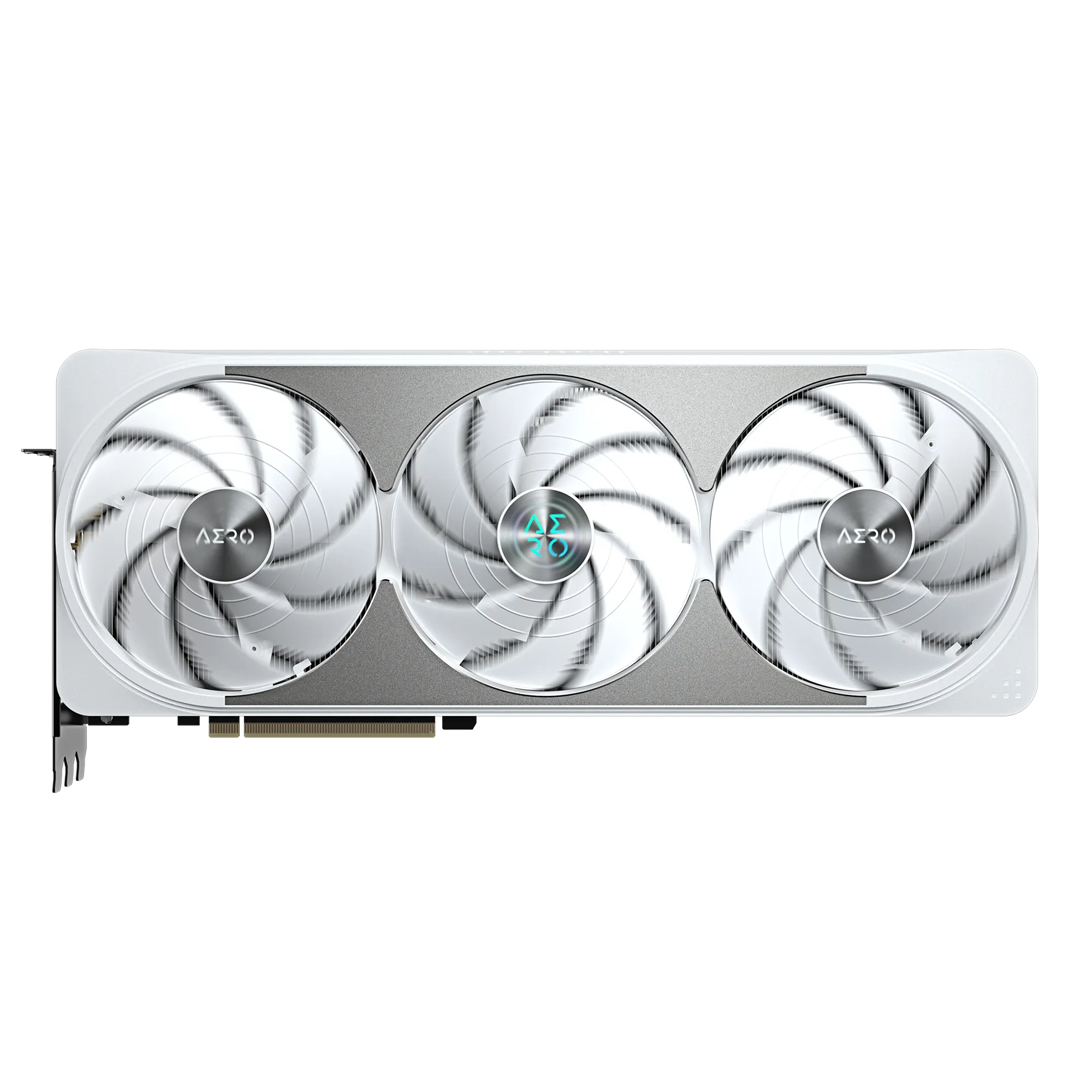

• WINDFORCE Cooling System: Triple Hawk fans with vapor chamber and composite copper heat pipes.

• DLSS 4 Support: AI-driven performance boosts and image quality enhancements.

• Dual BIOS: Switch between Performance and Silent modes.

• RGB Lighting: Customizable aesthetics.

• Reinforced Structure: Durability with a metal backplate and VGA support bracket.

• PCIe 5.0 Interface: High-speed data transfer.

• Multiple Display Outputs: Supports up to 4 displays with 3x DisplayPort 2.1 and 1x HDMI 2.1.

Key Specifications

• GPU Model: NVIDIA GeForce RTX 5070 Ti

• CUDA Cores: 8,960

• Memory: 16GB GDDR7

• Memory Interface: 256-bit

• Memory Bandwidth: 896 GB/s

• Base Clock: 2,295 MHz

• Boost Clock: 2,588 MHz

• Memory Clock: 28 Gbps effective

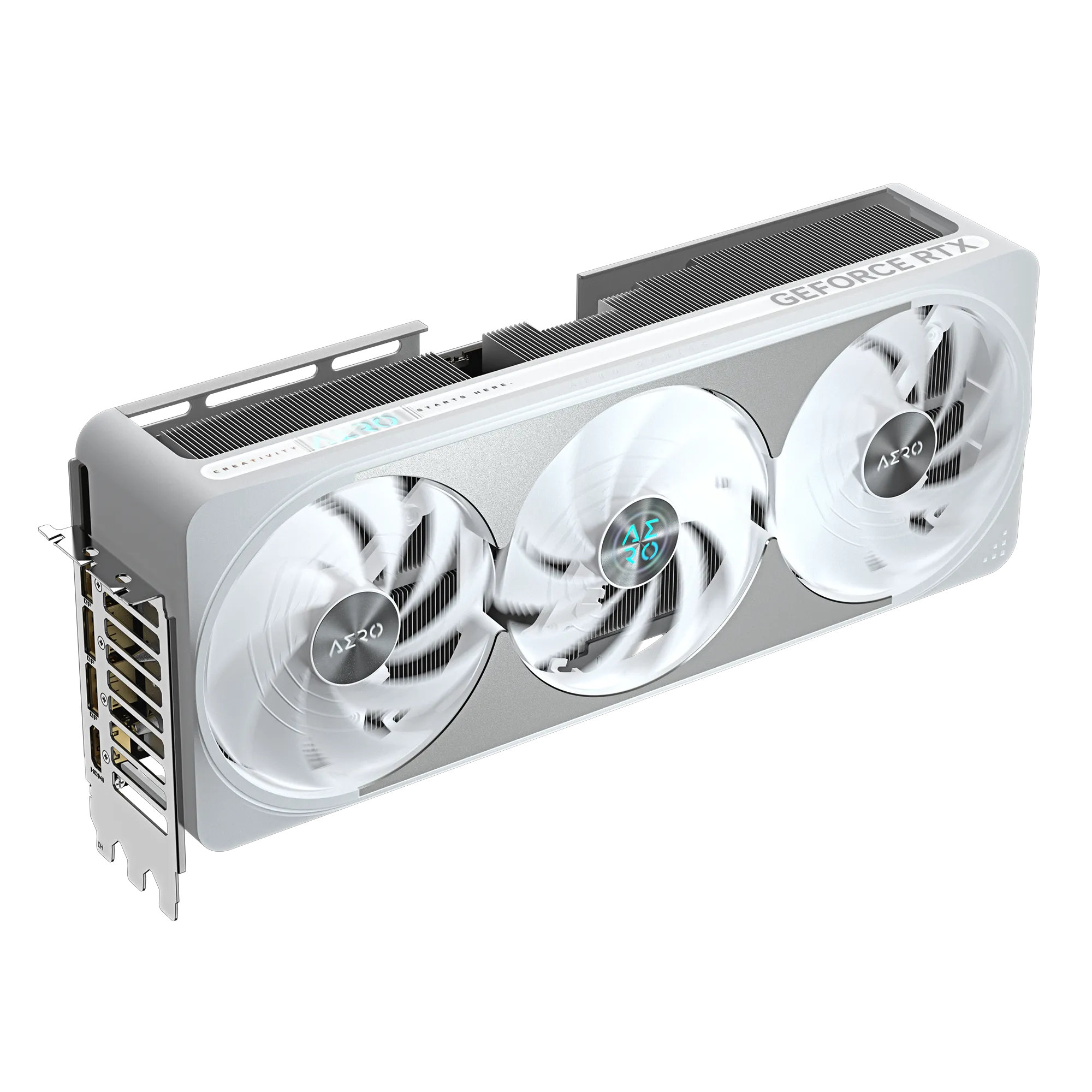

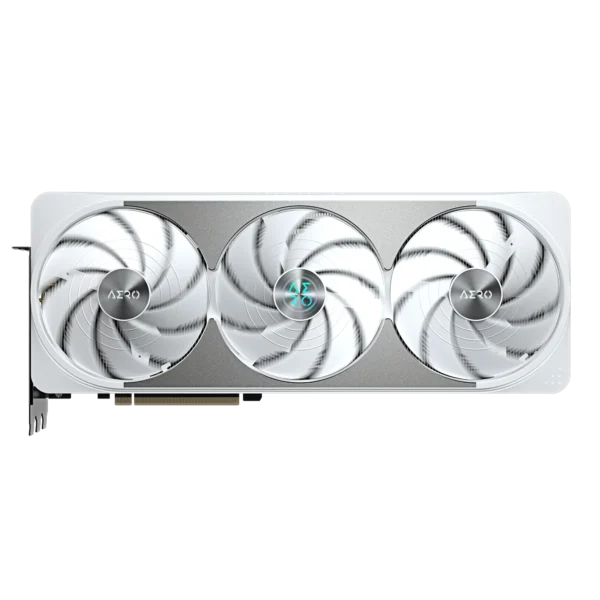

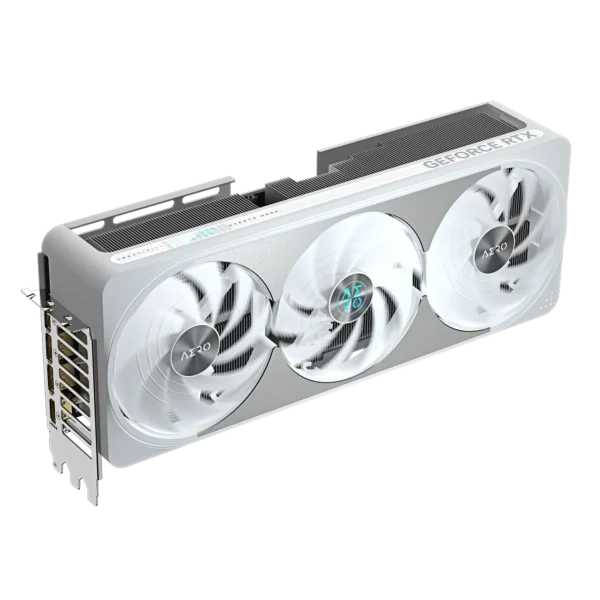

• Cooling System: WINDFORCE 3X with triple Hawk fans

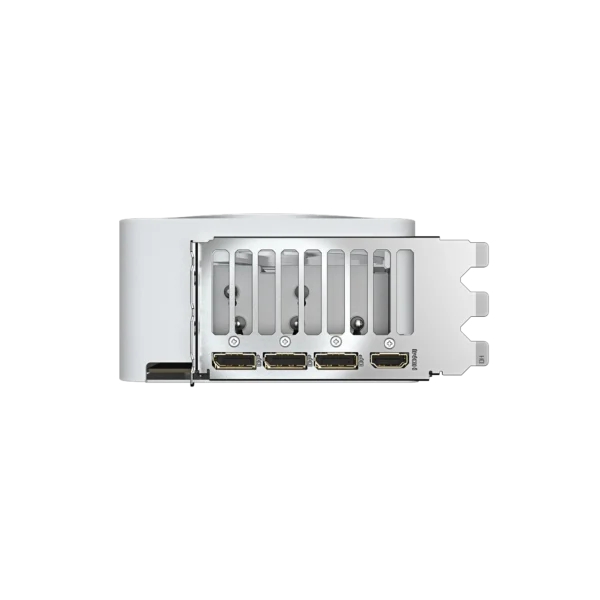

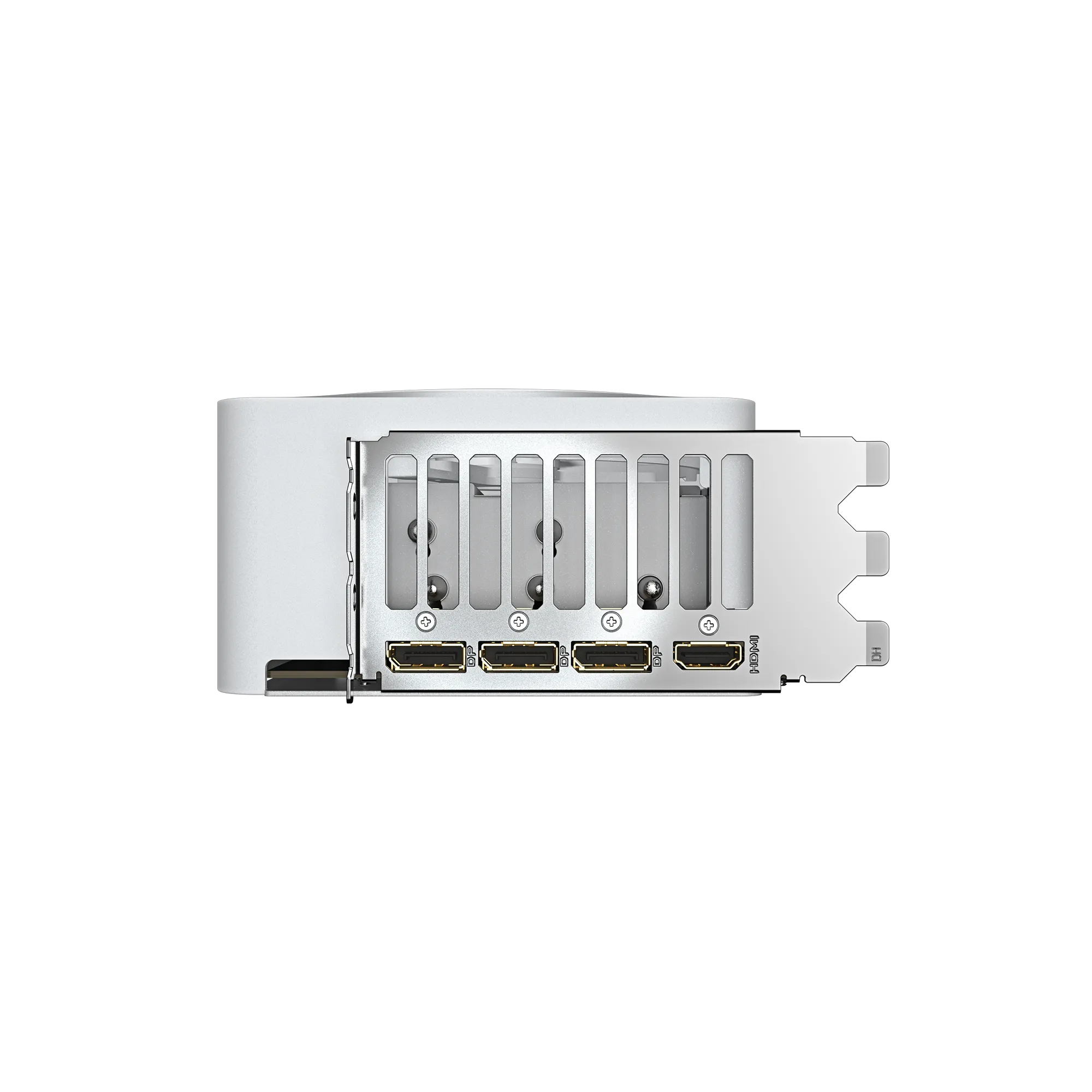

• Display Outputs:

  • 3 x DisplayPort 2.1

  • 1 x HDMI 2.1

• Maximum Resolution: 7680 x 4320 (8K)

• Maximum Displays Supported: 4

• Power Connector: 1 x 16-pin (12VHPWR)

• Recommended PSU: 750W or higher

• Dimensions: 340mm (L) x 136mm (W) x 58mm (H)

• Slot Size: Triple-slot

• DirectX: 12 Ultimate

• OpenGL: 4.6

• VR Ready: Yes

• G-SYNC Compatible: Yes
