Description

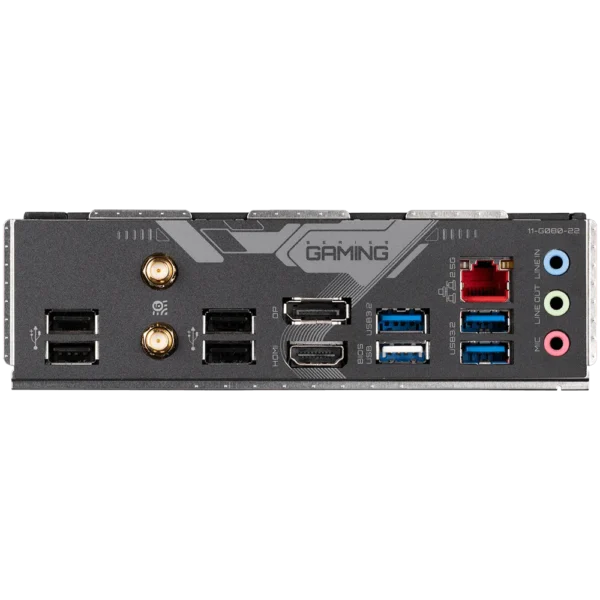

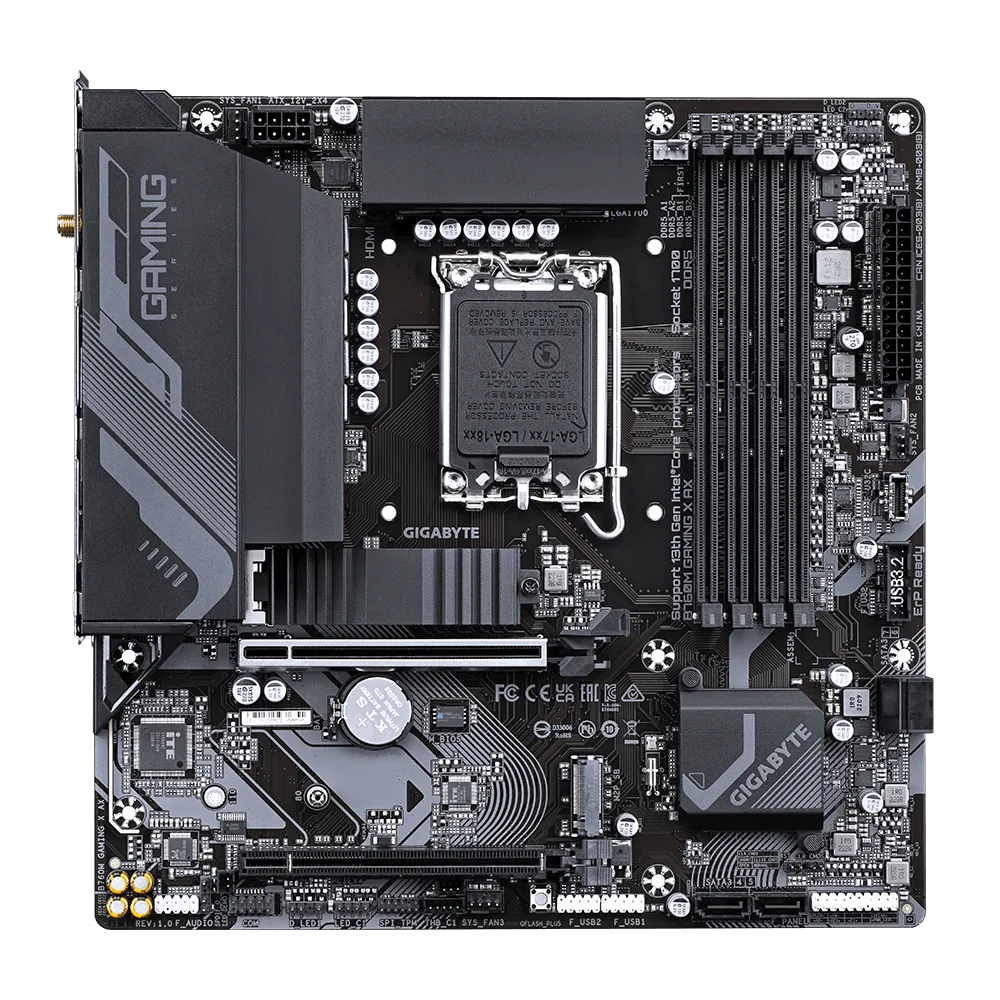

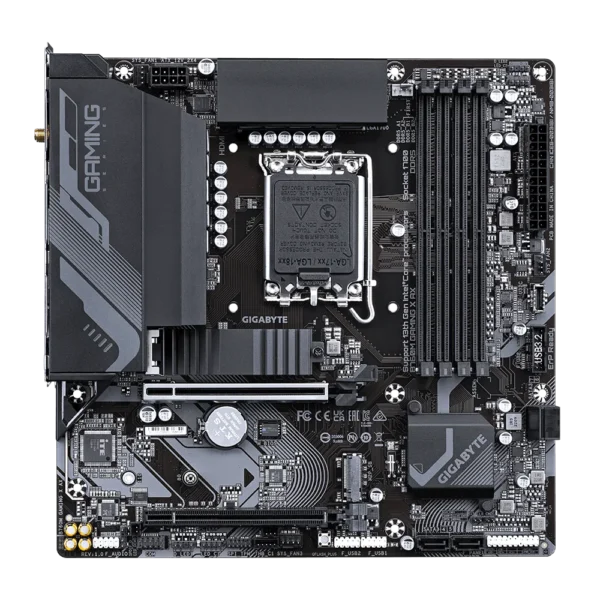

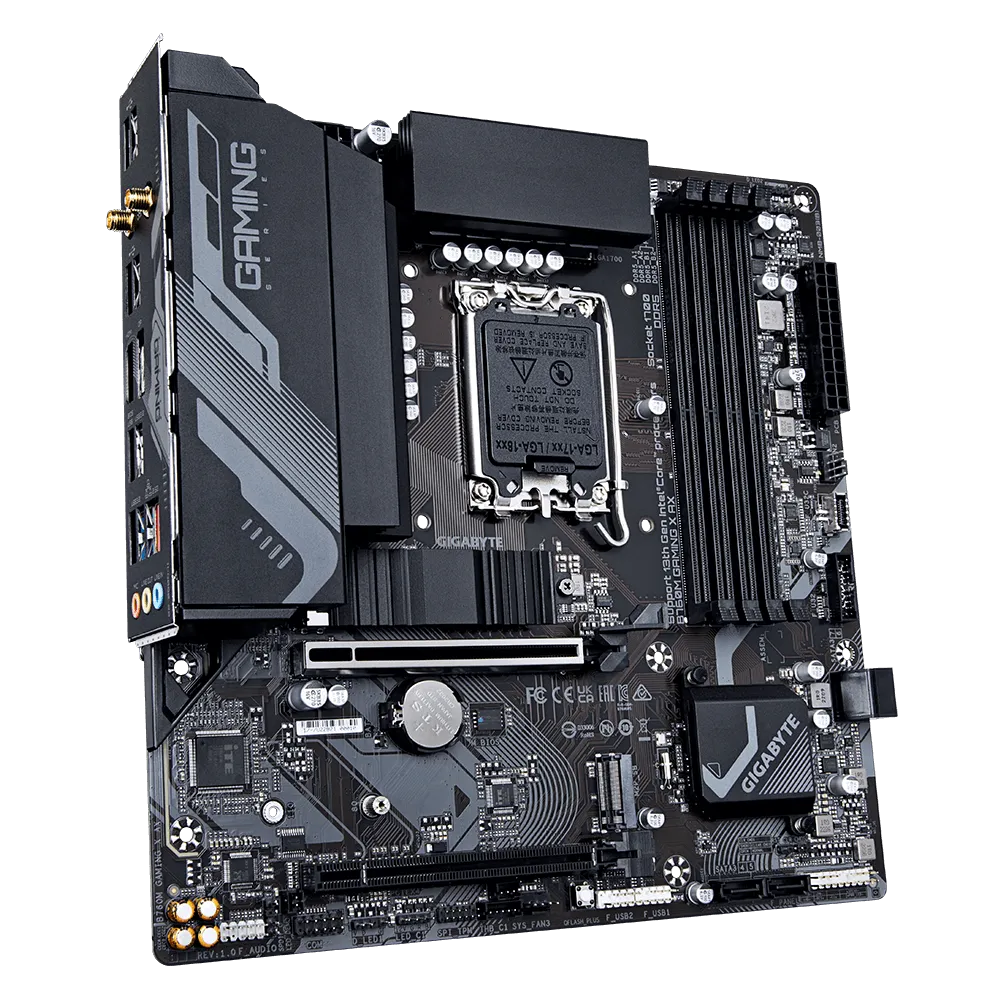

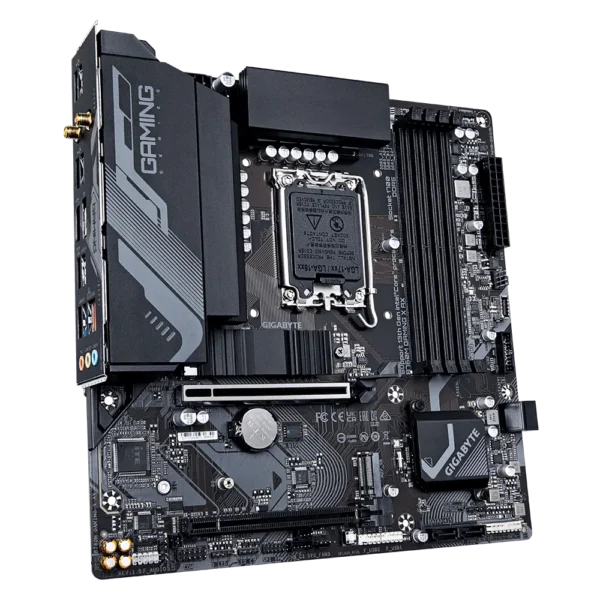

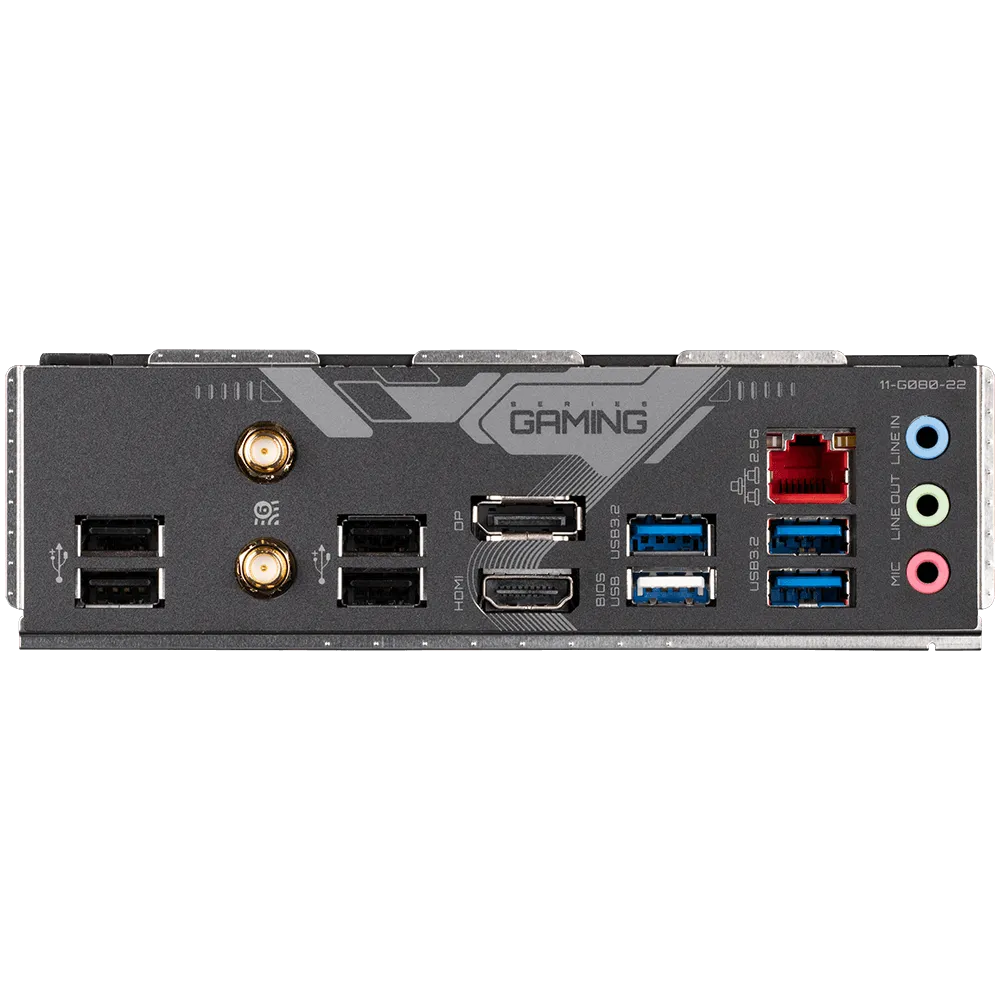

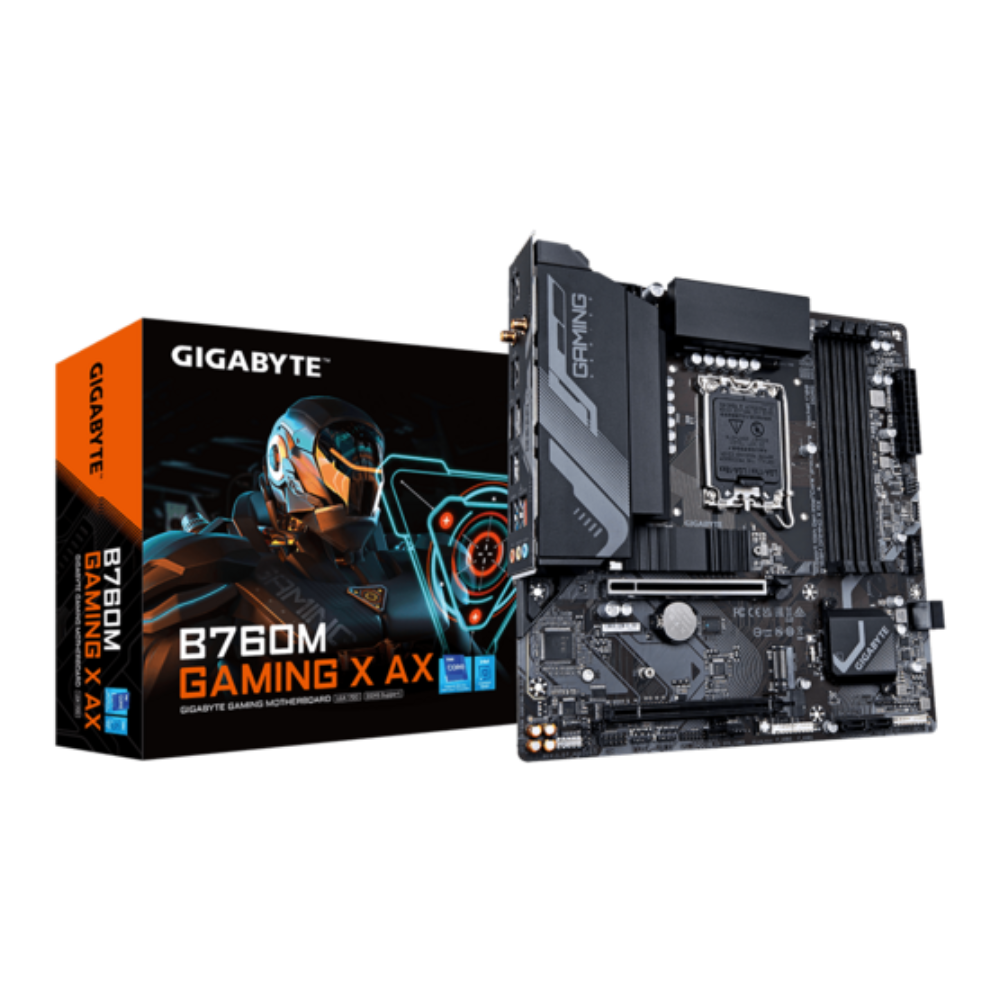

Built on the Intel B760 chipset, the Gigabyte B760M GAMING X AX DDR5 motherboard supports Intel’s 12th, 13th, and 14th generation Core processors. It features an 8+1+1 phase digital VRM design with 60A DrMOS, ensuring stable power delivery for demanding applications. The motherboard supports dual-channel DDR5 memory with four DIMM slots, allowing for speeds up to 7600MHz (OC) and a maximum capacity of 192GB. For storage, the B760M GAMING X AX DDR5 includes two PCIe 4.0 x4 M.2 slots and four SATA 6Gb/s ports, providing ample options for high-speed storage devices. The board also offers advanced thermal solutions, including fully covered MOSFET heatsinks and an M.2 Thermal Guard, to prevent throttling and ensure optimal performance. Connectivity is enhanced with Wi-Fi 6E (802.11ax) for fast wireless speeds, 2.5GbE LAN for wired connections, and multiple USB ports including USB 3.2 Gen 2 Type-C®. The rear I/O includes HDMI, DisplayPort, and multiple USB ports, catering to various display and peripheral needs. Additional features include Smart Fan 6 technology with multiple temperature sensors and hybrid fan headers, RGB Fusion support with addressable and 12V RGB headers, and Q-Flash Plus for BIOS updates without the need for a CPU, memory, or graphics card.

Key Features

• Processor Support: Compatible with Intel® Core™ 12th, 13th, and 14th generation processors.

• Memory: Dual-channel DDR5 support up to 192GB, with speeds up to 7600MHz (OC).

• Storage: 2 x PCIe 4.0 x4 M.2 slots and 4 x SATA 6Gb/s ports.

• Networking: Wi-Fi 6E (802.11ax) and 2.5GbE LAN.

• USB Ports: Front USB 3.2 Gen 2 Type-C® and multiple USB 3.2 Gen 1 ports.

• Display Outputs: HDMI and DisplayPort.

• Cooling: Smart Fan 6 with multiple temperature sensors and hybrid fan headers with FAN STOP.

• Lighting: RGB Fusion support with addressable and 12V RGB headers.

• BIOS Features: Q-Flash Plus for BIOS updates without installing the CPU, memory, and graphics card.

Key Specifications

• Chipset: Intel® B760

• Socket: LGA 1700

• Form Factor: Micro ATX

• Memory:

  • 4 x DDR5 DIMM slots

  • Supports up to 192GB

  • Speeds: 4800/5000/5200/5400/5600/5800/6000/6200/6400/6600/6800/7000/7200/7400/7600 MHz (OC)

• Expansion Slots:

  • 1 x PCIe 4.0 x16 slot

  • 2 x PCIe 3.0 x16 slots (x4 mode)

  • 2 x PCIe 3.0 x1 slots

• Storage:

  • 2 x M.2 slots (1x PCIe 4.0 x4 and 1x PCIe 4.0 x4)

  • 4 x SATA 6Gb/s ports

• USB Ports:

  • 1 x USB 3.2 Gen 2 Type-C®

  • 4 x USB 3.2 Gen 1 Type-A

  • 2 x USB 2.0 Type-A

• Display Outputs:

  • 1 x HDMI

  • 1 x DisplayPort

• Networking: 2.5GbE LAN

• Audio: Realtek® ALC897 8-Channel High Definition Audio Codec

• Operating System Support: Windows 10, Windows 11 64-bit
