Description :

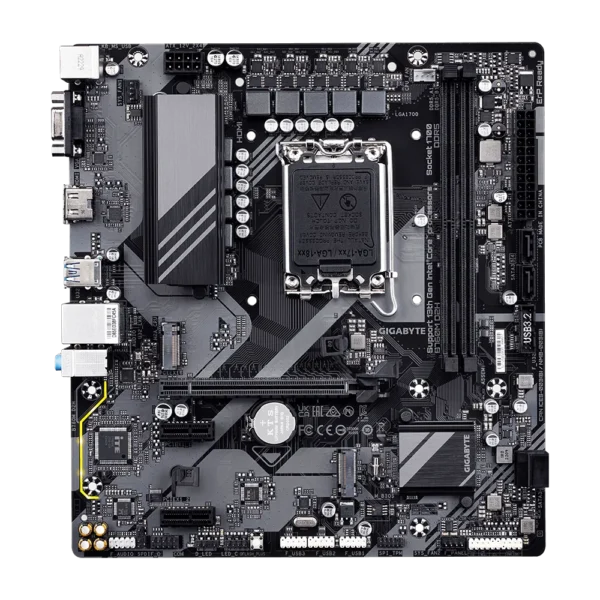

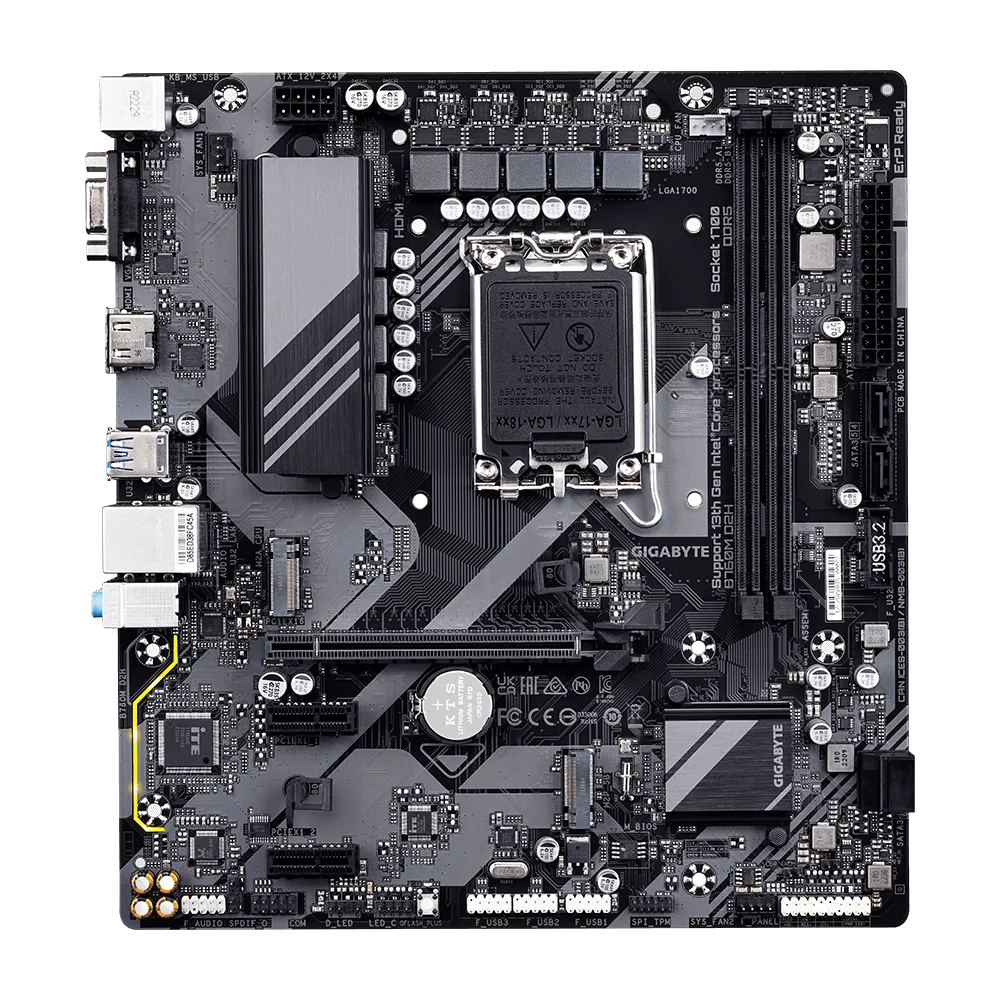

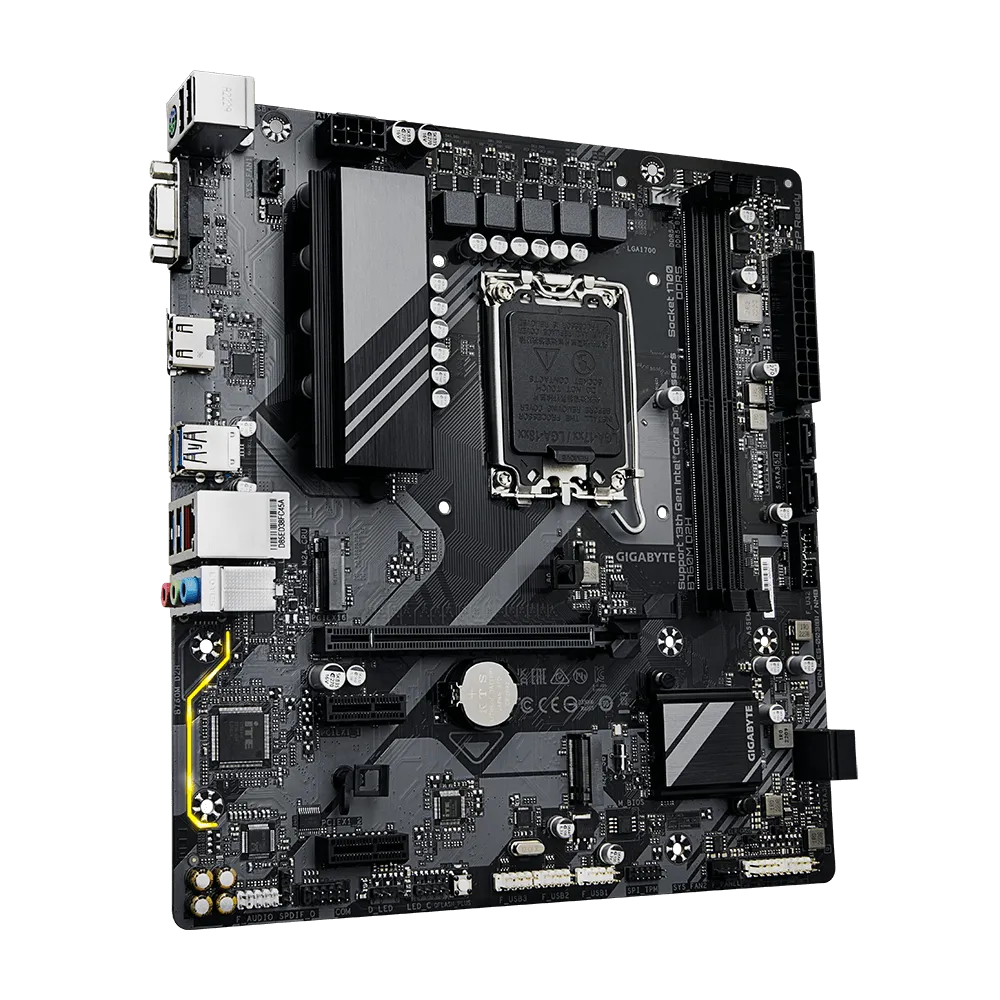

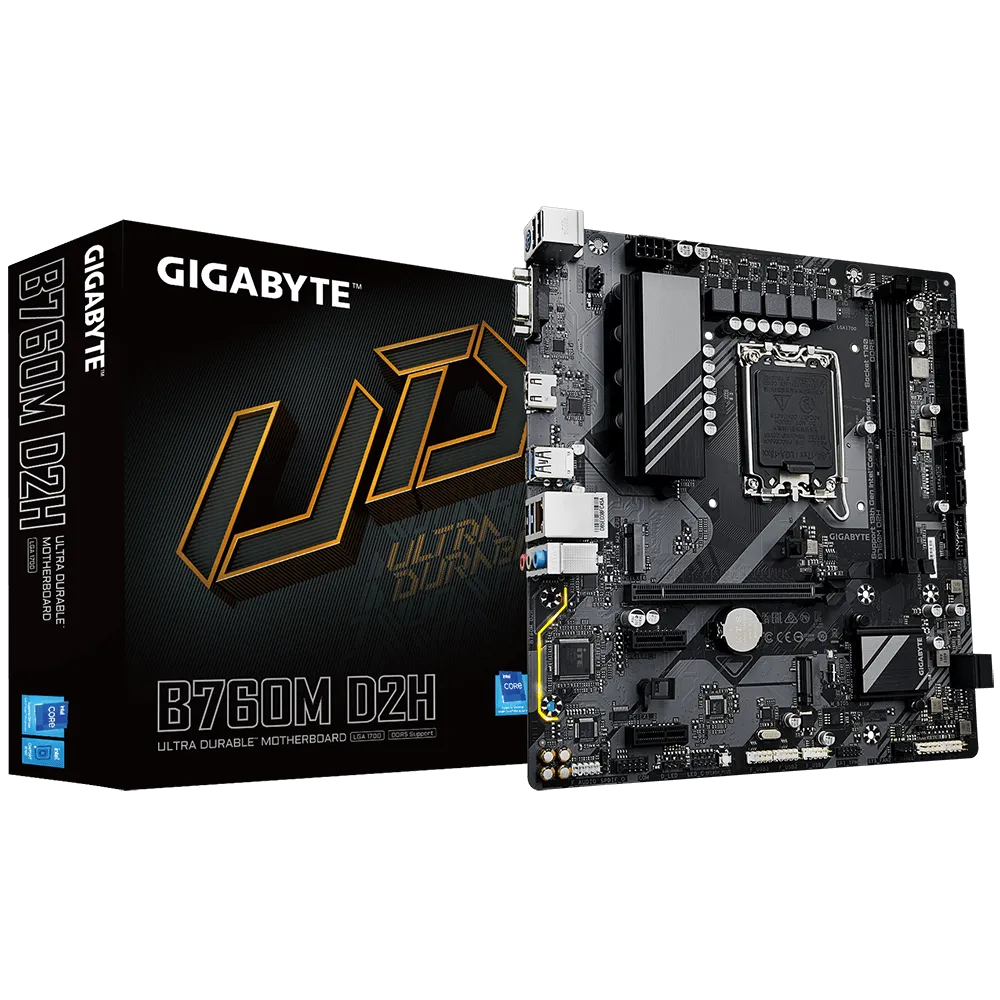

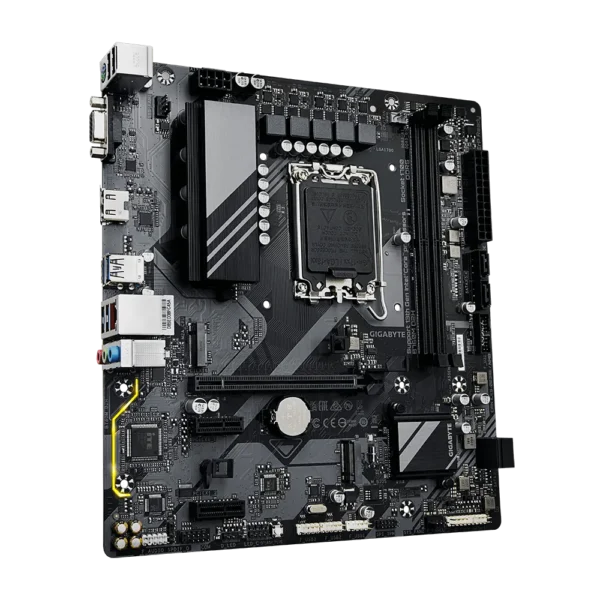

The GIGABYTE B760M D2H DDR5 motherboard is engineered to support Intel’s latest processors on the LGA 1700 socket, providing a stable foundation for high-performance computing. With its Intel B760 chipset, it ensures compatibility and dependable performance for various tasks.

This motherboard supports dual-channel DDR5 memory up to 96GB, allowing for efficient multitasking and smooth operation. It features a PCIe 4.0 x16 slot for graphics cards and two PCIe 3.0 x1 slots for additional expansion cards. The inclusion of two M.2 slots (PCIe 4.0 x4) and four SATA 6Gb/s ports offers flexible storage options.

Designed with user convenience in mind, the B760M D2H DDR5 includes Smart Fan 6 technology for effective cooling management and high-quality audio capacitors for an enhanced audio experience. Its Micro-ATX form factor makes it suitable for compact builds without compromising on functionality.

Key Features:

• Supports Intel 12th, 13th, and 14th Gen Core processors (LGA 1700 socket)

• Dual-channel DDR5 memory support, up to 96GB

• One PCIe 4.0 x16 slot and two PCIe 3.0 x1 slots

• Two M.2 slots (PCIe 4.0 x4) and four SATA 6Gb/s ports

• Realtek 2.5GbE LAN for high-speed networking

• HDMI 2.0 and D-Sub outputs for multi-display setups

• Smart Fan 6 technology with multiple temperature sensors

• High-quality audio capacitors for immersive sound

• Q-Flash Plus for easy BIOS updates without CPU or memory

Key Specifications:

• Form Factor: Micro-ATX

• Chipset: Intel B760

• CPU Socket: LGA 1700

• Memory: 2 x DDR5 DIMM slots, up to 96GB, 7800 MHz (OC)

• Storage Interface: 2 x M.2 slots (PCIe 4.0 x4), 4 x SATA 6Gb/s

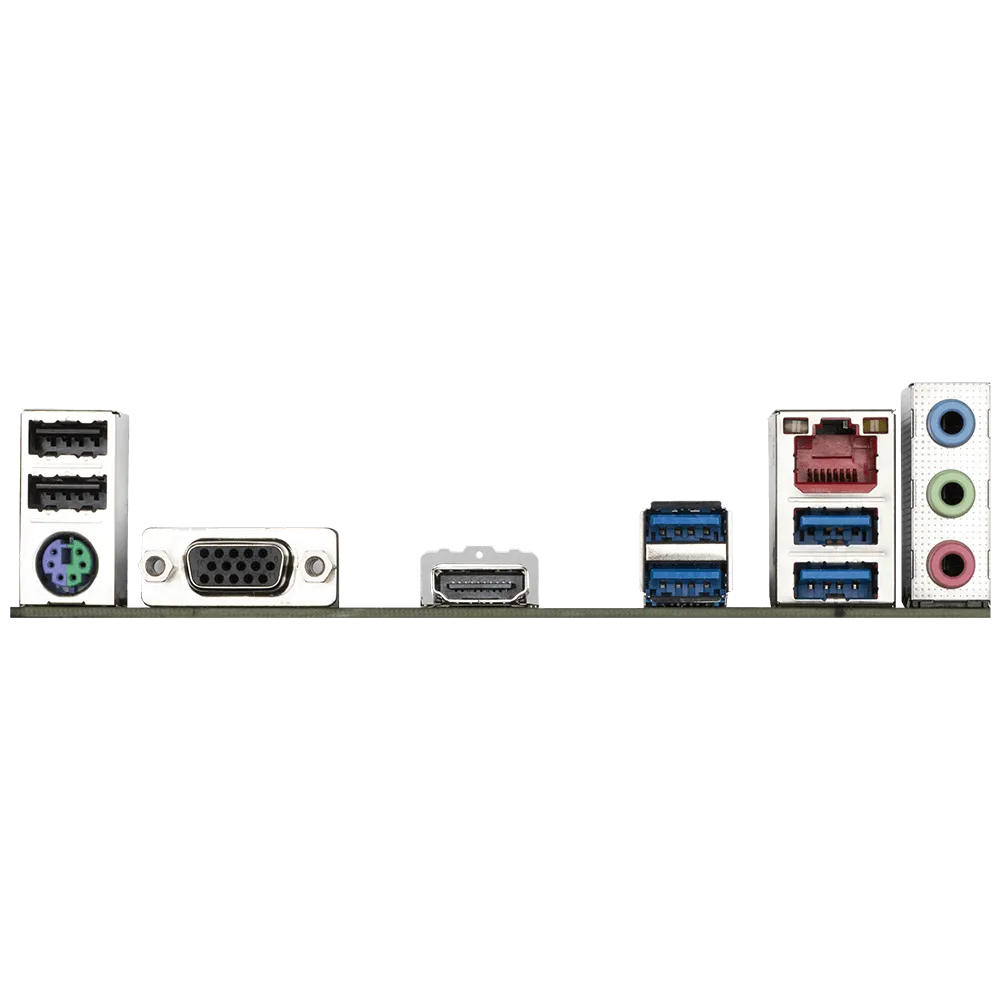

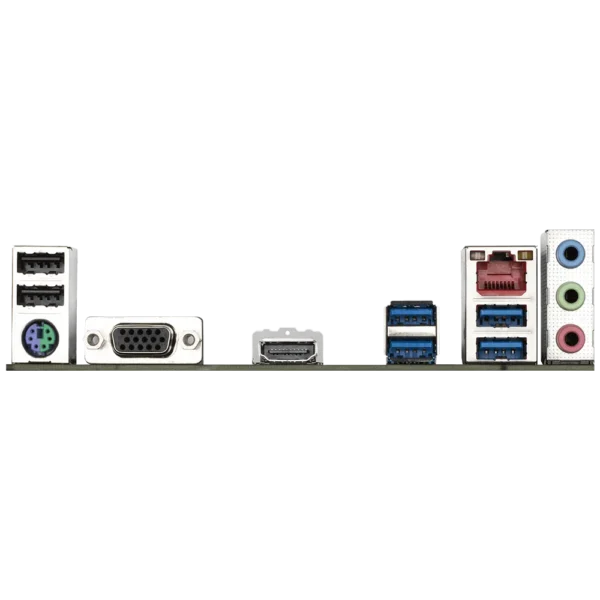

• Graphics Output: 1 x HDMI 2.0, 1 x D-Sub

• Expansion Slots: 1 x PCIe 4.0 x16, 2 x PCIe 3.0 x1

• Audio: Realtek ALC897 codec, 7.1-channel HD audio

• LAN: Realtek 2.5GbE LAN

• USB Ports: 4 x USB 3.2 Gen 1, 2 x USB 2.0

• BIOS: 128 Mbit UEFI AMI BIOS
