Description

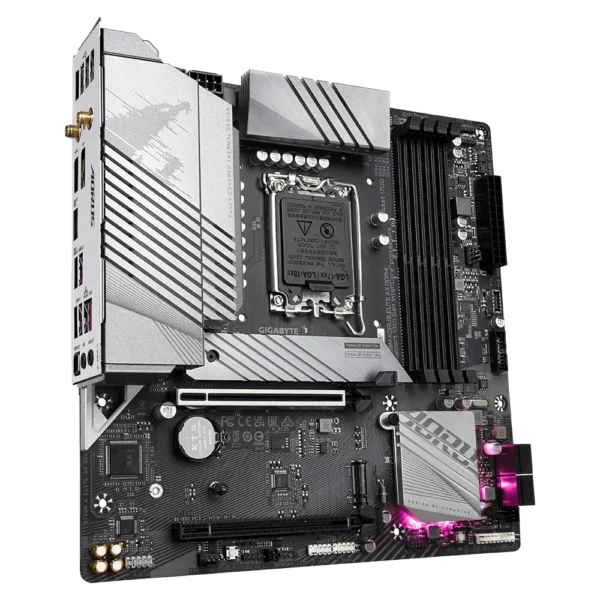

Built on the Intel B760 chipset, the Gigabyte B760M AORUS ELITE AX DDR4 motherboard supports Intel’s 12th, 13th, and 14th generation Core processors. It features a 12+1+1 phase digital VRM design with 60A DrMOS, ensuring stable power delivery for demanding applications. The motherboard supports dual-channel DDR4 memory with speeds up to 5333 MHz (OC) and a maximum capacity of 128GB. For storage, it includes two PCIe 4.0 x4 M.2 slots and four SATA 6Gb/s ports, providing ample options for high-speed storage devices. The board also offers advanced thermal solutions, including an M.2 Thermal Guard, to prevent throttling and ensure optimal performance. Connectivity is enhanced with Wi-Fi 6E (802.11ax) for fast wireless speeds, 2.5GbE LAN for wired connections, and multiple USB ports including USB 3.2 Gen 2×2 Type-C®. Additional features like Smart Fan 6 technology and Q-Flash Plus BIOS update ensure efficient cooling and easy system updates.

Key Features

• Processor Support: Compatible with Intel® Core™ 12th, 13th, and 14th generation processors.

• Memory: Dual-channel DDR4 support up to 128GB, with speeds up to 5333 MHz (OC).

• Storage: 2 x PCIe 4.0 x4 M.2 slots and 4 x SATA 6Gb/s ports.

• Networking: Wi-Fi 6E (802.11ax) and 2.5GbE LAN.

• USB Ports: Rear USB 3.2 Gen 2×2 Type-C® and multiple USB 3.2 Gen 1 ports.

• Display Outputs: HDMI and DisplayPort.

• Cooling: Smart Fan 6 with multiple temperature sensors and hybrid fan headers.

• Lighting: RGB Fusion support with addressable and 12V RGB headers.

• BIOS Features: Q-Flash Plus for BIOS updates without installing the CPU, memory, and graphics card.

Key Specifications

• Chipset: Intel® B760

• Socket: LGA 1700

• Form Factor: Micro ATX

• Memory:

  • 4 x DDR4 DIMM slots

  • Supports up to 128GB

  • Speeds: 2133/2400/2666/2800/2933/3000/3066/3200/3466/3600/3733/3866/4000/4133/4266/4400/4533/4600/4666/4800/4933/5066/5200/5333 MHz (OC)

• Expansion Slots:

  • 1 x PCIe 4.0 x16 slot

  • 1 x PCIe 3.0 x16 slot (x4 mode)

  • 2 x PCIe 3.0 x1 slots

• Storage:

  • 2 x M.2 slots (1x PCIe 4.0 x4 and 1x PCIe 4.0 x4)

  • 4 x SATA 6Gb/s ports

• USB Ports:

  • 1 x USB 3.2 Gen 2×2 Type-C®

  • 4 x USB 3.2 Gen 1 Type-A

  • 2 x USB 2.0 Type-A

• Display Outputs:

  • 1 x HDMI

  • 1 x DisplayPort

• Networking: 2.5GbE LAN

• Audio: Realtek® 8-Channel High Definition Audio Codec

• Operating System Support: Windows 10, Windows 11 64-bit
