Description

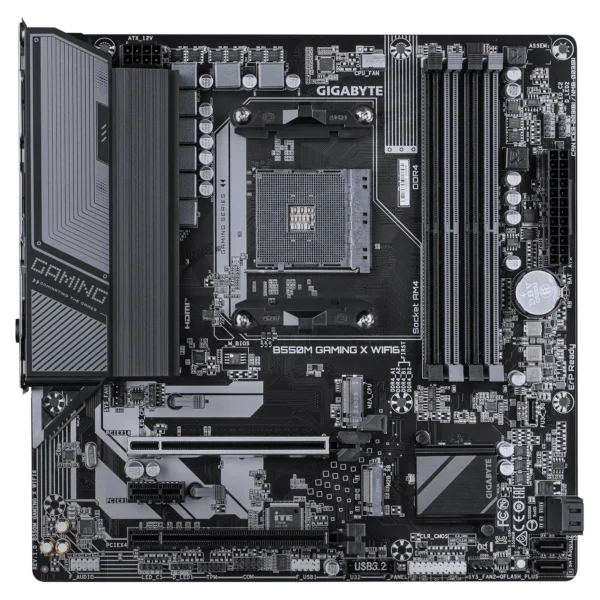

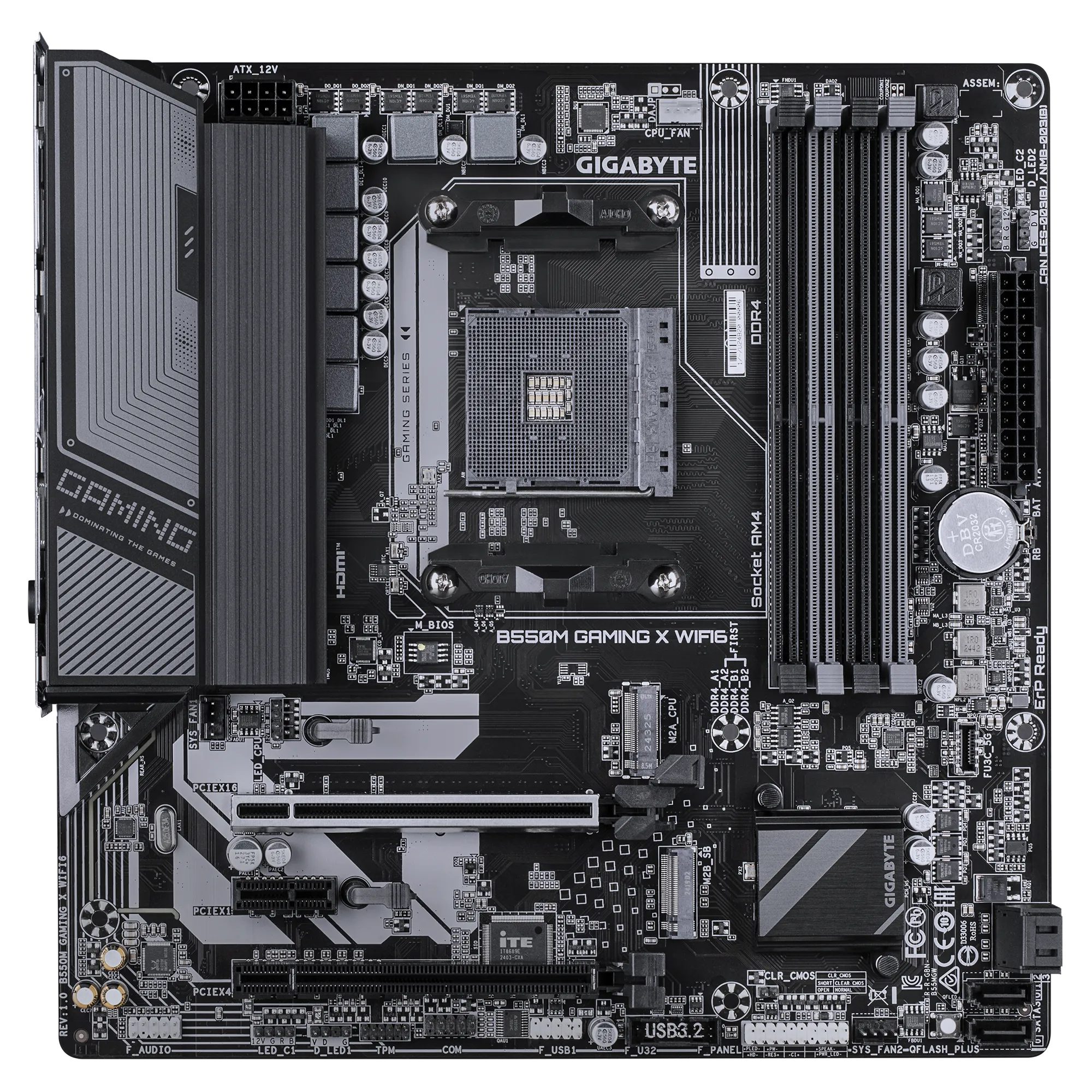

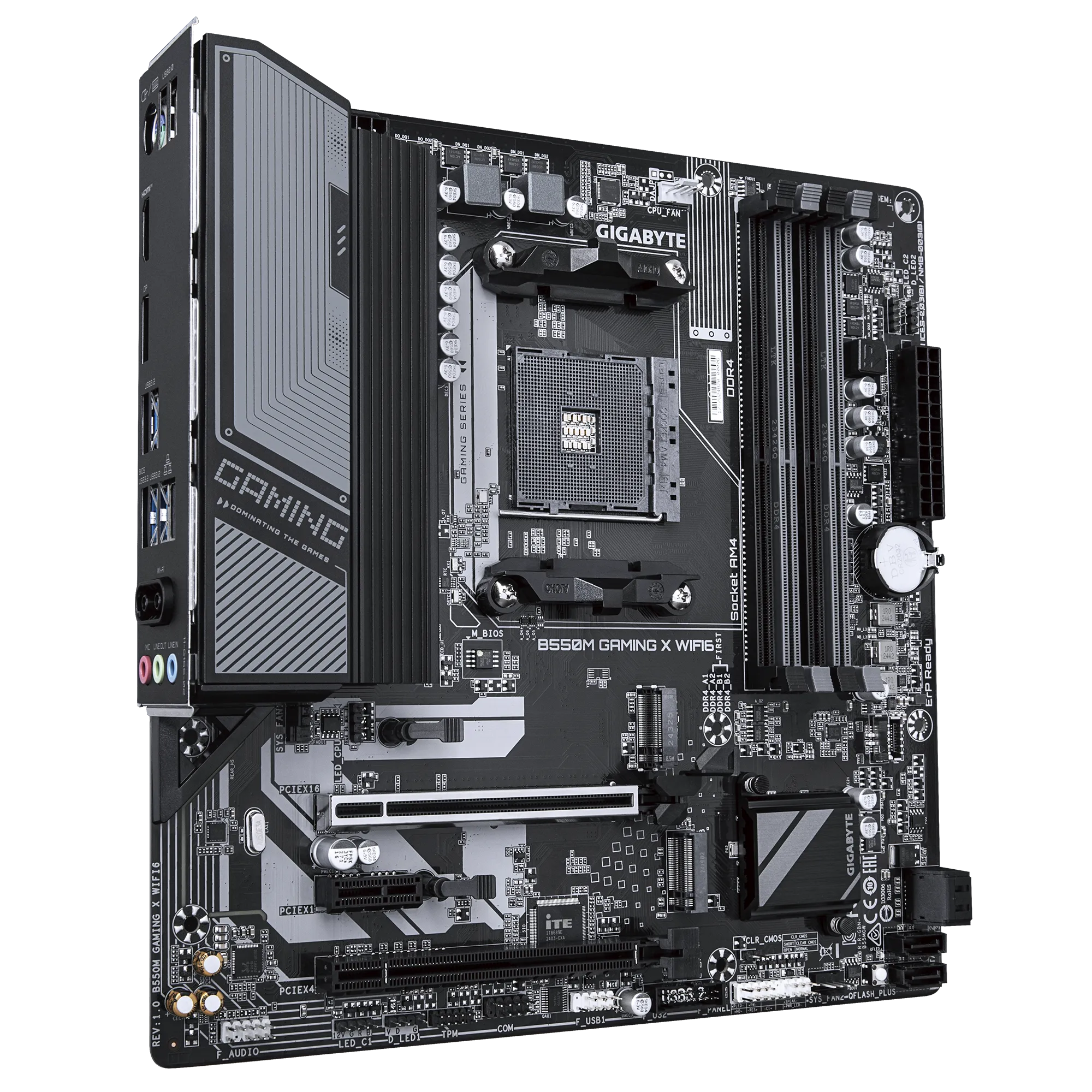

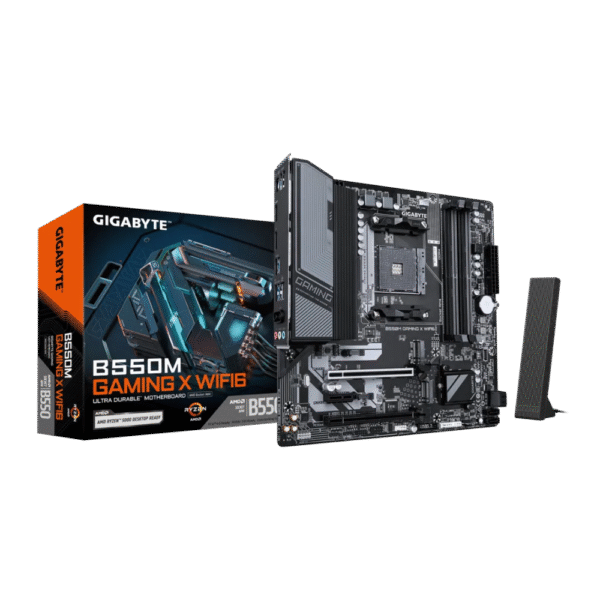

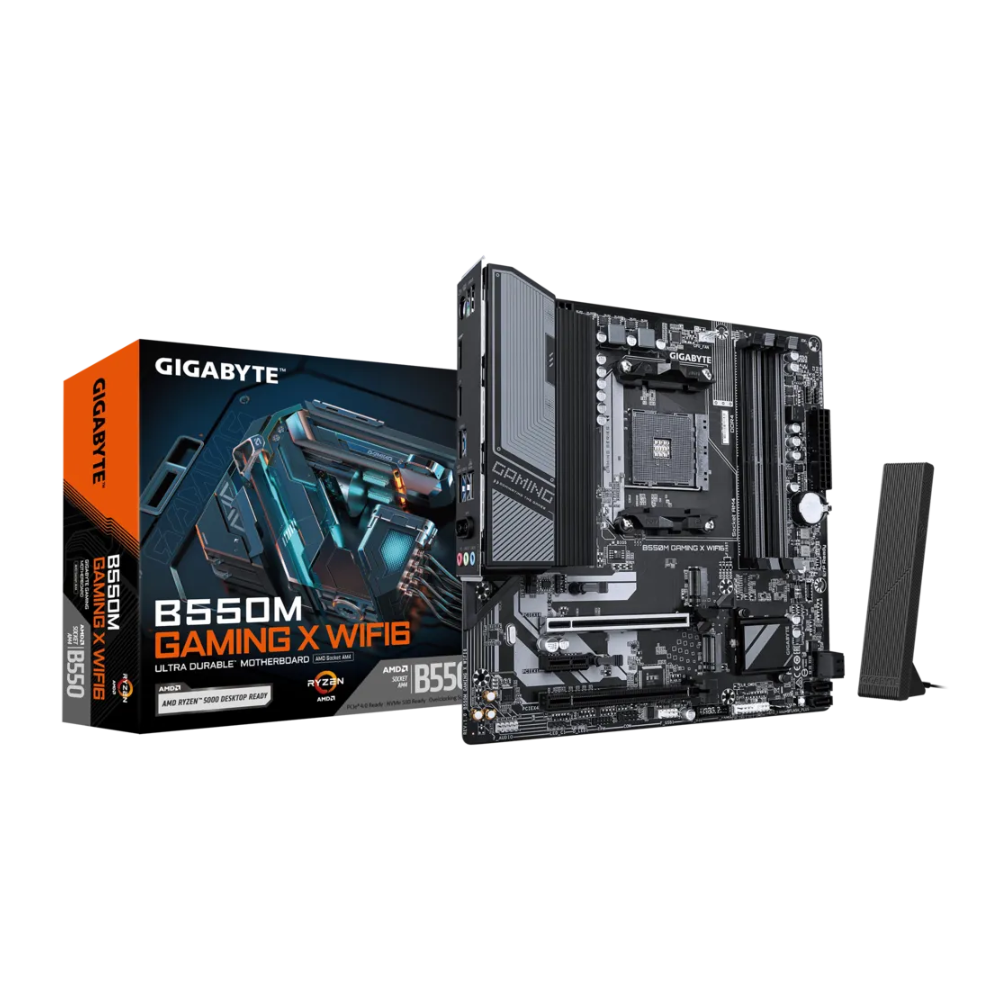

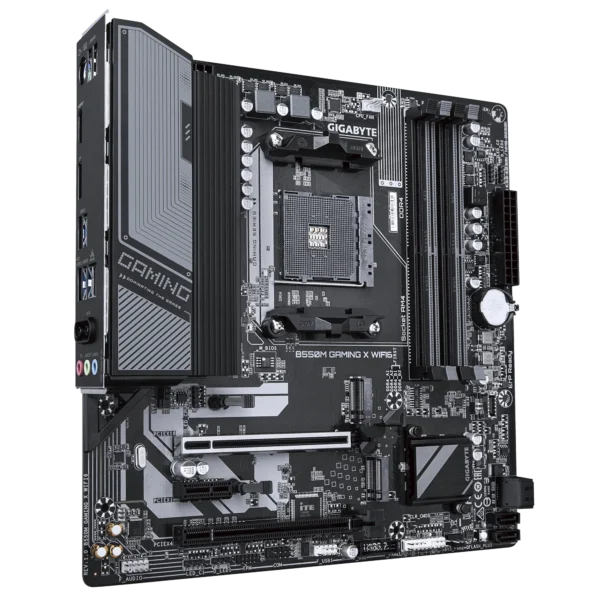

The Gigabyte B550M GAMING X WIFI6 motherboard is built on the AMD B550 chipset, offering a solid foundation for building budget-friendly systems. It supports a wide range of AMD Ryzen™ processors, including the latest 5000 series, 4000 G-Series, and 3000 series. The board features dual-channel DDR4 memory support, allowing for speeds up to 4733 MHz (OC), ensuring smooth multitasking and gaming performance. For storage, it includes dual M.2 slots and multiple SATA 6Gb/s ports, providing fast and ample storage options. The motherboard also offers various connectivity options, including USB 3.2 Gen 1 ports, HDMI 2.1, and DisplayPort for high-resolution displays. With its reliable performance and essential features, the B550M GAMING X WIFI6 is an excellent choice for users seeking a cost-effective solution without compromising on quality.

Key Features

• Processor Support: Compatible with AMD Ryzen™ 5000 Series, 4000 G-Series, and 3000 Series processors.

• Memory: Dual-channel DDR4 support up to 64GB, with speeds up to 4733 MHz (OC).

• Storage: Dual M.2 slots (1x PCIe 4.0 x4 and 1x PCIe 3.0 x2) and four SATA 6Gb/s ports for fast storage options.

• Graphics Outputs: HDMI 2.1 and DisplayPort for versatile display connectivity.

• USB Ports: Multiple USB 3.2 Gen 1 and USB 2.0 ports for various peripheral connections.

• Networking: Realtek® Gigabit LAN and Wi-Fi 6 with antenna for stable network connectivity.

• Audio: Realtek® 8-Channel High Definition Audio for immersive sound.

• Cooling: Smart Fan 6 technology with multiple temperature sensors and hybrid fan headers.

• Lighting: RGB Fusion 2.0 supports 3x RGB LED headers and 2x ARGB LED headers for customizable lighting.

Key Specifications

• Chipset: AMD B550

• Socket: AM4

• Form Factor: Micro ATX

• Memory:

  • 4 x DDR4 DIMM slots

  • Supports up to 64GB

  • Speeds: 1866/2133/2400/2666/2800/2933/3000/3066/3200/3466/3600/3733/3866/4000/4133/4266/4400/4533/4600 MHz (by A-XMP OC MODE)

• Expansion Slots:

  • 1 x PCIe 4.0 x16 slot

  • 1 x PCIe 3.0 x16 slot (running x4)

  • 1 x PCIe 3.0 x1 slot

• Storage:

  • 2 x M.2 slots (1x PCIe 4.0 x4 and 1x PCIe 3.0 x2)

  • 4 x SATA 6Gb/s ports

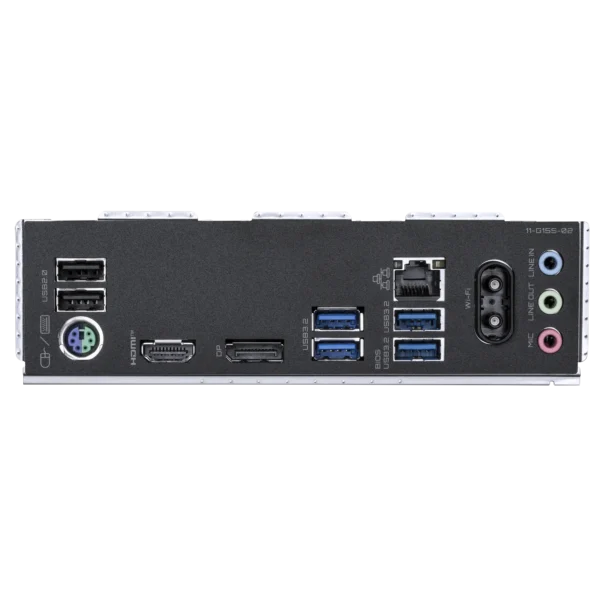

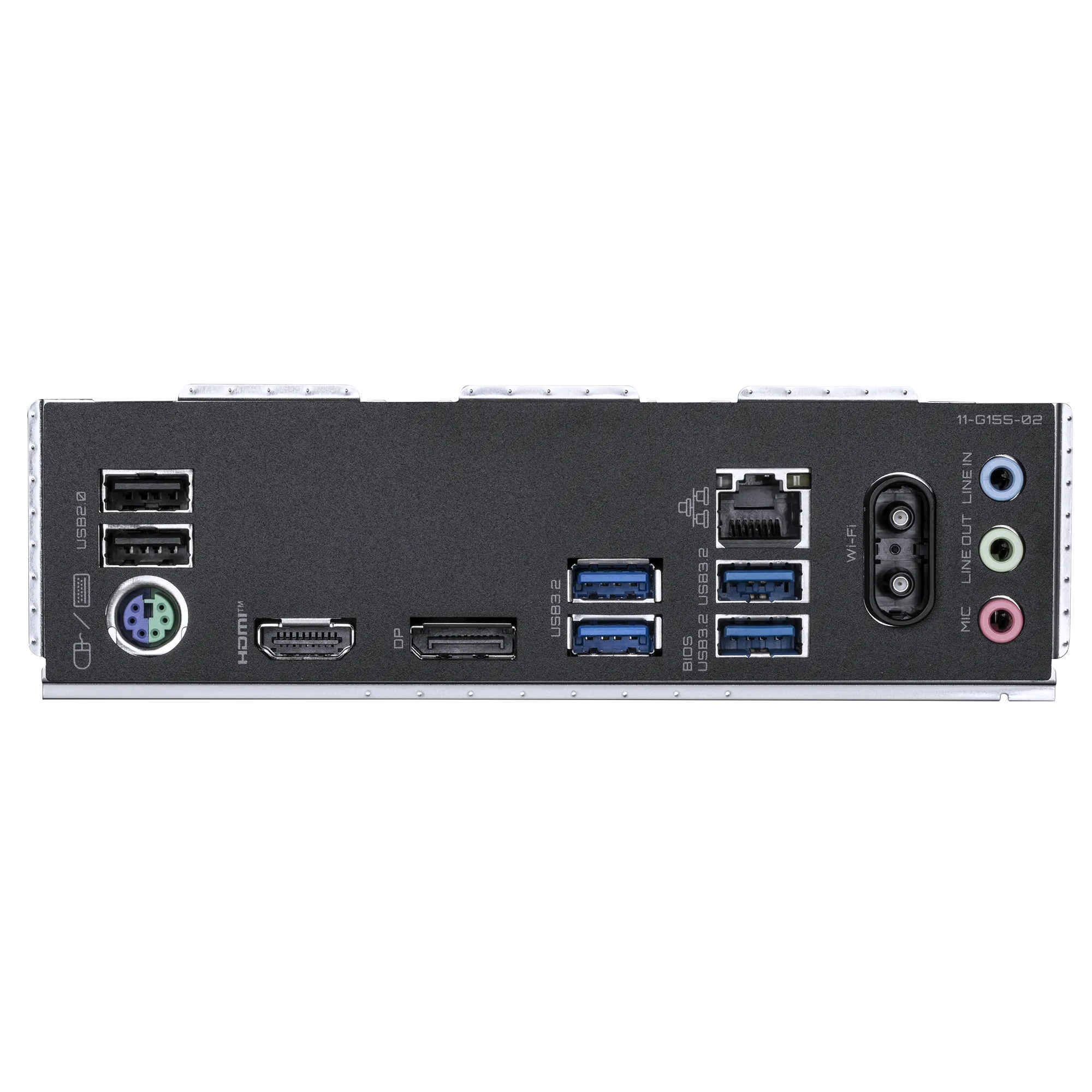

• USB Ports:

  • 2 x USB 2.0 Type-A ports

  • 2 x USB 3.2 Gen 1 (5Gbps) Type-A ports

• Display Outputs:

  • 1 x HDMI 2.1 port

  • 1 x DisplayPort

• Networking: Realtek® RTL8118 Gaming GbE LAN and Wi-Fi 6 with antenna

• Audio: Realtek® 8-Channel High Definition Audio

• Operating System Support: Windows 10, Windows 11 64-bit
