Description

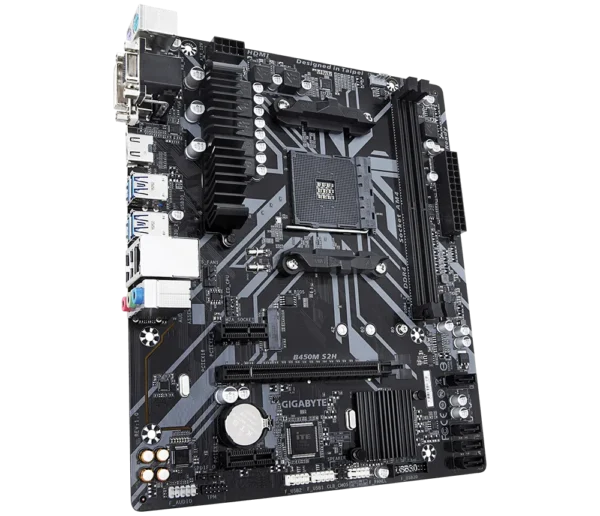

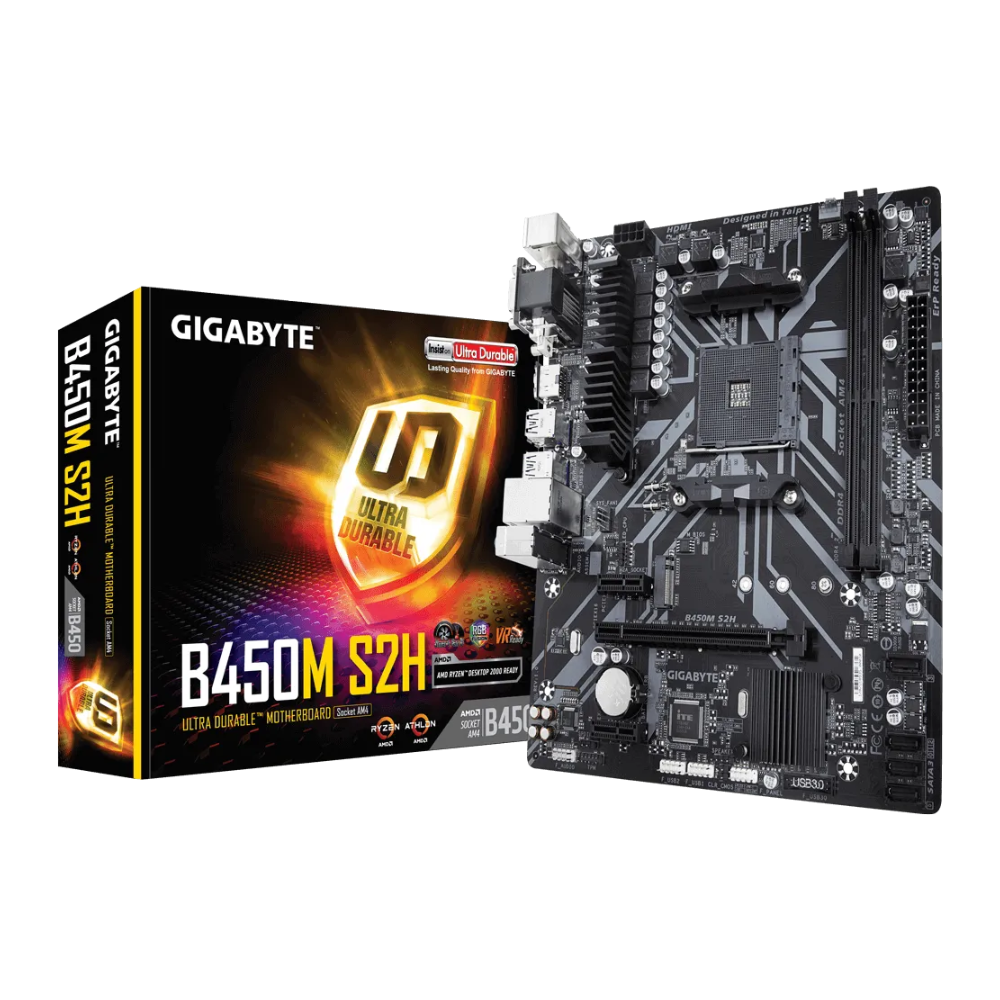

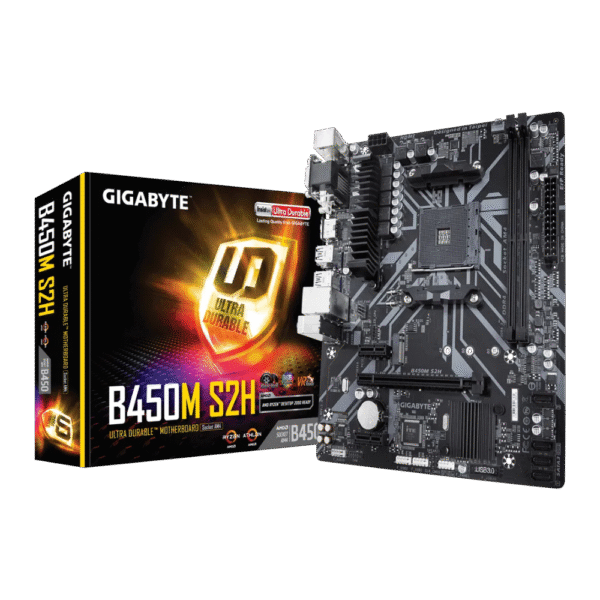

The Gigabyte B450M S2H (rev. 1.x) motherboard is engineered to deliver reliable performance for mainstream users. Built on the AMD B450 chipset, it offers support for a wide range of AMD Ryzen™ processors, including the latest 5000 series. The board features a PCIe Gen3 x4 M.2 slot, allowing for ultra-fast storage solutions. For networking, it comes equipped with GIGABYTE’s exclusive 8118 Gaming LAN, which includes bandwidth management to prioritize gaming traffic. Additionally, the motherboard supports RGB Fusion, enabling users to customize their system’s lighting with 7-color LED strips. Its Smart Fan 5 technology provides advanced cooling options, and the board is designed with high-quality capacitors and an audio noise guard to ensure superior sound quality

Key Features

• Processor Support: Compatible with AMD Ryzen™ 5000 series, 3rd Gen Ryzen™, 2nd Gen Ryzen™, and Athlon™ processors with Radeon™ Vega Graphics.

• Memory: Dual Channel Non-ECC Unbuffered DDR4, supporting up to 64GB across 2 DIMMs.

• Storage: One PCIe Gen3 x4 M.2 slot and four SATA3 ports for flexible storage options.

• Graphics Outputs: HDMI, DVI-D, and D-Sub ports for multiple display setups.

• Networking: GIGABYTE 8118 Gaming LAN with bandwidth management for optimized gaming performance.

• Lighting: RGB Fusion supports 7-color LED strips for customizable lighting effects.

• Cooling: Smart Fan 5 technology with 5 temperature sensors and 2 hybrid fan headers for efficient cooling.

• Audio: High-quality audio capacitors and an audio noise guard design for superior sound quality.

Key Specifications

• Chipset: AMD B450

• Socket: AM4

• Form Factor: Micro ATX (24.4cm x 20.5cm)

• Memory Support: Up to 64GB DDR4, 2133MHz to 2933MHz (OC)

• Expansion Slots:

  • 1 x PCIe 3.0 x16 slot

  • 1 x PCIe 2.0 x16 slot (x4 mode)

  • 2 x PCIe 2.0 x1 slots

• Storage Interface:

  • 1 x M.2 PCIe Gen3 x4 slot

  • 4 x SATA3 ports

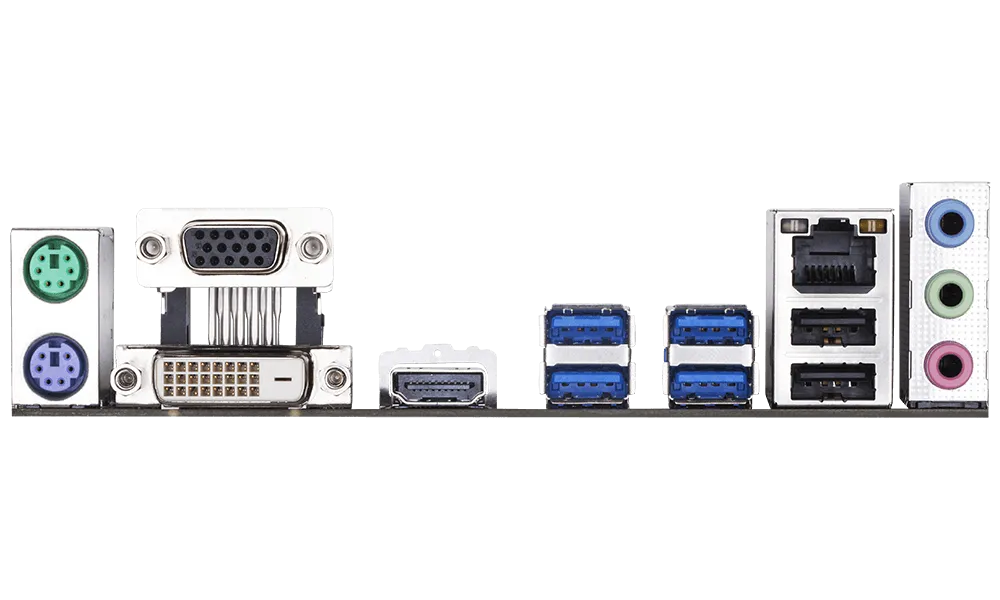

• Rear I/O Ports:

  • 1 x HDMI port

  • 1 x DVI-D port

  • 1 x D-Sub port

  • 2 x USB 3.1 Gen1 Type-A ports

  • 2 x USB 2.0 ports

  • 1 x RJ-45 LAN port

  • 3 x Audio jacks

• Audio: Realtek® ALC887 codec

• LAN: Realtek® GbE LAN chip

• USB Ports: 6 x USB 3.1 Gen1 ports

• Operating System Support: Windows 10 64-bit
