Description

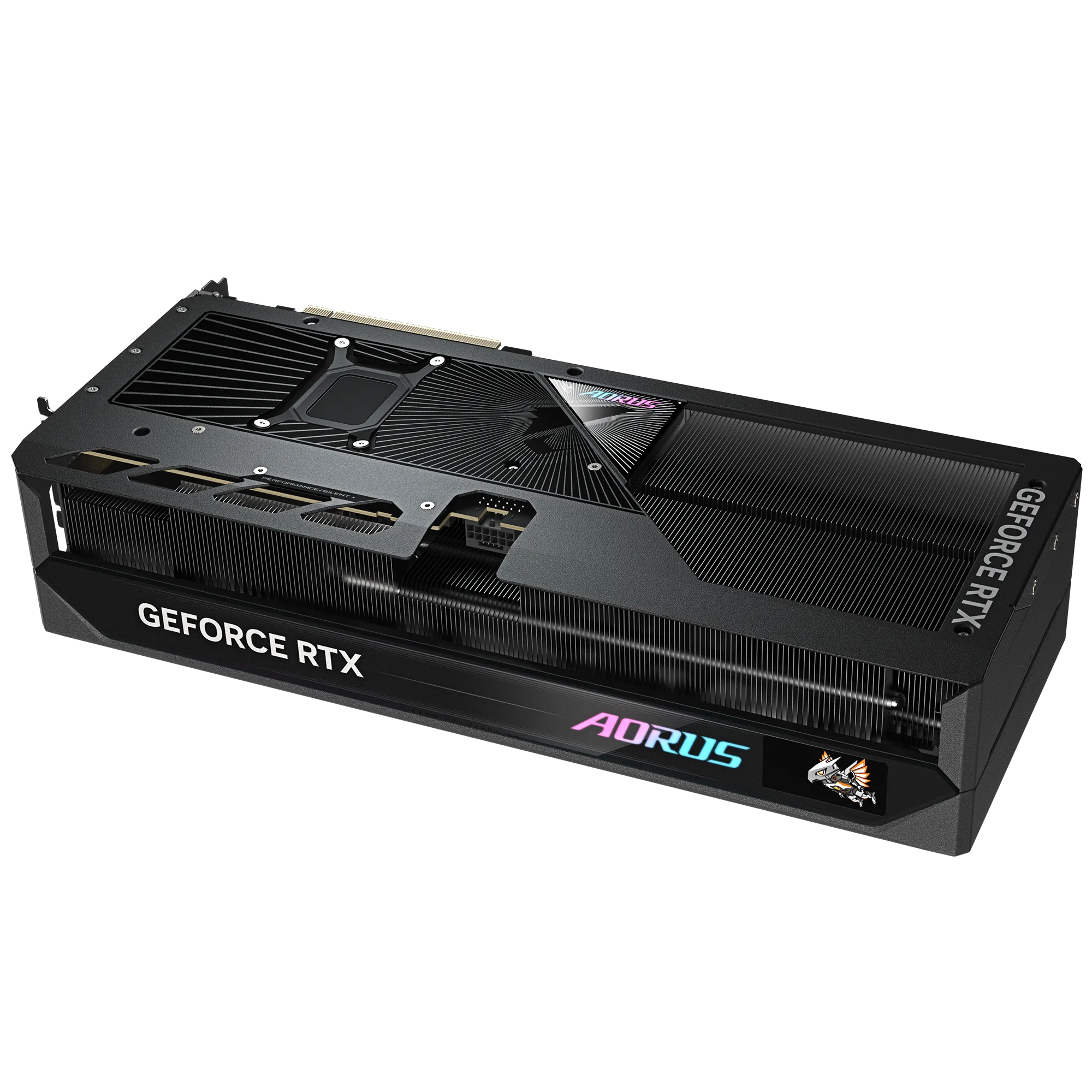

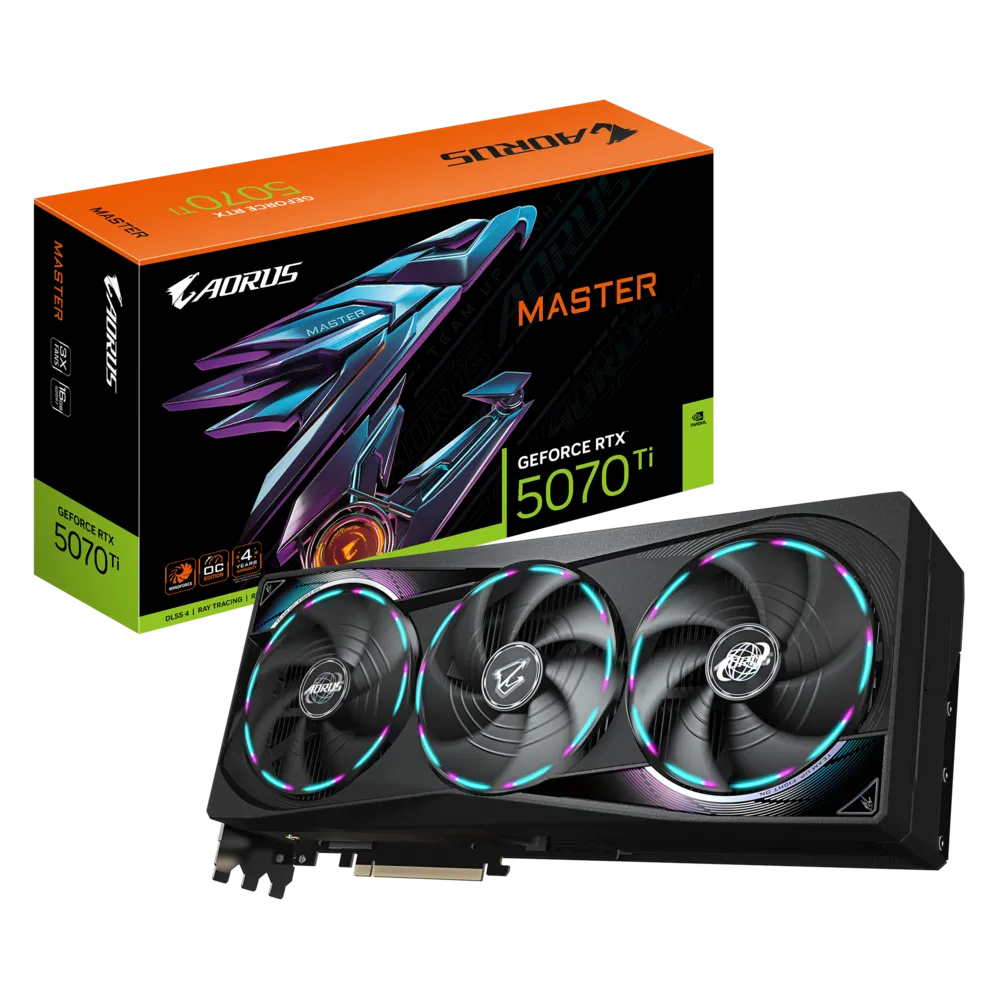

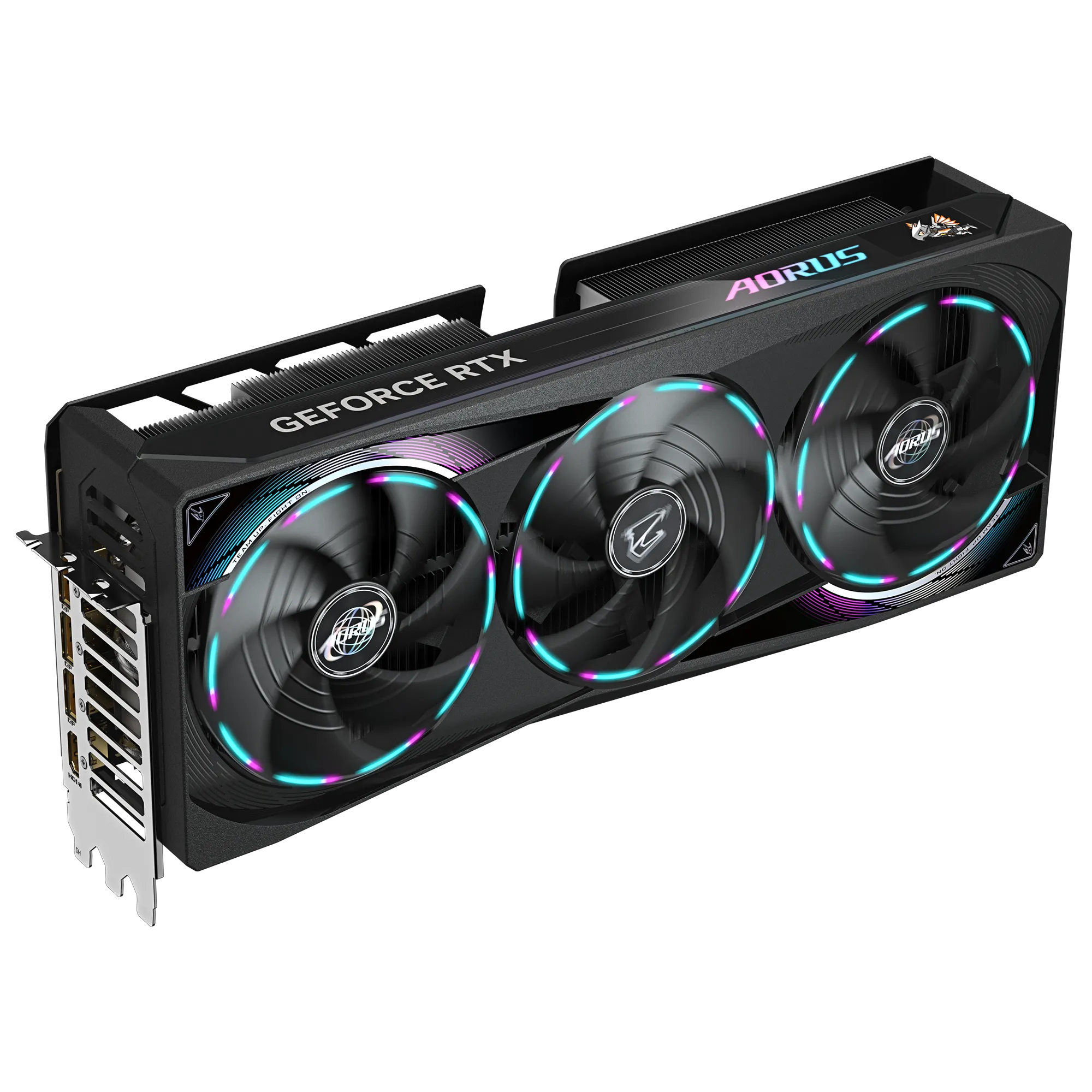

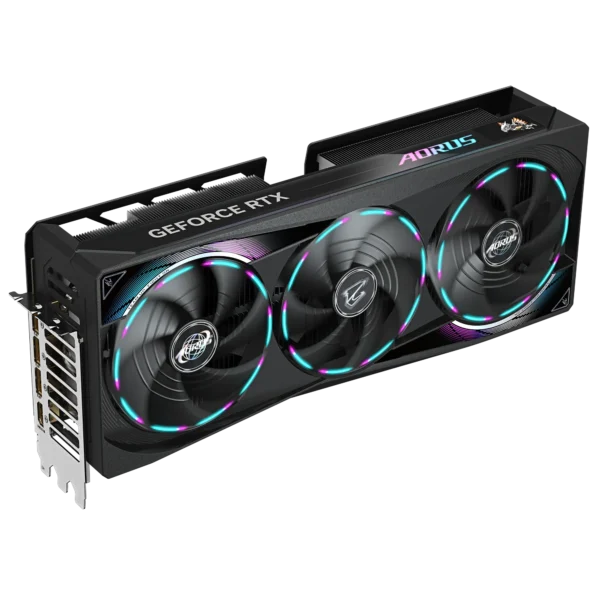

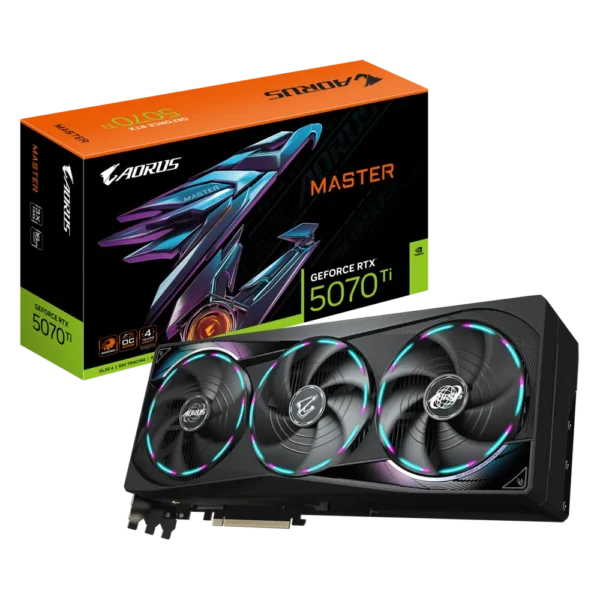

Engineered for enthusiasts, the GIGABYTE AORUS GeForce RTX™ 5070 Ti MASTER 16G combines NVIDIA’s Blackwell architecture with 16GB of GDDR7 memory on a 256-bit interface, providing a memory bandwidth of 896 GB/s. With 8,960 CUDA cores and a boost clock of up to 2670 MHz, it ensures smooth 4K gaming and efficient content creation. The WINDFORCE cooling system features triple Hawk fans, a large vapor chamber, and composite copper heat pipes, maintaining optimal temperatures under load. Dual BIOS functionality allows users to switch between Performance and Silent modes. Additional features include RGB Halo lighting, an LCD Edge View display, and a reinforced structure with a versatile VGA holder.

Key Features

• NVIDIA Blackwell Architecture: Enhanced ray tracing and AI capabilities.

• 16GB GDDR7 Memory: High bandwidth for demanding applications.

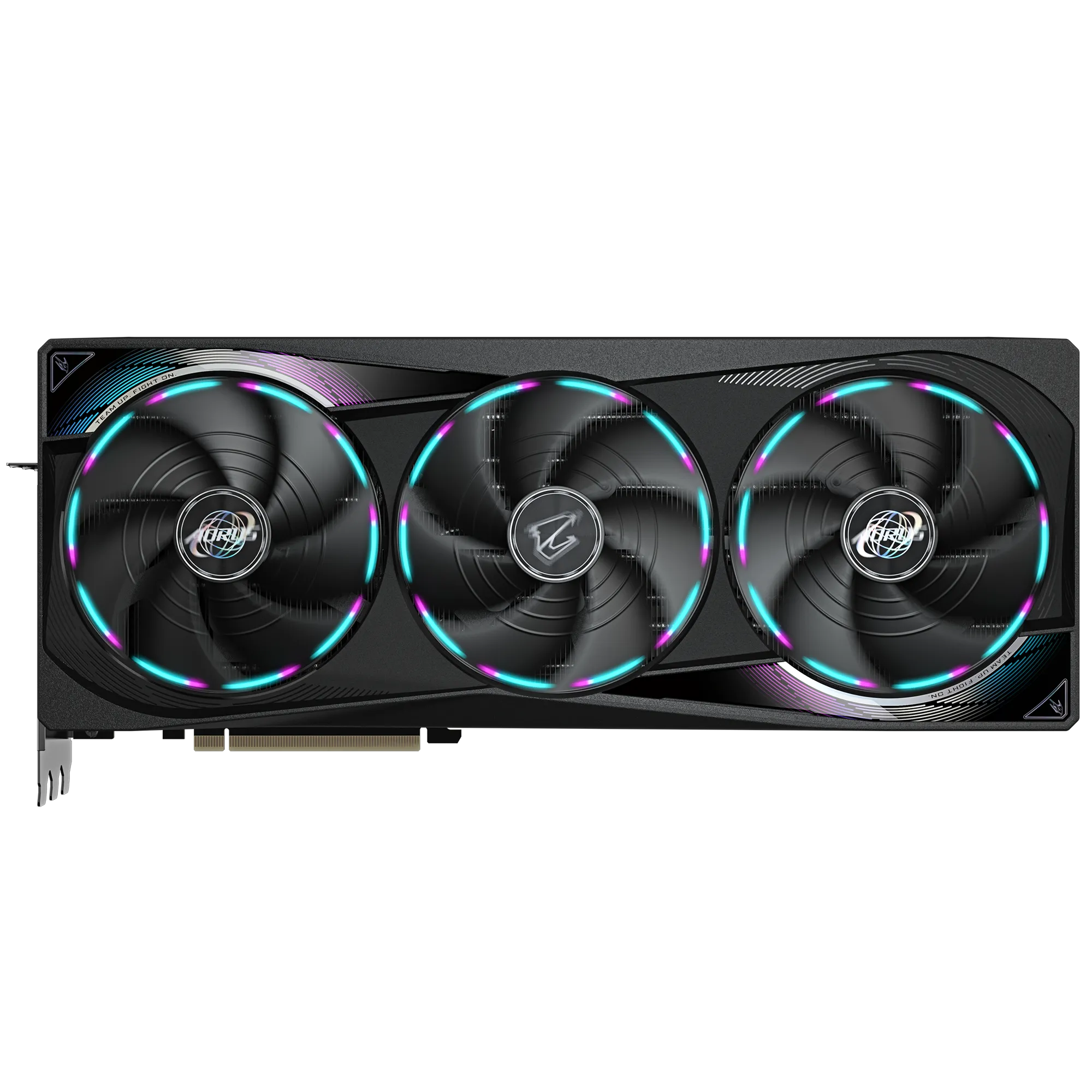

• WINDFORCE Cooling System: Triple Hawk fans with vapor chamber and composite copper heat pipes.

• DLSS 4 Support: AI-driven performance boosts and image quality enhancements.

• Dual BIOS: Switch between Performance and Silent modes.

• RGB Halo Lighting: Customizable aesthetics.

• LCD Edge View: Customizable display for system information and graphics.

• Reinforced Structure: Durability with a metal backplate and VGA support bracket.

• PCIe 5.0 Interface: High-speed data transfer.

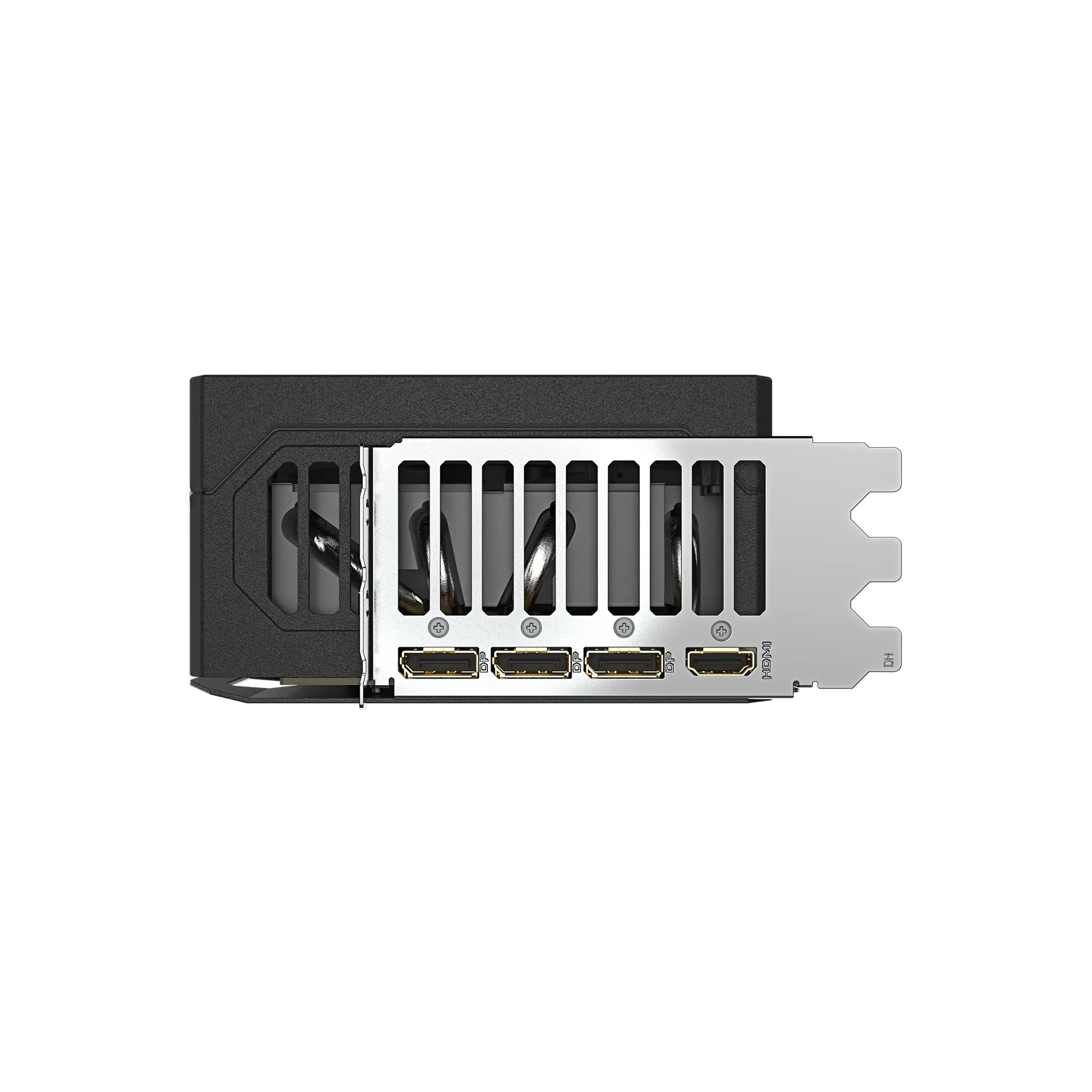

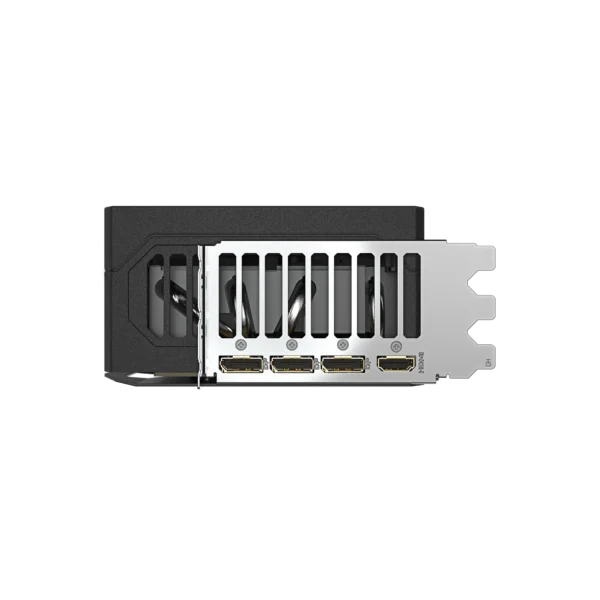

• Multiple Display Outputs: Supports up to 4 displays with 3x DisplayPort 2.1b and 1x HDMI 2.1b.

Key Specifications

• GPU Model: NVIDIA GeForce RTX 5070 Ti

• CUDA Cores: 8,960

• Memory: 16GB GDDR7

• Memory Interface: 256-bit

• Memory Bandwidth: 896 GB/s

• Base Clock: 2295 MHz

• Boost Clock: 2670 MHz

• Memory Clock: 28 Gbps effective

• Cooling System: WINDFORCE 3X with triple Hawk fans

• Display Outputs:

  • 3 x DisplayPort 2.1b

  • 1 x HDMI 2.1b

• Maximum Resolution: 7680 x 4320 (8K)

• Maximum Displays Supported: 4

• Power Connector: 1 x 16-pin (12VHPWR)

• Recommended PSU: 750W or higher

• Dimensions: Approx. 360mm (L) x 150mm (W) x 75mm (H)

• Slot Size: 3.5-slot

• DirectX: 12 Ultimate

• OpenGL: 4.6

• VR Ready: Yes

• G-SYNC Compatible: Yes
