Description

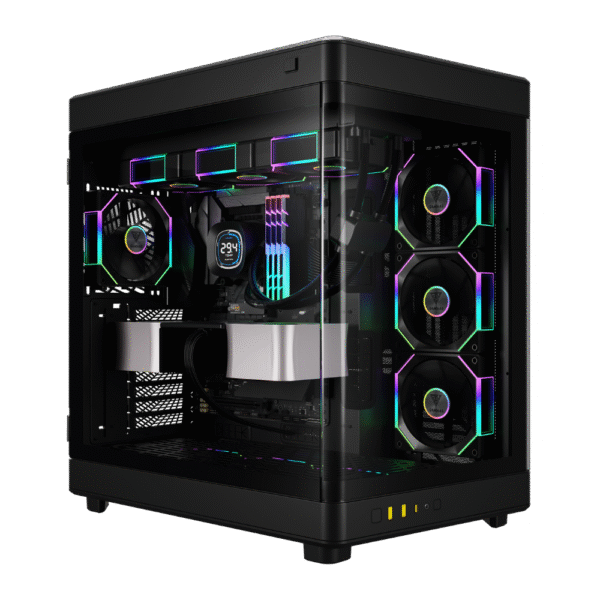

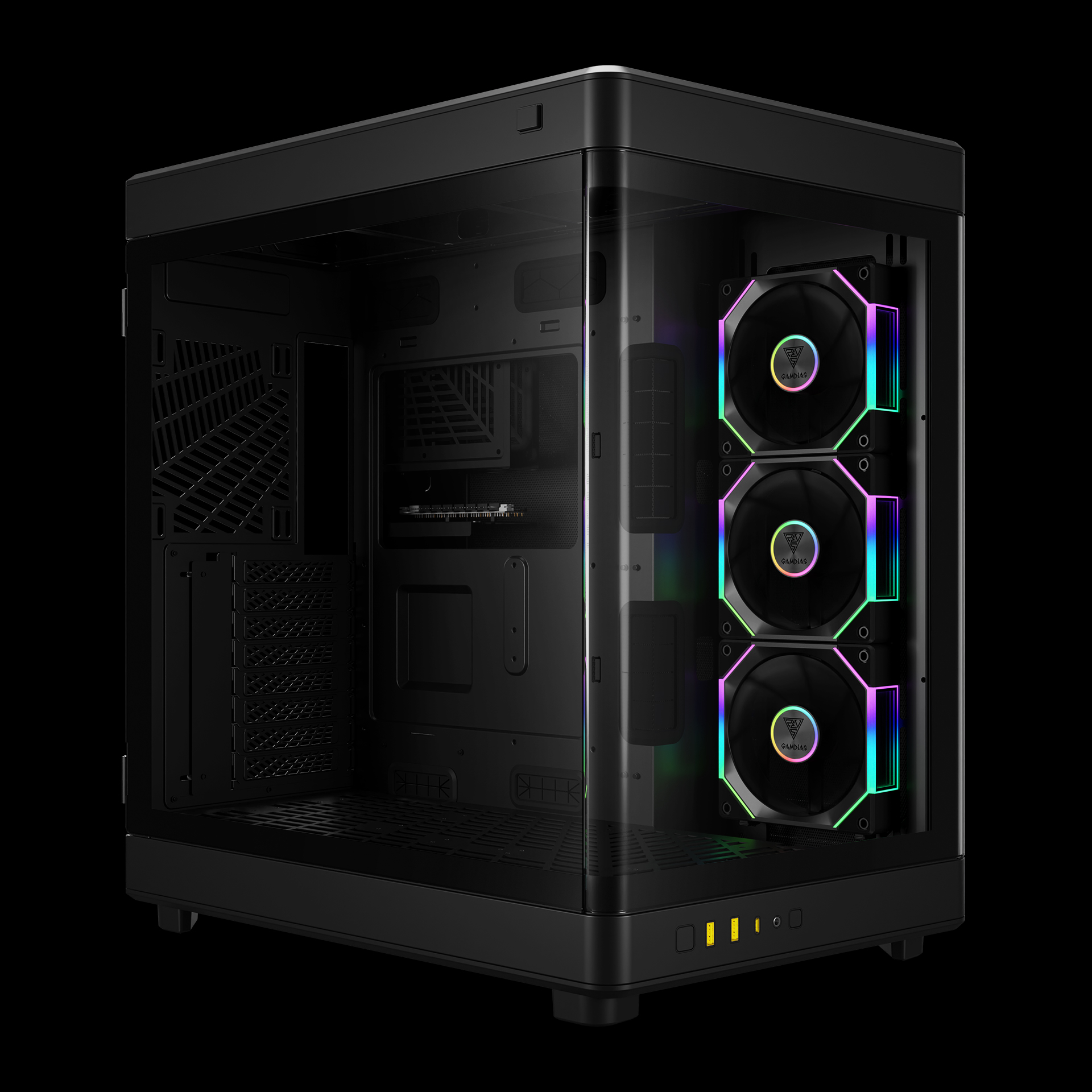

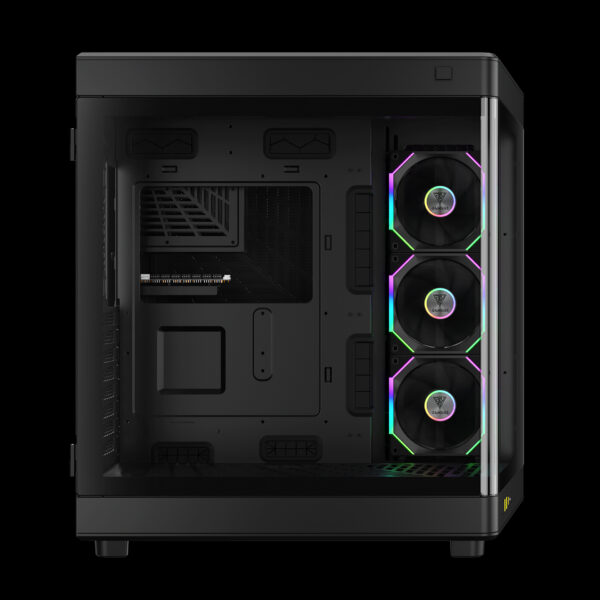

The NESO P1 PRO is a standout chassis combining innovative form and flexible function. With its striking trapezoidal design, you can configure it vertically or horizontally (as a desktop build). The front and left panels are full tempered glass, swinging open via magnetic quick-release for easy access. Internally, a dual-chamber layout hides cables and PSU components, delivering a clean build aesthetic. It supports E‑ATX motherboards up to 310 mm, GPUs up to 426 mm, CPU coolers up to 193 mm, and PSUs up to 180 mm in length.

Cooling performance is a priority: three ARGB PWM Aeolus P2 fans are pre-installed as reverse-intake units, all connected via an included 8-port hub. Radiator support includes top (360/280 mm), side (360/420 mm), rear (120 mm), and bottom (360 mm), allowing broad liquid cooling configurations. The case includes rotatable PCIe slots, magnetic dust filters, and front-panel Type‑C and USB 3.0 ports, meeting both modern I/O and build requirements.

Key Features

• Dual-orientation trapezoid design — supports vertical or horizontal builds

• Panoramic tempered glass panels (front + side), easily swing-open and detachable

• Supports eight rotatable PCIe slots for vertical/horizontal graphics setup

• Includes three 120 mm ARGB PWM Aeolus P2 reverse-intake fans with 8-port ARGB/PWM hub

• Compatible with E‑ATX (≤ 310 mm), GPUs up to 426 mm long, and CPU coolers up to 193 mm tall

• Radiator support: side up to 420 mm, top up to 360 mm, side 360 mm, bottom 360 mm, rear 120 mm

• Hidden dual-chamber design for clean cable management and airflow

• Front I/O: USB 3.0 ×2, USB‑C Gen 2 ×1, HD audio, LED control button

• Magnetic dust filters on top, side, bottom; one-touch glass panel access

Key Specifications

• Dimensions: 490 × 310 × 495 mm

• Weight: ~11.97 kg

• Materials: SPCC steel, ABS plastic, tempered glass

• Motherboard compatibility: E‑ATX (≤ 310 mm), ATX, micro-ATX, mini-ITX

• GPU clearance: up to 426 mm

• CPU cooler height: up to 193 mm

• PSU length: up to 180 mm

• Drive Bays: Support for up to 2×3.5″ and 5×2.5″ (SSD/HDD combos)

• PCI expansion: 8 slots, all rotatable

• Fan support:

  • Top: 3×120 or 2×140 mm

  • Side: 3×120 or 3×140 mm

  • Rear: 1×120 or 140 mm

  • Bottom: 3×120 mm

• Pre-installed fans: 3×120 mm ARGB reverse intake
