Description

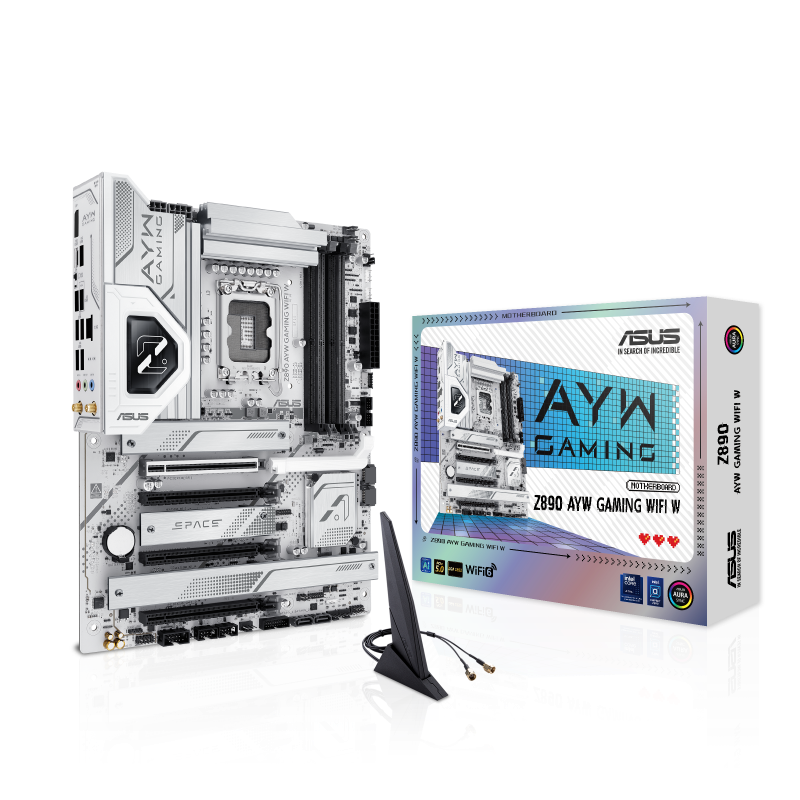

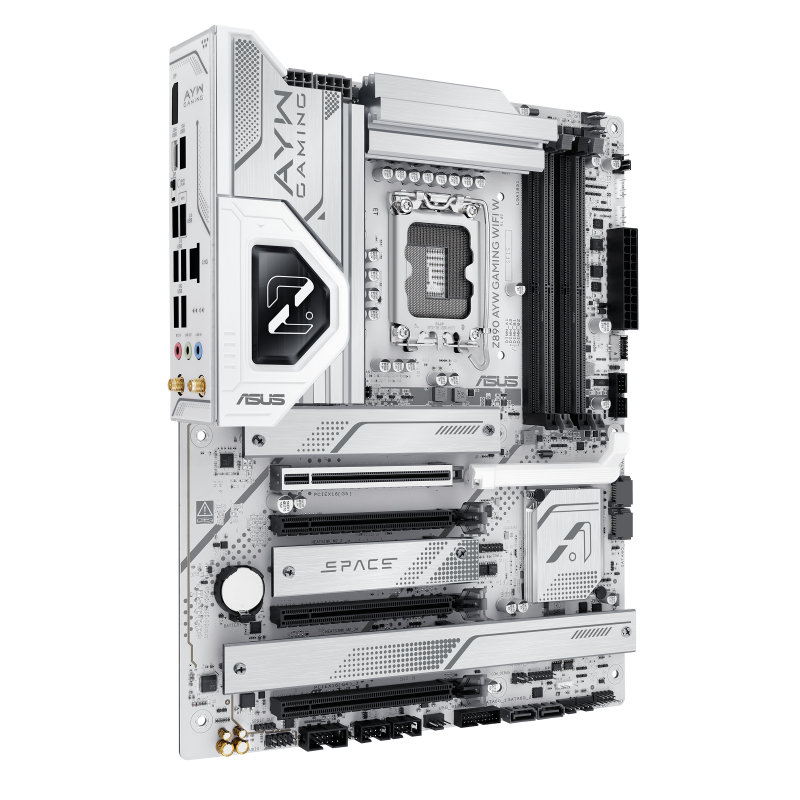

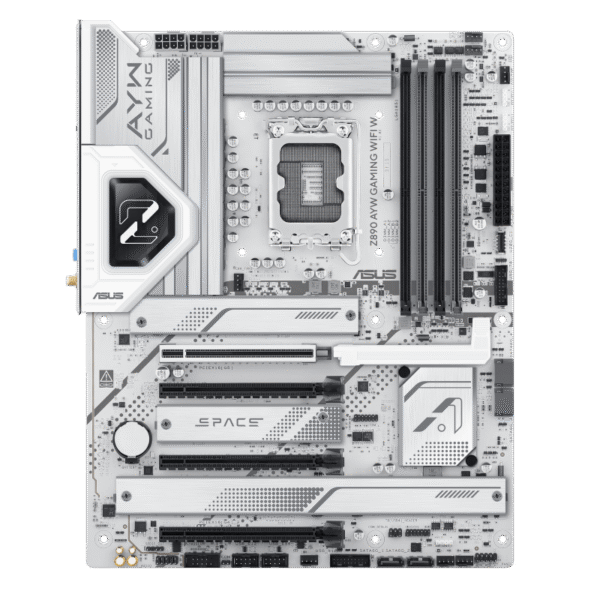

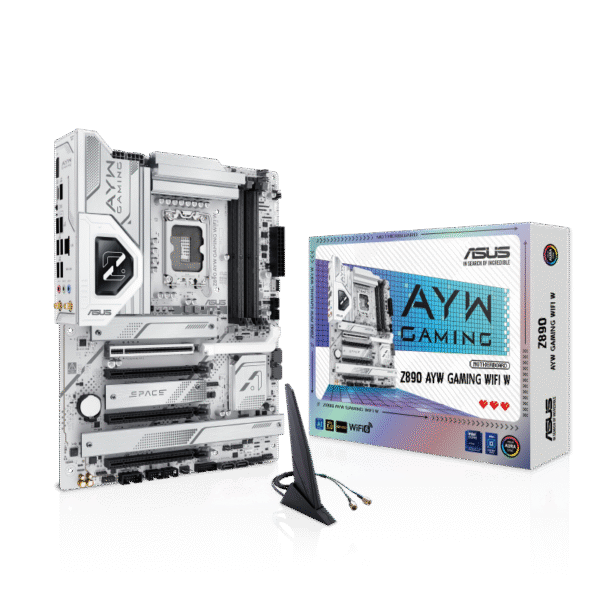

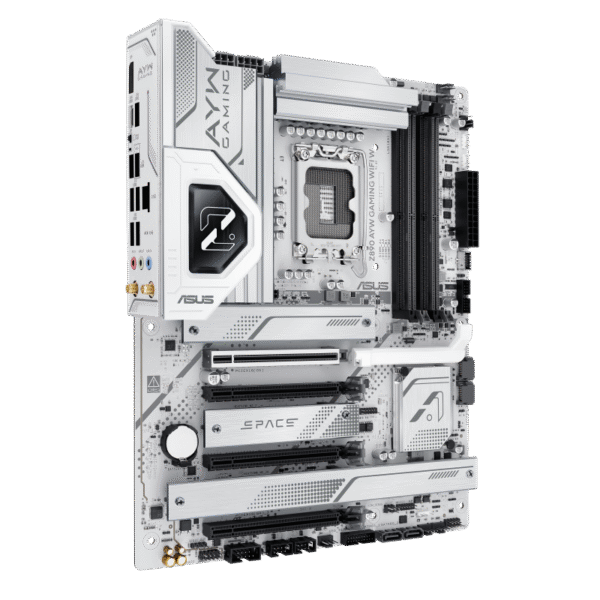

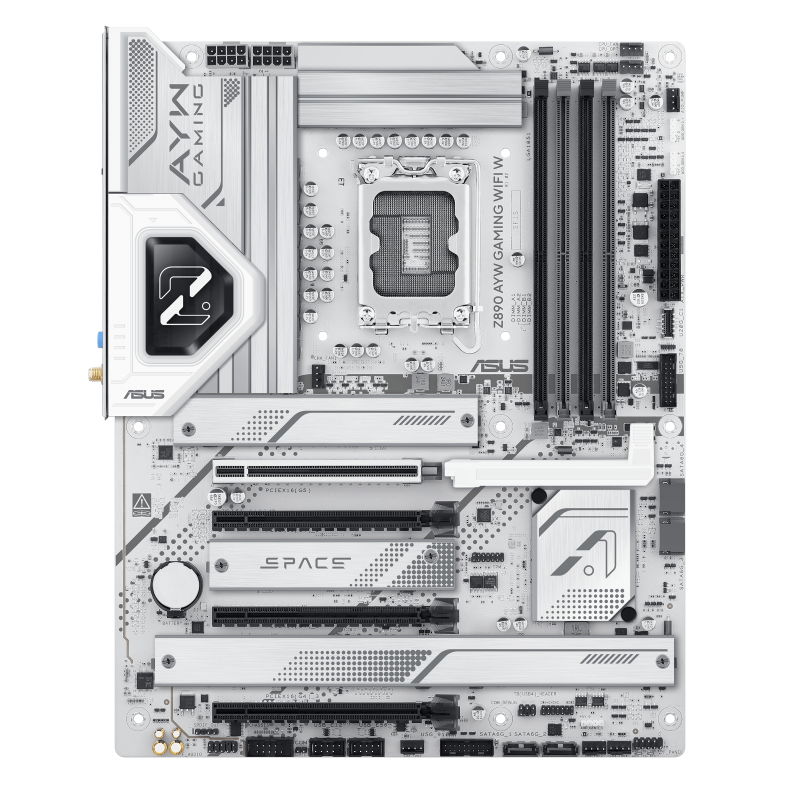

The ASUS Z890 AYW GAMING WIFI W motherboard combines cutting-edge technology with durable design to support Intel® Core™ Ultra (Series 2) processors on the LGA1851 socket. Its 12+1+2+1 DrMOS power stages ensure stable power delivery, while comprehensive cooling solutions, including enlarged VRM heatsinks and M.2 heatsinks, maintain optimal temperatures during intensive tasks. With support for up to 256GB of DDR5 memory at speeds reaching 9066+ MT/s (OC), the motherboard caters to demanding applications. It features four M.2 slots (one PCIe 5.0 x4 and three PCIe 4.0 x4) and four SATA 6Gb/s ports for versatile storage options. Connectivity is a highlight, offering Thunderbolt™ 4, Wi-Fi 6, Realtek 2.5Gb Ethernet, and multiple USB ports, including USB 20Gbps Type-C®. Additional features like AI Overclocking, AI Cooling II, and AI Networking II provide intelligent system optimization, while the sleek white design ensures a professional look.

• CPU Support: Intel® Core™ Ultra (Series 2) processors (LGA1851 socket)

• Memory: 4x DDR5 DIMM slots, up to 256GB, 9066+ MT/s (OC)

• Power Design: 12+1+2+1 DrMOS power stages with enlarged VRM heatsinks

• Expansion Slots:

  • 1x PCIe 5.0 x16 SafeSlot

  • 2x PCIe 4.0 x16 (x4 mode)

  • 1x PCIe 4.0 x16 (x1 mode)

• Storage Options:

  • 1x M.2 slot (PCIe 5.0 x4)

  • 3x M.2 slots (PCIe 4.0 x4)

  • 4x SATA 6Gb/s ports

• Networking:

  • Realtek 2.5Gb Ethernet

  • Wi-Fi 6 (802.11ax)

  • Bluetooth® v5.3

• USB Ports:

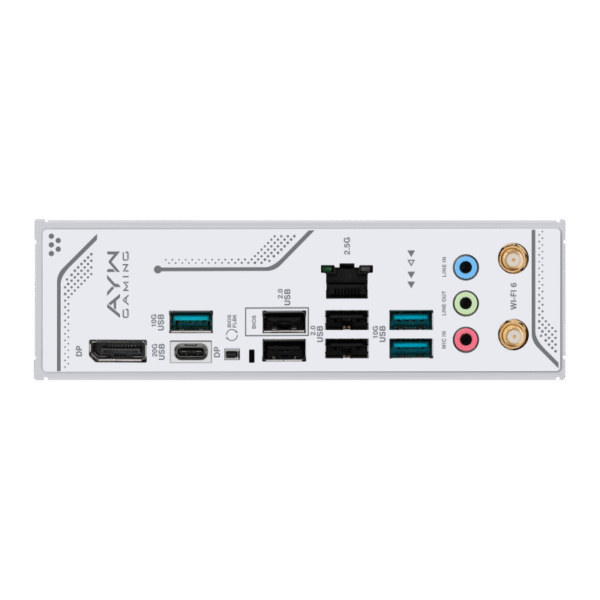

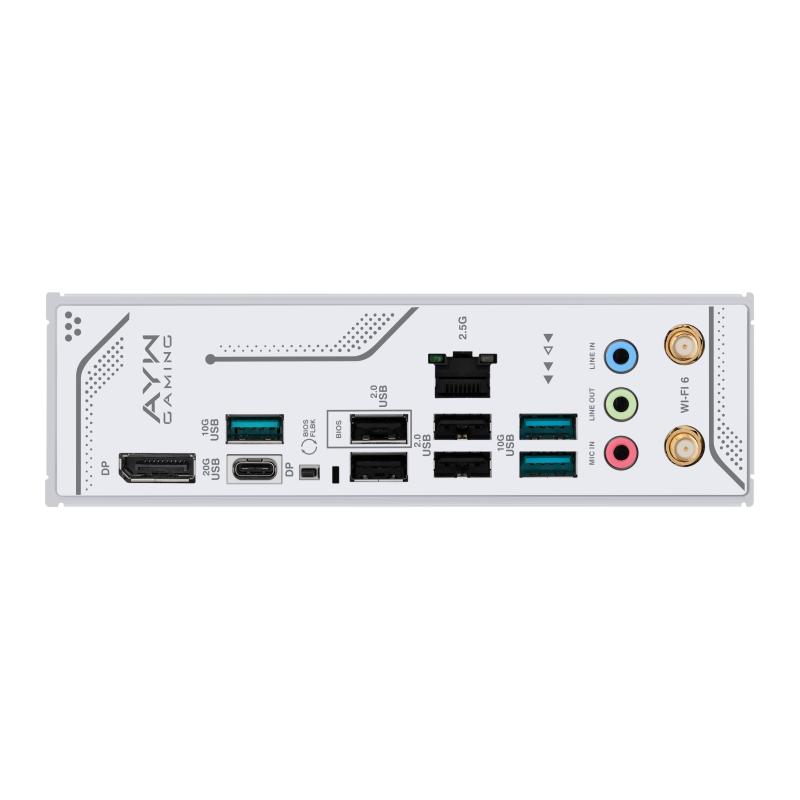

  • Rear: 1x USB 20Gbps Type-C® with DP Alt mode, 3x USB 10Gbps Type-A, 4x USB 2.0 Type-A

  • Front: 1x USB 20Gbps Type-C® (up to 30W PD/PPS Fast-charge), headers for additional USB 5Gbps and USB 2.0 ports

• Display Outputs:

  • 1x DisplayPort 1.4 (4K@60Hz)

• Audio: 7.1-channel high-definition audio (Realtek codec)

• AI Features:

  • AI Overclocking

  • AI Cooling II

  • AI Networking II

• Form Factor: ATX

Key Specifications

• Chipset: Intel® Z890

• CPU Socket: LGA1851

• Memory Support: DDR5 4800–9066+ MT/s (OC), Dual Channel, Non-ECC, Unbuffered

• Max Memory: 256GB

• Expansion Slots:

  • 1x PCIe 5.0 x16

  • 2x PCIe 4.0 x16 (x4 mode)

  • 1x PCIe 4.0 x16 (x1 mode)

• Storage:

  • 1x M.2 (PCIe 5.0 x4)

  • 3x M.2 (PCIe 4.0 x4)

  • 4x SATA 6Gb/s ports

• USB Ports:

  • Rear: 1x USB 20Gbps Type-C® with DP Alt mode, 3x USB 10Gbps Type-A, 4x USB 2.0 Type-A

  • Front: 1x USB 20Gbps Type-C® (up to 30W PD/PPS Fast-charge), headers for additional USB 5Gbps and USB 2.0 ports

• Display Outputs:

  • 1x DisplayPort 1.4 (4K@60Hz)

• Audio Codec: Realtek 7.1-channel high-definition audio

• LAN: Realtek 2.5Gb Ethernet

• Wireless:

  • Wi-Fi 6 (802.11ax)

  • Bluetooth® v5.3

• Form Factor: ATX (30.5 cm x 24.4 cm)
