Description

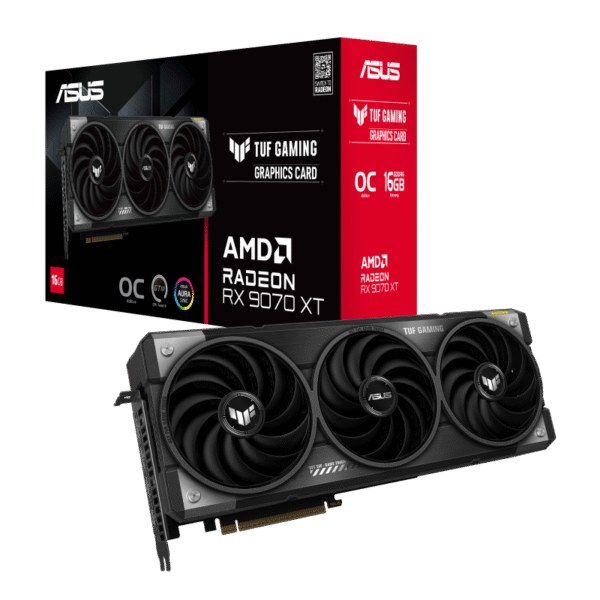

The ASUS TUF Gaming Radeon™ RX 9070 XT OC Edition is a high-performance graphics card built on AMD’s RDNA™ 4 architecture. Designed for gamers seeking exceptional 1440p and 4K gaming experiences, it boasts 16GB of GDDR6 memory across a 256-bit interface, delivering impressive bandwidth and responsiveness. The card features a triple-fan cooling solution housed in a 3.125-slot design, ensuring optimal thermal performance even under heavy loads. With a boost clock of up to 3080 MHz in OC mode, it offers enhanced performance for demanding applications. The TUF Gaming series is renowned for its durability, and this model is no exception, incorporating military-grade components and a protective PCB coating to withstand the rigors of extended gaming sessions. Whether you’re diving into the latest AAA titles or engaging in resource-intensive creative tasks, the RX 9070 XT OC Edition is engineered to meet your performance needs.

Key Features

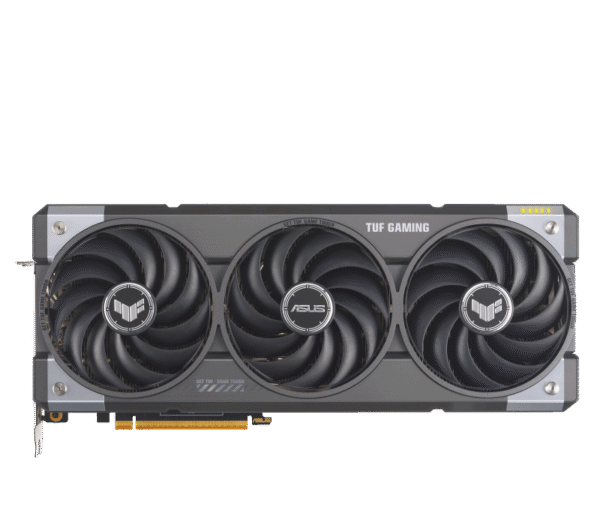

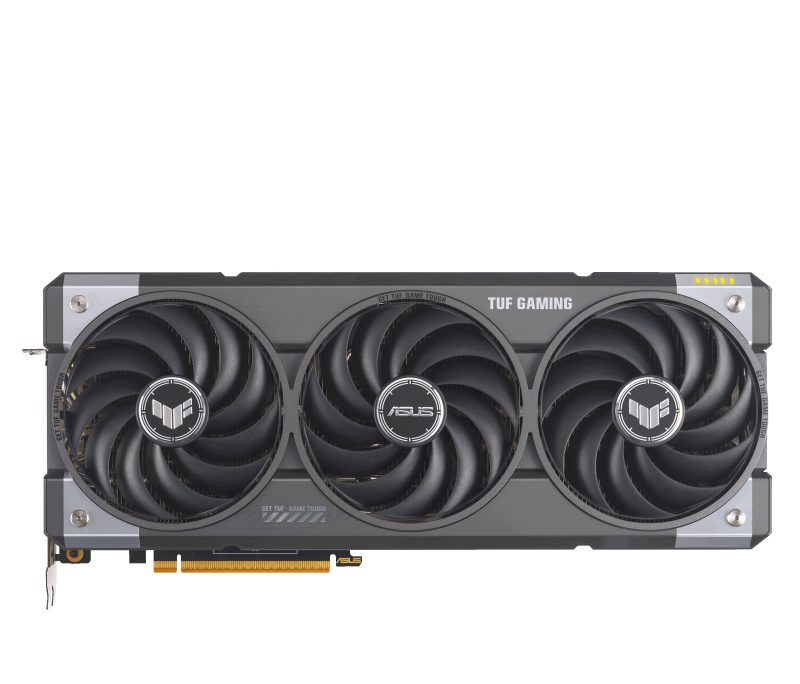

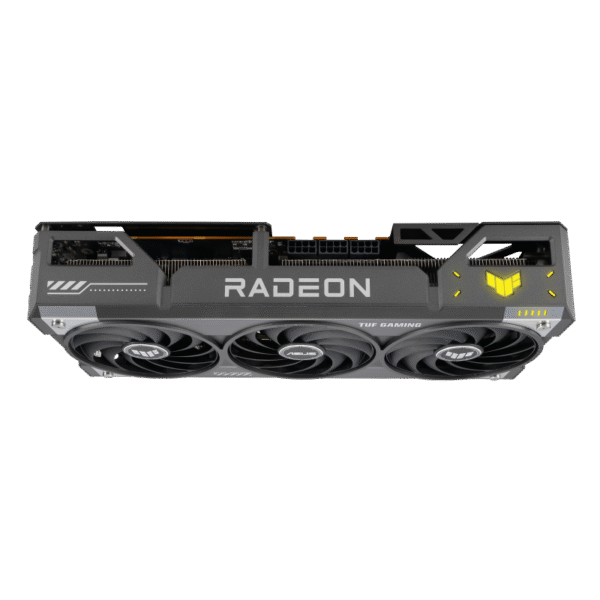

• Triple-Fan Cooling System: Equipped with Axial-Tech fans that deliver up to 31% more airflow than standard fans, ensuring efficient heat dissipation.

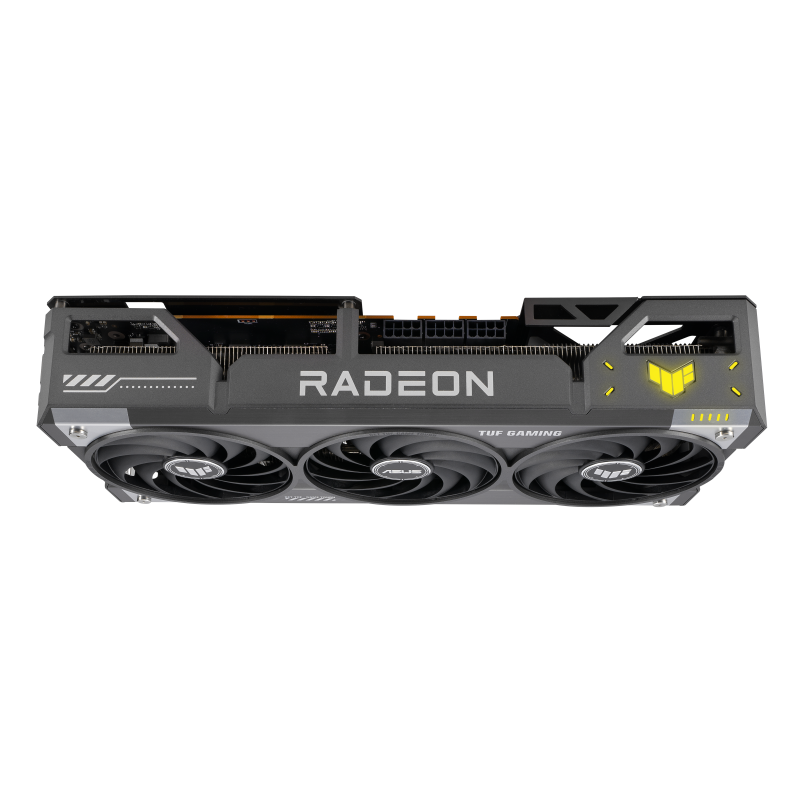

• Vented Exoskeleton: The 3.125-slot design enhances airflow and thermal performance.

• Military-Grade Components: Incorporates TUF chokes, MOSFETs, and capacitors rated for 5K hours at 105°C, ensuring long-lasting durability.

• Protective PCB Coating: Guards against moisture, dust, and debris, enhancing the card’s longevity.

• Phase-Change GPU Thermal Pad: Improves thermal conductivity for better heat dissipation.

• Dual BIOS: Allows users to switch between Quiet and Performance modes.

• GPU Tweak III Software: Provides real-time monitoring, tuning, and custom fan profiles.

• Adobe Creative Cloud Bundle: Includes one month of free Adobe Creative Cloud subscription with purchase.

Key Specifications

• GPU Engine: AMD Radeon™ RX 9070 XT

• Memory: 16GB GDDR6

• Memory Interface: 256-bit

• Memory Speed: 20 Gbps

• Boost Clock (OC Mode): Up to 3080 MHz

• Game Clock (OC Mode): Up to 2540 MHz

• Boost Clock (Default Mode): Up to 3060 MHz

• Game Clock (Default Mode): Up to 2520 MHz

• Stream Processors: 4096

• PCI Express Version: 5.0

• Maximum Digital Resolution: 7680 x 4320

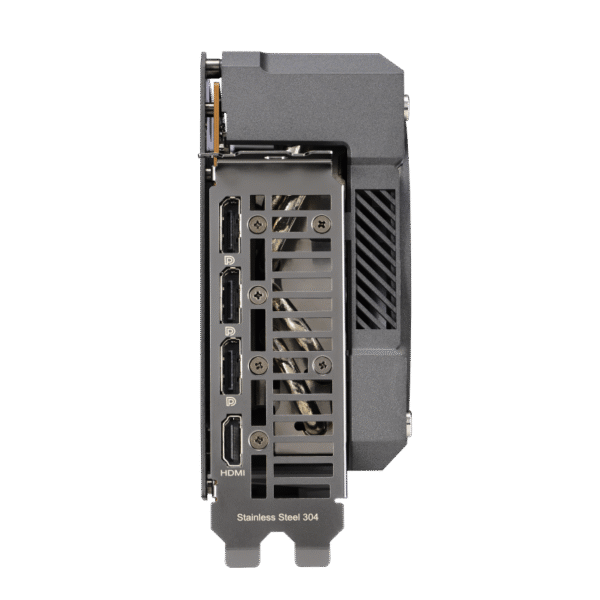

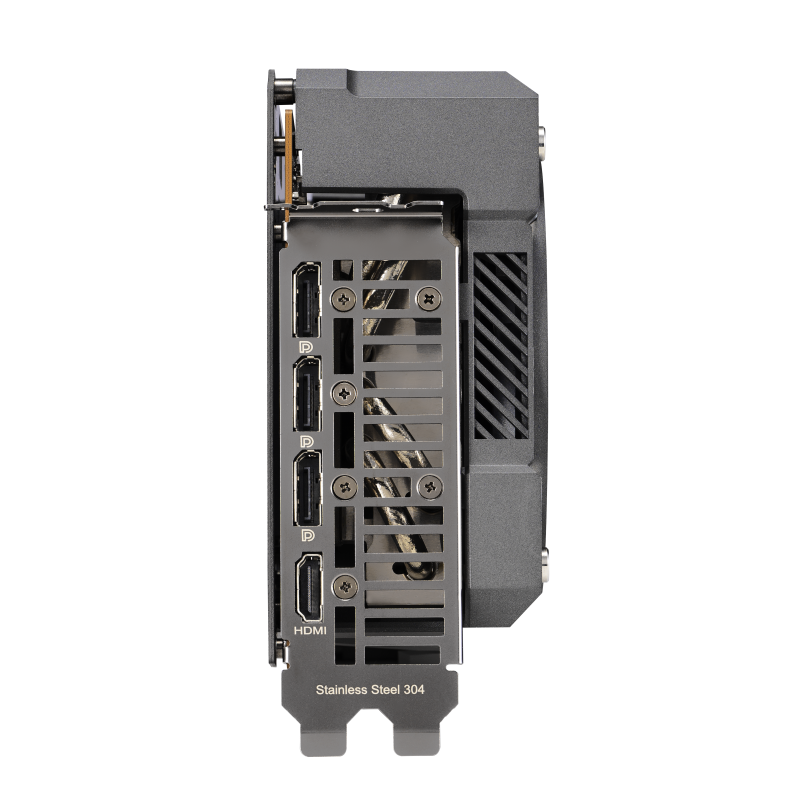

• Display Outputs: 1x HDMI 2.1b, 3x DisplayPort 2.1a

• Power Connectors: 3x 8-pin

• Recommended PSU Wattage: 850W

• Dimensions: 330 mm (L) x 140 mm (W) x 63 mm (H)

• Slot Size: 3.125-slot

• TDP: 304W

• Warranty: 3 Years Limited
