Description

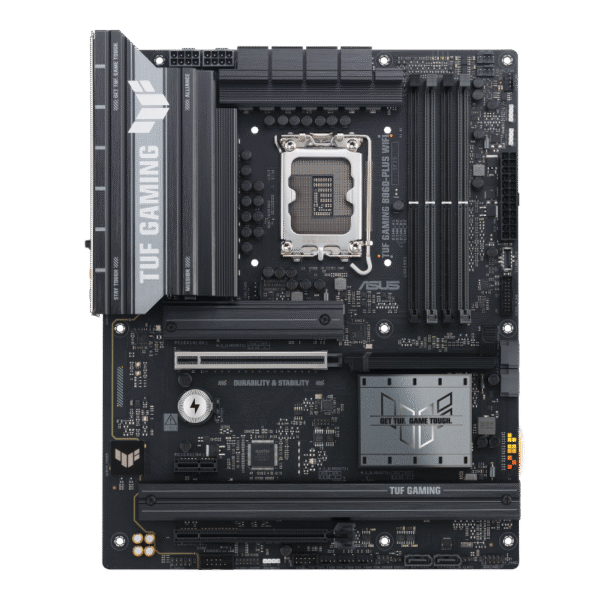

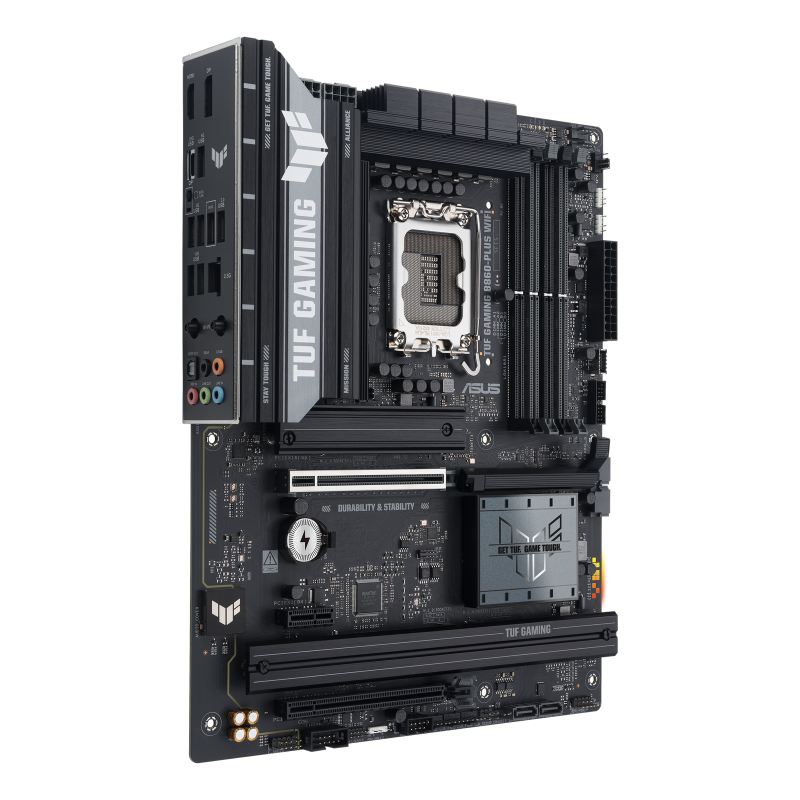

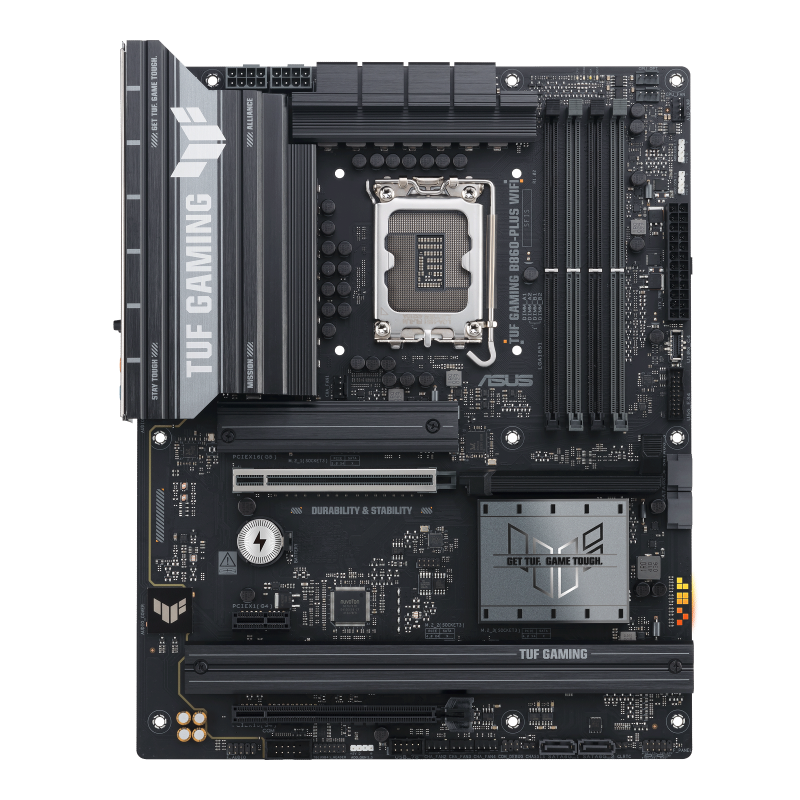

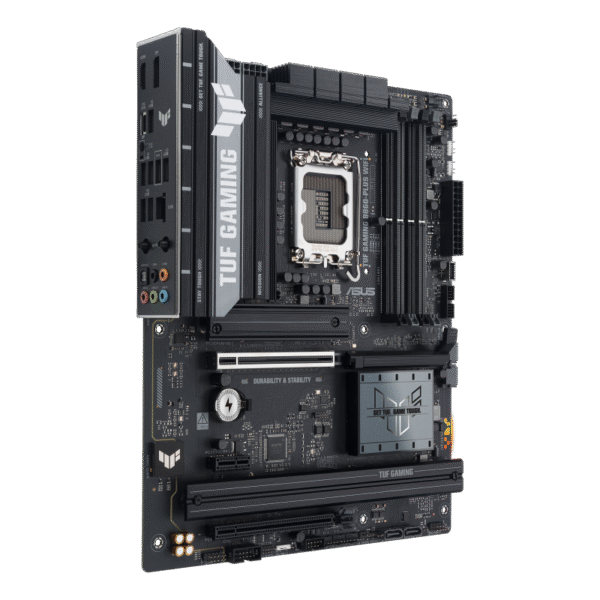

The ASUS TUF GAMING B860-PLUS WIFI motherboard combines cutting-edge technology with durable design to support Intel® Core™ Ultra (Series 2) processors on the LGA1851 socket. Its 12+1+2+1 DrMOS power stage design ensures stable power delivery, while comprehensive cooling solutions, including enlarged VRM heatsinks and M.2 heatsinks, maintain optimal temperatures during intensive tasks. With support for up to 256GB of DDR5 memory at speeds reaching 8666+ MT/s (OC), the motherboard caters to demanding applications. It features three M.2 slots (one PCIe 5.0 x4 and two PCIe 4.0 x4) and four SATA 6Gb/s ports for versatile storage options. Connectivity is a highlight, offering USB 20Gbps Type-C® with DisplayPort Alt Mode, Wi-Fi 7, Realtek 2.5Gb Ethernet, and multiple USB ports. Additional features like AI Overclocking, AI Cooling II, and AI Networking II provide intelligent system optimization, while the TUF Gaming aesthetic ensures a sleek, professional look.

Key Features

• CPU Support: Intel® Core™ Ultra (Series 2) processors (LGA1851 socket)

• Memory: 4x DDR5 DIMM slots, up to 256GB, 8666+ MT/s (OC)

• Power Design: 12+1+2+1 DrMOS power stages with enlarged VRM heatsinks

• Expansion Slots:

  • 1x PCIe 5.0 x16 SafeSlot

  • 1x PCIe 4.0 x16 (x4 mode)

  • 1x PCIe 4.0 x1 slot

• Storage Options:

  • 1x M.2 slot (PCIe 5.0 x4)

  • 2x M.2 slots (PCIe 4.0 x4)

  • 4x SATA 6Gb/s ports

• Networking:

  • Realtek 2.5Gb Ethernet

  • Wi-Fi 7 (802.11be)

  • Bluetooth® v5.4

• USB Ports:

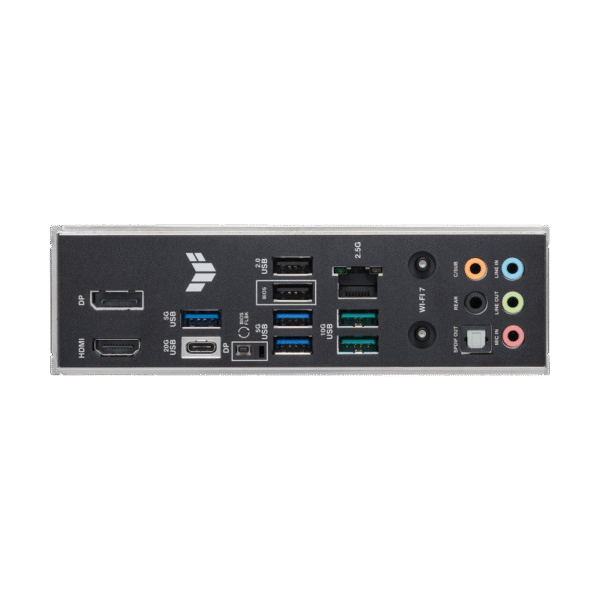

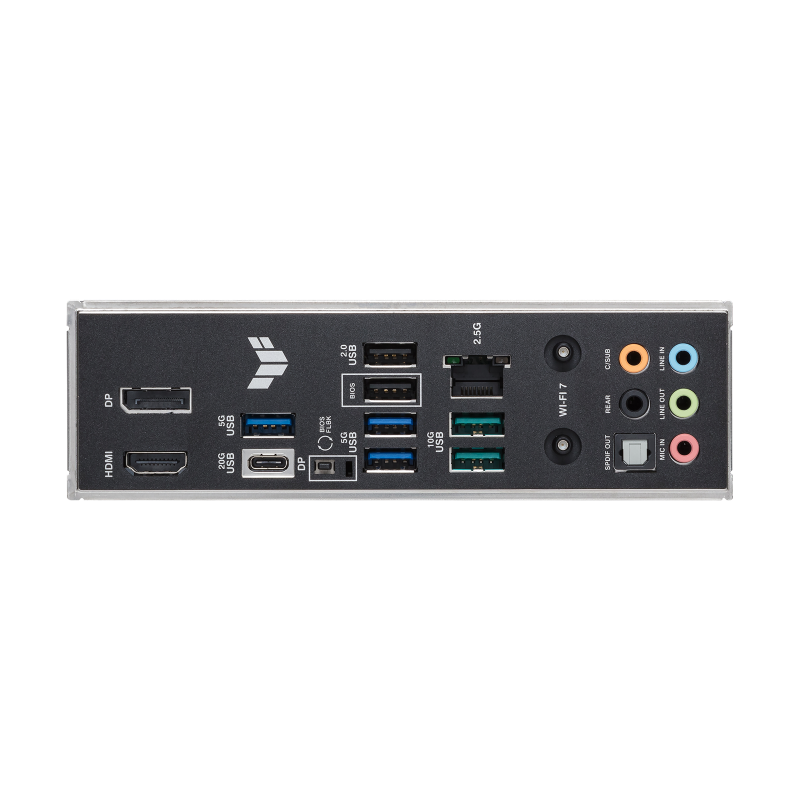

  • Rear: 1x USB 20Gbps Type-C® with DP Alt Mode, 3x USB 10Gbps Type-A, 4x USB 2.0 Type-A

  • Front: 1x USB 10Gbps Type-C®, headers for additional USB 5Gbps and USB 2.0 ports

• Display Outputs:

  • 1x HDMI™ port (4K@60Hz)

  • 1x DisplayPort 1.4 (8K@60Hz)

• Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC with premium audio capacitors

• AI Features:

  • AI Overclocking

  • AI Cooling II

  • AI Networking II

• Form Factor: ATX (30.5 cm x 24.4 cm)

Key Specifications

• Chipset: Intel® B860

• CPU Socket: LGA1851

• Memory Support: DDR5 4800–8666+ MT/s (OC), Dual Channel, Non-ECC, Unbuffered

• Max Memory: 256GB

• Expansion Slots:

  • 1x PCIe 5.0 x16

  • 1x PCIe 4.0 x16 (x4 mode)

  • 1x PCIe 4.0 x1 slot

• Storage:

  • 1x M.2 (PCIe 5.0 x4)

  • 2x M.2 (PCIe 4.0 x4)

  • 4x SATA 6Gb/s ports

• USB Ports:

  • Rear: 1x USB 20Gbps Type-C® with DP Alt Mode, 3x USB 10Gbps Type-A, 4x USB 2.0 Type-A

  • Front: 1x USB 10Gbps Type-C®, headers for additional USB 5Gbps and USB 2.0 ports

• Display Outputs:

  • 1x HDMI™ port (4K@60Hz)

  • 1x DisplayPort 1.4 (8K@60Hz)

• Audio Codec: Realtek 7.1 Surround Sound High Definition Audio CODEC

• LAN: Realtek 2.5Gb Ethernet

• Wireless:

  • Wi-Fi 7 (802.11be)

  • Bluetooth® v5.4

• Form Factor: ATX (30.5 cm x 24.4 cm)
