Description

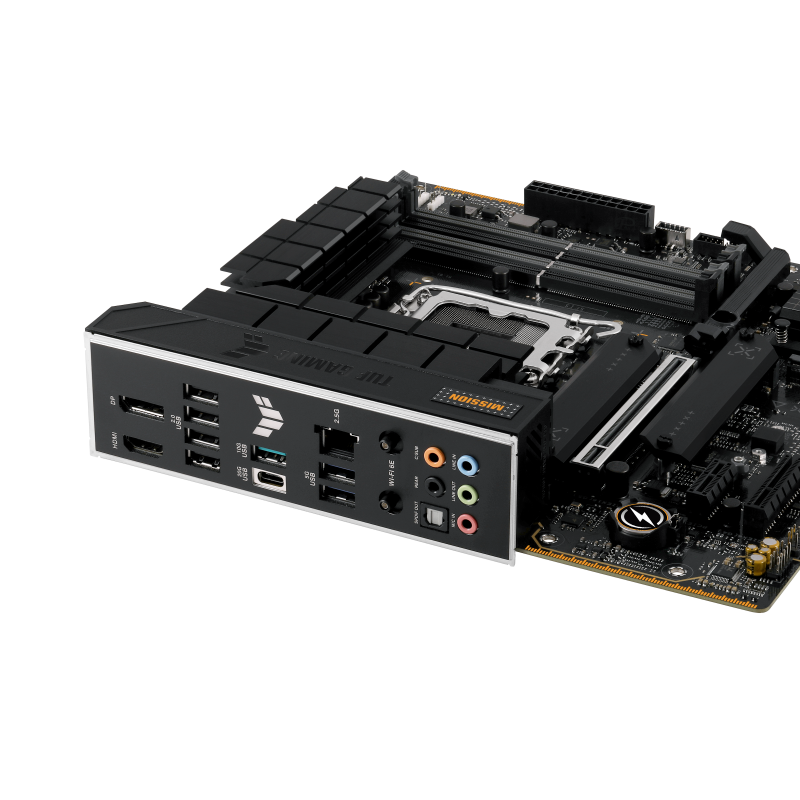

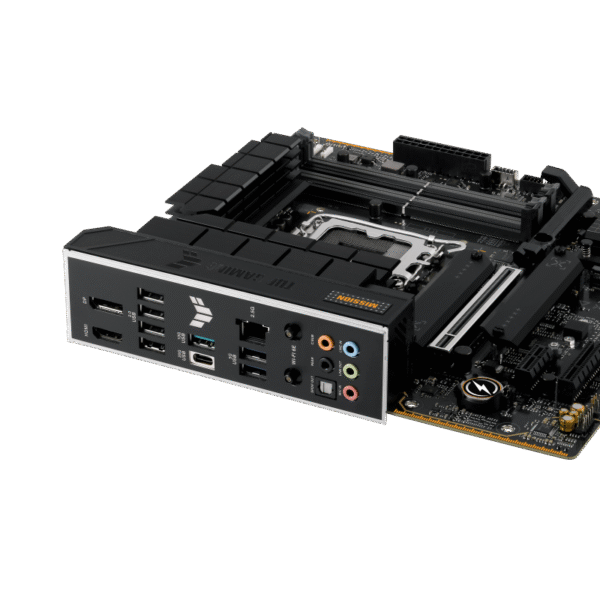

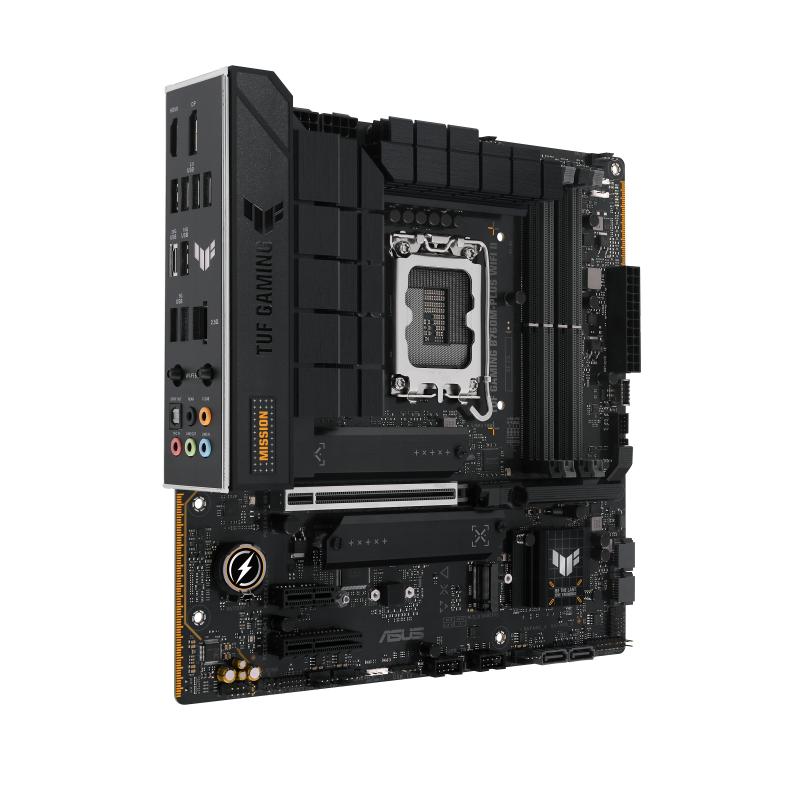

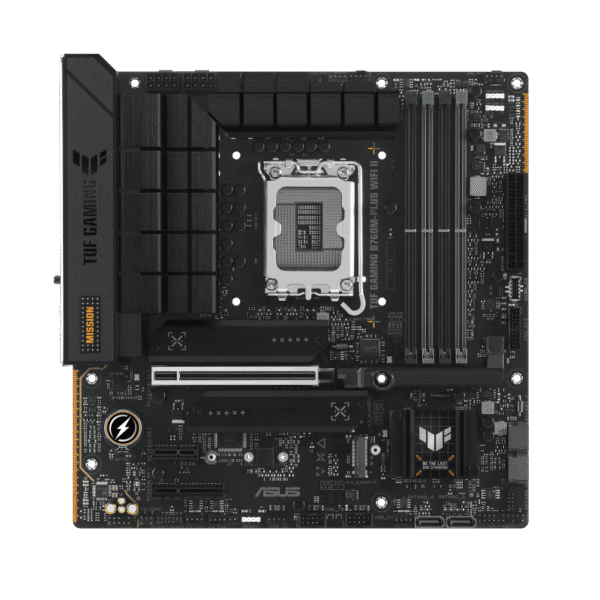

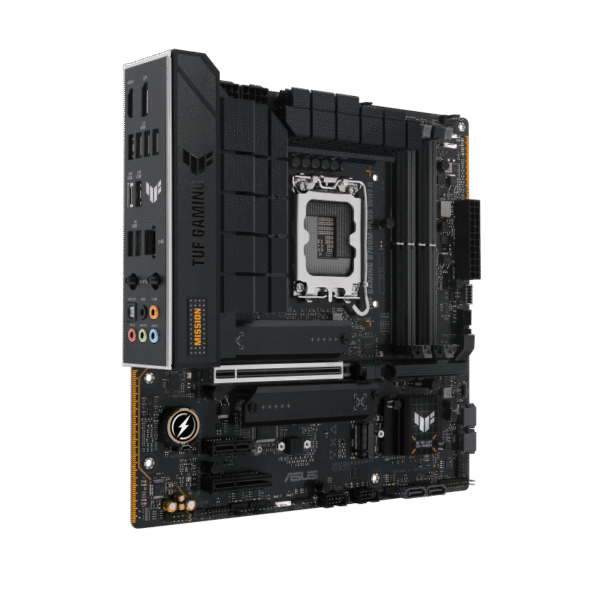

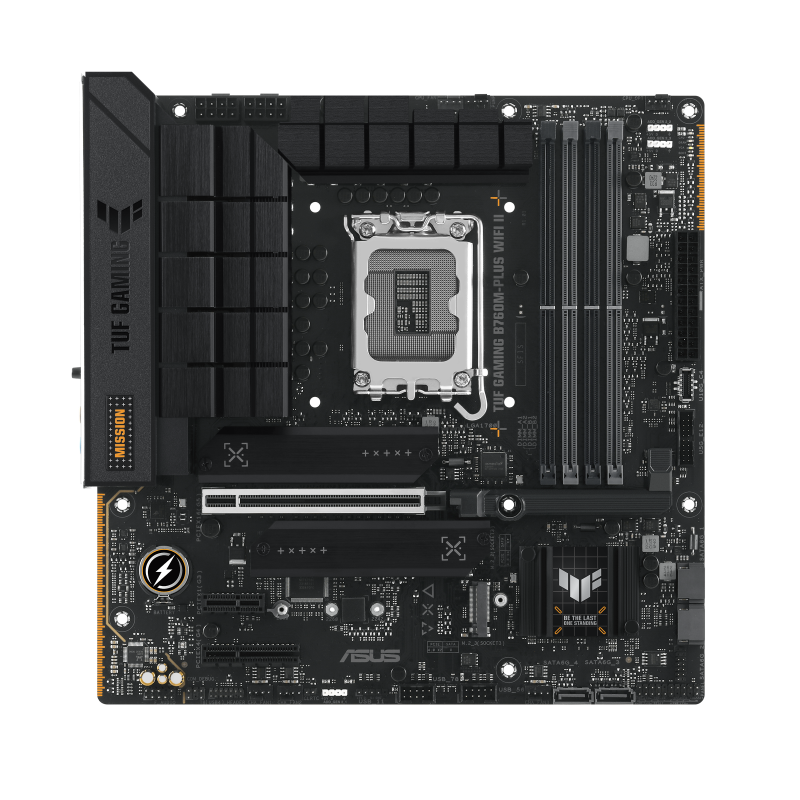

The ASUS TUF GAMING B760M-PLUS WIFI II brings together strength and stability with next-gen features, making it ideal for compact gaming rigs using Intel® 12th and 13th Gen Core™ processors. With support for DDR5 memory up to 192GB and PCIe® 5.0 graphics cards, it delivers fast and responsive performance in a micro-ATX form factor. Its 10+1 power stage design and durable capacitors ensure consistent power delivery, while enlarged VRM and M.2 heatsinks help maintain optimal temperatures. Connectivity features include Wi-Fi 6, 2.5Gb Ethernet, and USB 3.2 Gen 2×2 Type-C®, making it a reliable backbone for any performance-focused compact build.

Key Features

CPU Support: Intel® 12th and 13th Gen Core™ processors (LGA1700 socket)
Memory: 4x DDR5 DIMM slots, up to 192GB, 7200+ MT/s (OC)
Power Design: 10+1 DrMOS power stages with military-grade TUF components

Expansion Slots:
 • 1x PCIe® 5.0 x16 SafeSlot
 • 1x PCIe® 4.0 x16 (x4 mode)
 • 1x PCIe® 3.0 x1 slot

Storage Options:
 • 2x M.2 slots (1x PCIe® 4.0 x4, 1x PCIe® 4.0 x4 & SATA)
 • 4x SATA 6Gb/s ports

Networking:
 • Realtek 2.5Gb Ethernet
 • Wi-Fi 6 (802.11ax)
 • Bluetooth® v5.2

USB Ports:
 • Rear: 1x USB 3.2 Gen 2×2 Type-C®, 3x USB 3.2 Gen 1 Type-A, 2x USB 2.0
 • Front: 1x USB 3.2 Gen 1 Type-C®, headers for USB 3.2 Gen 1 and USB 2.0

Display Outputs:
 • 1x HDMI™ port (4K@60Hz)
 • 1x DisplayPort 1.4

Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC with dedicated audio shielding
Form Factor: micro-ATX (24.4 cm x 24.4 cm)

Key Specifications

Chipset: Intel® B760
CPU Socket: LGA1700
Memory Support: DDR5 4800–7200+ MT/s (OC), Dual Channel, Non-ECC, Unbuffered
Max Memory: 192GB

Expansion Slots:
 • 1x PCIe® 5.0 x16
 • 1x PCIe® 4.0 x16 (x4 mode)
 • 1x PCIe® 3.0 x1

Storage:
 • 2x M.2 (1x PCIe® 4.0 x4, 1x PCIe® 4.0 x4 & SATA)
 • 4x SATA 6Gb/s

USB Ports:
 • Rear: 1x USB 3.2 Gen 2×2 Type-C®, 3x USB 3.2 Gen 1 Type-A, 2x USB 2.0
 • Front: 1x USB 3.2 Gen 1 Type-C®, headers for USB 3.2 Gen 1 and USB 2.0

Display Outputs:
 • 1x HDMI™ port (4K@60Hz)
 • 1x DisplayPort 1.4

Audio Codec: Realtek 7.1 Surround Sound HD Audio CODEC
LAN: Realtek 2.5Gb Ethernet
Wireless: Wi-Fi 6, Bluetooth® v5.2
Form Factor: micro-ATX (24.4 cm x 24.4 cm)
