Description

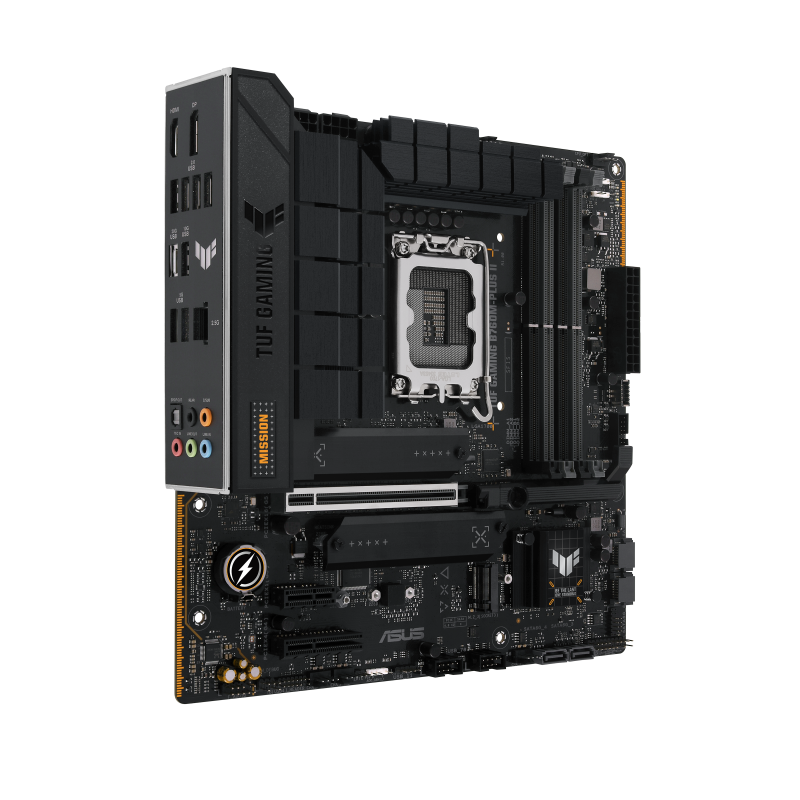

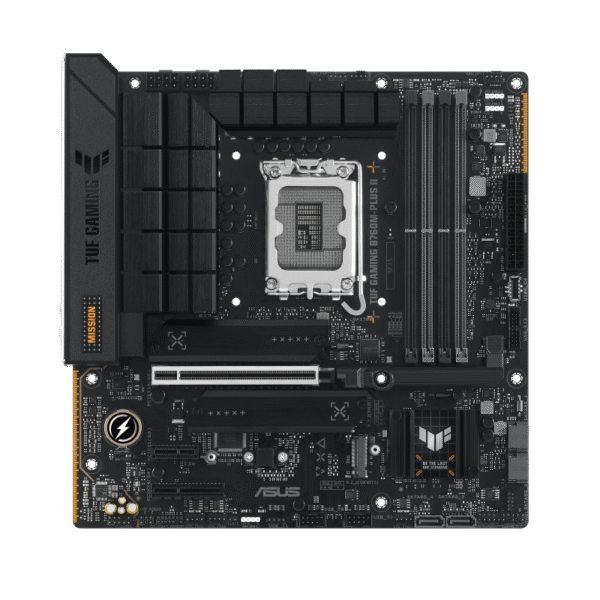

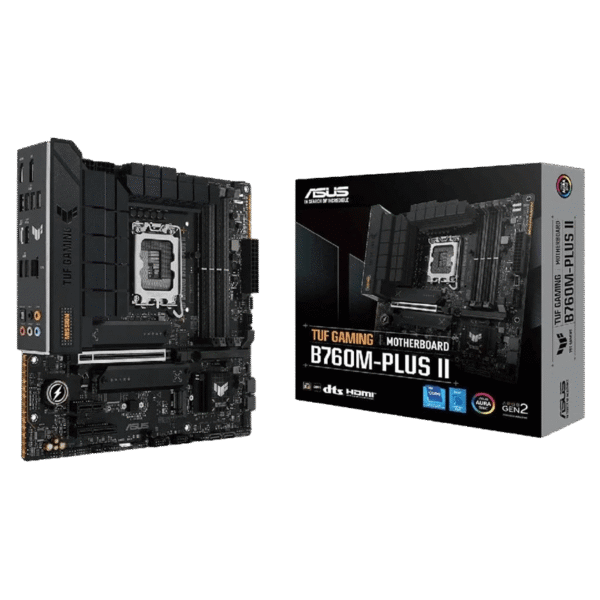

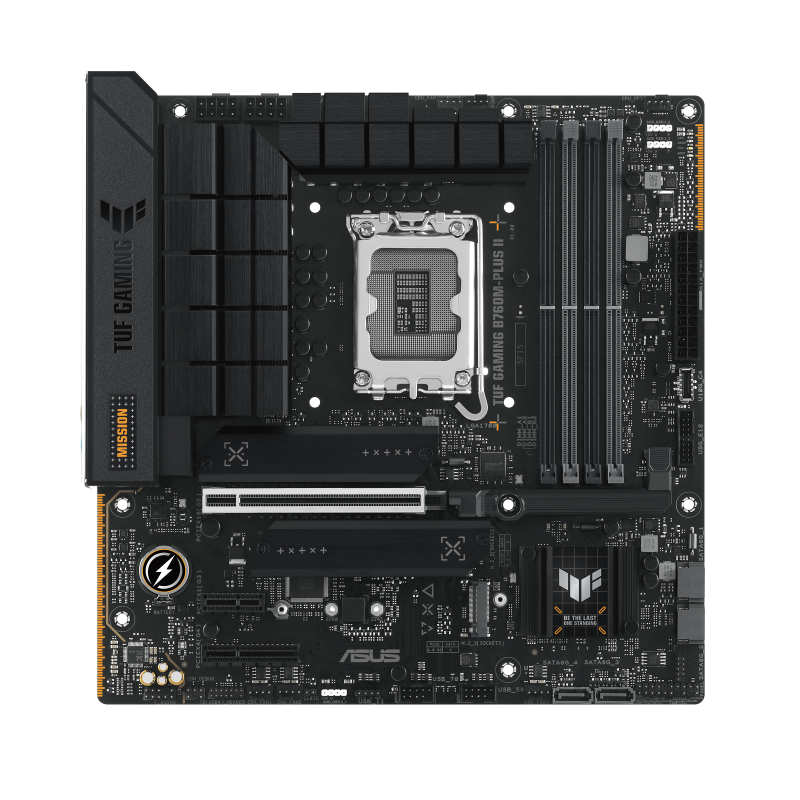

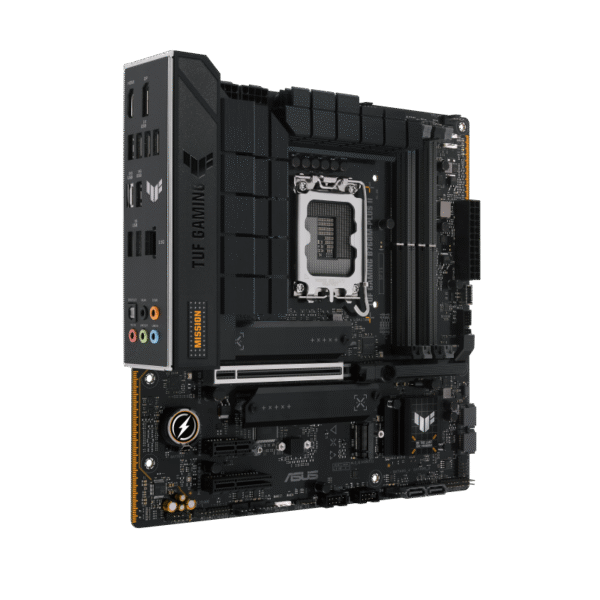

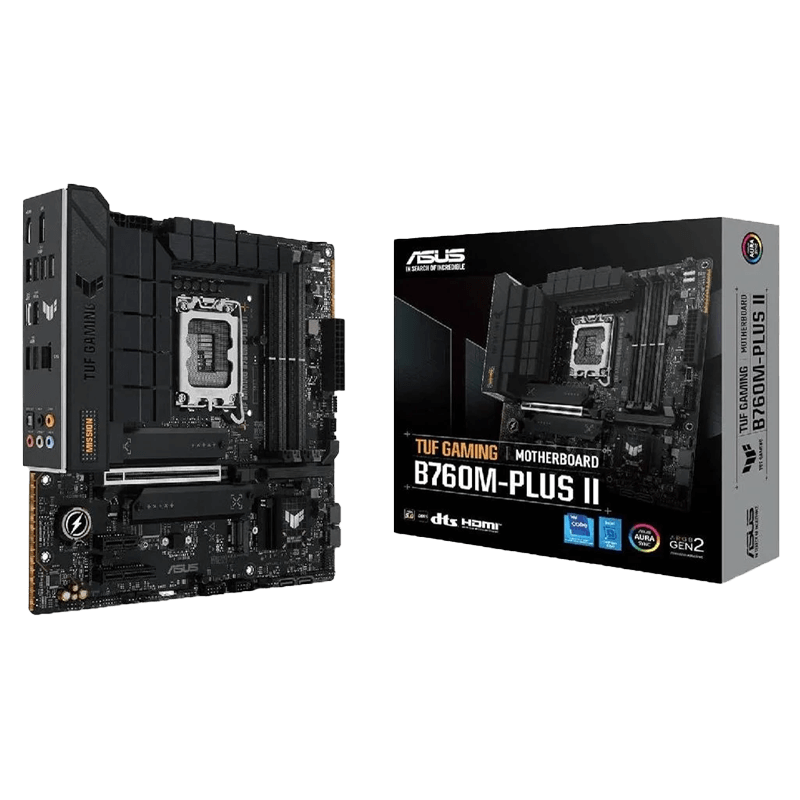

The ASUS TUF GAMING B760M-PLUS II DDR5 motherboard combines next-gen performance with military-grade durability, making it ideal for gamers who demand long-term stability and power. Designed for Intel® 12th and 13th Gen Core™ processors, it supports DDR5 memory up to 192GB and speeds over 7200 MT/s (OC). It features a 10+1 power stage VRM design for stable power delivery and enhanced cooling with large VRM and M.2 heatsinks. With PCIe® 5.0 GPU support, dual M.2 slots, USB 3.2 Gen 2×2, and 2.5Gb Ethernet, this board delivers modern performance in a compact micro-ATX form factor.

Key Features

CPU Support: Intel® 12th and 13th Gen Core™ processors (LGA1700 socket)
Memory: 4x DDR5 DIMM slots, up to 192GB, 7200+ MT/s (OC)
Power Design: 10+1 DrMOS power stages with durable capacitors and ProCool connectors

Expansion Slots:
 • 1x PCIe® 5.0 x16 SafeSlot
 • 1x PCIe® 4.0 x16 (x4 mode)
 • 1x PCIe® 3.0 x1 slot

Storage Options:
 • 2x M.2 slots (1x PCIe® 4.0 x4, 1x PCIe® 4.0 x4 & SATA)
 • 4x SATA 6Gb/s ports

Networking:
 • Realtek 2.5Gb Ethernet
 • Bluetooth® v5.2 ready (via add-on card if no onboard Wi-Fi)

USB Ports:

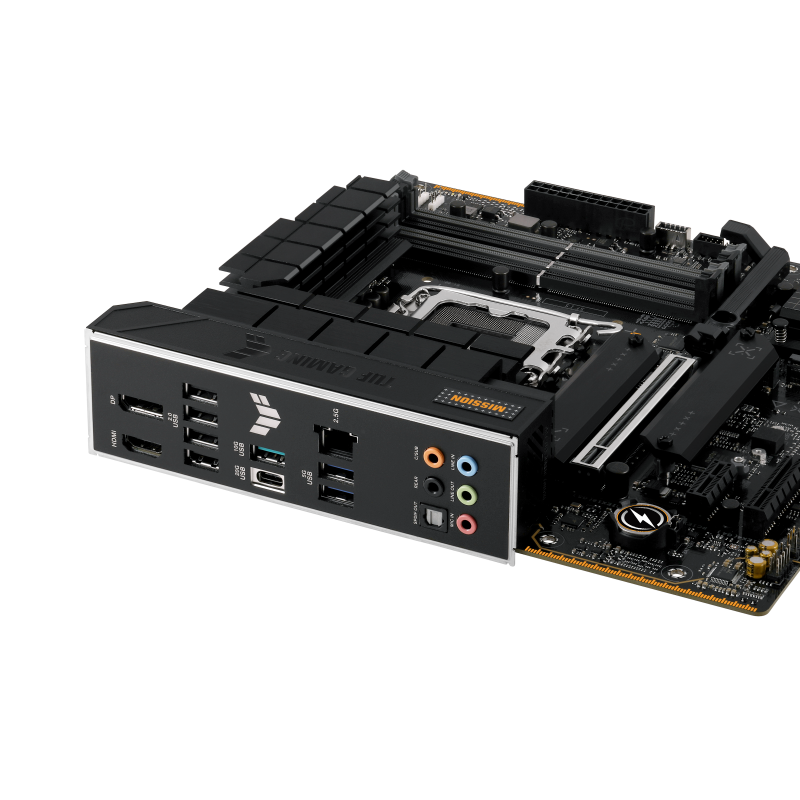

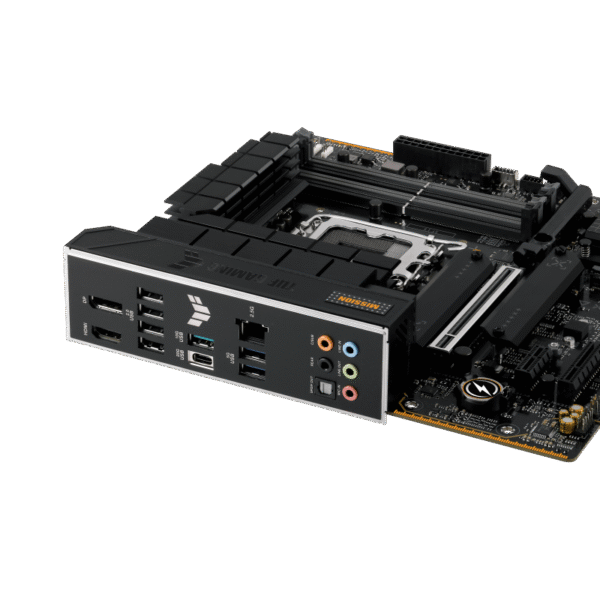

 • Rear: 1x USB 3.2 Gen 2×2 Type-C®, 2x USB 3.2 Gen 2 Type-A, 4x USB 2.0
 • Front: 1x USB 3.2 Gen 1 Type-C®, headers for USB 3.2 Gen 1 and USB 2.0

Display Outputs:
 • 1x HDMI™ port (4K@60Hz)
 • 1x DisplayPort 1.4

Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC
Form Factor: micro-ATX (24.4 cm x 24.4 cm)

Key Specifications

Chipset: Intel® B760
CPU Socket: LGA1700
Memory Support: DDR5 4800–7200+ MT/s (OC), Dual Channel, Non-ECC, Unbuffered
Max Memory: 192GB

Expansion Slots:
 • 1x PCIe® 5.0 x16
 • 1x PCIe® 4.0 x16 (x4 mode)
 • 1x PCIe® 3.0 x1

Storage:
 • 2x M.2 (1x PCIe® 4.0 x4, 1x PCIe® 4.0 x4 & SATA)
 • 4x SATA 6Gb/s

USB Ports:
 • Rear: 1x USB 3.2 Gen 2×2 Type-C®, 2x USB 3.2 Gen 2 Type-A, 4x USB 2.0
 • Front: 1x USB 3.2 Gen 1 Type-C®, headers for USB 3.2 Gen 1 and USB 2.0

Display Outputs:
 • 1x HDMI™ port (4K@60Hz)
 • 1x DisplayPort 1.4

Audio Codec: Realtek 7.1 Surround Sound High Definition Audio CODEC
LAN: Realtek 2.5Gb Ethernet
Wireless: Not included (optional add-on module support)
Form Factor: micro-ATX (24.4 cm x 24.4 cm)
