Description

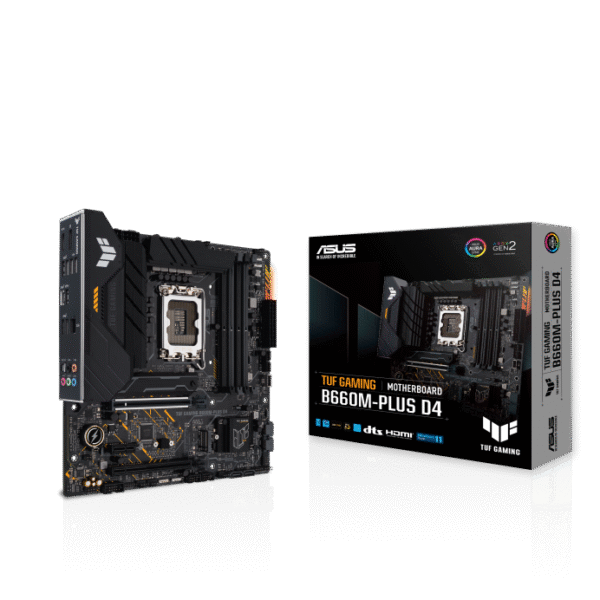

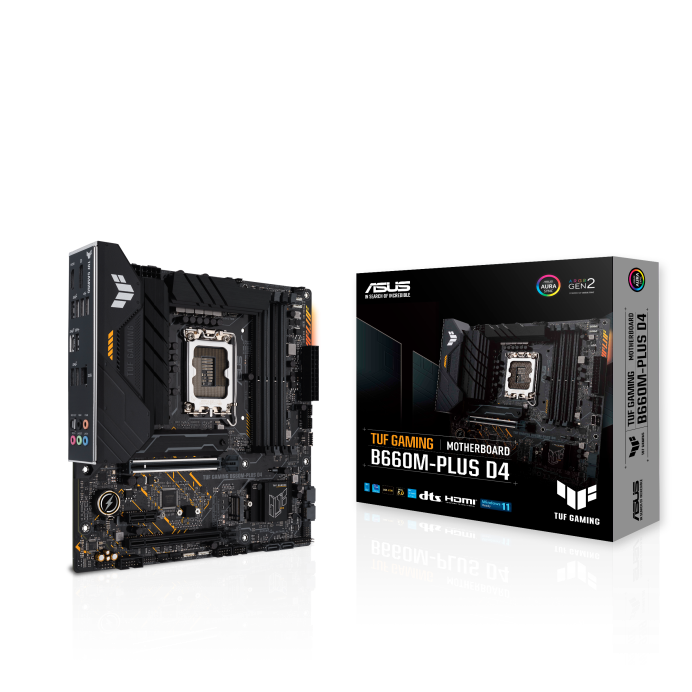

The ASUS TUF GAMING B660M‑PLUS D4 is built for gamers and creators who demand performance and reliability in a compact form. It supports Intel’s 12th and 13th Gen LGA 1700 CPUs using a sturdy 10+1 DrMOS power design, ProCool connectors, military-grade components, and a six-layer PCB for enhanced durability. The board accommodates up to 128 GB of DDR4 memory at speeds up to 5333 MHz (OC), offers a PCIe 5.0 x16 graphics slot and two PCIe 4.0 M.2 storage slots with flexible heatsinks. Networking includes Wi‑Fi 6, Bluetooth 5.2, and a Realtek 2.5 Gb Ethernet port with TUF LANGuard protection. Rear I/O features USB 3.2 Gen 2×2 Type‑C, along with multiple USB ports, plus HDMI 2.1 and DisplayPort 1.4. Cooling is comprehensive, with VRM and chipset heatsinks and multiple fan headers, controllable via Fan Xpert 2+. Audio is powered by the Realtek 7.1 HD codec with optical S/PDIF. Aura Sync RGB lighting and fully covered TUF protection ensure this board is ready for serious builds.

Key Features

• Supports Intel 12th and 13th Gen LGA 1700 CPUs

• 10+1 DrMOS power stages with ProCool connectors and six-layer PCB

• DDR4 memory up to 128 GB, 5333 MHz (OC), with XMP support

• PCIe 5.0 x16 slot; 2× PCIe 4.0 M.2 slots with flexible heatsinks

• Intel Wi‑Fi 6 and Bluetooth 5.2; Realtek 2.5 GbE LAN with TUF LANGuard

• Rear USB 3.2 Gen 2×2 Type‑C and front-panel USB‑C header

• HDMI 2.1 and DisplayPort 1.4 output support

• Realtek 7.1 HD audio with optical S/PDIF

• VRM and chipset heatsinks with multiple fan/AIO headers

• Aura Sync RGB lighting header

• TUF-strength protections: SafeSlot, ESD guards, overvoltage, stainless I/O

Key Specifications

• Form Factor: Micro‑ATX (244 × 244 mm)

• Chipset: Intel B660

• Memory Slots: 4× DDR4 DIMM, up to 128 GB, 5333 MHz (OC)

• PCIe Slots: 1× PCIe 5.0 x16; 1× PCIe 3.0 x16 (x4); 1× PCIe 4.0 x1

• Storage: 2× M.2 PCIe 4.0 x4; 4× SATA 6 Gb/s

• Networking: Intel Wi‑Fi 6, Bluetooth 5.2, Realtek 2.5 GbE

• Rear USB: 1× USB-C Gen 2×2; 4× USB 3.2 Gen 2 Type‑A; 1× USB 3.2 Gen 1; 2× USB 2.0

• Internal USB: 1× USB 3.2 Gen 1 (Type-C front-panel), additional USB 3.2 Gen 1 and 2× USB 2.0 headers

• Video Output: HDMI 2.1, DisplayPort 1.4

• Audio: Realtek 7.1 HD codec, optical S/PDIF output

• Cooling Connectors: CPU, CPU_OPT, AIO, and 3× chassis fan headers

• RGB Header: Aura Sync RGB header
