Description

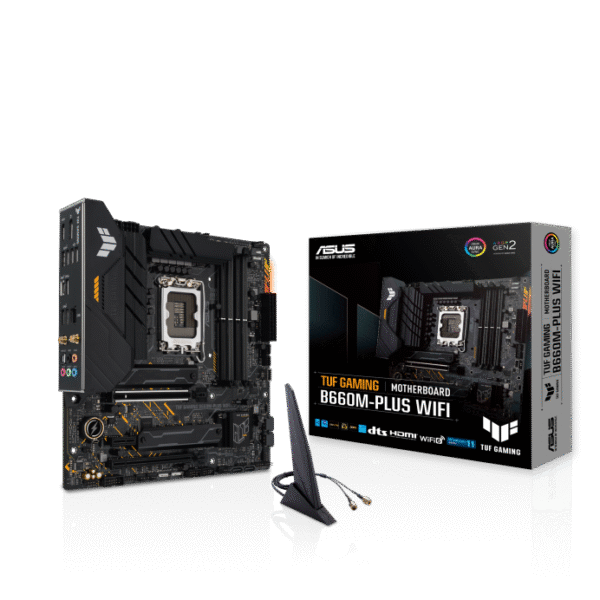

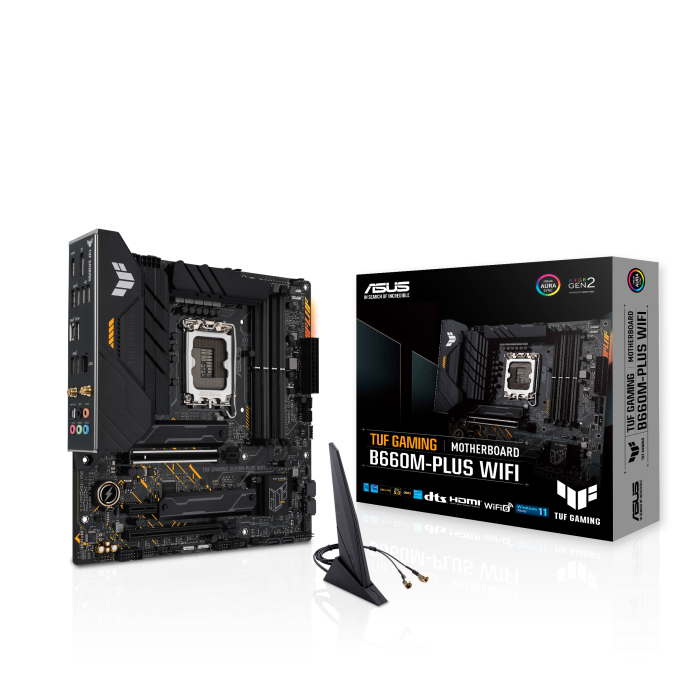

The ASUS TUF GAMING B660M‑PLUS WIFI is a compact yet powerful micro‑ATX board engineered for high-performance builds. Designed for Intel’s 12th and 13th Gen CPUs, it features a durable 10+1 DrMOS power delivery system with a six-layer PCB and ProCool connectors, ensuring reliable voltage and stability. It supports DDR5 memory at speeds up to 6000 MHz (OC), two PCIe 4.0 M.2 slots with heatsinks, and a future-ready PCIe 5.0 x16 GPU slot. Networking is strong with integrated Intel Wi‑Fi 6, Bluetooth 5.2, and Realtek 2.5 Gb Ethernet. The rear USB lineup includes a 20 Gbps USB 3.2 Gen 2×2 Type‑C port, while the front offers a USB‑C Gen 1 header. Further features include HDMI and DisplayPort support, an optional Thunderbolt 4 header, robust audio with Realtek 7.1 HD and optical S/PDIF, hybrid cooling with VRM, chipset, and M.2 heatsinks, and full TUF-grade protections. Aura Sync RGB and Fan Xpert 2+ complete the package.

Key Features

• Intel LGA 1700 support for 12th/13th Gen Core, Pentium, and Celeron CPUs

• 10+1 DrMOS power stages, ProCool connectors, six-layer PCB

• DDR5 memory up to 6000 MHz (OC)

• PCIe 5.0 x16 GPU slot; dual PCIe 4.0 M.2 slots with heatsinks

• Intel Wi‑Fi 6, Bluetooth 5.2, Realtek 2.5 Gb LAN with TUF LANGuard

• Rear USB 3.2 Gen 2×2 Type‑C; front USB‑C header; Thunderbolt 4 header

• HDMI 2.1 and DisplayPort 1.4 video outputs

• Realtek 7.1 HD audio with optical S/PDIF and PCB shielding

• VRM, chipset, and M.2 heatsinks with hybrid fan/AIO support via Fan Xpert 2+

• Aura Sync RGB with addressable Gen 2 support

• TUF protection: SafeSlot, ESD guards, OTP, and stainless I/O

Key Specifications

• Form Factor: Micro‑ATX (244 × 244 mm)

• Chipset: Intel B660

• Memory: 4× DDR5 DIMM slots, up to 192 GB, 6000 MHz (OC)

• Expansion Slots: PCIe 5.0 x16, PCIe 3.0 x16 (x4), PCIe 4.0 x1

• Storage: 2× M.2 PCIe 4.0 x4, 4× SATA 6 Gb/s

• Networking: Wi‑Fi 6, Bluetooth 5.2, 2.5 Gb LAN

• USB I/O: Rear: 1× USB‑C Gen 2×2; 4× USB 3.2 Gen 2; 1× USB 3.2 Gen 1; 2× USB 2.0. Front: USB‑C Gen 1 header, USB 3.2/2.0 headers

• Audio: Realtek 7.1 HD audio, optical S/PDIF

• Cooling: VRM, chipset, and M.2 heatsinks; hybrid fan/AIO headers

• RGB Support: Aura Sync + 3× addressable Gen 2 headers
