Description:

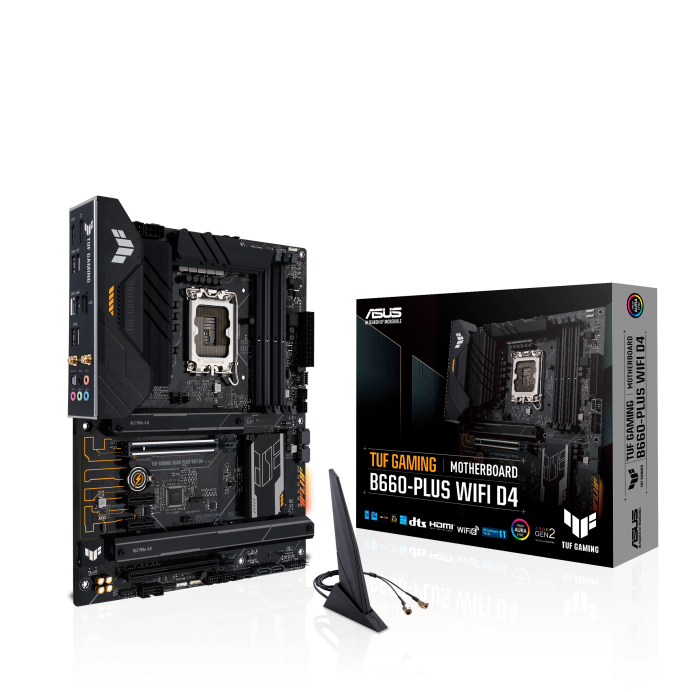

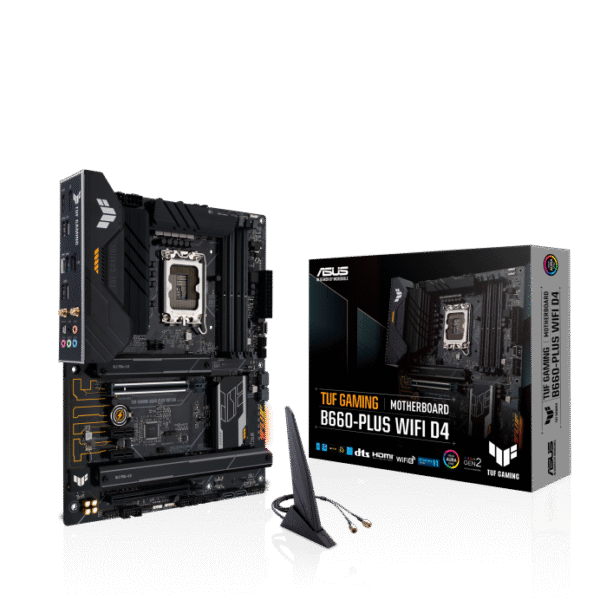

The ASUS TUF GAMING B660-PLUS WIFI D4 combines reliability and performance for gamers and PC builders. Featuring an Intel B660 chipset with an LGA 1700 socket, it supports Intel 12th and 13th Gen Core, Pentium Gold, and Celeron CPUs. The board includes a 10+1 DrMOS power phase design, ProCool connectors, military-grade components, and a six-layer PCB for stable power delivery and efficient thermal handling. Users can install up to 128 GB of DDR4 memory (5333 MHz OC), dual PCIe 4.0 M.2 storage with heatsinks, and take advantage of PCIe 5.0 for next-gen GPU compatibility. Connectivity includes Intel Wi‑Fi 6, Bluetooth 5.2, 2.5 Gb LAN, rear USB 3.2 Gen 2×2 Type‑C, and a Thunderbolt 4 header. Other features include Realtek 7.1 HD audio, robust cooling headers, Aura Sync RGB, and extensive TUF protection for a dependable, high-performance build.

Key Features:

• Supports Intel 12th & 13th Gen CPUs (LGA 1700)

• 10+1 DrMOS power stages with ProCool connectors and six-layer PCB

• Dual PCIe 4.0 x4 M.2 slots with heatsinks; PCIe 5.0 x16 GPU slot

• DDR4 memory up to 5333 MHz OC, max 128 GB

• Intel Wi‑Fi 6, Bluetooth 5.2, and 2.5 Gb Ethernet

• USB 3.2 Gen 2×2 Type‑C rear; front-panel USB‑C header; Thunderbolt 4 header

• Realtek 7.1 HD Audio with optical S/PDIF; multi-zone audio PCB shielding

• Comprehensive cooling with VRM & M.2 heatsinks; Fan Xpert 2+; hybrid fan/AIO headers

• Durable TUF Protection: SafeSlot, ESD guards, overvoltage protection, stainless steel I/O shield

• Aura Sync RGB lighting support and Q-Design features for easy assembly

Key Specifications:

• Form Factor: ATX (305×244 mm)

• Chipset: Intel B660

• Memory: 4× DDR4 DIMM slots, up to 128 GB, 5333 MHz OC

• Expansion Slots: 1× PCIe 5.0 x16, 1× PCIe 3.0 x16 (x4), 1× PCIe 4.0 x1

• Storage: 2× M.2 (PCIe 4.0 x4), 4× SATA 6 Gb/s

• Networking: Intel Wi‑Fi 6, Bluetooth 5.2, Realtek 2.5 Gb LAN

• USB Ports: Rear: 1× Gen 2×2 Type‑C, 4× Gen 2 Type‑A, 1× Gen 1 Type‑A, 2× USB 2.0; Front: Gen 2 Type‑C header, Gen 1 and USB 2.0 headers

• Video Outputs: HDMI 2.1, DisplayPort 1.4

• Audio: Realtek 7.1 Surround Sound with optical S/PDIF

• Cooling Connectors: CPU, CPU_OPT, AIO_PUMP, 3× CHA_FAN

• RGB Headers: 1× Aura RGB, 3× Addressable Gen 2

• BIOS/Software: UEFI BIOS, Armoury Crate with Fan Xpert 2+, AI Noise Cancellation, Aura Sync

• Protection & Ease-of-Build: DIGI+ VRM, SafeSlot, Q-LED, Q-DIMM, pre-mounted I/O shield
