Description

The ASUS TUF GAMING B650-PLUS combines dependable performance with rugged durability for AMD Ryzen™ 7000 Series CPUs on the AM5 platform. Supporting DDR5 memory up to 192GB and PCIe® 5.0 for next-gen GPUs, it’s designed to deliver responsive, future-ready gaming and productivity. A 12+2 DrMOS power stage design ensures stable power delivery, while enlarged VRM and M.2 heatsinks enhance cooling performance. The board includes three M.2 slots, USB 3.2 Gen 2×2 Type-C®, Realtek 2.5Gb Ethernet, and comprehensive protection features like TUF components and AI Cooling II for a rock-solid PC build.

Key Features

CPU Support: AMD Ryzen™ 7000 Series processors (AM5 socket)
Memory: 4x DDR5 DIMM slots, up to 192GB, 6400+ MT/s (OC)
Power Design: 12+2 DrMOS power stages with durable capacitors and ProCool power connectors

Expansion Slots:
 • 1x PCIe® 5.0 x16 SafeSlot
 • 1x PCIe® 4.0 x16 (x4 mode)
 • 1x PCIe® 3.0 x1 slot

Storage Options:
 • 1x M.2 slot (PCIe® 5.0 x4)
 • 2x M.2 slots (PCIe® 4.0 x4)
 • 4x SATA 6Gb/s ports

Networking:
 • Realtek 2.5Gb Ethernet

USB Ports:

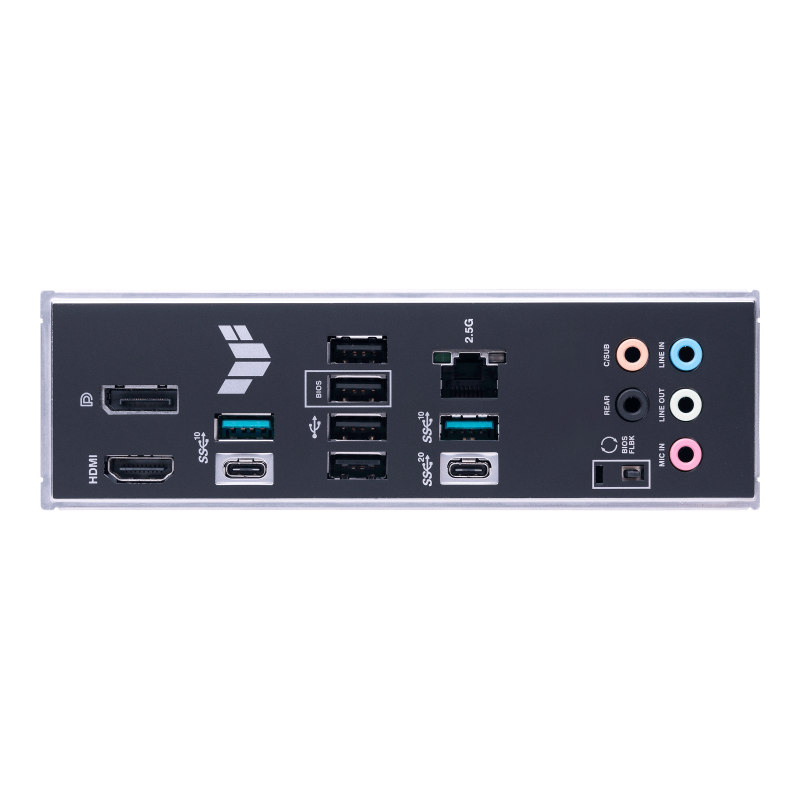

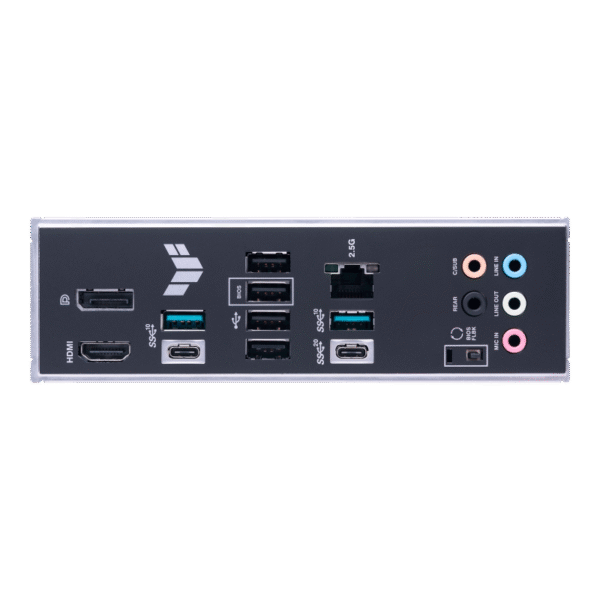

 • Rear: 1x USB 3.2 Gen 2×2 Type-C®, 3x USB 3.2 Gen 2 Type-A, 4x USB 2.0
 • Front: 1x USB 3.2 Gen 1 Type-C®, headers for USB 3.2 Gen 1 and USB 2.0

Display Outputs:
 • 1x HDMI™ port
 • 1x DisplayPort

Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC with premium capacitors
AI Features: AI Cooling II
Form Factor: ATX (30.5 cm x 24.4 cm)

Key Specifications

Chipset: AMD B650
CPU Socket: AM5
Memory Support: DDR5 4800–6400+ MT/s (OC), Dual Channel, Non-ECC, Unbuffered
Max Memory: 192GB

Expansion Slots:
 • 1x PCIe® 5.0 x16
 • 1x PCIe® 4.0 x16 (x4 mode)
 • 1x PCIe® 3.0 x1

Storage:
 • 1x M.2 (PCIe® 5.0 x4)
 • 2x M.2 (PCIe® 4.0 x4)
 • 4x SATA 6Gb/s

USB Ports:
 • Rear: 1x USB 3.2 Gen 2×2 Type-C®, 3x USB 3.2 Gen 2 Type-A, 4x USB 2.0
 • Front: 1x USB 3.2 Gen 1 Type-C®, USB 3.2 Gen 1 and USB 2.0 headers

Display Outputs:
 • 1x HDMI™ port
 • 1x DisplayPort

Audio Codec: Realtek 7.1 Surround Sound High Definition Audio CODEC
LAN: Realtek 2.5Gb Ethernet
Wireless: Not included
Form Factor: ATX (30.5 cm x 24.4 cm)
