Description:

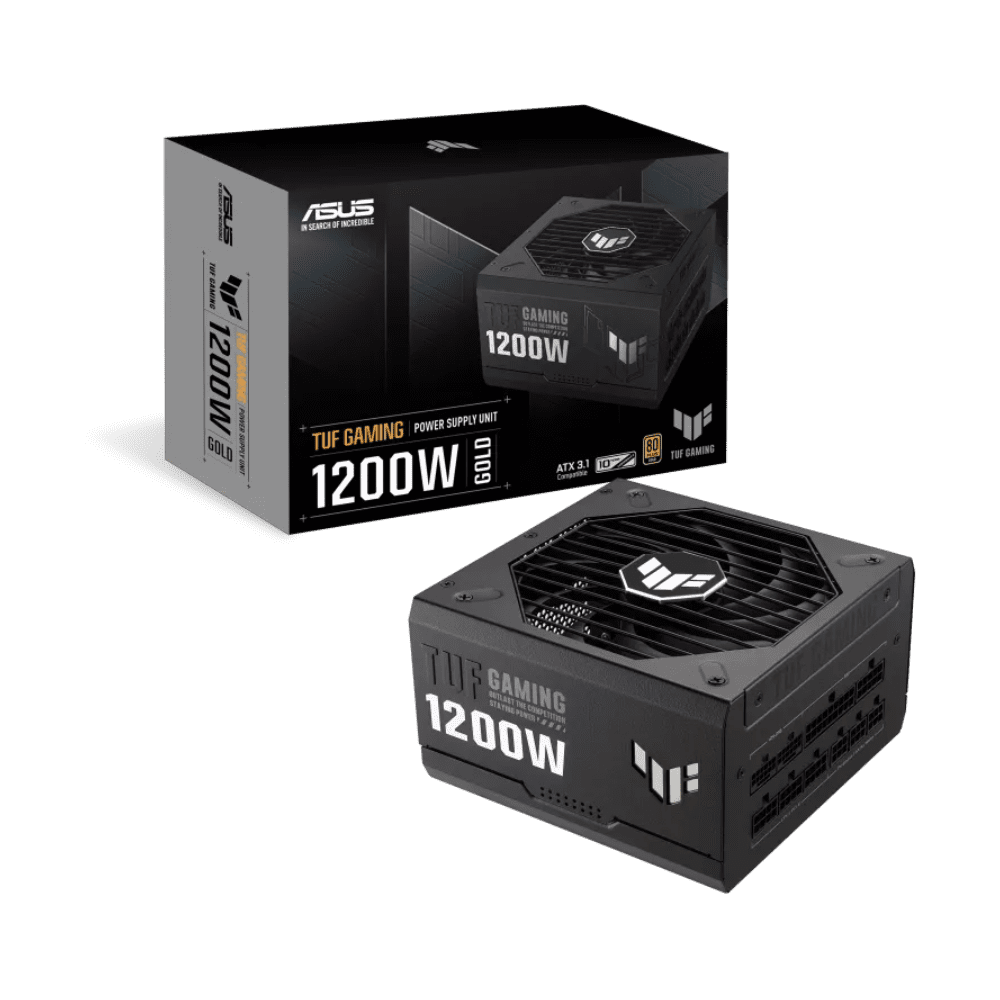

The ASUS TUF Gaming 1200W Gold PSU is engineered for durability and performance. With 80 PLUS Gold certification, it delivers up to 92% energy efficiency, reducing heat and noise. The PSU features military-grade components, including capacitors rated for 105°C operation and up to 170,000 hours’ lifespan, ensuring long-term reliability. Designed for next-gen hardware, the TUF Gaming 1200W Gold is ATX 3.1 compatible and includes a 16-pin PCIe Gen 5.0 cable capable of delivering up to 600W to next-gen GPUs. The fully modular design allows for clean and efficient cable management, while the dual ball bearing fan ensures quiet operation and longevity.

Key Features:

• 80 PLUS Gold Certification: Delivers up to 92% energy efficiency at 50% load.

• Military-Grade Components: Includes capacitors rated for 105°C operation with up to 170,000 hours’ lifespan.

• ATX 3.1 and PCIe Gen 5.0 Ready: Supports next-gen hardware with a 16-pin PCIe cable capable of delivering up to 600W.

• Fully Modular Design: Allows for clean and efficient cable management.

• Dual Ball Bearing Fan: Ensures quiet operation and longevity.

Key Specifications:

• Model: TUF-GAMING-1200G

• Form Factor: ATX12V

• PFC Type: Active PFC

• ATX Standard: ATX 3.1

• Dimensions: 150 x 150 x 86 mm

• Efficiency: 80 PLUS Gold

• MTBF:

  170,000 hours at 40°C

• Protection Features: OPP/OVP/UVP/SCP/OCP/OTP

• AC Input Range: 100-240V AC

• DC Output Voltage:

  • +3.3V: 25A

  • +5V: 25A

  • +12V: 99A

  • -12V: 0.8A

  • +5Vsb: 3A

• Total Output: 1200W

• Cable Connectors:

  • 24/20-pin x 1 (Motherboard)

  • 4+4-pin x 2 (CPU)

  • 16-pin x 2 (PCIe Gen 5.0)

  • 8-pin x 3 (PCIe)

  • SATA x 5

  • Peripheral x 4

• Weight: 2.66 kg
