Description

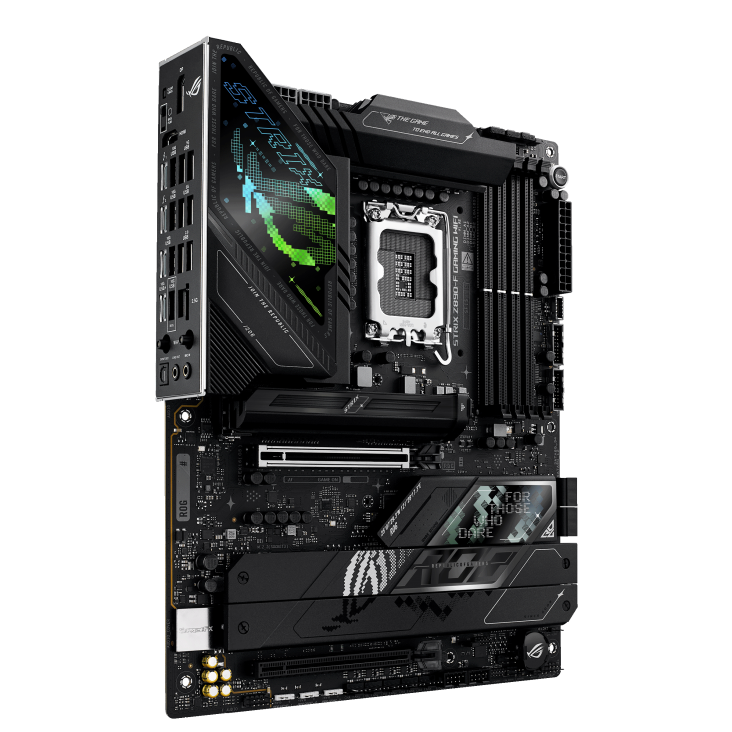

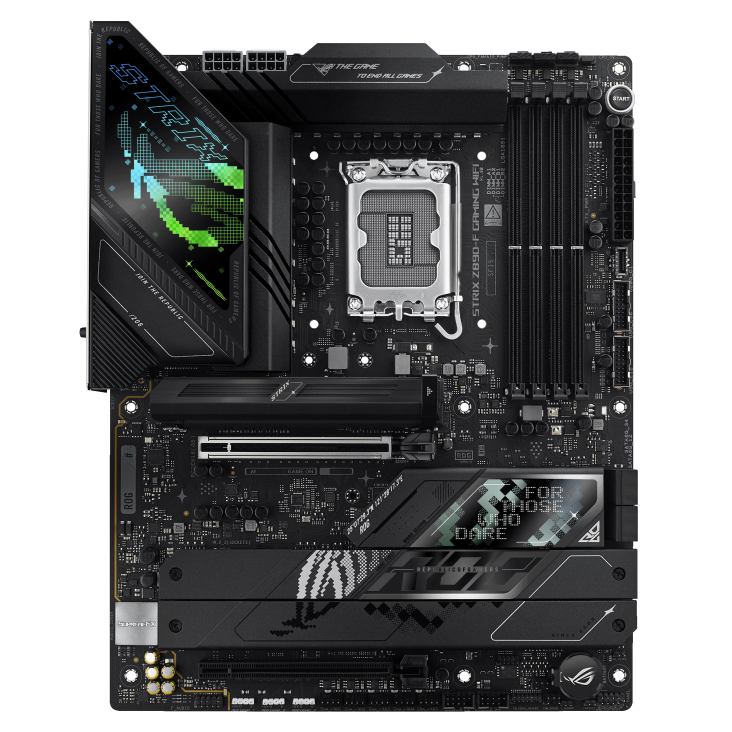

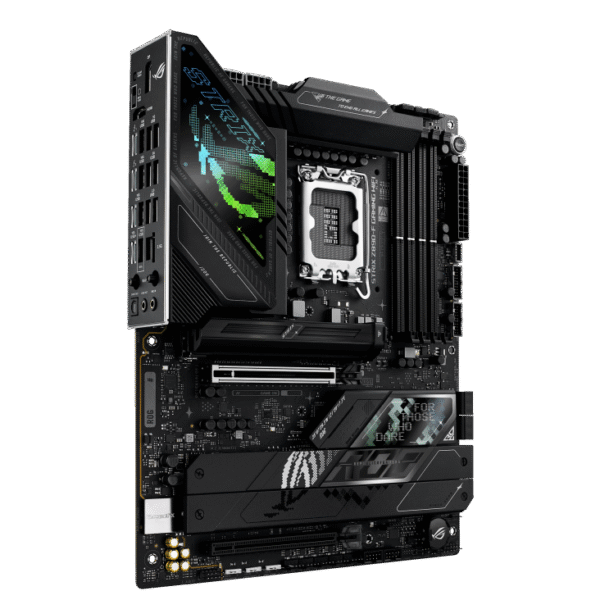

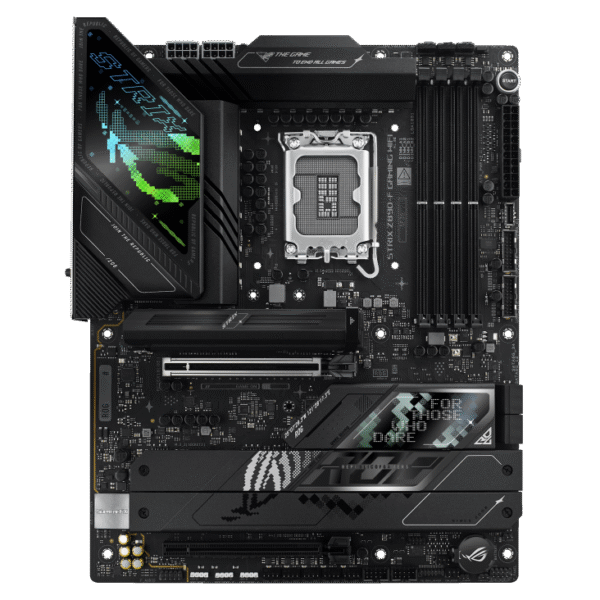

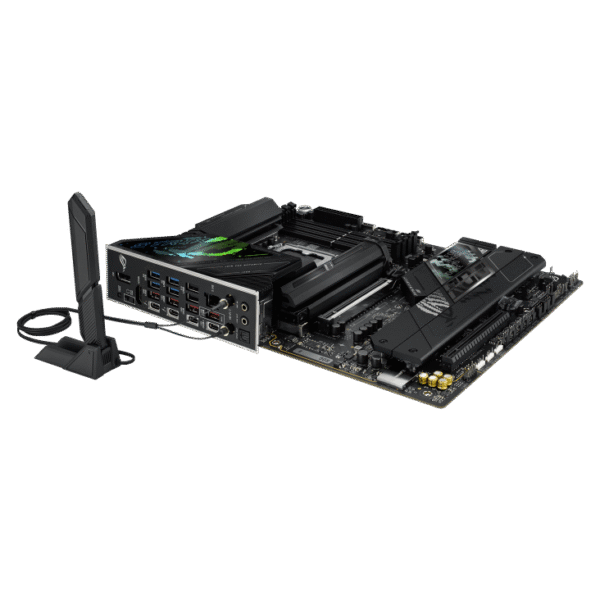

The ROG Strix Z890‑F Gaming WiFi is engineered for high-end builds catering to gaming performance and AI-driven workloads. It supports Intel Core™ Ultra Series 2 CPUs on the LGA 1851 socket, powered by a robust 16+2+1+2 power stage design. Equipped with DDR5 RAM overclockable to 8600+ MT/s and support for up to 192 GB, it offers exceptional memory performance. Expansion is extensive—with a PCIe 5.0 x16 SafeSlot, PCIe 4.0 slots, and five M.2 slots (one PCIe 5.0, four PCIe 4.0) all covered with heatsinks. Connectivity is future-ready: Wi‑Fi 7 (320 MHz), Bluetooth 5.4, dual Intel 2.5 Gb Ethernet, twin Thunderbolt 4 USB‑C ports, and comprehensive USB 10/5 Gbps support. Audio is powered by SupremeFX ALC4080 with Savitech amp. Enhancements include AI Overclocking, Cooling II, Networking II, Polymo lighting, and advanced Q-Design tools. High-end cooling and premium power design make this board ideal for enthusiast gaming rigs and AI-powered PCs.

Key Features

• Socket LGA 1851 for Intel Core™ Ultra Series 2

• DDR5 memory support up to 8600+ MT/s OC (192 GB max)

• PCIe 5.0 x16 SafeSlot and PCIe 4.0 support

• Five M.2 slots (1× PCIe 5.0, 4× PCIe 4.0) with heatsinks

• Dual Thunderbolt 4 USB‑C ports ± USB 20 Gbps Type‑C

• Wi‑Fi 7 (320 MHz 6GHz) + Bluetooth 5.4

• Dual Intel 2.5 Gb Ethernet with LANGuard

• SupremeFX ALC4080 audio with 120 dB SNR stereo output

• AI features: Overclocking, Cooling II, Networking II, NPU Boost

• Polymo RGB lighting and addressable Aura Sync support

• AI-assist Q-Design tools and robust cooling with VRM + M.2 heatsinks

Key Specifications

• Form Factor: ATX

• Chipset: Intel Z890

• Power Stage Design: 16+2+1+2

• Memory: 4× DDR5 DIMM, up to 192 GB, 8600+ MT/s OC

• Expansion Slots: 1× PCIe 5.0 x16, 1× PCIe 4.0 x16 (x4), 1× PCIe 4.0 x1

• Storage: 5× M.2 (1× PCIe 5.0, 4× PCIe 4.0), 4× SATA 6 Gb/s

• Networking: Wi‑Fi 7 (2×2, 5.8 Gbps), Bluetooth 5.4, dual 2.5 Gb Intel LAN

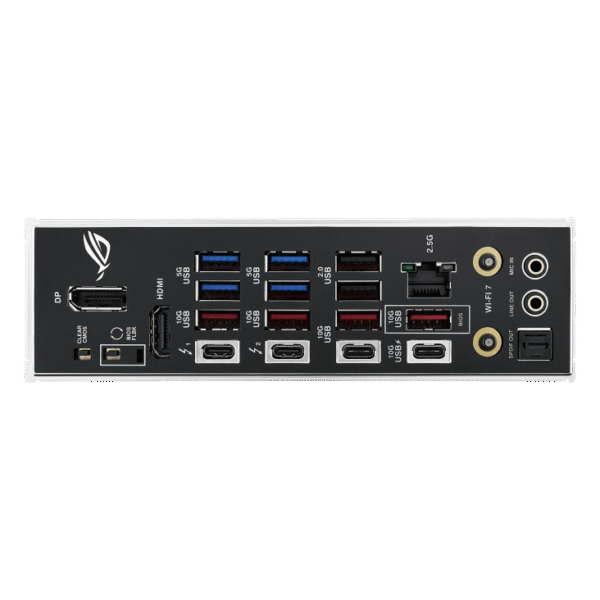

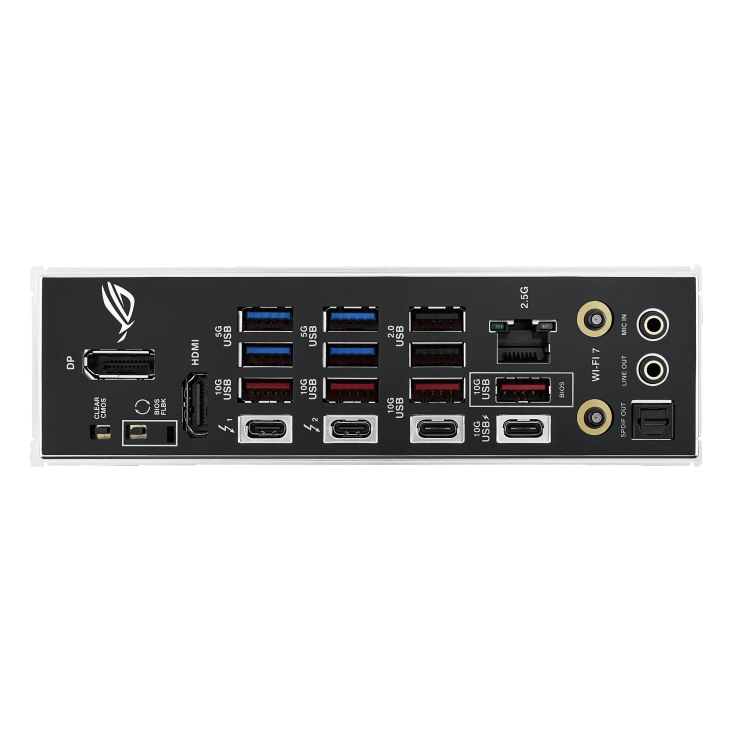

• USB I/O: 2× Thunderbolt 4 USB‑C, multiple USB 10Gbps/5Gbps, rear and front headers

• Audio: SupremeFX ALC4080 codec, Savitech SV3H712 amp, 120 dB SNR stereo output

• Cooling & Headers: VRM/M.2 heatsinks, 5× chassis, 1× CPU, 1× AIO pump headers

• RGB Support: Polymo + Aura Sync RGB and Addressable Gen 2 headers
