Description

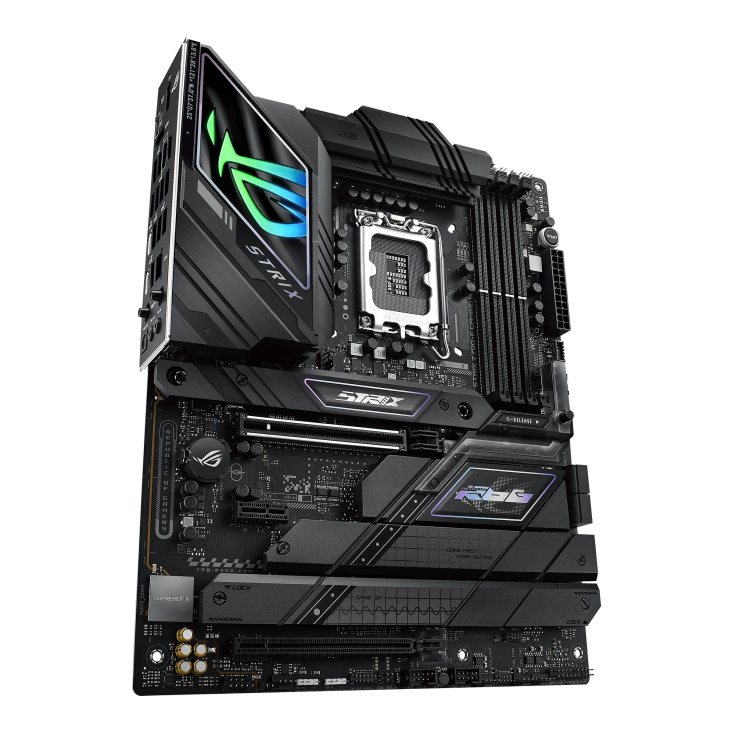

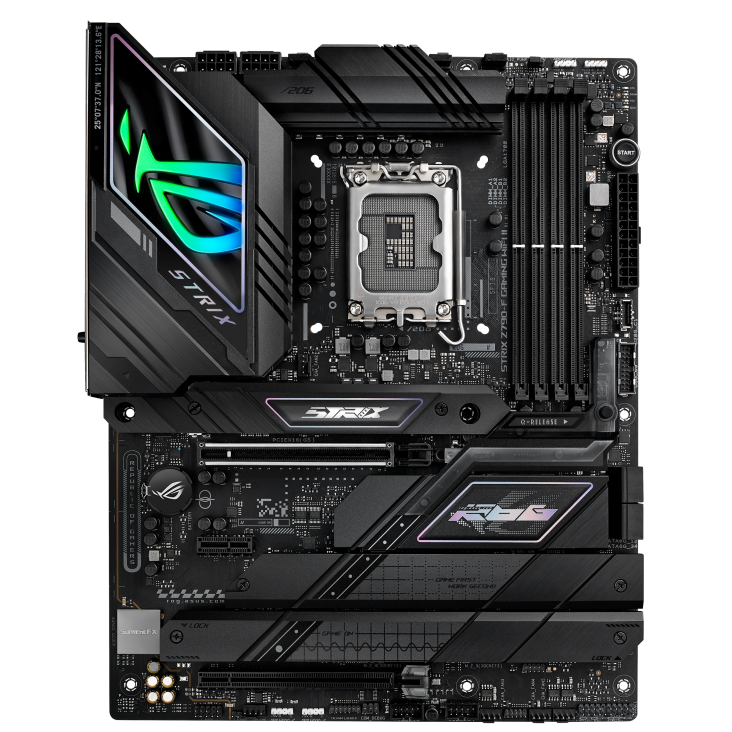

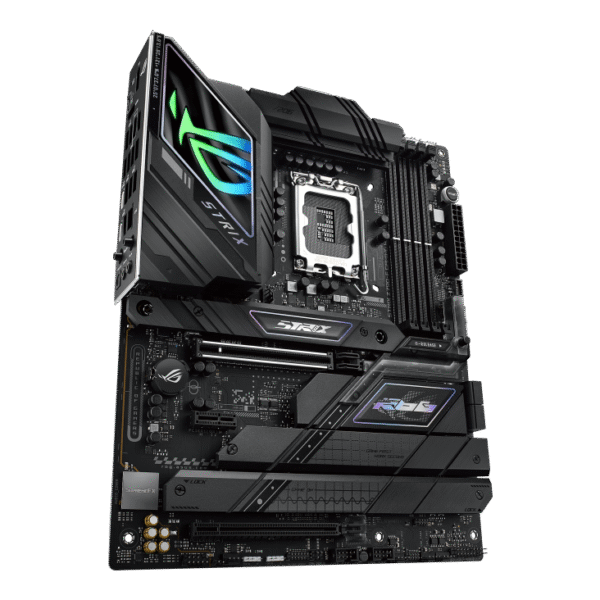

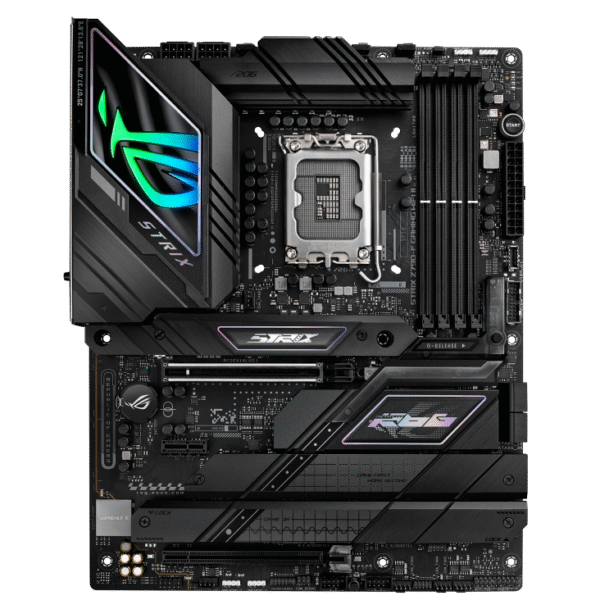

The ASUS ROG STRIX Z790-F GAMING WIFI II motherboard combines advanced technology with durable design to support Intel® 12th, 13th, and 14th Gen Core™ processors on the LGA1700 socket. Its 16+1+2 power stage design ensures stable power delivery, while comprehensive cooling solutions, including VRM heatsinks and M.2 heatsinks, maintain optimal temperatures during intensive tasks. With support for up to 192GB of DDR5 memory at speeds reaching 8000+ MT/s (OC), the motherboard caters to demanding applications. It features five M.2 slots (four PCIe 4.0 x4 and one PCIe 4.0 x4 & SATA) and four SATA 6Gb/s ports for versatile storage options. Connectivity is a highlight, offering USB 20Gbps Type-C® ports, Wi-Fi 7, Intel® 2.5Gb Ethernet, and multiple USB ports. Additional features like AI Overclocking, AI Cooling II, and Aura Sync RGB provide intelligent system optimization and customization.

Key Features

• CPU Support: Intel® 12th, 13th, and 14th Gen Core™ processors (LGA1700 socket)

• Memory: 4x DDR5 DIMM slots, up to 192GB, 8000+ MT/s (OC)

• Power Design: 16+1+2 power stages with 90A rating

• Expansion Slots:

  • 1x PCIe® 5.0 x16 SafeSlot with Q-Release

  • 1x PCIe® 4.0 x16 (x4 mode)

  • 1x PCIe® 3.0 x1 slot

• Storage Options:

  • 5x M.2 slots (4x PCIe® 4.0 x4, 1x PCIe® 4.0 x4 & SATA)

  • 4x SATA 6Gb/s ports

• Networking:

  • Intel® 2.5Gb Ethernet

  • Wi-Fi 7 (802.11be)

  • Bluetooth® v5.4

• USB Ports:

  • Rear: 1x USB 20Gbps Type-C®, multiple USB 10Gbps Type-A

  • Front: USB 20Gbps Type-C® with PD 3.0 up to 30W

• Display Outputs:

  • 1x HDMI™ port (4K@60Hz)

  • 1x DisplayPort (8K@60Hz)

• Audio: ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC (ALC4080)

• AI Features:

  • AI Overclocking

  • AI Cooling II

  • AI Networking

• Form Factor: ATX (30.5 cm x 24.4 cm)

Key Specifications

• Chipset: Intel® Z790

• CPU Socket: LGA1700

• Memory Support: DDR5 4800–8000+ MT/s (OC), Dual Channel, Non-ECC, Unbuffered

• Max Memory: 192GB

• Expansion Slots:

  • 1x PCIe® 5.0 x16

  • 1x PCIe® 4.0 x16 (x4 mode)

  • 1x PCIe® 3.0 x1 slot

• Storage:

  • 5x M.2 slots (4x PCIe® 4.0 x4, 1x PCIe® 4.0 x4 & SATA)

  • 4x SATA 6Gb/s ports

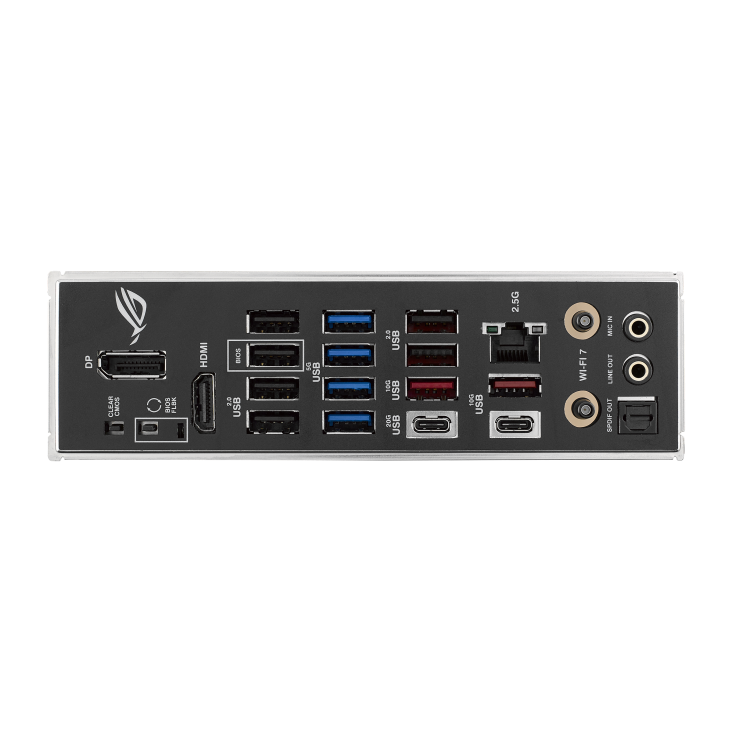

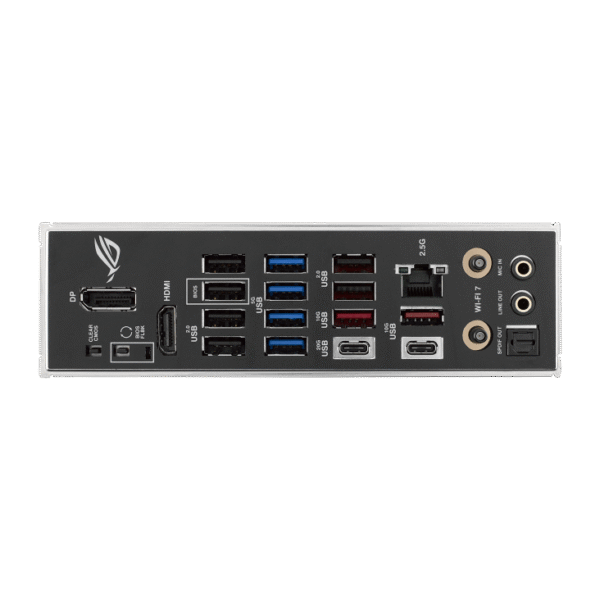

• USB Ports:

  • Rear: 1x USB 20Gbps Type-C®, multiple USB 10Gbps Type-A

  • Front: USB 20Gbps Type-C® with PD 3.0 up to 30W

• Display Outputs:

  • 1x HDMI™ port (4K@60Hz)

  • 1x DisplayPort (8K@60Hz)

• Audio Codec: ROG SupremeFX ALC4080

• LAN: Intel® 2.5Gb Ethernet

• Wireless:

  • Wi-Fi 7 (802.11be)

  • Bluetooth® v5.4

• Form Factor: ATX (30.5 cm x 24.4 cm)
