Description

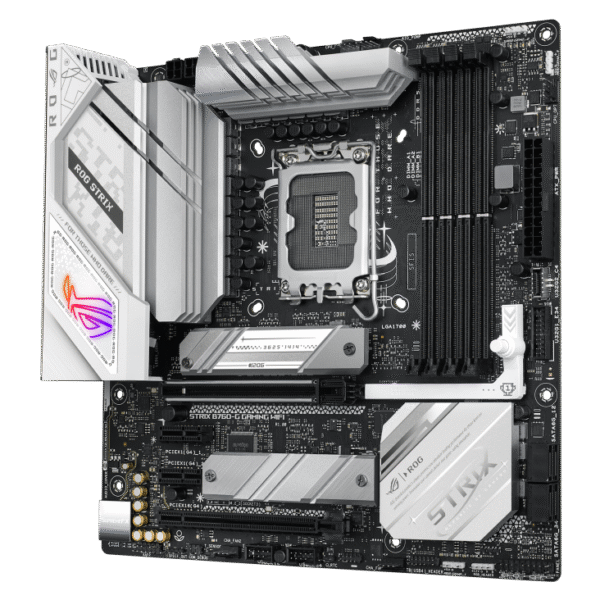

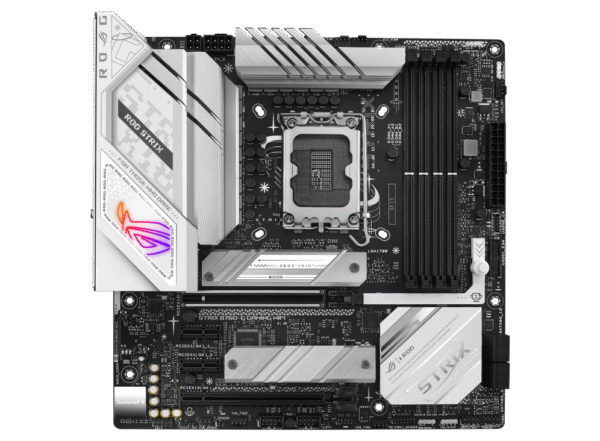

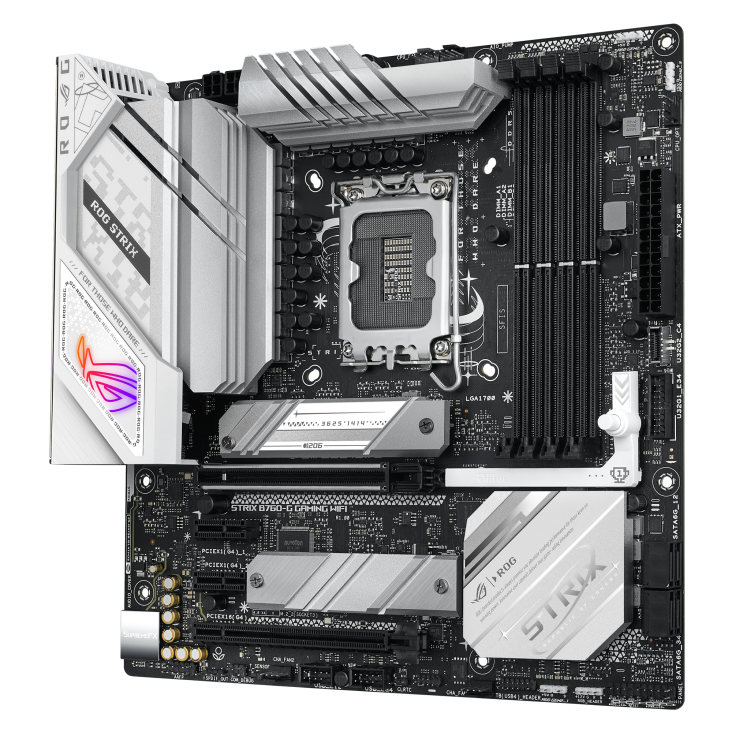

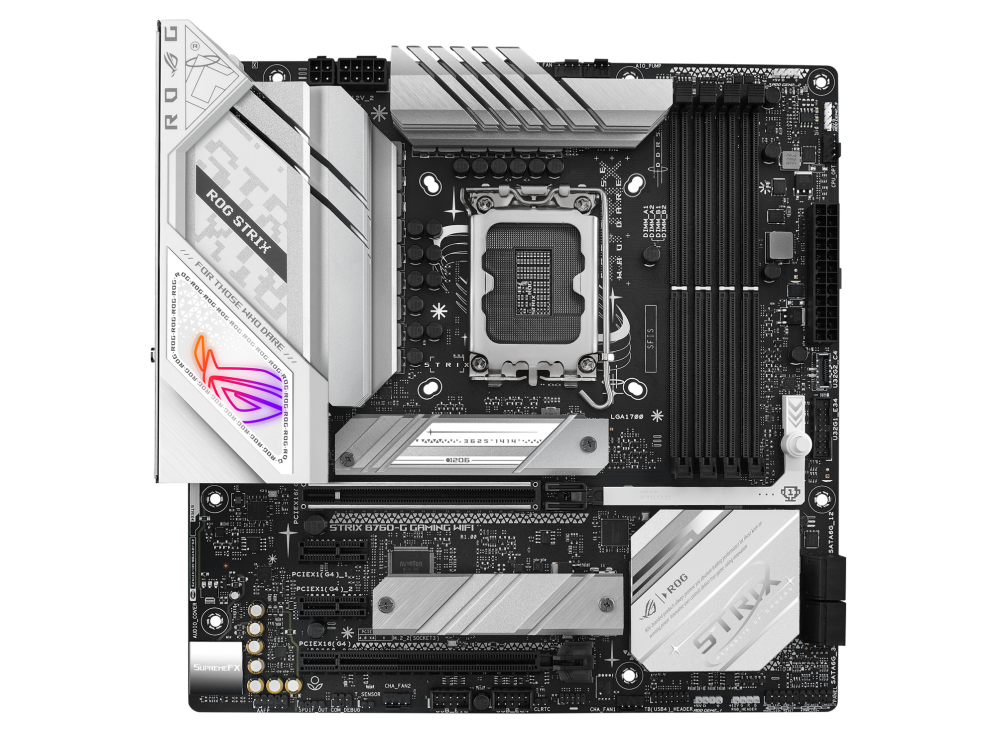

The ASUS ROG STRIX B760-G GAMING WIFI motherboard is designed for gamers who want high-end performance in a compact micro-ATX build. It supports Intel® 12th and 13th Gen Core™ processors on the LGA1700 socket and features DDR5 memory compatibility for faster and more efficient multitasking. The 12+1 power stage VRM design ensures reliable power even under heavy load, while heatsinks over the VRMs and M.2 slots help regulate temperature. With support for PCIe® 5.0 graphics cards, dual PCIe 4.0 M.2 slots, and fast connectivity via Wi-Fi 6E and 2.5Gb Ethernet, this board delivers great performance without compromising space. It also includes AI Cooling II, customizable RGB lighting, and SupremeFX audio for immersive gaming experiences.

Key Features

CPU Support: Intel® 12th and 13th Gen Core™ processors (LGA1700 socket)
Memory: 4x DDR5 DIMM slots, up to 128GB, 7200+ MT/s (OC)
Power Design: 12+1 power stages with alloy chokes and large VRM heatsinks

Expansion Slots:
 • 1x PCIe® 5.0 x16 SafeSlot with Q-Release
 • 1x PCIe® 3.0 x1 slot

Storage Options:
 • 2x M.2 slots (PCIe® 4.0 x4)
 • 4x SATA 6Gb/s ports

Networking:
 • Intel® 2.5Gb Ethernet
 • Wi-Fi 6E (802.11ax)
 • Bluetooth® v5.3

USB Ports:
 • Rear: 1x USB 3.2 Gen 2×2 Type-C®, 3x USB 3.2 Gen 2 Type-A, 4x USB 2.0
 • Front: 1x USB 3.2 Gen 1 header, 1x USB 2.0 header

Display Outputs:
 • 1x HDMI™ port (4K@60Hz)
 • 1x DisplayPort 1.4 (8K@60Hz)

Audio: SupremeFX 7.1 Surround Sound with ALC4080 CODEC and premium capacitors
AI Features: AI Cooling II, AI Networking
Form Factor: micro-ATX (24.4 cm x 24.4 cm)

Key Specifications

Chipset: Intel® B760
CPU Socket: LGA1700
Memory Support: DDR5 4800–7200+ MT/s (OC), Dual Channel, Non-ECC, Unbuffered
Max Memory: 128GB

Expansion Slots:
 • 1x PCIe® 5.0 x16
 • 1x PCIe® 3.0 x1

Storage:
 • 2x M.2 (PCIe® 4.0 x4)
 • 4x SATA 6Gb/s

USB Ports:
 • Rear: 1x USB 3.2 Gen 2×2 Type-C®, 3x USB 3.2 Gen 2 Type-A, 4x USB 2.0
 • Front: 1x USB 3.2 Gen 1 header (supports 2 ports), 1x USB 2.0 header (supports 2 ports)

Display Outputs:
 • 1x HDMI™ port (4K@60Hz)
 • 1x DisplayPort 1.4 (8K@60Hz)

Audio Codec: SupremeFX ALC4080
LAN: Intel® 2.5Gb Ethernet
Wireless: Wi-Fi 6E, Bluetooth® v5.3
Form Factor: micro-ATX (24.4 cm x 24.4 cm)
