Description

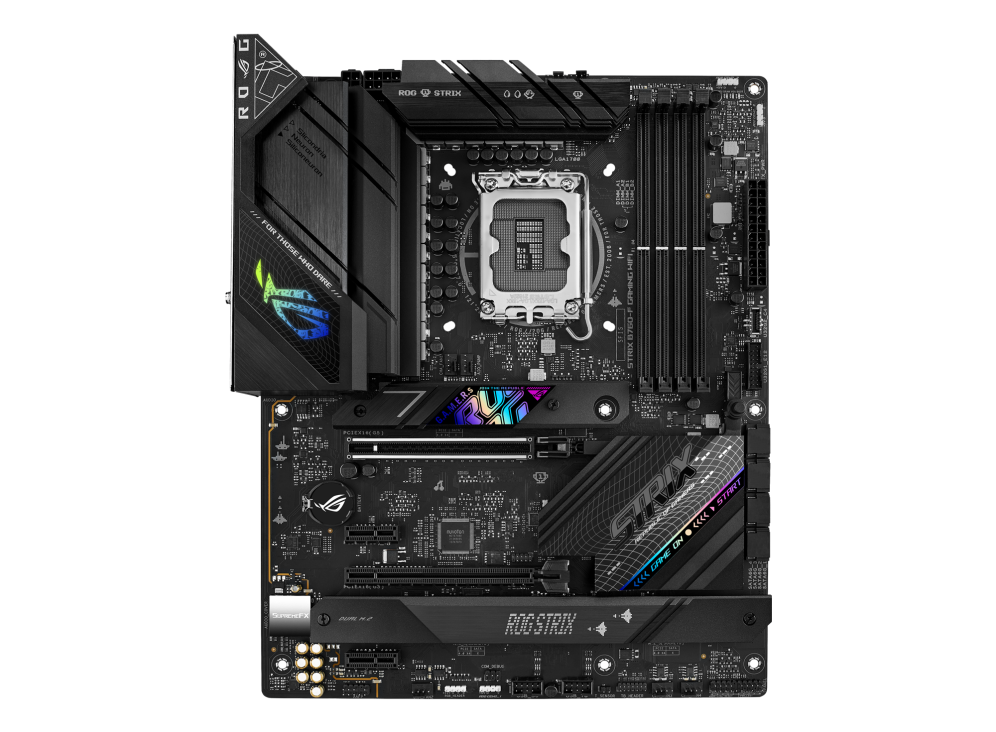

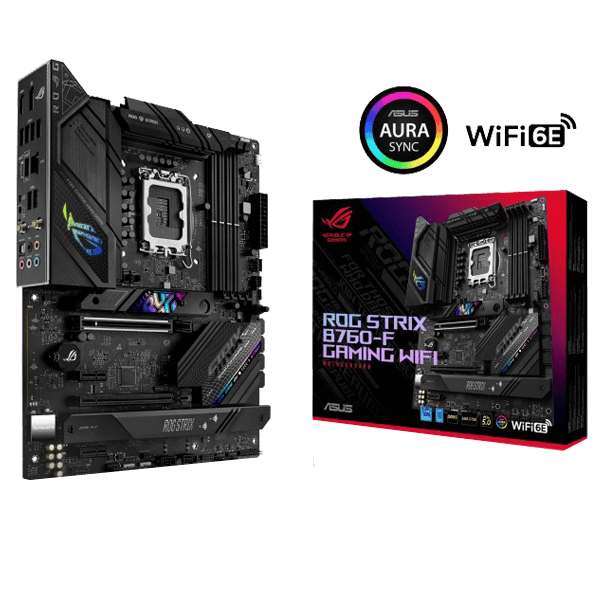

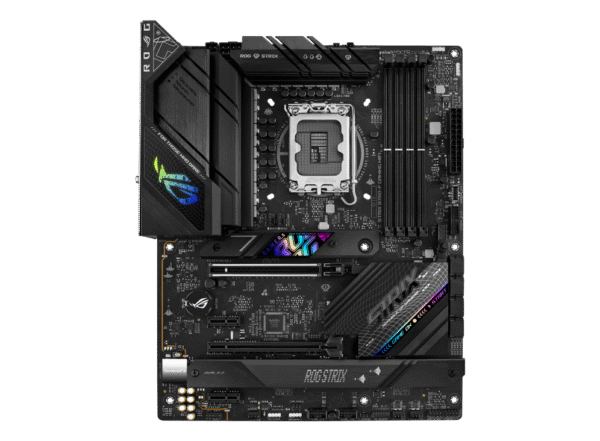

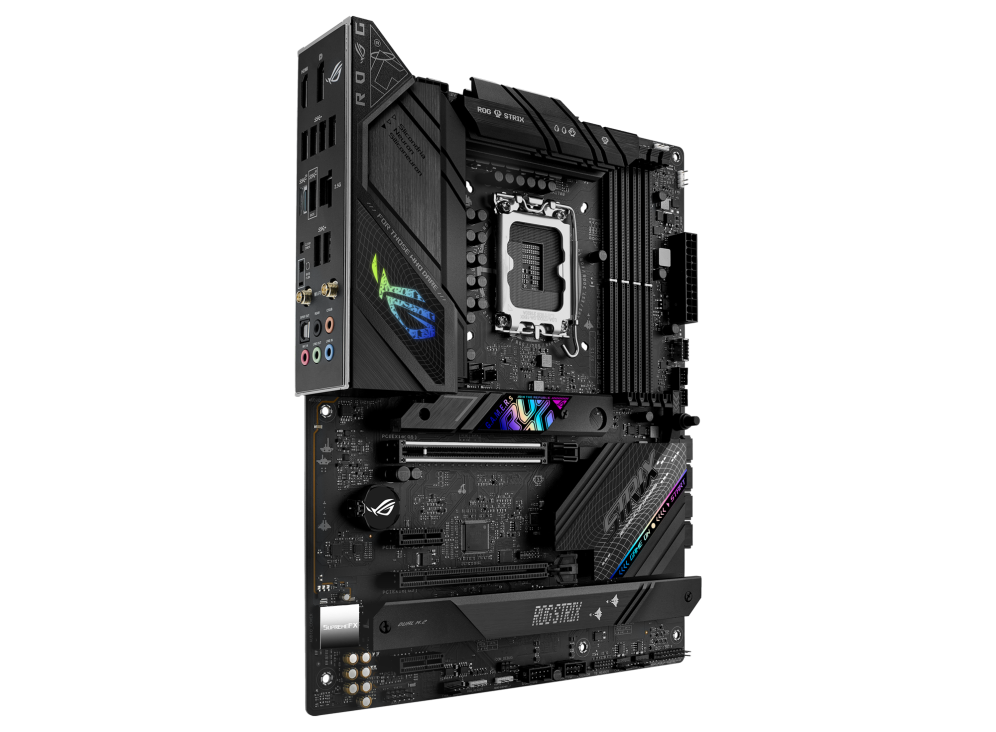

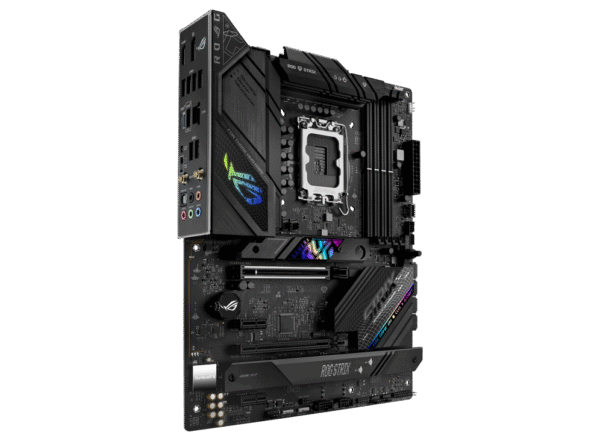

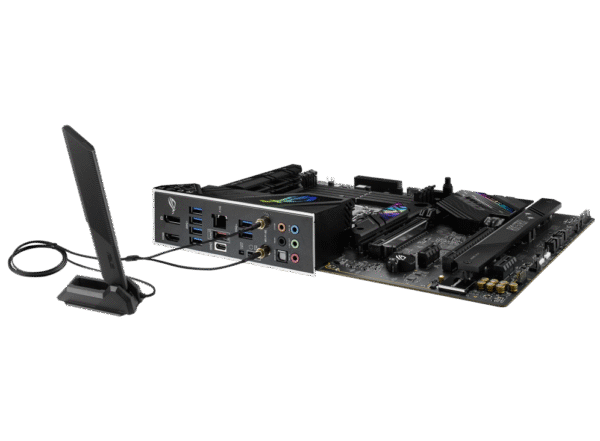

The ASUS ROG STRIX B760-F GAMING WIFI DDR5 motherboard delivers exceptional power, speed, and style for gamers and power users. Designed for Intel® LGA1700 processors, it supports DDR5 memory up to 192GB and 7800+ MT/s (OC), enabling lightning-fast multitasking and responsiveness. A robust 12+1 power stage design ensures clean and efficient power delivery, while large heatsinks over the VRM and M.2 slots maintain optimal thermal performance. With PCIe® 5.0 graphics support, four M.2 PCIe 4.0 slots, and comprehensive connectivity including Wi-Fi 6E, 2.5Gb Ethernet, and USB 20Gbps Type-C®, this board is ready for any performance-driven build. AI Cooling II, SupremeFX audio, and Aura Sync lighting add intelligent functionality and style to complete the package.

Key Features

CPU Support: Intel® 12th and 13th Gen Core™ processors (LGA1700 socket)
Memory: 4x DDR5 DIMM slots, up to 192GB, 7800+ MT/s (OC)
Power Design: 12+1 power stages with ProCool sockets and alloy chokes

Expansion Slots:
 • 1x PCIe® 5.0 x16 SafeSlot with Q-Release
 • 1x PCIe® 4.0 x16 (x4 mode)
 • 1x PCIe® 3.0 x1 slot

Storage Options:
 • 4x M.2 slots (PCIe® 4.0 x4)
 • 4x SATA 6Gb/s ports

Networking:
 • Intel® 2.5Gb Ethernet
 • Wi-Fi 6E (802.11ax)
 • Bluetooth® v5.3

USB Ports:

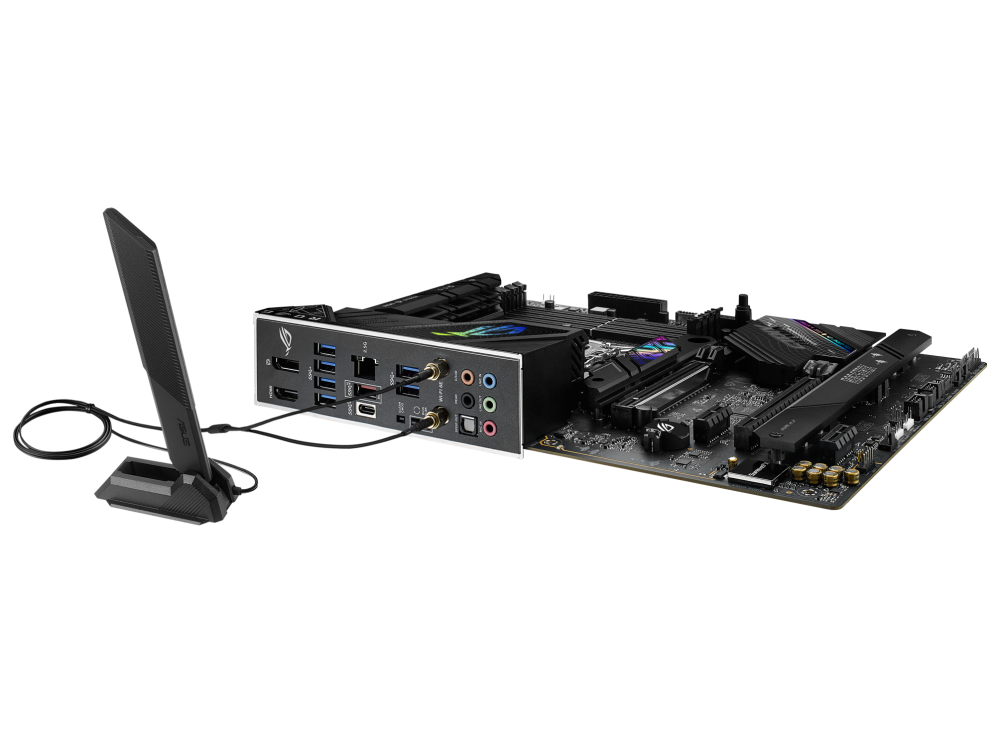

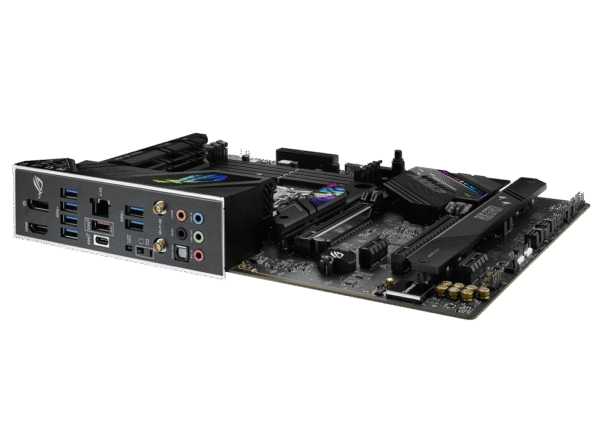

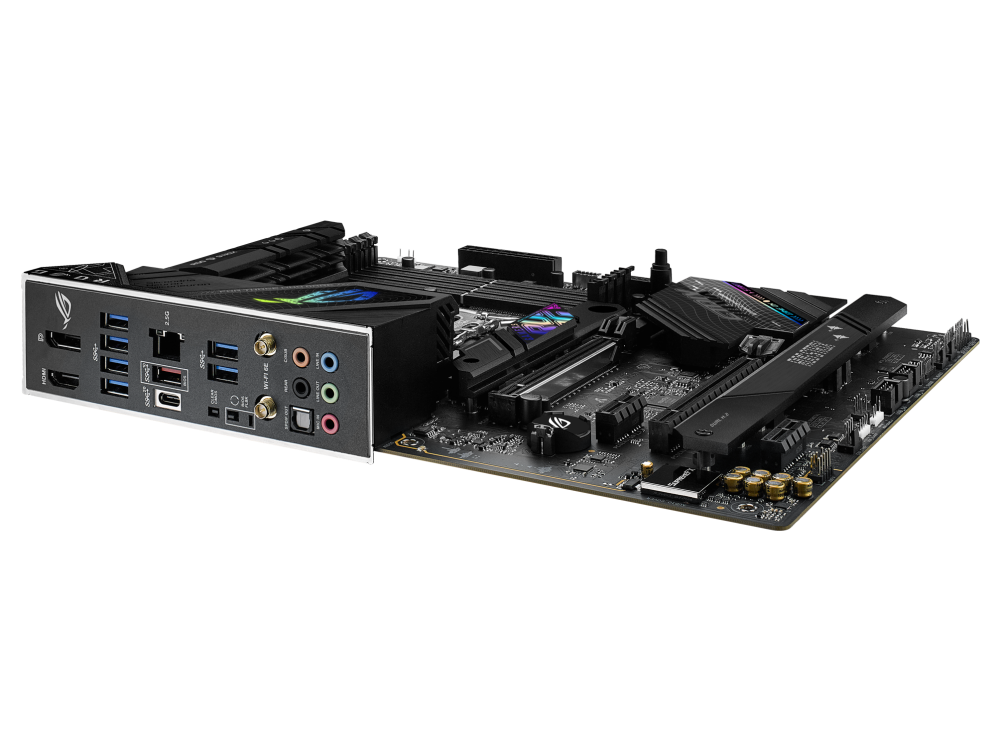

 • Rear: 1x USB 20Gbps Type-C®, 3x USB 10Gbps Type-A, 4x USB 3.2 Gen 1, 2x USB 2.0
 • Front: 1x USB 20Gbps Type-C®, headers for USB 3.2 Gen 1 and USB 2.0

Display Outputs:
 • 1x HDMI™ port (4K@60Hz)
 • 1x DisplayPort 1.4 (8K@60Hz)

Audio: SupremeFX 7.1 Surround Sound with ALC4080 CODEC and Savitech amplifier
AI Features: AI Overclocking, AI Cooling II, AI Networking
Form Factor: ATX (30.5 cm x 24.4 cm)

Key Specifications

Chipset: Intel® B760
CPU Socket: LGA1700
Memory Support: DDR5 4800–7800+ MT/s (OC), Dual Channel, Non-ECC, Unbuffered
Max Memory: 192GB

Expansion Slots:
 • 1x PCIe® 5.0 x16
 • 1x PCIe® 4.0 x16 (x4 mode)
 • 1x PCIe® 3.0 x1

Storage:
 • 4x M.2 (PCIe® 4.0 x4)
 • 4x SATA 6Gb/s

USB Ports:
 • Rear: 1x USB 20Gbps Type-C®, 3x USB 10Gbps Type-A, 4x USB 3.2 Gen 1, 2x USB 2.0
 • Front: 1x USB 20Gbps Type-C®, headers for USB 3.2 Gen 1 and USB 2.0

Display Outputs:
 • 1x HDMI™ port (4K@60Hz)
 • 1x DisplayPort 1.4 (8K@60Hz)

Audio Codec: SupremeFX ALC4080 with Savitech SV3H712 amplifier
LAN: Intel® 2.5Gb Ethernet
Wireless: Wi-Fi 6E, Bluetooth® v5.3
Form Factor: ATX (30.5 cm x 24.4 cm)
