Description

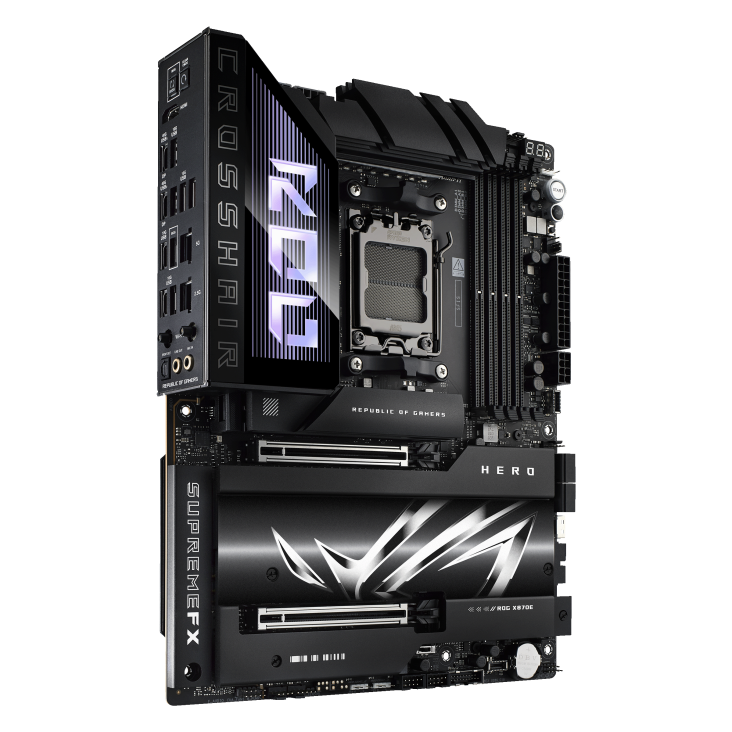

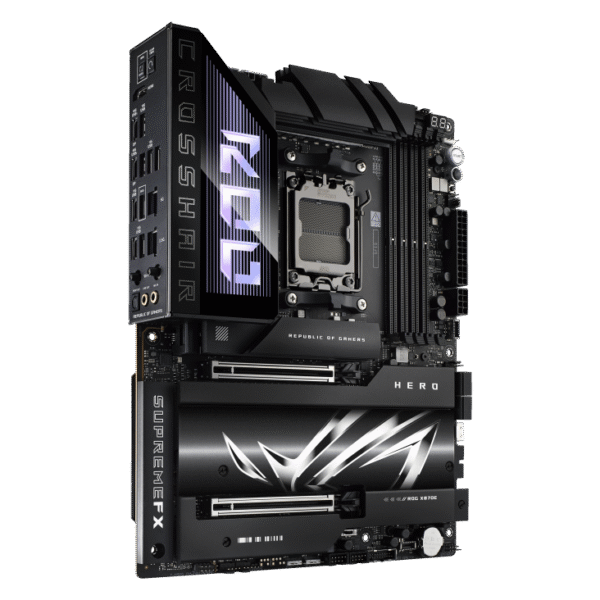

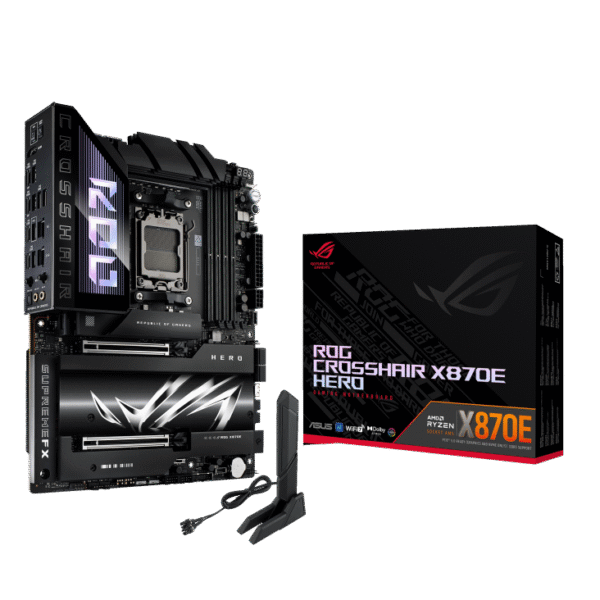

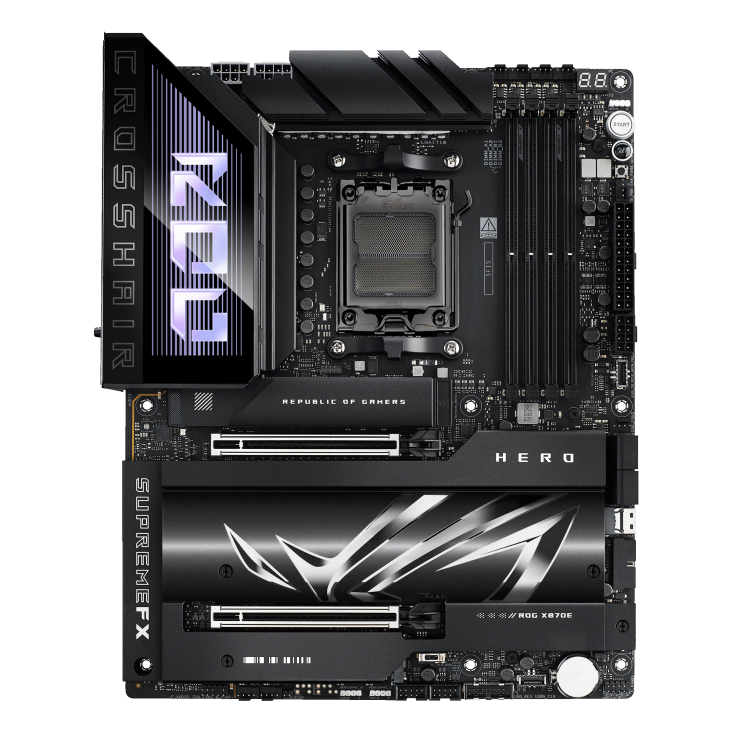

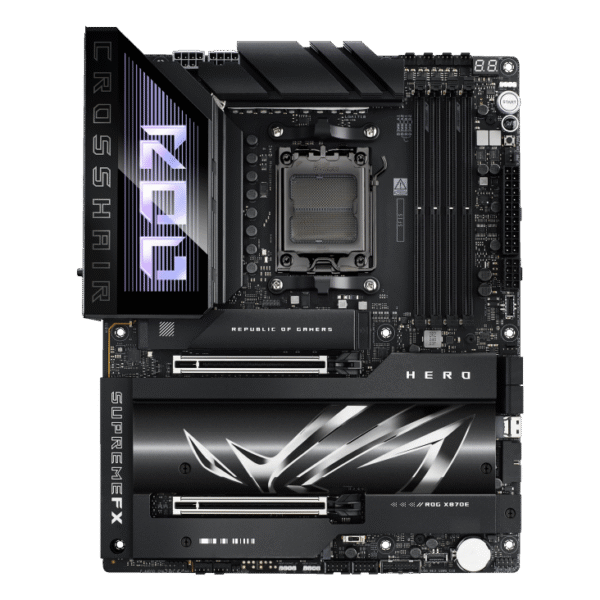

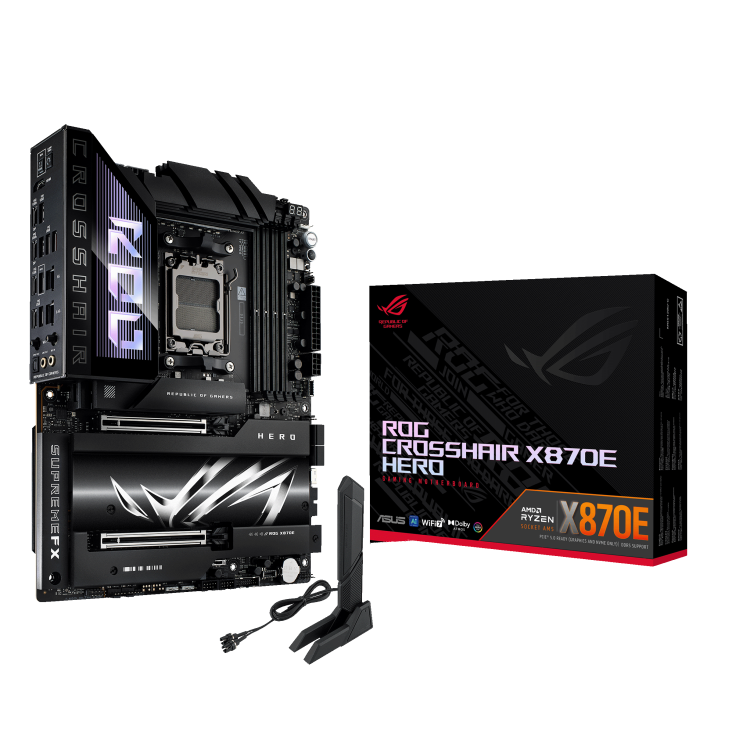

The ASUS ROG CROSSHAIR X870E HERO is engineered for serious gamers, overclockers, and creators using AMD Ryzen™ 8000 and 7000 Series processors. Built on the new X870E chipset, it delivers ultimate performance with DDR5 memory up to 192GB, PCIe 5.0 GPU and SSD support, and an advanced 18+2 power stage VRM for stable, efficient power delivery. It features five M.2 slots (including two PCIe 5.0), Wi-Fi 7, 5Gb Ethernet, USB4®, and extensive AI-powered features for intelligent tuning and cooling. Wrapped in a premium black and silver aesthetic with Polymo Lighting and Aura Sync RGB, it provides cutting-edge performance with exceptional style and durability.

Key Features

CPU Support: AMD Ryzen™ 8000 / 7000 Series processors (AM5 socket)
Memory: 4x DDR5 DIMM slots, up to 192GB, 8000+ MT/s (OC)
Power Design: 18+2 power stages rated for 110A, with high-conductivity thermal pads and large VRM heatsinks

Expansion Slots:
 • 1x PCIe® 5.0 x16 SafeSlot
 • 1x PCIe® 4.0 x16 slot (x4 mode)

Storage Options:
 • 2x M.2 slots (PCIe® 5.0 x4)
 • 3x M.2 slots (PCIe® 4.0 x4)
 • 6x SATA 6Gb/s ports

Networking:
 • Marvell® AQtion 5Gb Ethernet
 • Wi-Fi 7 (802.11be)
 • Bluetooth® v5.4

USB Ports:

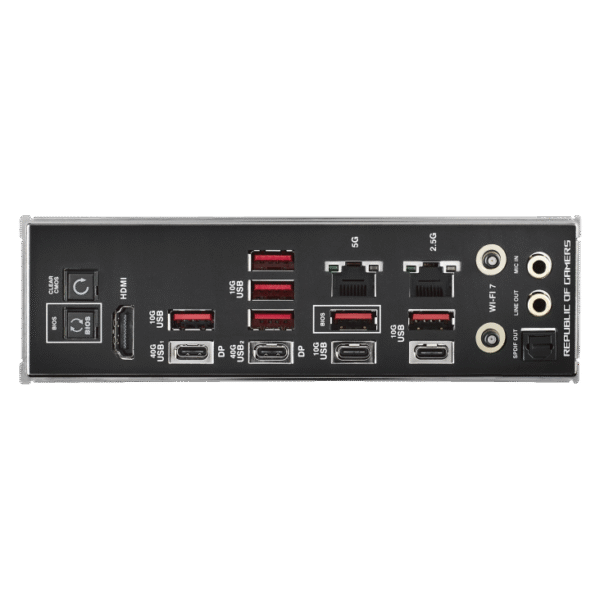

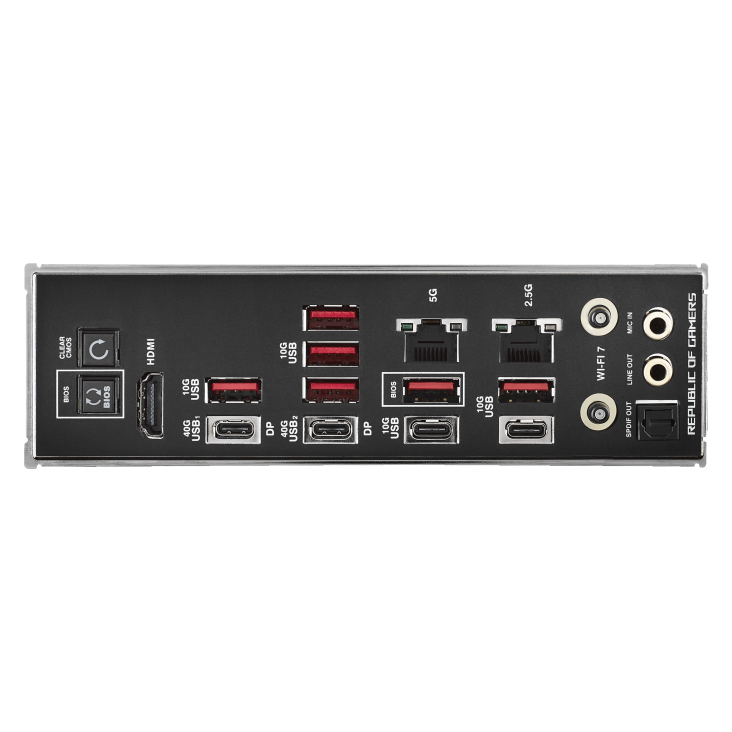

 • Rear: 2x USB4® Type-C®, 1x USB 3.2 Gen 2×2 Type-C®, 7x USB 3.2 Gen 2 Type-A
 • Front: 1x USB 3.2 Gen 2×2 Type-C® (with 60W PD), headers for USB 3.2 Gen 1 and USB 2.0

Display Outputs:
 • 1x HDMI™ port

Audio: ROG SupremeFX 7.1 Surround Sound with ALC4082 and ESS® ES9218 Quad DAC
AI Features: AI Overclocking, AI Cooling II, AI Networking II, Dynamic OC Switcher
Form Factor: ATX (30.5 cm x 24.4 cm)

Key Specifications

Chipset: AMD X870E
CPU Socket: AM5
Memory Support: DDR5 4800–8000+ MT/s (OC), Dual Channel, Non-ECC, Unbuffered
Max Memory: 192GB

Expansion Slots:
 • 1x PCIe® 5.0 x16
 • 1x PCIe® 4.0 x16 (x4 mode)

Storage:
 • 2x M.2 (PCIe® 5.0 x4)
 • 3x M.2 (PCIe® 4.0 x4)
 • 6x SATA 6Gb/s

USB Ports:
 • Rear: 2x USB4® Type-C®, 1x USB 3.2 Gen 2×2 Type-C®, 7x USB 3.2 Gen 2 Type-A
 • Front: 1x USB 3.2 Gen 2×2 Type-C® (60W PD), USB 3.2 Gen 1 and USB 2.0 headers

Display Outputs:
 • 1x HDMI™ port

Audio Codec: ROG SupremeFX ALC4082 with ESS® ES9218 DAC
LAN: Marvell® AQtion 5Gb Ethernet
Wireless: Wi-Fi 7, Bluetooth® v5.4
Form Factor: ATX (30.5 cm x 24.4 cm)
