Description

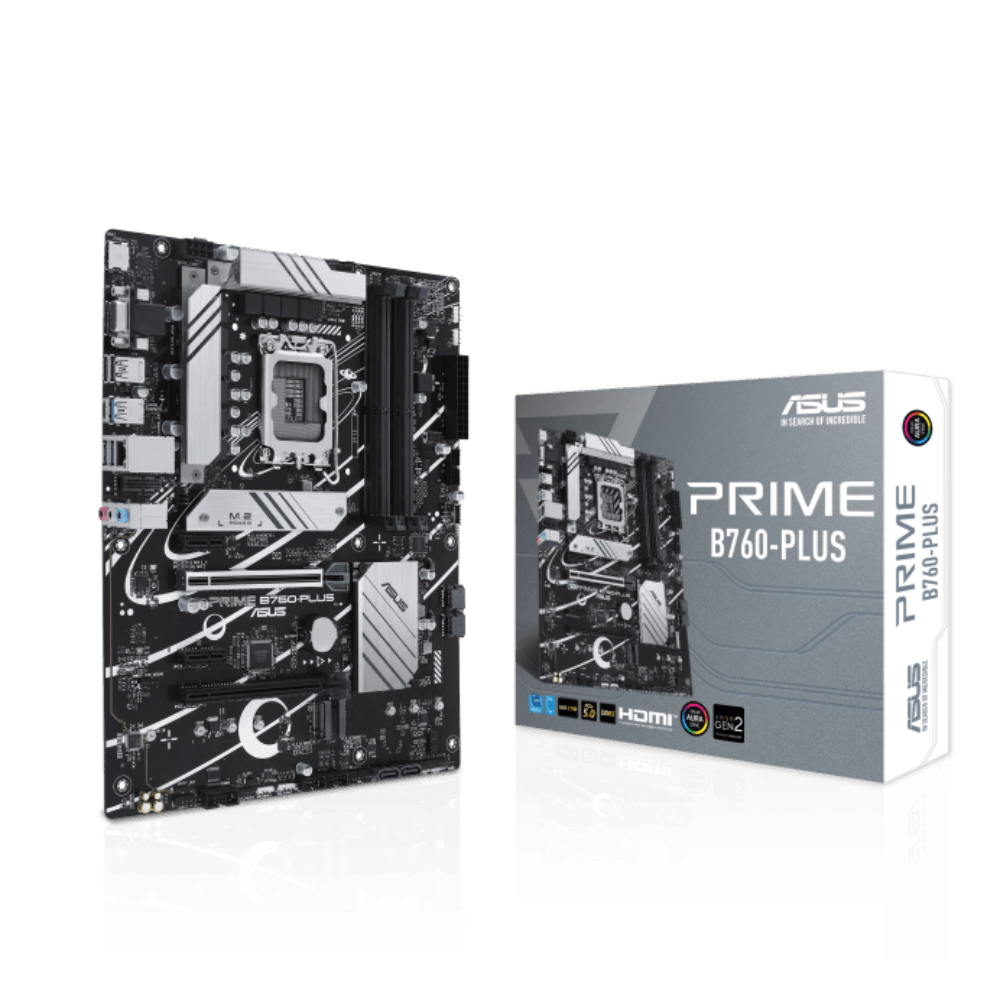

The ASUS PRIME B760-PLUS DDR5 motherboard is engineered to provide a robust foundation for Intel’s latest processors. With support for DDR5 memory up to 128GB, it ensures high-speed data processing for demanding applications. The motherboard is equipped with a PCIe 5.0 x16 slot for the latest graphics cards and three PCIe 4.0 M.2 slots for fast storage solutions. Networking is handled by a Realtek 2.5Gb Ethernet controller, offering high-speed connectivity for data-intensive tasks. The motherboard also features comprehensive cooling solutions, including VRM heatsinks, M.2 heatsinks, and hybrid fan headers, to maintain optimal performance under load.

Key Features

• Processor Support: Compatible with Intel 12th, 13th, and 14th Gen Core processors (LGA 1700 socket).

• Memory: Supports up to 128GB of DDR5 memory with speeds up to 5200MHz (OC).

• Expansion Slots:

  • 1 x PCIe 5.0 x16 slot.

  • 1 x PCIe 4.0 x16 slot (supports x4 mode).

  • 2 x PCIe 3.0 x1 slots.

• Storage:

  • 3 x M.2 slots (Key M) supporting PCIe 4.0 x4 and x2 modes.

  • 4 x SATA 6Gb/s ports.

• Networking: Realtek 2.5Gb Ethernet.

• USB Ports:

  • 1 x USB 3.2 Gen 2×2 Type-C® port.

  • 2 x USB 3.2 Gen 2 Type-A ports.

  • 1 x USB 3.2 Gen 1 Type-A port.

  • 2 x USB 2.0 Type-A ports.

  • 1 x USB 3.2 Gen 1 header.

  • 1 x USB 3.2 Gen 1 Type-C® connector.

  • 2 x USB 2.0 headers.

• Video Outputs:

  • 1 x DisplayPort.

  • 1 x HDMI™ port.

  • 1 x VGA port.

• Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC.

• Cooling:

  • VRM heatsinks.

  • M.2 heatsinks.

  • PCH heatsink.

  • Hybrid fan headers.

  • Fan Xpert 2+ software for fan control.

• Special Features:

  • ASUS 5X Protection III.

  • SafeSlot Core+.

  • Stainless-Steel Back I/O.

  • Q-DIMM, Q-Slot, Q-LED Core.

  • Aura Sync RGB Lighting.

  • Thunderbolt™ (USB4®) header support.

Key Specifications

• Socket: LGA 1700.

• Chipset: Intel B760.

• Form Factor: ATX.

• Memory: DDR5, Dual Channel, up to 128GB.

• PCIe Slots:

  • 1 x PCIe 5.0 x16.

  • 1 x PCIe 4.0 x16 (supports x4 mode).

  • 2 x PCIe 3.0 x1.

• M.2 Slots:

  • 1 x M.2_1 (Key M), type 2242/2260/2280, PCIe 4.0 x4 mode.

  • 1 x M.2_2 (Key M), type 2242/2260/2280/22110, PCIe 4.0 x4 mode.

  • 1 x M.2_3 (Key M), type 2242/2260/2280, PCIe 4.0 x2 mode.

• SATA Ports: 4 x SATA 6Gb/s.

• Ethernet: 1 x Realtek 2.5Gb Ethernet.

• USB Ports:

  • 1 x USB 3.2 Gen 2×2 Type-C® port.

  • 2 x USB 3.2 Gen 2 Type-A ports.

  • 1 x USB 3.2 Gen 1 Type-A port.

  • 2 x USB 2.0 Type-A ports.

  • 1 x USB 3.2 Gen 1 header.

  • 1 x USB 3.2 Gen 1 Type-C® connector.

  • 2 x USB 2.0 headers.

• Video Outputs:

  • 1 x DisplayPort.

  • 1 x HDMI™ port.

  • 1 x VGA port.

• Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC.

• Cooling:

  • VRM heatsinks.

  • M.2 heatsinks.

  • PCH heatsink.

  • Hybrid fan headers.

  • Fan Xpert 2+ software for fan control.

• Special Features:

  • ASUS 5X Protection III.

  • SafeSlot Core+.

  • Stainless-Steel Back I/O.

  • Q-DIMM, Q-Slot, Q-LED Core.

  • Aura Sync RGB Lighting.

  • Thunderbolt™ (USB4®) header support.
