Description

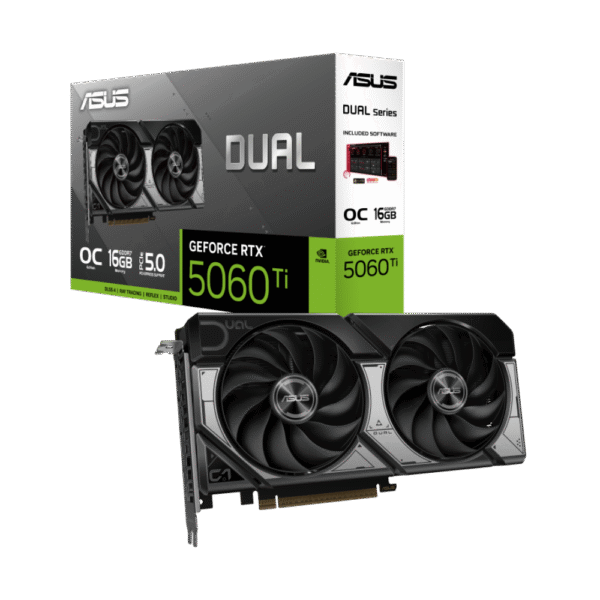

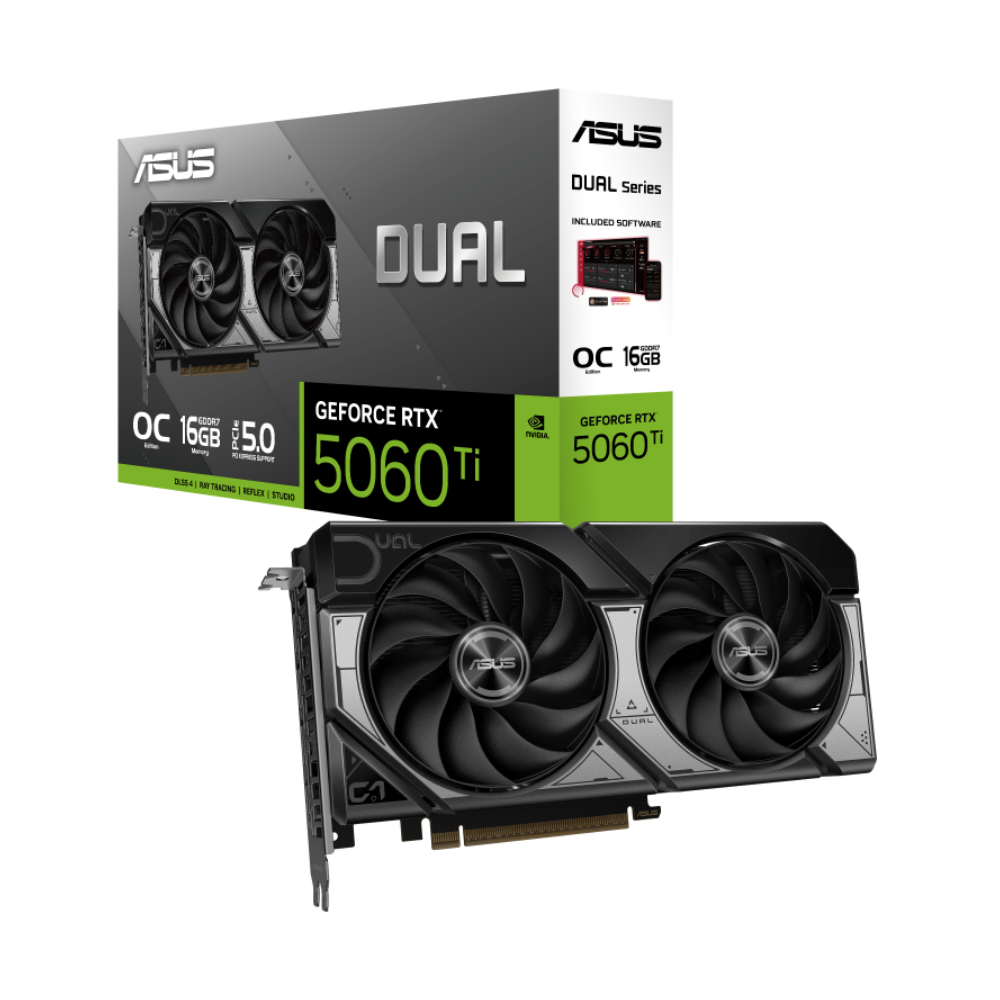

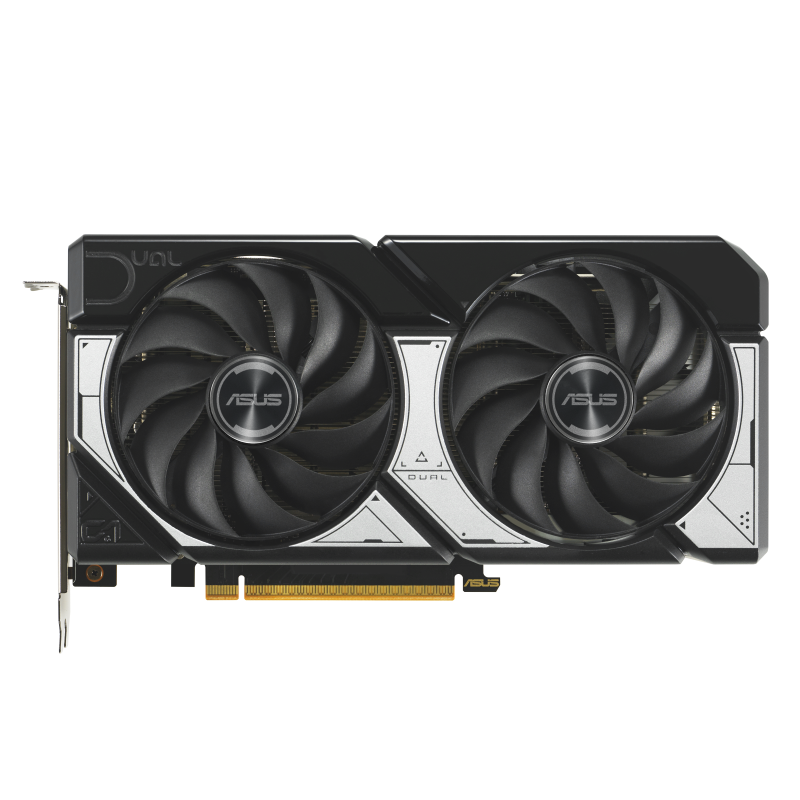

The ASUS Dual GeForce RTX™ 5060 Ti 16GB GDDR7 OC Edition is engineered for gamers and creators seeking high-performance graphics with uncompromising reliability. Powered by NVIDIA’s Blackwell architecture, it features 16GB of ultra-fast GDDR7 memory, delivering smooth 1440p gaming experiences and efficient creative workflows. The card boasts a 2.5-slot design with two Axial-tech fans for optimized airflow and a vented backplate for enhanced heat dissipation. Dual BIOS allows users to switch between Quiet and Performance modes, tailoring acoustics and performance to their preferences. With AI capabilities like DLSS 4 and support for NVIDIA G-SYNC, this GPU ensures immersive visuals and responsive gameplay.

Key Features

• NVIDIA Blackwell Architecture: Delivers enhanced performance and efficiency for gaming and creative applications.

• 16GB GDDR7 Memory: Provides ample memory for high-resolution textures and demanding workloads.

• OC Mode Boost Clock: 2632 MHz for optimal performance.

• Dual BIOS: Switch between Quiet and Performance modes to balance acoustics and power.

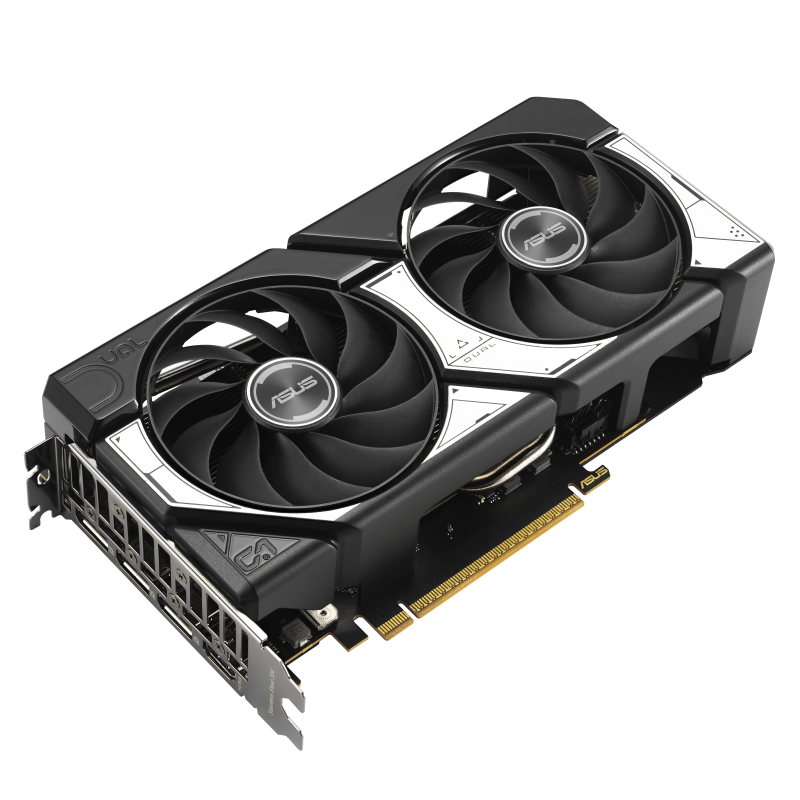

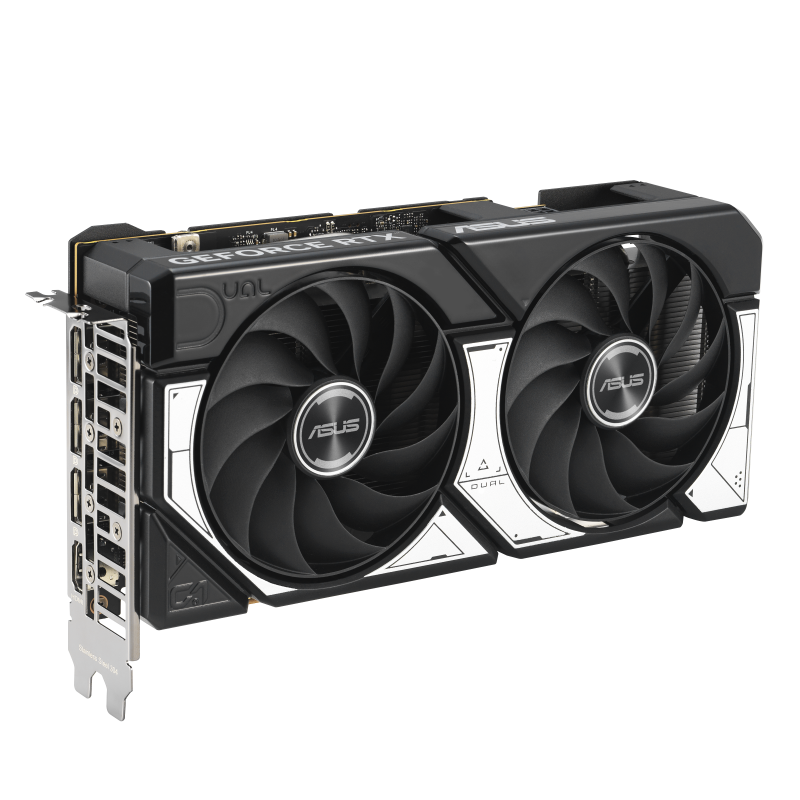

• Axial-Tech Fans: Designed for improved airflow and reduced noise.

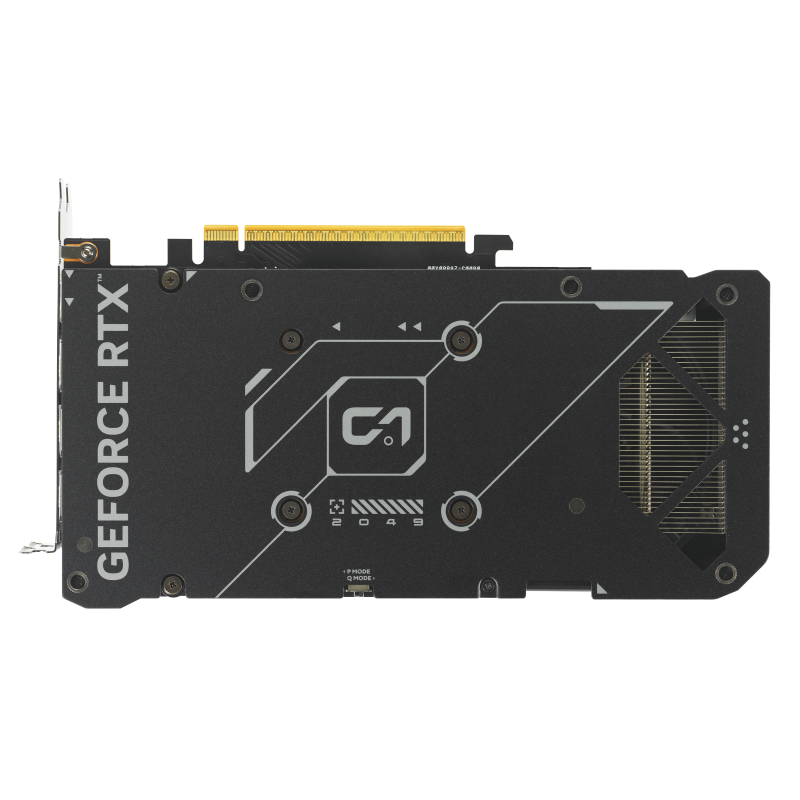

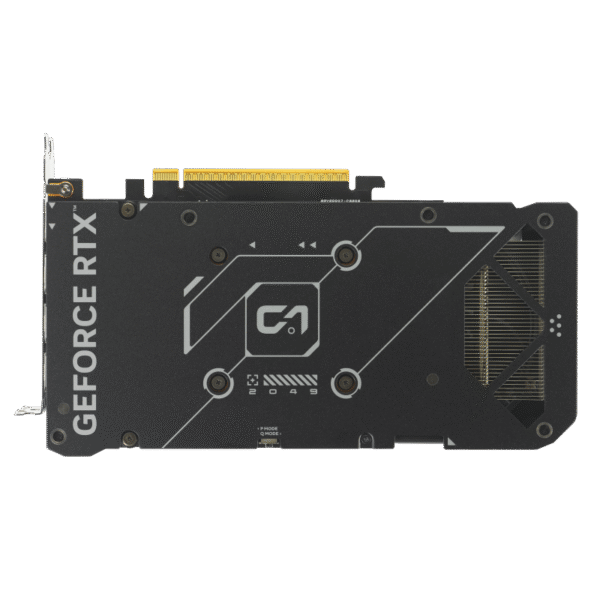

• Vented Backplate: Enhanced cooling for optimal performance.

• Dual-Ball Fan Bearings: Provide superior durability and can last up to twice as long as sleeve-bearing designs.

• 0dB Technology: Automatically halts all fans when the GPU temperature drops below 50°C and power consumption is low.

• GPU Tweak III: Ultimate GPU tuning utility.

• MuseTree: Grow your dreams with AI magic.

• Ideal PSU Companion: ASUS Prime Gold 850W/750W.

Key Specifications

• Graphics Engine: NVIDIA® GeForce RTX™ 5060 Ti

• CUDA Cores: 4608

• Memory: 16GB GDDR7

• Memory Speed: 28 Gbps

• Memory Interface: 128-bit

• Engine Clock:

  • OC Mode: 2632 MHz

  • Default Mode: 2602 MHz (Boost Clock)

• Bus Standard: PCI Express 5.0

• Maximum Digital Resolution: 7680 x 4320

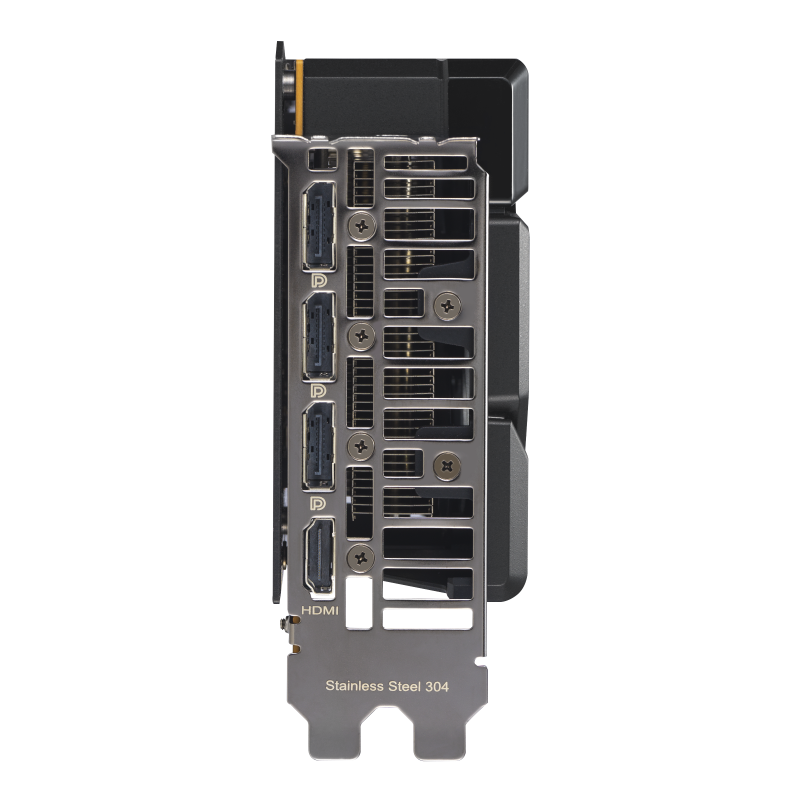

• Display Outputs:

  • 1 x HDMI 2.1b

  • 3 x DisplayPort 2.1b

• HDCP Support: Yes (2.3)

• Maximum Displays Supported: 4

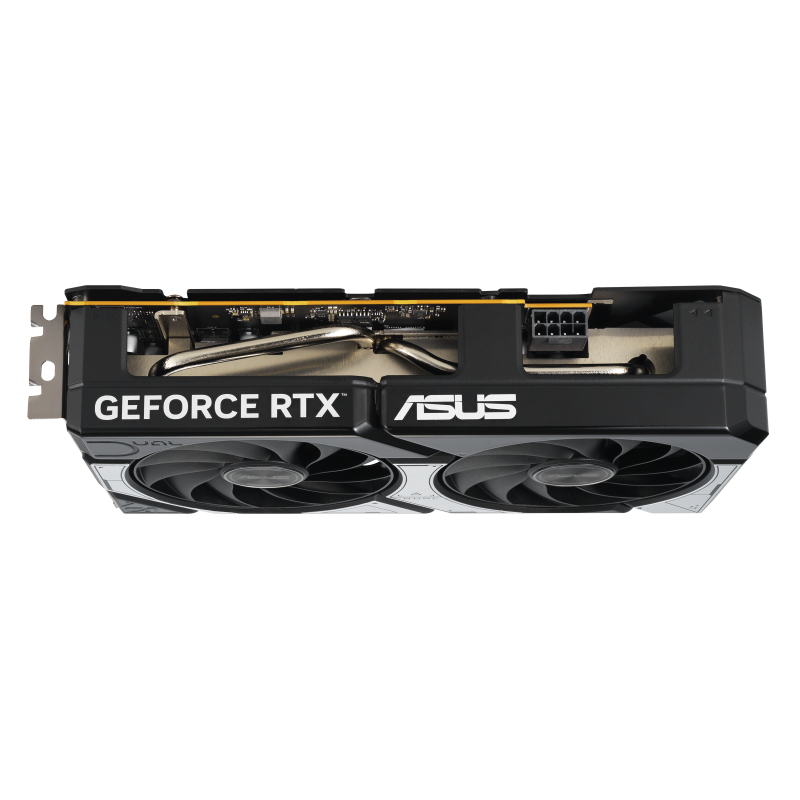

• Power Connectors: 1 x 8-pin

• Recommended PSU: 550W

• Slot Size: 2.5-slot

• Dimensions: 229 x 120 x 50 mm

• Software: ASUS GPU Tweak III, MuseTree, GeForce Game Ready Driver, Studio Driver

• Included Accessories:

  • Speedsetup Manual

  • Thank You Card
