Description:

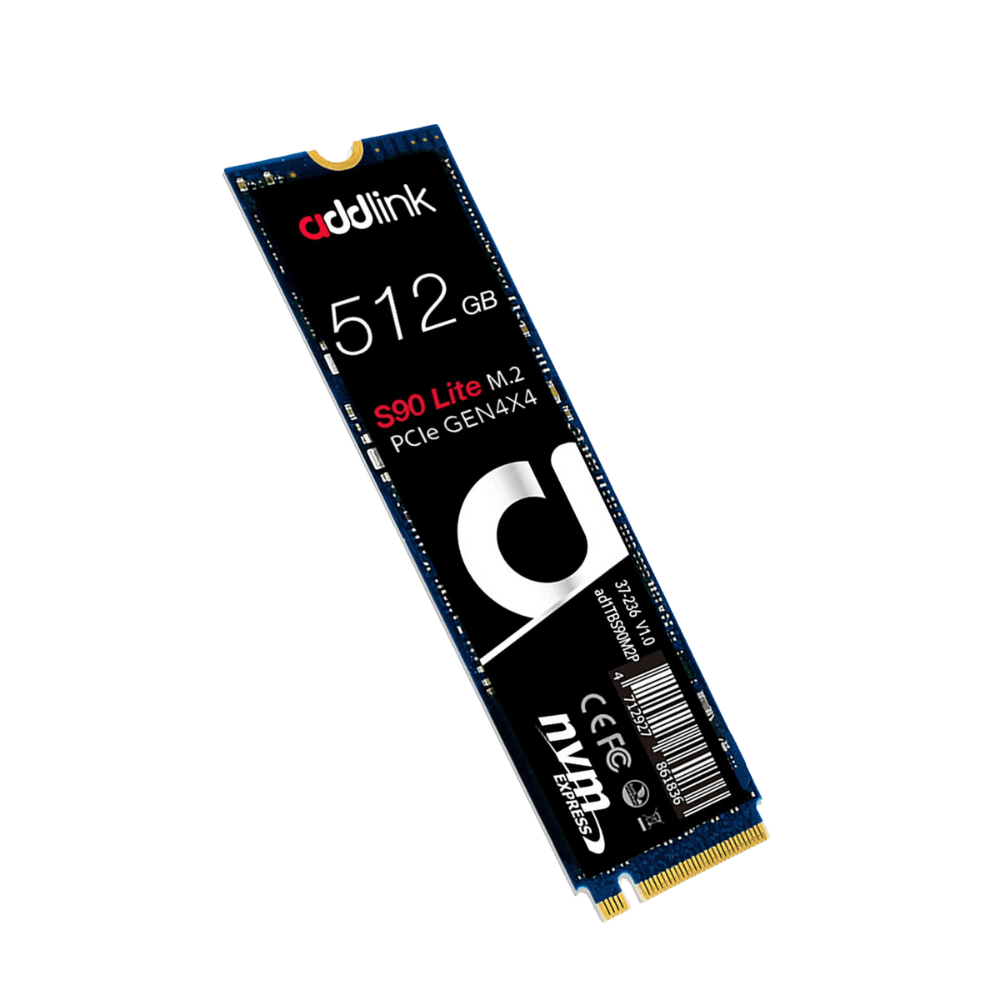

The Addlink S90 Lite 512GB SSD is engineered for users seeking exceptional storage performance. Featuring the latest PCIe Gen 4.0 x4 interface and NVMe 1.4 protocol, it offers sequential read speeds up to 5000 MB/s and write speeds up to 2500 MB/s. The drive employs 3D TLC NAND flash memory and supports Host Memory Buffer (HMB) technology, enhancing overall system responsiveness. With a compact M.2 2280 form factor, it’s compatible with a wide range of desktops and laptops, including the latest Intel and AMD platforms.

Key Features

• High-Speed Performance: Achieves sequential read speeds up to 5000 MB/s and write speeds up to 2500 MB/s, significantly outperforming SATA SSDs.

• Advanced NAND Technology: Utilizes 3D TLC NAND flash for improved endurance and reliability.

• Host Memory Buffer (HMB) Support: Enhances performance by utilizing part of the host system’s DRAM.

• Compact M.2 2280 Form Factor: Ensures compatibility with a wide range of devices.

• Backward Compatibility: Fully compatible with PCIe Gen 3.0 systems.

• 5-Year Warranty: Provides peace of mind with a 5-year limited warranty.

Key Specifications

• Capacity: 512GB

• Interface: PCIe Gen 4.0 x4, NVMe 1.4

• Form Factor: M.2 2280

• Sequential Read Speed: Up to 5000 MB/s

• Sequential Write Speed: Up to 2500 MB/s

• Random Read IOPS: Up to 250,000

• Random Write IOPS: Up to 350,000

• NAND Flash Type: 3D TLC NAND

• Controller: Phison PS5021-E21T

• DRAM Cache: None (HMB supported)

• MTBF (Mean Time Between Failures): 1.5 million hours

• Operating Temperature: 0°C to 70°C

• Dimensions: 80 mm x 22 mm x 3.5 mm

• Weight: Approximately 8.2 grams
