Description:

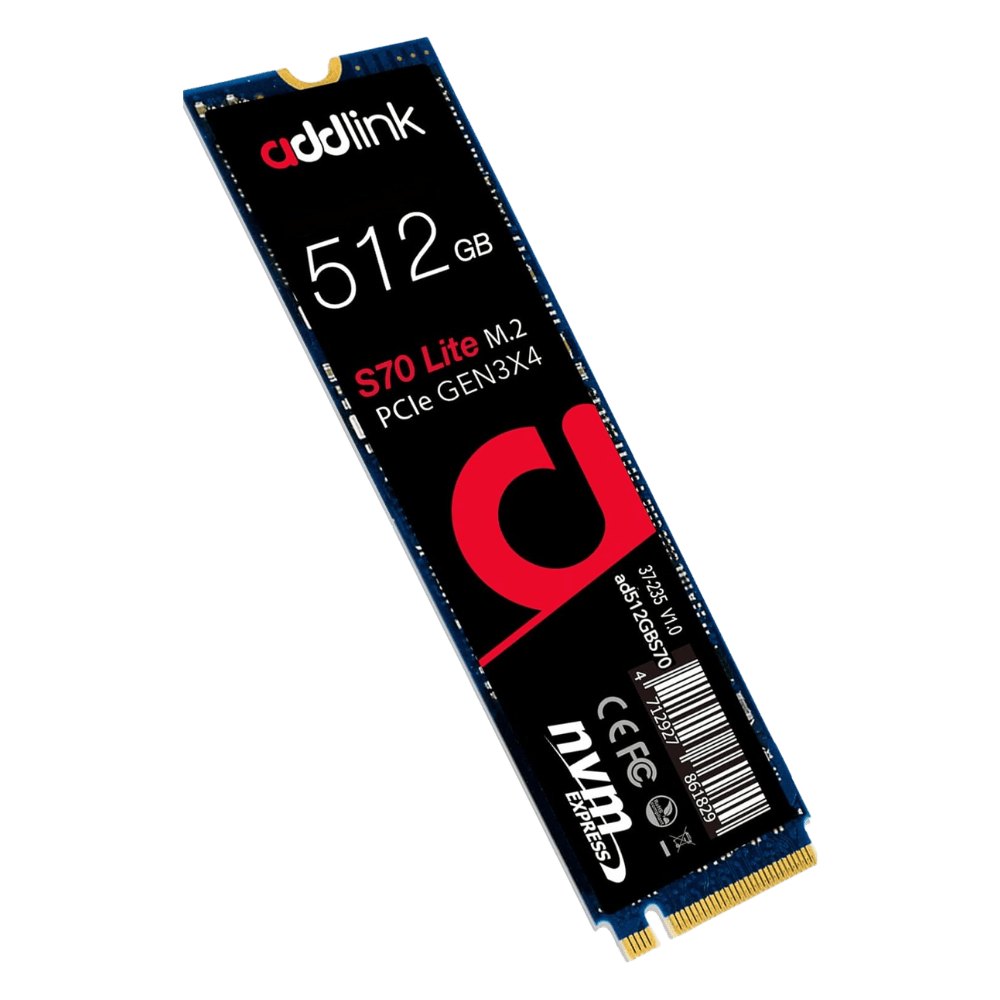

The Addlink S70 512GB SSD is engineered for users seeking exceptional storage performance. Featuring the Phison PS5012-E12 controller and 64-layer Toshiba BiCS3 3D TLC NAND flash, it offers sequential read speeds up to 3,400 MB/s and write speeds up to 2,000 MB/s. The drive employs a DRAM cache of 512MB DDR3L and supports SLC caching for improved write performance. With a compact M.2 2280 form factor, it’s compatible with a wide range of desktops and laptops.

Key Features

• High-Speed Performance: Achieves sequential read speeds up to 3,400 MB/s and write speeds up to 2,000 MB/s, significantly outperforming SATA SSDs.

• Advanced NAND Technology: Utilizes 64-layer Toshiba BiCS3 3D TLC NAND flash for improved endurance and reliability.

• DRAM Cache: Equipped with a 512MB DDR3L cache for enhanced performance.

• SLC Caching: Supports SLC caching to boost write speeds during burst operations.

• Compact M.2 2280 Form Factor: Ensures compatibility with a wide range of devices.

Key Specifications

• Capacity: 512GB

• Interface: PCIe Gen 3.0 x4, NVMe 1.3

• Form Factor: M.2 2280

• Sequential Read Speed: Up to 3,400 MB/s

• Sequential Write Speed: Up to 2,000 MB/s

• Random Read IOPS: Up to 190,000

• Random Write IOPS: Up to 110,000

• NAND Flash Type: 64-layer Toshiba BiCS3 3D TLC NAND

• Controller: Phison PS5012-E12

• DRAM Cache: 512MB DDR3L

• MTBF (Mean Time Between Failures): 2.0 million hours

• Operating Temperature: 0°C to 70°C

• Dimensions: 80 mm x 22 mm x 3.5 mm

• Weight: Approximately 8.2 grams
